HAC-24

< FUNCTION DIAGNOSIS >

[AUTOMATIC AIR CONDITIONER]

AUTOMATIC AIR CONDITIONER SYSTEM

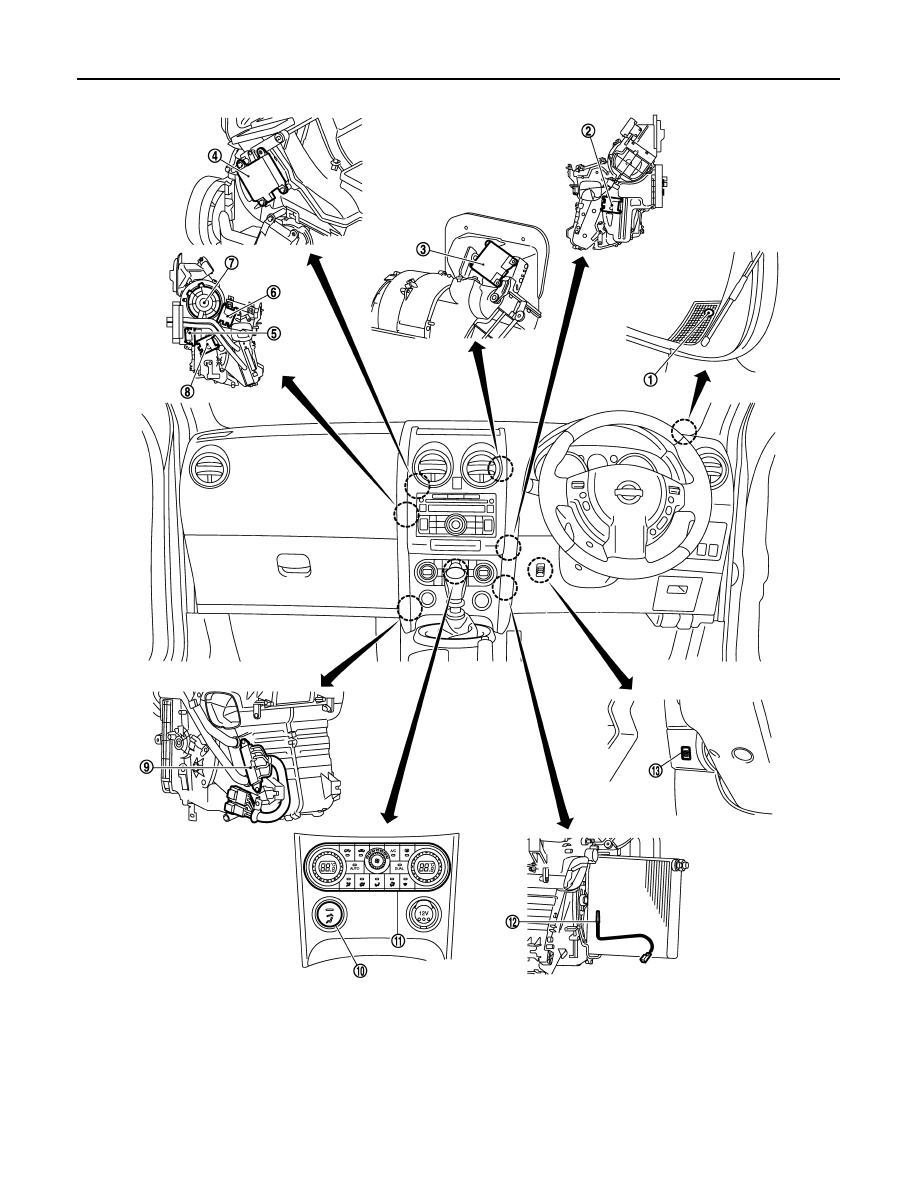

Component Description

INFOID:0000000001116806

1.

Sunload sensor

2.

Air mix door motor (driver side)

3.

Intake door motor

4.

High-level ventilator door motor

5.

Fan control amp.

6.

Mode door motor

7.

Blower motor

8.

Air mix door motor (passenger side)

9.

PTC heater

10. High-level ventilator switch

11.

Auto amp.

12. Intake sensor

13. In-vehicle sensor

JPIIA0163ZZ

AUTOMATIC AIR CONDITIONER SYSTEM

HAC-25

< FUNCTION DIAGNOSIS >

[AUTOMATIC AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

Component

Reference

Air mix door motor

HAC-54, "Description"

Auto amp.

HAC-89, "Description"

Blower motor

HAC-62, "Description"

Compressor

HAC-66, "Description"

Fan control amp.

HAC-65, "Component Inspection"

High-level ventilator door motor

HAC-50, "Description"

High-level ventilator switch

HAC-52, "Component Inspection"

Intake door motor

HAC-59, "Description"

Intake sensor

HAC-86, "Description"

In-vehicle sensor

HAC-80, "Description"

Mode door motor

HAC-47, "Description"

OAT sensor

HAC-77, "Description"

PTC heater

HAC-76, "Component Inspection"

Refrigerant pressure sensor

HAC-70, "Component Inspection"

Sunload sensor

HAC-83, "Description"

HAC-26

< FUNCTION DIAGNOSIS >

[AUTOMATIC AIR CONDITIONER]

CAN COMMUNICATION SYSTEM

CAN COMMUNICATION SYSTEM

System Description

INFOID:0000000000954635

CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN-H line, CAN-L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only. For details, refer to

LAN-55,

"CAN System Specification Chart"

.

DIAGNOSIS SYSTEM (AUTO AMP.)

HAC-27

< FUNCTION DIAGNOSIS >

[AUTOMATIC AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

DIAGNOSIS SYSTEM (AUTO AMP.)

Diagnosis Description

INFOID:0000000000954636

SELF-DIAGNOSIS SYSTEM

The self-diagnosis system is built into the auto amp. to quickly locate the cause of malfunctions.

SELF-DIAGNOSIS FUNCTION

The self-diagnosis system diagnoses sensors, door motors, blower motor, etc. by system line. Refer to appli-
cable sections (items) for details. Shifting from normal control to the self-diagnosis system is accomplished by
starting the engine (turning the ignition switch ON) and pressing ON/OFF switch for at least 5 seconds. The
ON/OFF switch must be pressed within 10 seconds after starting the engine (ignition switch is turned ON).
This system will be canceled by either pressing AUTO switch or turning the ignition switch OFF. Shifting from
one step is accomplished by means of turning temperature control dial (driver side), as required.
Shifting from STEP-5 to AUXILIARY MECHANISM is accomplished by means of pressing fan control dial
clockwise.

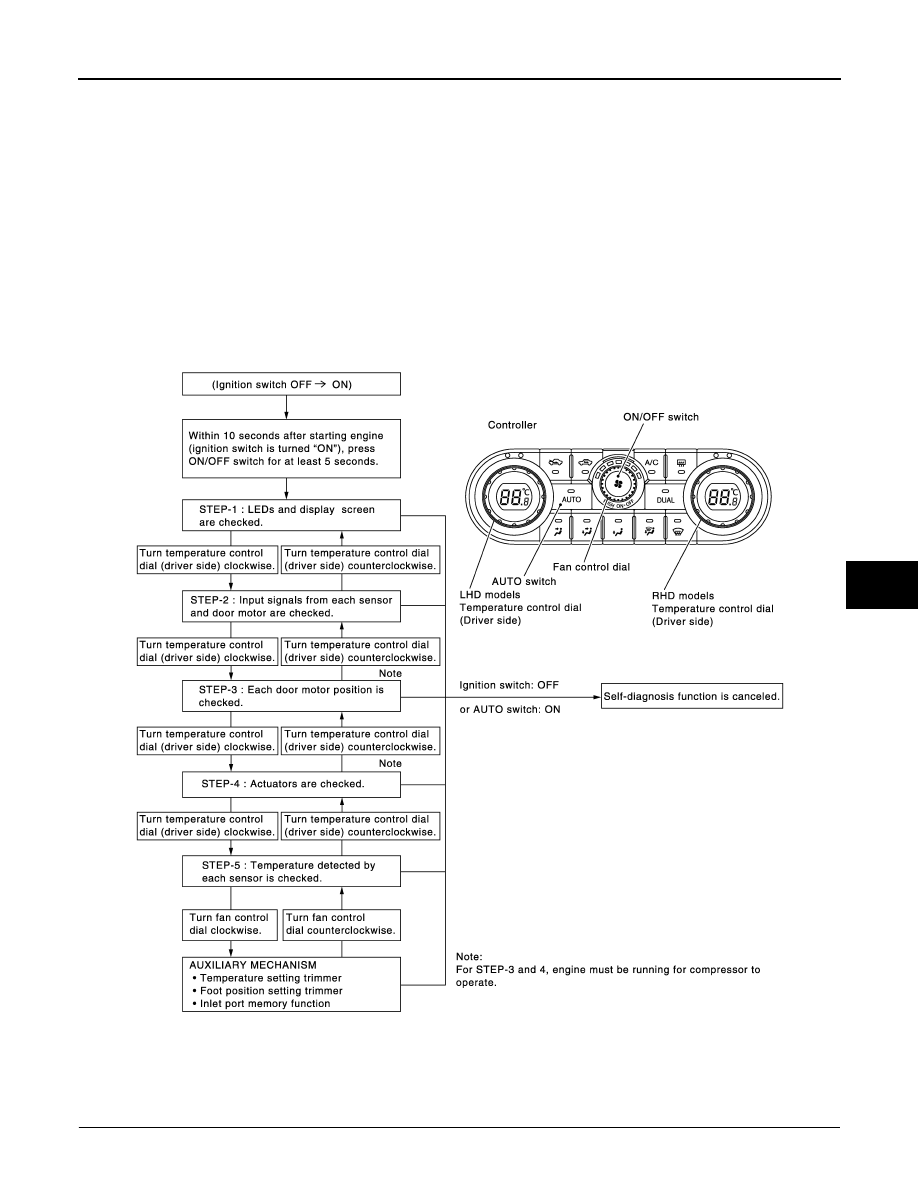

CONFORMATION METHOD

1.

SET IN SELF-DIAGNOSIS MODE

JPIIA0121GB
