HA-126

< PREPARATION >

[MANUAL AIR CONDITIONER (HR/MR)]

PREPARATION

PREPARATION

HFC-134a (R-134a) Service Tools and Equipment

INFOID:0000000001098152

Never mix HFC-134a (R-134a) refrigerant and/or its specified lubricant with CFC-12 (R-12) refrigerant and/or
its lubricant.
Separate and non-interchangeable service equipment must be used for handling each type of refrigerant/lubri-
cant.
Refrigerant container fittings, service hose fittings and service equipment fittings (equipment which handles
refrigerant and/or lubricant) are different between CFC-12 (R-12) and HFC-134a (R-134a). This is to avoid
mixed use of the refrigerants/lubricant.
Adapters that convert one size fitting to another must never be used: refrigerant/lubricant contamination will
occur and compressor malfunction will result.

Tool number
Tool name

Description

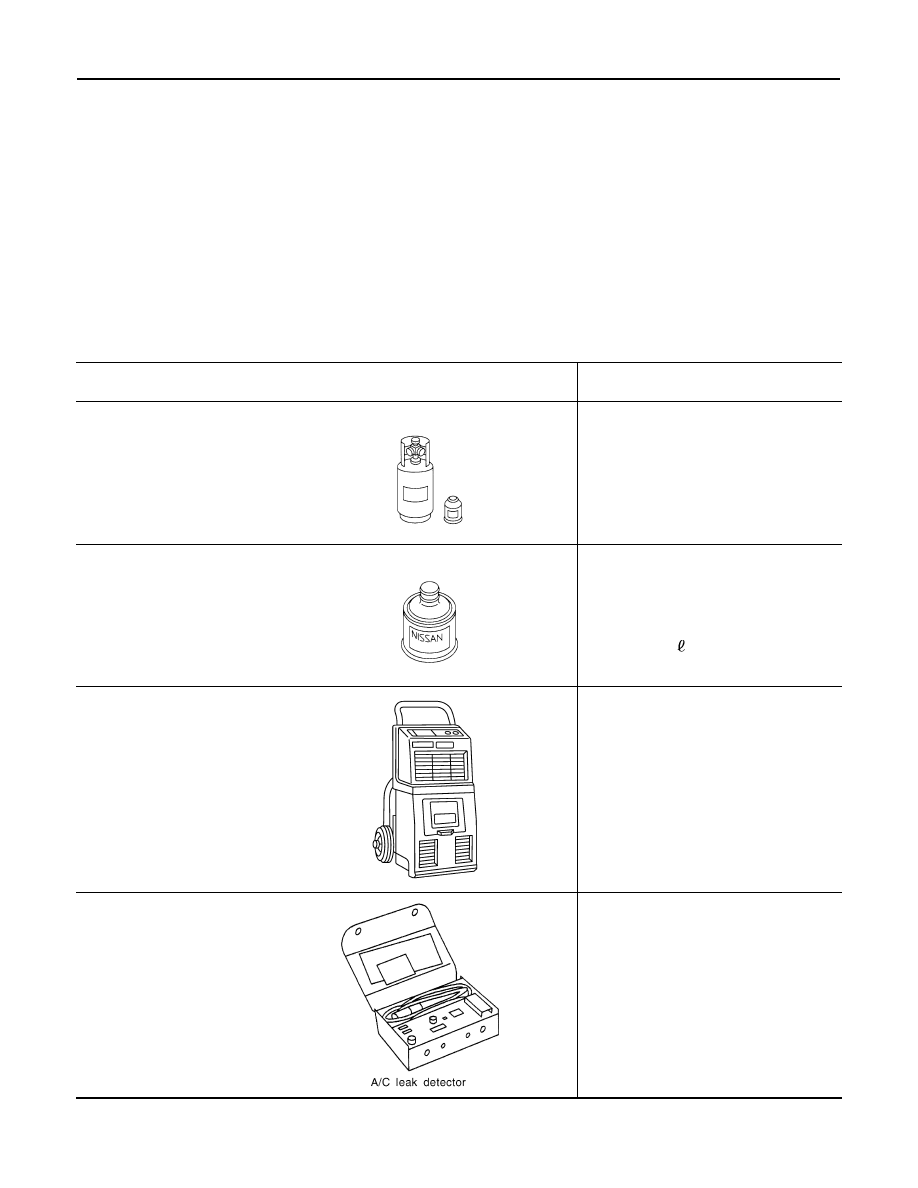

HFC-134a (R-134a) refrigerant

Container color: Light blue
Container marking: HFC-134a (R-134a)
Fitting size: Thread size
• Large container 1/2

″

-16 ACME

KLH00-PAGS0
Nissan A/C System Oil Type S
(DH-PS)

Type: Polyalkylene glycol oil (PAG), type S
(DH-PS)
Application: HFC-134a (R-134a) wobble
(swash) plate compressors (Nissan only)

Lubricity: 40 m

(1.4 Imp fl oz.)

Recovery/Recycling/
Recharging equipment (ACR4)

Function: Refrigerant recovery and recy-
cling and recharging

Electrical leak detector

Power supply:
DC 12V (Cigarette lighter)

S-NT196

S-NT197

RJIA0195E

SHA705EB

PREPARATION

HA-127

< PREPARATION >

[MANUAL AIR CONDITIONER (HR/MR)]

(J-43926)

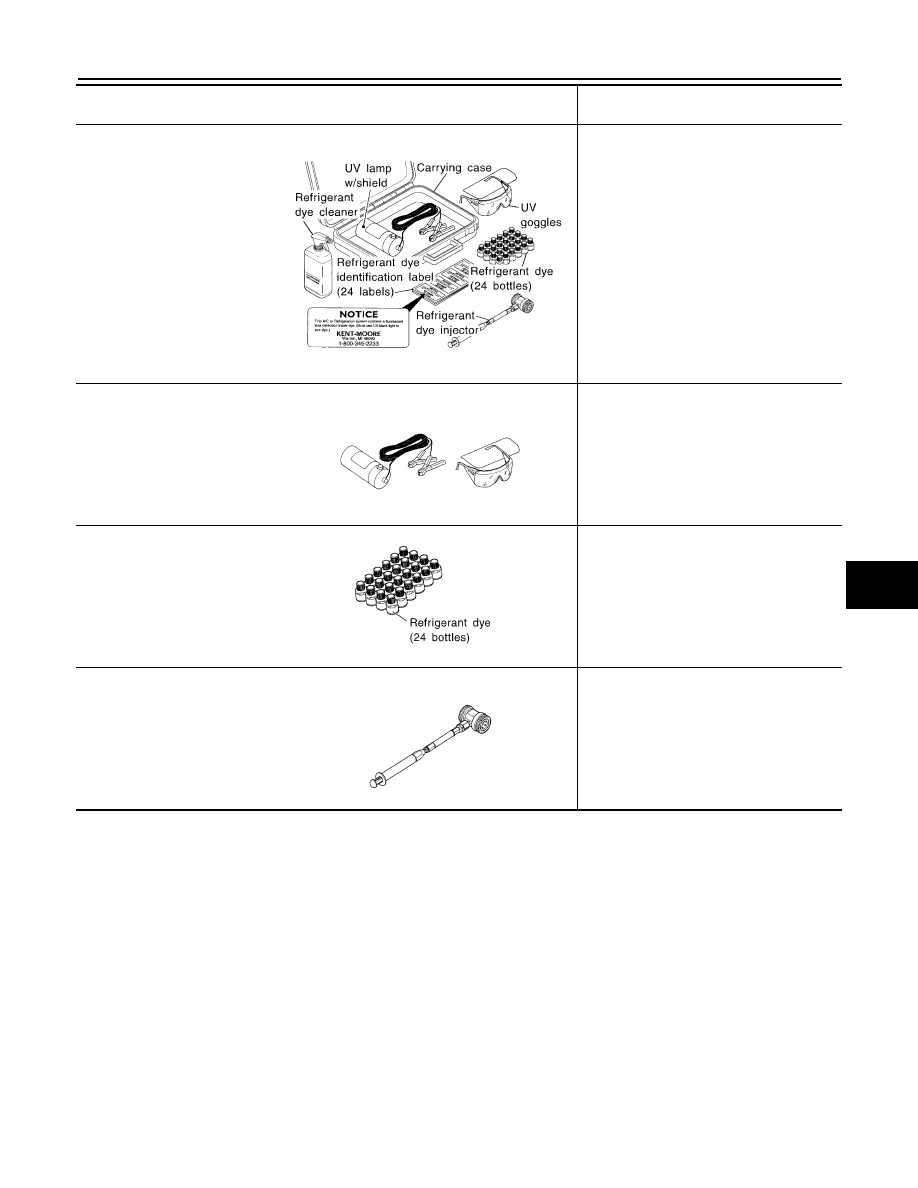

Refrigerant dye leak detection
kit
Kit includes:
(J-42220)
UV lamp and UV safety goggles
(J-41459)
HFC-134a (R-134a) dye injector
Use with J-41447, 1/4 ounce
bottle
(J-41447)
HFC-134a (R-134a) fluorescent
leak detection dye
(Box of 24, 1/4 ounce bottles)

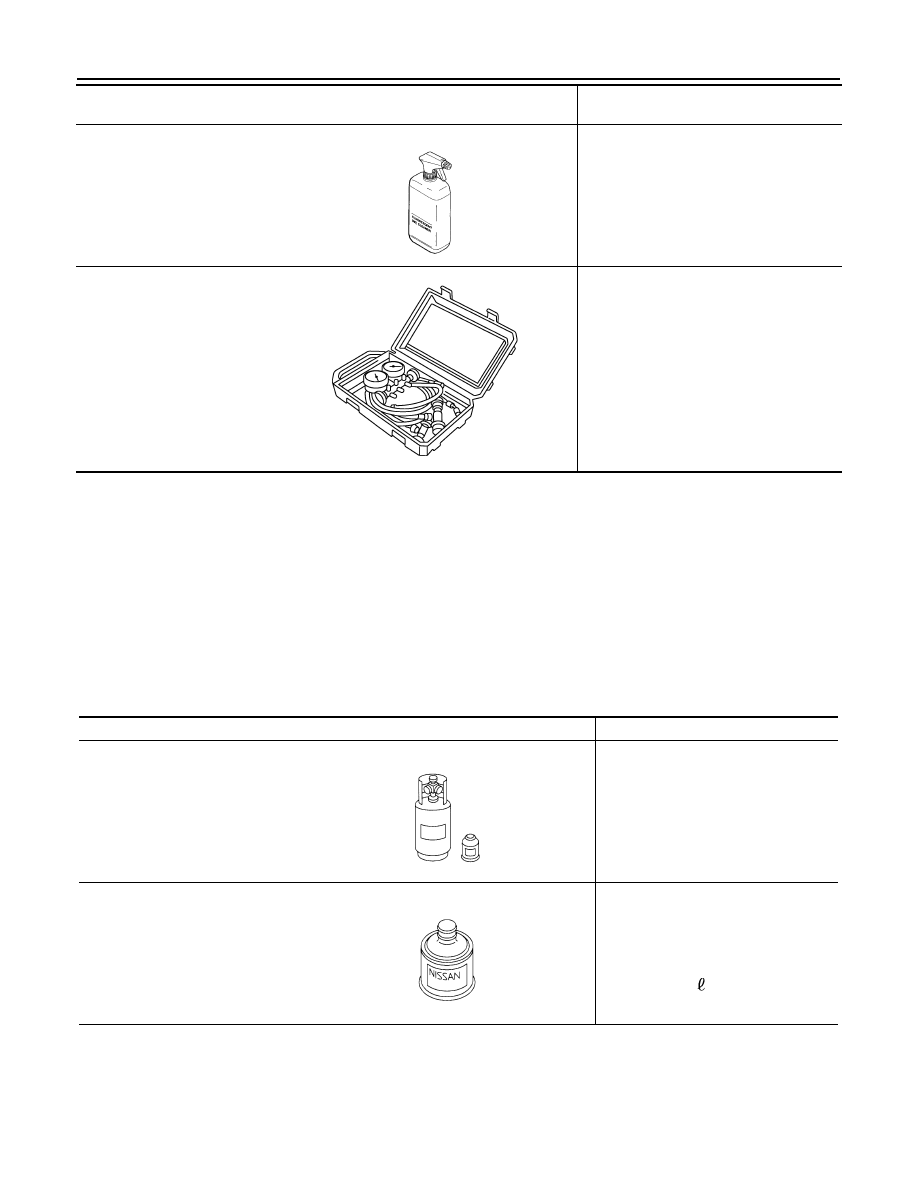

(J-43872)
Refrigerant dye cleaner

Power supply:
DC 12 V (Battery terminal)

(J-42220)
UV lamp and UV safety goggles

Power supply:
DC 12 V (Battery terminal)
For checking refrigerant leak when
fluorescent dye is installed in A/C system
Includes:
UV lamp and UV safety goggles

(J-41447)
HFC-134a (R-134a) fluorescent
leak detection dye
(Box of 24, 1/4 ounce bottles)

Application:
For HFC-134a (R-134a) PAG oil
Container:
1/4 ounce (7.4 cc) bottle
(Includes self-adhesive dye identification
labels for affixing to vehicle after charging
system with dye.)

(J-41459)
HFC-134a (R-134a) dye injector
Use with J-41447, 1/4 ounce
bottle

For injecting 1/4 ounce of fluorescent leak
detection dye into A/C system

Tool number
Tool name

Description

ZHA200H

SHA438F

SHA439F

SHA440F

HA-128

< PREPARATION >

[MANUAL AIR CONDITIONER (HR/MR)]

PREPARATION

Sealant or/and Lubricant

INFOID:0000000001098154

HFC-134a (R-134a) Service Tool and Equipment

• Never mix HFC-134a (R-134a) refrigerant and/or its specified lubricant with CFC-12 (R-12) refrigerant and/

or its lubricant.

• Separate and non-interchangeable service equipment must be used for handling each type of refrigerant/

lubricant.

• Refrigerant container fittings, service hose fittings and service equipment fittings (equipment which handles

refrigerant and/or lubricant) are different between CFC-12 (R-12) and HFC-134a (R-134a). This is to avoid
mixed use of the refrigerants/lubricant.

• Never use adapters that convert one size fitting to another: refrigerant/lubricant contamination occurs and

compressor malfunction may result.

(J-43872)
Refrigerant dye cleaner

For cleaning dye spills

(J-39183)
Manifold gauge set (with hoses
and couplers)

Identification:
• The gauge face indicates HFC-134a (R-

134a).

Fitting size: Thread size

• 1/2

″

-16 ACME

Tool number
Tool name

Description

SHA441F

RJIA0196E

Tool name

Description

HFC-134a (R-134a) refrigerant

Container color: Light blue
Container marking: HFC-134a (R-
134a)
Fitting size: Thread size

• Large container 1/2

″

-16 ACME

Nissan A/C System Oil Type S
(DH-PS)

Type: Polyalkylene glycol oil (PAG),
type S (DH-PS)
Application:
HFC-134a (R-134a) swash plate com-
pressors (Nissan only)

Capacity: 40 m

(1.4 US fl oz., 1.4

Imp fl oz.)

S-NT196

S-NT197

LUBRICANT

HA-129

< ON-VEHICLE MAINTENANCE >

[MANUAL AIR CONDITIONER (HR/MR)]

ON-VEHICLE MAINTENANCE

LUBRICANT

Adjustment

INFOID:0000000001098155

LUBRICANT RETURN OPERATION

Adjust the lubricant quantity according to the test group shown below.

CHECK LUBRICANT RETURN OPERATION

Can lubricant return operation be performed?
• A/C system works properly.
• There is no evidence of a large amount of lubricant leakage.

CAUTION:

If excessive lubricant leakage is noted, never perform the lubricant return operation.

Is it successful?

YES

>> GO TO 2.

>> GO TO 3.

PERFORM LUBRICANT RETURN OPERATION, PROCEEDING AS FOLLOWS

Start the engine, and set to the following conditions:

Engine speed: Idling to 1,200 rpm

A/C switch: ON

Blower speed: Max. position

Temp. control: Optional [Set so that intake air temperature is 25 to 30

C (77 to 86

F).]

Intake position: Recirculation (REC)

Perform lubricant return operation for about 10 minutes.

Stop the engine.

>> GO TO 3.

CHECK REPLACEMENT PART

Should the compressor be replaced?

YES

>> Refer to "LUBRICANT ADJUSTING PROCEDURE FOR COMPRESSOR REPLACEMENT".

>> Refer to "LUBRICANT ADJUSTING PROCEDURE FOR COMPONENTS REPLACEMENT

EXCEPT COMPRESSOR".

LUBRICANT ADJUSTING PROCEDURE FOR COMPONENTS REPLACEMENT EXCEPT COM-
PRESSOR

After replacing any of the following major components, add the correct amount of lubricant to the system.
Amount of lubricant to be added:

*1: If the refrigerant leak is small, no addition of lubricant is needed.

LUBRICANT ADJUSTING PROCEDURE FOR COMPRESSOR REPLACEMENT

Part replaced

Lubricant to be added to system

Remarks

Amount of lubricant

(US fl oz., Imp fl oz.)

Evaporator

75 (2.5, 2.6)

—

Condenser

35 (1.2, 1.2)

—

Liquid tank

10 (0.3, 0.4)

—

In case of refrigerant leak

30 (1.0, 1.1)

Large leak

—

Small leak
