DUCTS AND GRILLES

VTL-89

< ON-VEHICLE REPAIR >

[MANUAL AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

DUCTS AND GRILLES

CENTER VENTILATOR GRILLES

CENTER VENTILATOR GRILLES : Exploded View

INFOID:0000000001093856

CENTER VENTILATOR GRILLES : Removal and Installation

INFOID:0000000001093857

REMOVAL

1.

Remove cluster lid C. Refer to

IP-12, "Removal and Installation"

.

2.

Remove center ventilator grilles.

CAUTION:

Use shop cloth and all other protection necessaries to avoid damage.

INSTALLATION

Installation is basically the reverse order of removal.

SIDE VENTILATOR GRILLES

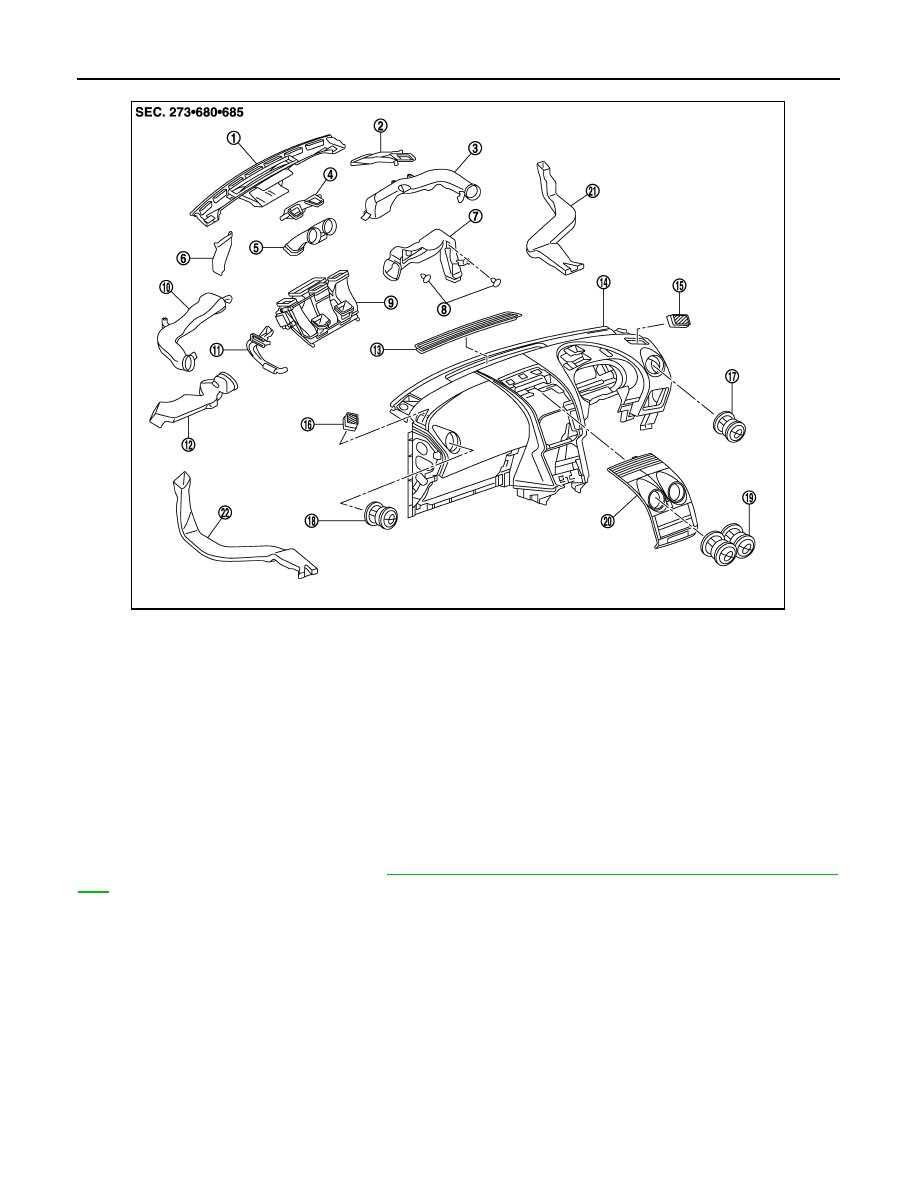

SIDE VENTILATOR GRILLES : Exploded View

INFOID:0000000001093858

1.

Center defroster duct

2.

Defroster duct - RH

3.

Side ventilator duct - RH

4.

Front upper ventilator duct

5.

Front ventilator duct

6.

Defroster duct - LH

7.

Side foot duct - RH

8.

Clip

9.

Air mix duct

10. Side ventilator duct - LH

11. Glove box duct

12. Side foot duct - LH

13. Front defroster grille - center

14. Instrument panel

15. Side defroster grille - RH

16. Side defroster grille - LH

17. Side ventilation grille - RH

18. Side ventilation grille - LH

19. Center ventilator grille

20. Cluster lid C

21. Floor duct - RH

22. Floor duct - LH

E1IIA0023ZZ

VTL-90

< ON-VEHICLE REPAIR >

[MANUAL AIR CONDITIONER]

DUCTS AND GRILLES

SIDE VENTILATOR GRILLES : Removal and Installation

INFOID:0000000001093859

REMOVAL

Remove side ventilator assembly. Refer to

VTL-90, "SIDE VENTILATOR GRILLES : Removal and Installa-

tion"

.

Use flat screw driver and shop cloth to remove side ventilator grille from the instrument panel.

INSTALLATION

Installation is basically the reverse order of removal.

FRONT DEFROSTER NOZZLE, SIDE DEFROSTER NOZZLES AND VENTILA-
TOR DUCT

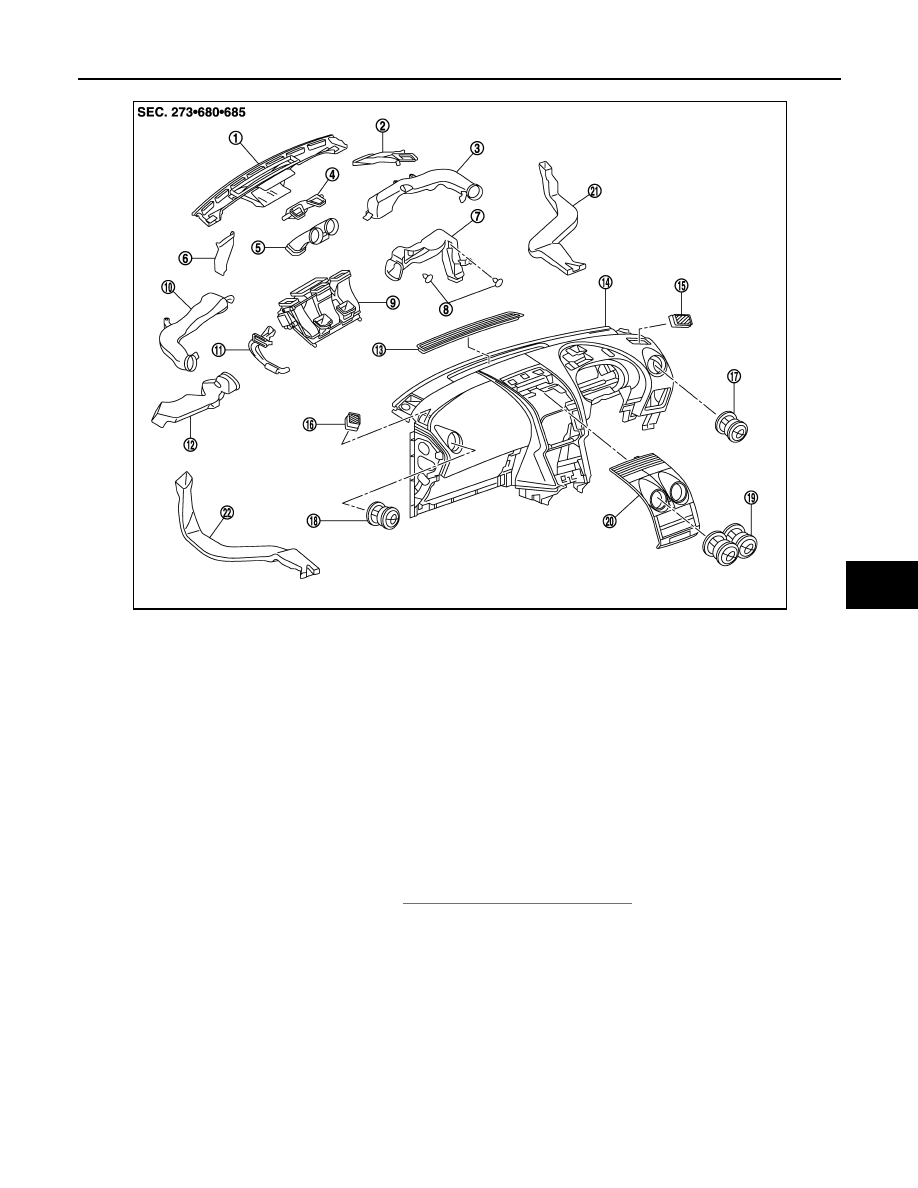

FRONT DEFROSTER NOZZLE, SIDE DEFROSTER NOZZLES AND VENTILATOR
DUCT : Exploded View

INFOID:0000000001093860

1.

Center defroster duct

2.

Defroster duct - RH

3.

Side ventilator duct - RH

4.

Front upper ventilator duct

5.

Front ventilator duct

6.

Defroster duct - LH

7.

Side foot duct - RH

8.

Clip

9.

Air mix duct

10. Side ventilator duct - LH

11. Glove box duct

12. Side foot duct - LH

13. Front defroster grille - center

14. Instrument panel

15. Side defroster grille - RH

16. Side defroster grille - LH

17. Side ventilation grille - RH

18. Side ventilation grille - LH

19. Center ventilation grille

20. Cluster lid C

21. Floor duct - RH

22. Floor duct - LH

E1IIA0023ZZ

DUCTS AND GRILLES

VTL-91

< ON-VEHICLE REPAIR >

[MANUAL AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

FRONT DEFROSTER NOZZLE, SIDE DEFROSTER NOZZLES AND VENTILATOR
DUCT : Removal and Installation

INFOID:0000000001093861

REMOVAL

1.

Remove instrument panel & pad. Refer to

IP-12, "Removal and Installation"

.

2.

Remove mounting screws.

3.

Remove clips, and then remove defroster nozzle, side defroster nozzle and ventilator duct.

INSTALLATION

Installation is basically the reverse order of removal.

SIDE DEFROSTER DUCTS

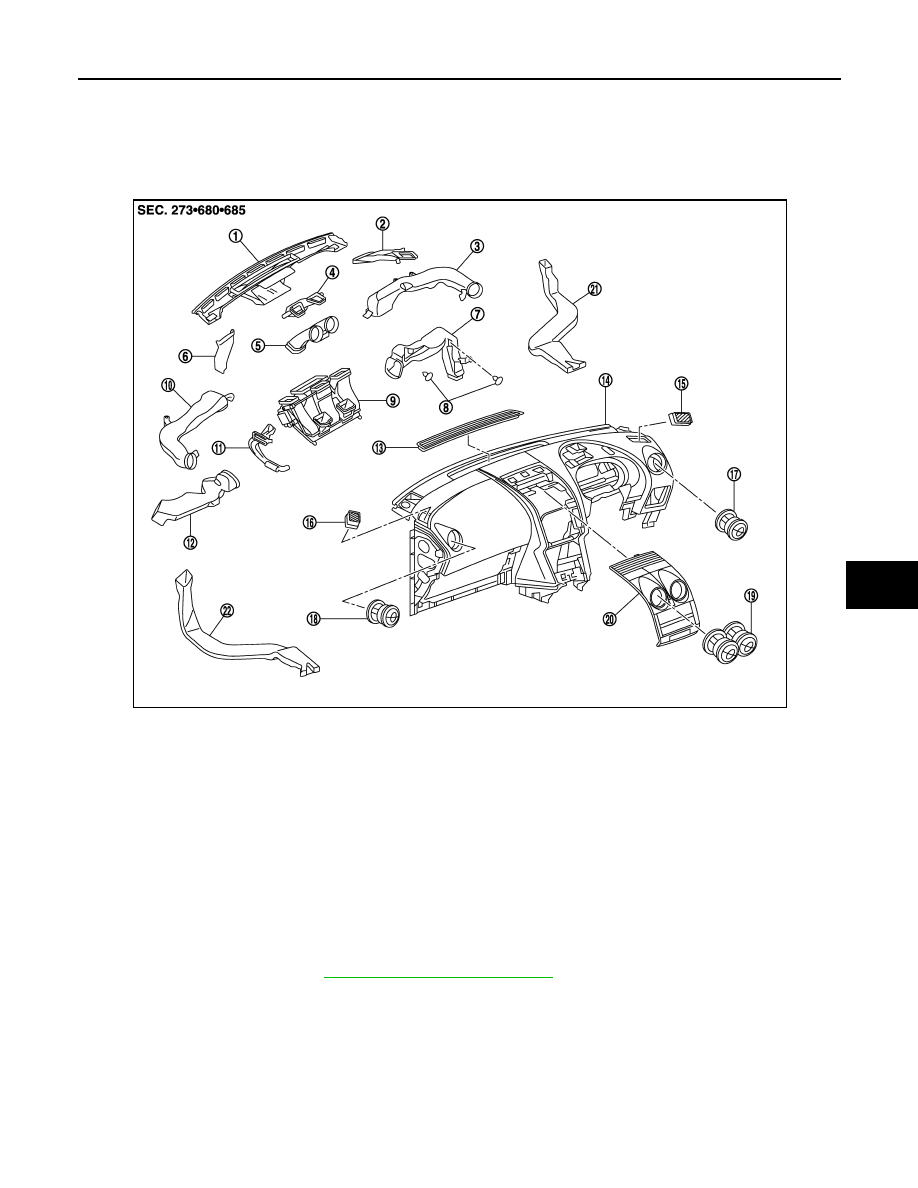

SIDE DEFROSTER DUCTS : Exploded View

INFOID:0000000001093862

1.

Center defroster duct

2.

Defroster duct - RH

3.

Side ventilator duct - RH

4.

Front upper ventilator duct

5.

Front ventilator duct

6.

Defroster duct - LH

7.

Side foot duct - RH

8.

Clip

9.

Air mix duct

10. Side ventilator duct - LH

11. Glove box duct

12. Side foot duct - LH

13. Front defroster grille - center

14. Instrument panel

15. Side defroster grille - RH

16. Side defroster grille - LH

17. Side ventilation grille - RH

18. Side ventilation grille - LH

19. Center ventilation grille

20. Cluster lid C

21. Floor duct - RH

22. Floor duct - LH

E1IIA0023ZZ

VTL-92

< ON-VEHICLE REPAIR >

[MANUAL AIR CONDITIONER]

DUCTS AND GRILLES

SIDE DEFROSTER DUCTS : Removal and Installation

INFOID:0000000001093863

REMOVAL

1.

Remove instrument panel. Refer to

IP-12, "Removal and Installation"

.

2.

Remove side ventilator ducts (RH/LH). Refer to

VTL-90, "SIDE VENTILATOR GRILLES : Removal and

Installation"

.

3.

Remover side defroster ducts (RH/LH) fixing screws.

4.

Pull to release from center defroster duct.

1.

Center defroster duct

2.

Defroster duct - RH

3.

Side ventilator duct - RH

4.

Front upper ventilator duct

5.

Front ventilator duct

6.

Defroster duct - LH

7.

Side foot duct - RH

8.

Clip

9.

Air mix duct

10. Side ventilator duct - LH

11. Glove box duct

12. Side foot duct - LH

13. Front defroster grille - center

14. Instrument panel

15. Side defroster grille - RH

16. Side defroster grille - LH

17. Side ventilation grille - RH

18. Side ventilation grille - LH

19. Center ventilation grille

20. Cluster lid C

21. Floor duct - RH

22. Floor duct - LH

E1IIA0023ZZ
