CAUTION:

The new and former refrigerant connections use different O-ring configurations. Never confuse O-
rings since they are not interchangeable. If a wrong O-ring is installed, refrigerant may leak at the con-
nection.

O-Ring Part Numbers and Specifications

O-RING AND REFRIGERANT CONNECTION (K9K)

Connection type

Piping connection point

Part number

QTY

O-ring size

New

Low pressure pipe 2 to expansion valve

92473 N8210

1

16

High pressure flexible pipe 1 to condenser

92472 N8210

1

12

High pressure pipe 1 to expansion valve

92471 N8210

1

8

Low pressure pipe 1 and high pressure

Inlet

92475 71L00

1

12

pipe 2 assembly to expansion valve

Outlet

92475 72L00

1

16

Low pressure pipe 1 and high pressure

Inlet

92475 71L00

1

12

pipe 2 assembly to evaporator

Outlet

92475 72L00

1

16

High pressure pipe 1 to liquid tank

92471 N8210

1

8

Compressor to low pressure flexible hose

92474 N8210

2

19

Compressor to high pressure flexible hose

92474 N8210

2

12

Liquid tank to condenser

92473 N8210

1

16

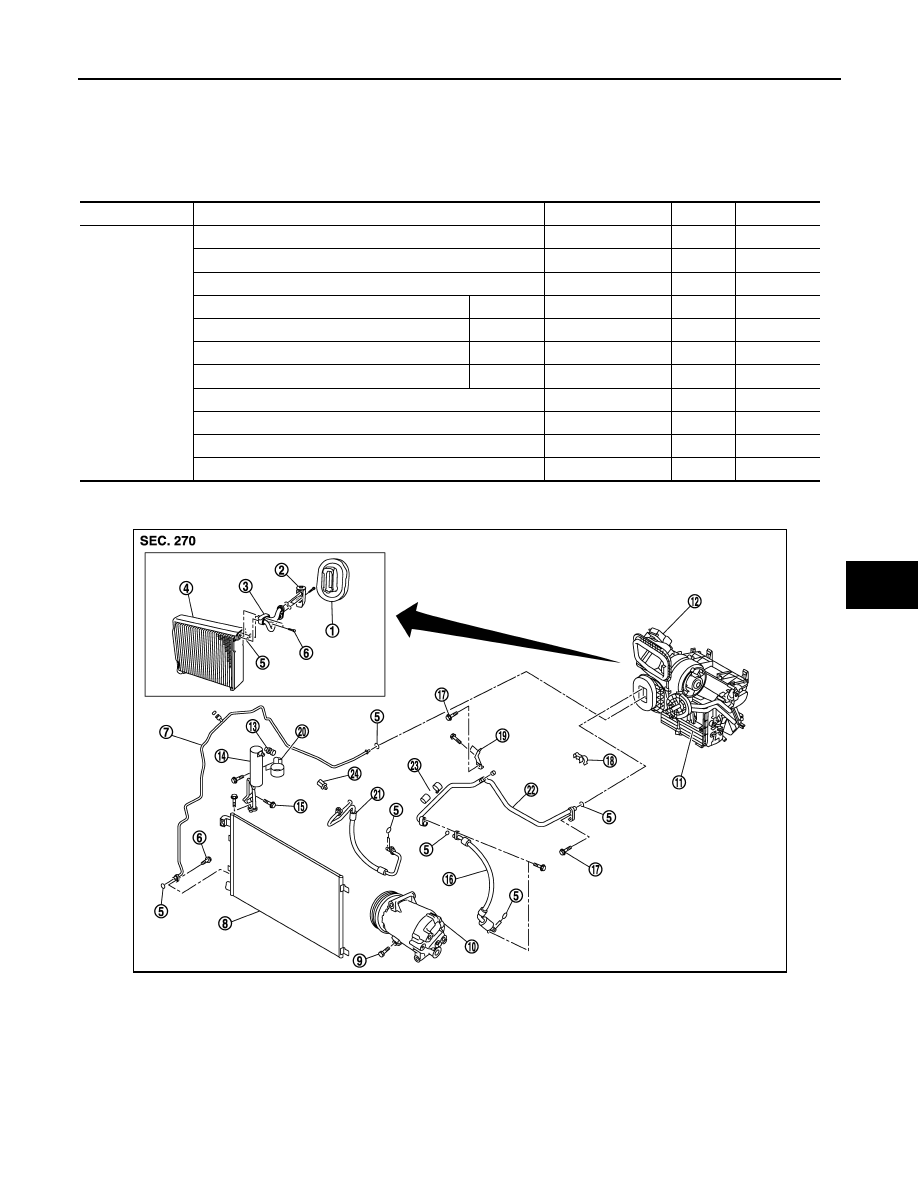

1.

Heater sealing

2.

Expansion valve

3.

Evaporator connector pipes

4.

Evaporator

5.

O-ring

6.

Connector pipe fixing bolt

7.

High pressure pipe

8.

Condenser assembly

9.

Fixing bolt

10.

Compressor

11.

Heater & cooling unit assembly

12. Heater & Blower unit assembly

13.

Refrigerant pressure sensor

14. Liquid tank

15. Liquid tank fixing screw

16.

Low pressure flexible hose

17. Fixing bolt

18. Pipes fixing clip

E1KIA0063GB

VTL-10

< PRECAUTION >

[AUTOMATIC AIR CONDITIONER]

PRECAUTIONS

CAUTION:

The new and former refrigerant connections use different O-ring configurations. Never confuse O-
rings since they are not interchangeable. If a wrong O-ring is installed, refrigerant may leak at the con-
nection.

O-Ring Part Numbers and Specifications

WARNING:

Make sure all refrigerant is discharged into the recycling equipment and the pressure in the system is
less than atmospheric pressure. Then gradually loosen the discharge side hose fitting and remove it.

CAUTION:

When replacing or cleaning refrigerant cycle components, observe the following.
• When the compressor is removed, store it in the same way at it is when mounted on the car. Failure

to do so will cause lubricant to enter the low-pressure chamber.

• When connecting tubes, always use a torque wrench and a back-up wrench.
• After disconnecting tubes, immediately plug all openings to prevent entry of dust and moisture.
• When installing an air conditioner in the vehicle, connect the pipes at the final stage of the operation.

Never remove the seal caps of pipes and other components until just before required for connection.

• Allow components stored in cool areas to warm to working area temperature before removing seal

caps. This prevents condensation from forming inside A/C components.

• Thoroughly remove moisture from the refrigeration system before charging the refrigerant.
• Always replace used O-rings.
• When connecting tube, apply lubricant to circle of the O-rings shown in illustration. Be careful not to

apply lubricant to threaded portion.

• O-ring must be closely attached to the groove portion of tube.
• When replacing the O-ring, be careful not to damage O-ring and tube.
• Connect tube until a click can be heard, then tighten the nut or bolt by hand. Make sure that the O-

ring is installed to tube correctly.

19.

Low & high pressure pipe bracket

20. Liquid tank fixing bracket

21. High pressure flexible hose

22.

Low pressure pipe

23. Low pressure pipe fixing clamp as-

sembly

24. Pipe mantening clip

Connection type

Piping connection point

Part number

QTY

O-ring size

New

Low pressure flexible hose to Low pressure pipe 2

92473 N8210

1

16

Low pressure pipe 2 to expansion valve

92473 N8210

1

16

High pressure flexible pipe 1 to condenser

92472 N8210

1

12

High pressure pipe 1 to expansion valve

92471 N8210

1

8

Low pressure pipe 1 and high pressure

Inlet

92475 71L00

1

12

Pipe 2 assembly to expansion valve

Outlet

92475 72L00

1

16

Low pressure pipe 1 and high pressure

Inlet

92475 71L00

1

12

Pipe 2 assembly to evaporator

Outlet

92475 72L00

1

16

High pressure pipe 1 to liquid tank

92471 N8210

1

8

Compressor to low pressure flexible hose

01-57-112

2

19

Compressor to high pressure flexible hose

01-57-112

2

12

Liquid tank to condenser

92473 N8210

2

16

Name

: Nissan A/C System Oil Type S

PRECAUTIONS

VTL-11

< PRECAUTION >

[AUTOMATIC AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

• After connecting line, perform leak test and make sure that there is no leakage from connections.

When the refrigerant leaking point is found, disconnect that line and replace the O-ring. Then tighten
connections of seal seat to the specified torque.

Service Equipment

INFOID:0000000001093693

RECOVERY/RECYCLING EQUIPMENT

Be certain to follow the manufacturer’s manuals for machine operation and machine maintenance. Never
introduce any refrigerant other than that specified into the machine.

ELECTRICAL LEAK DETECTOR

Be certain to follow the manufacturer’s manuals for tester operation and tester maintenance.

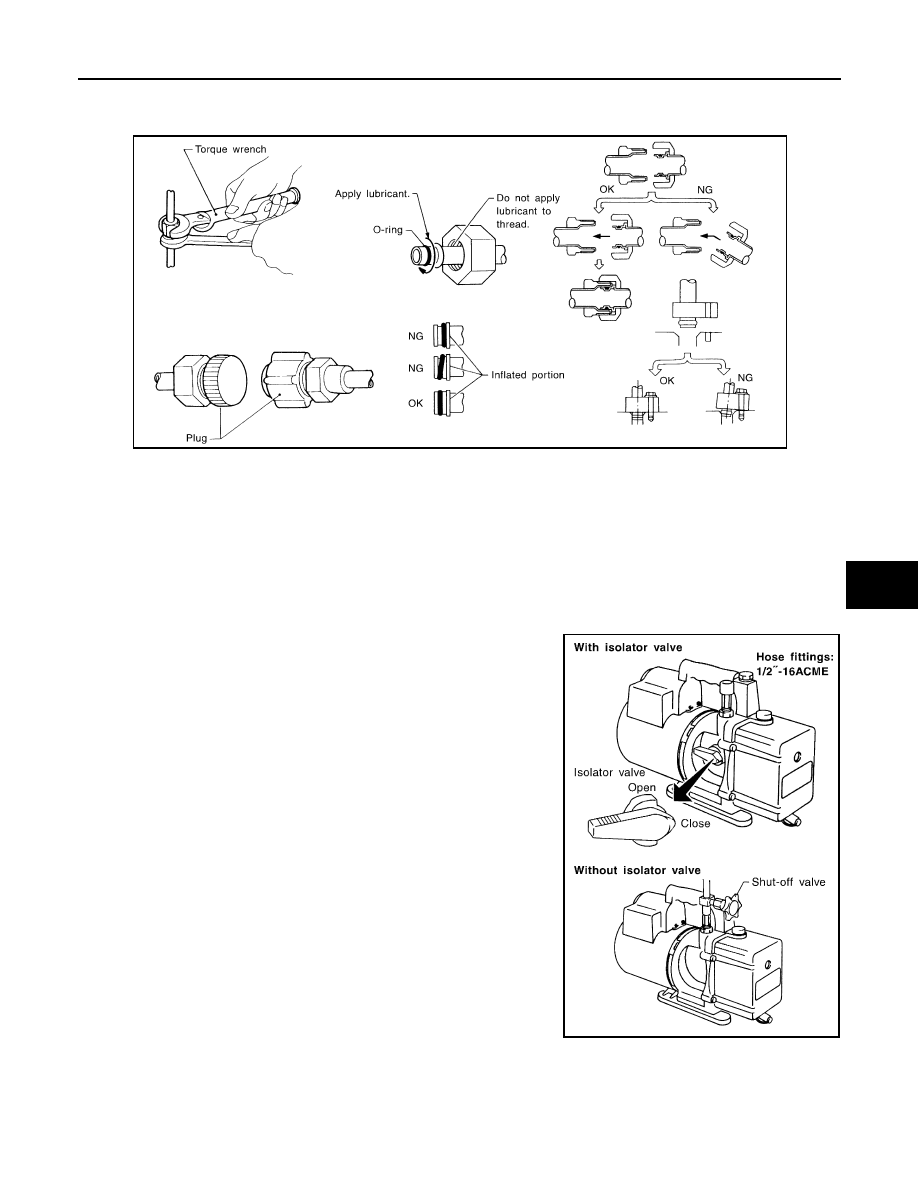

VACUUM PUMP

The lubricant contained inside the vacuum pump is not compatible
with the specified lubricant for HFC-134a (R-134a) A/C systems.
The vent side of the vacuum pump is exposed to atmospheric pres-
sure. So the vacuum pump lubricant may migrate out of the pump
into the service hose. This is possible when the pump is switched off
after evacuation (vacuuming) and hose is connected to it.
To prevent this migration, use a manual valve placed near the hose-
to-pump connection, as follows.
• Usually vacuum pumps have a manual isolator valve as part of the

pump. Close this valve to isolate the service hose from the pump.

• For pumps without an isolator, use a hose equipped with a manual

shut-off valve near the pump end. Close the valve to isolate the
hose from the pump.

• If the hose has an automatic shut-off valve, disconnect the hose

from the pump. As long as the hose is connected, the valve is open
and lubricating oil may migrate.

Some one-way valves open when vacuum is applied and close
under no vacuum condition. Such valves may restrict the pump’s
ability to pull a deep vacuum and are not recommended.

MANIFOLD GAUGE SET

RHA861F

RHA270DA

VTL-12

< PRECAUTION >

[AUTOMATIC AIR CONDITIONER]

PRECAUTIONS

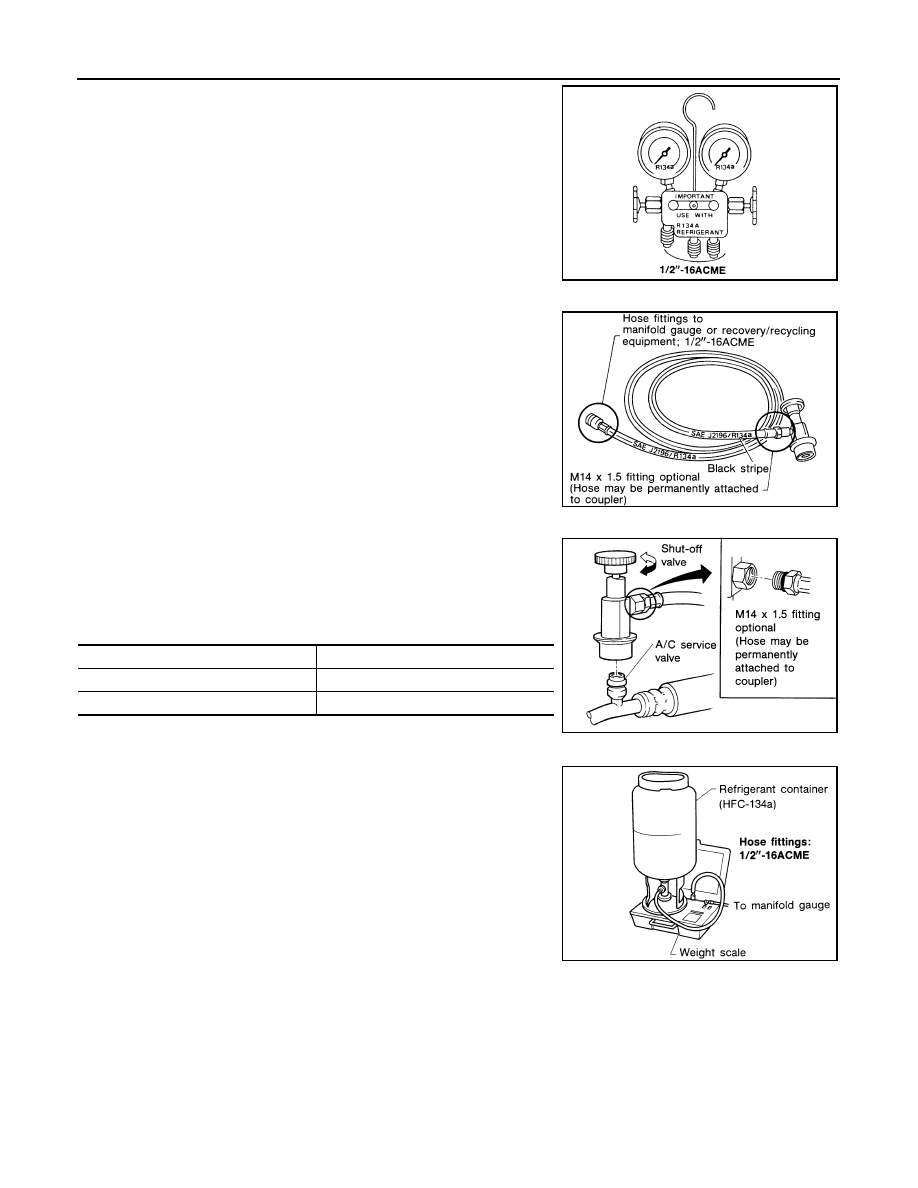

Be certain that the gauge face indicates HFC-134a or R-134a. Be
sure the gauge set has 1/2

″

-16 ACME threaded connections for ser-

vice hoses. Confirm the set has been used only with refrigerant
HFC-134a (R-134a) and specified lubricants.

SERVICE HOSES

Be certain that the service hoses display the markings described
(colored hose with black stripe). All hoses must include positive shut-
off devices (either manual or automatic) near the end of the hoses
opposite to the manifold gauge.

SERVICE COUPLERS

Never attempt to connect HFC-134a (R-134a) service couplers to a
CFC-12 (R-12) A/C system. The HFC-134a (R-134a) couplers will
not properly connect to the CFC-12 (R-12) system. However, if an
improper connection is attempted, discharging and contamination
may occur.

REFRIGERANT WEIGHT SCALE

Verify that no refrigerant other than HFC-134a (R-134a) and speci-
fied lubricants have been used with the scale. If the scale controls
refrigerant flow electronically, the hose fitting must be 1/2

″

-16

ACME.

CHARGING CYLINDER

Using a charging cylinder is not recommended. Refrigerant may be vented into air from cylinder’s top valve
when filling the cylinder with refrigerant. Also, the accuracy of the cylinder is generally less than that of an
electronic scale or of quality recycle/recharge equipment.

SHA533D

RHA272D

Shut-off valve rotation

A/C service valve

Clockwise

Open

Counterclockwise

Close

RHA273D

RHA274D
