Nissan Qashqai (2007-2010). Manual - part 723

BRC-90

< FUNCTION DIAGNOSIS >

[ESP/TCS/ABS]

ABS

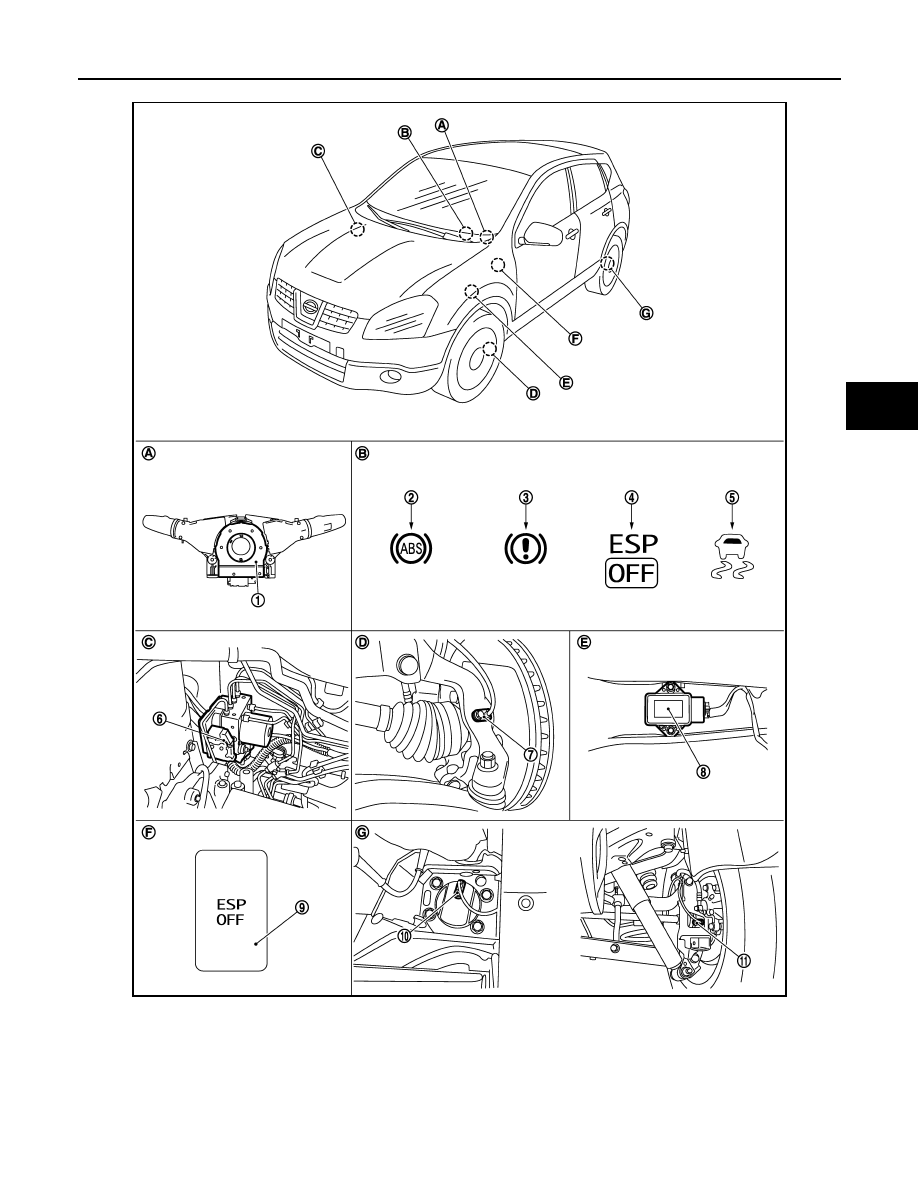

RHD models

D.

Steering knuckle

E.

Lower instrument cover RH

F.

Instrument driver lower panel

G.

Rear suspension arm

JSFIA0047ZZ

1.

Steering angle sensor

2.

ABS warning lamp

3.

Brake warning lamp

4.

ESP OFF indicator lamp

5.

SLIP indicator lamp

6.

ABS actuator and electric unit (con-
trol unit)

7.

Front wheel sensor

8.

Yaw rate/side G sensor

9.

ESP OFF switch

ABS

BRC-91

< FUNCTION DIAGNOSIS >

[ESP/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

Component Description

INFOID:0000000000924806

10. Rear wheel sensor (2WD models)

11.

Rear wheel sensor (4WD models)

A.

Back of spiral cable assembly

B.

Combination meter

C.

Left side in engine room

D.

Steering knuckle

E.

Lower instrument cover RH

F.

Instrument driver lower panel

G.

Rear suspension arm

Component parts

Reference

ABS actuator and electric unit (control unit)

Pump

BRC-110, "Description"

Motor

Actuator relay (Main relay)

BRC-113, "Description"

Solenoid valve

BRC-121, "Description"

Wheel sensor

BRC-100, "Description"

ABS warning lamp

BRC-149, "Description"

Brake warning lamp

BRC-150, "Description"

BRC-92

< FUNCTION DIAGNOSIS >

[ESP/TCS/ABS]

EBD

EBD

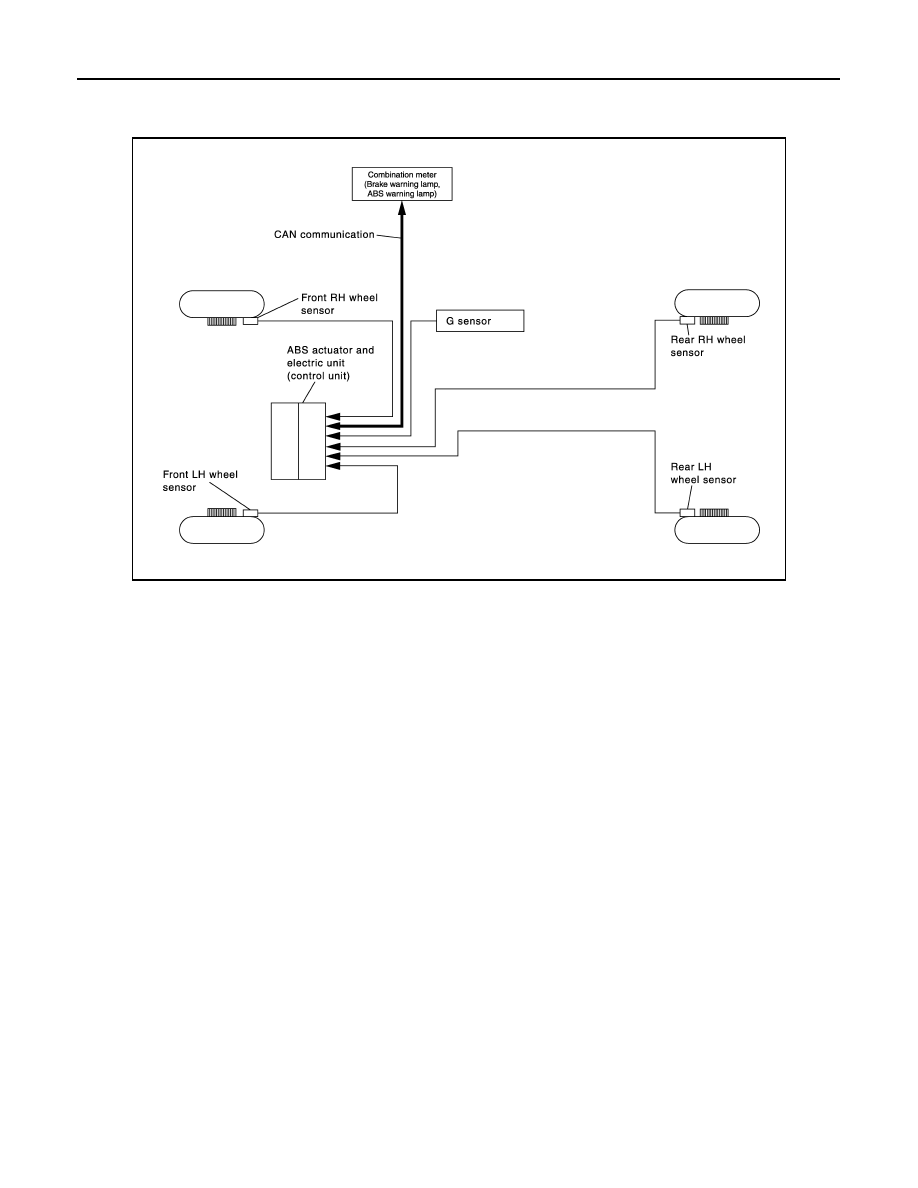

System Diagram

INFOID:0000000000977399

System Description

INFOID:0000000000924808

• Electric Brake force Distribution is a following function. ABS actuator and electric unit (control unit) detects

subtle slippages between the front and rear wheels during braking. Then is electronically controls the rear
braking force (brake fluid pressure) to reducing and reduces rear wheel slippage. Accordingly it improves
vehicle stability.

• Electrical system diagnosis by CONSULT-III is available.

Component Parts Location

INFOID:0000000000977398

JSFIA0033GB

EBD

BRC-93

< FUNCTION DIAGNOSIS >

[ESP/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

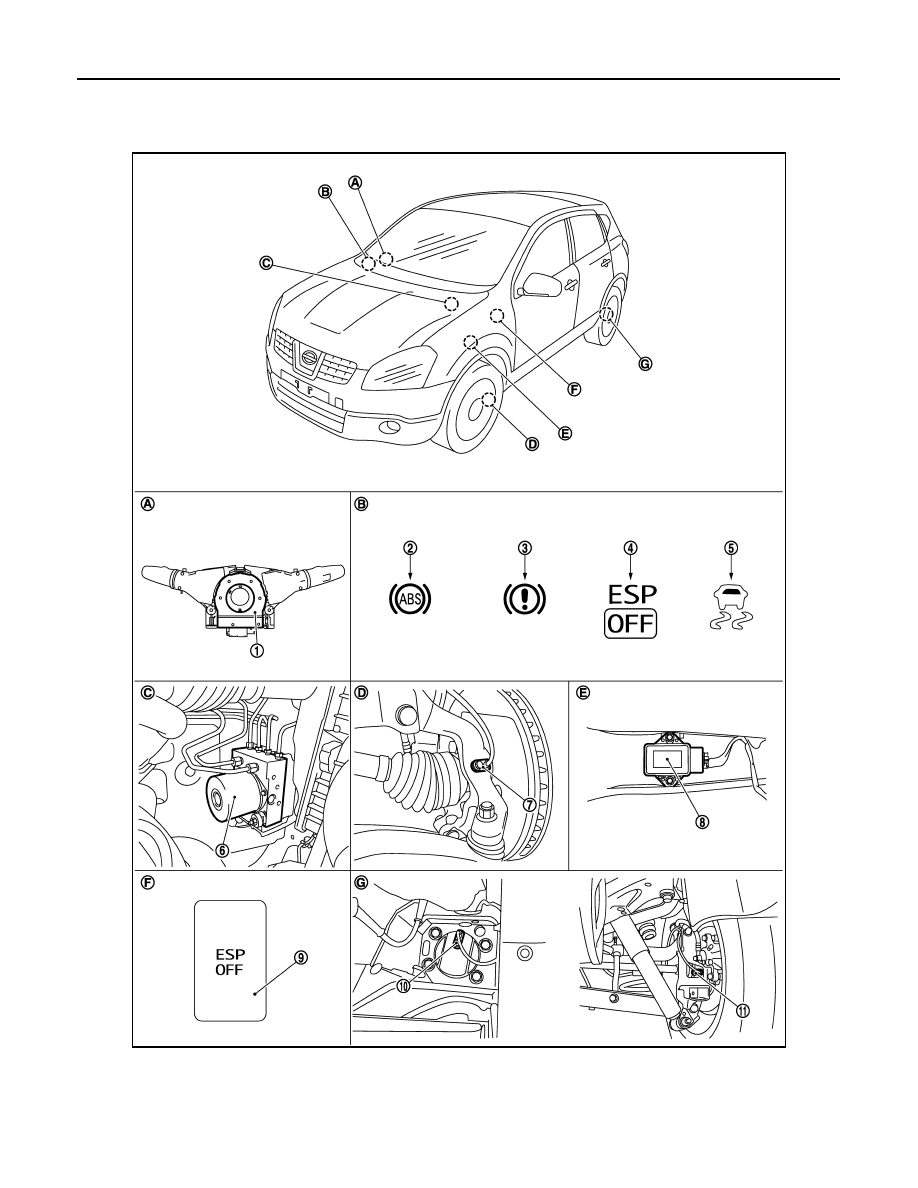

LHD models

JSFIA0032ZZ

1.

Steering angle sensor

2.

ABS warning lamp

3.

Brake warning lamp

4.

ESP OFF indicator lamp

5.

SLIP indicator lamp

6.

ABS actuator and electric unit (con-
trol unit)

7.

Front wheel sensor

8.

Yaw rate/side G sensor

9.

ESP OFF switch

10. Rear wheel sensor (2WD models)

11.

Rear wheel sensor (4WD models)

A.

Back of spiral cable assembly

B.

Combination meter

C.

Right side in engine room
