Nissan Qashqai (2007-2010). Manual - part 703

BRC-10

< FUNCTION DIAGNOSIS >

[ABS]

ABS

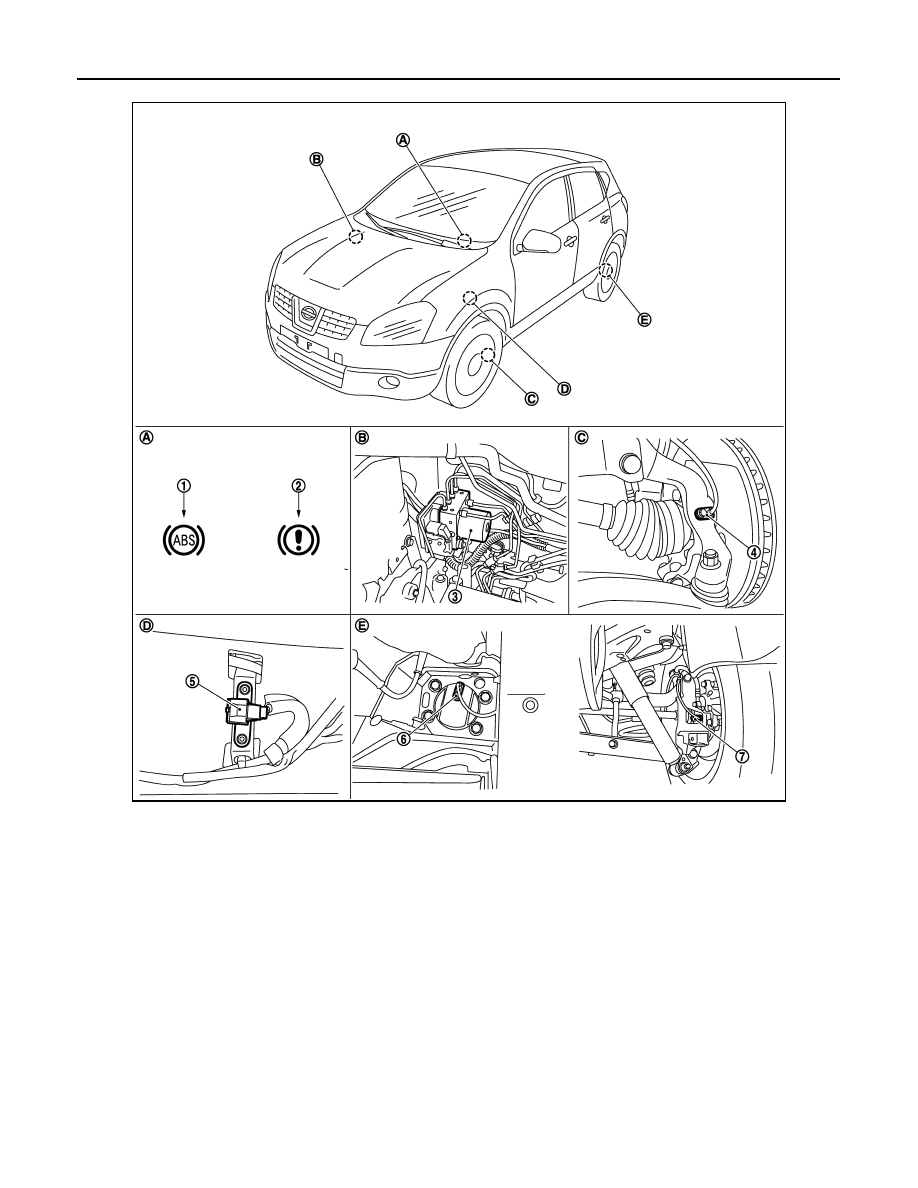

LHD models

JSFIA0034ZZ

1.

ABS warning lamp

2.

Brake warning lamp

3.

ABS actuator and electric unit (con-
trol unit)

4.

Front wheel sensor

5.

G sensor

6.

Rear wheel sensor (2WD models)

7.

Rear wheel sensor (4WD models)

A.

Combination meter

B.

Engine room (right side)

C.

Steering knuckle

D.

Lower instrument cover RH

E.

Rear axle

ABS

BRC-11

< FUNCTION DIAGNOSIS >

[ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

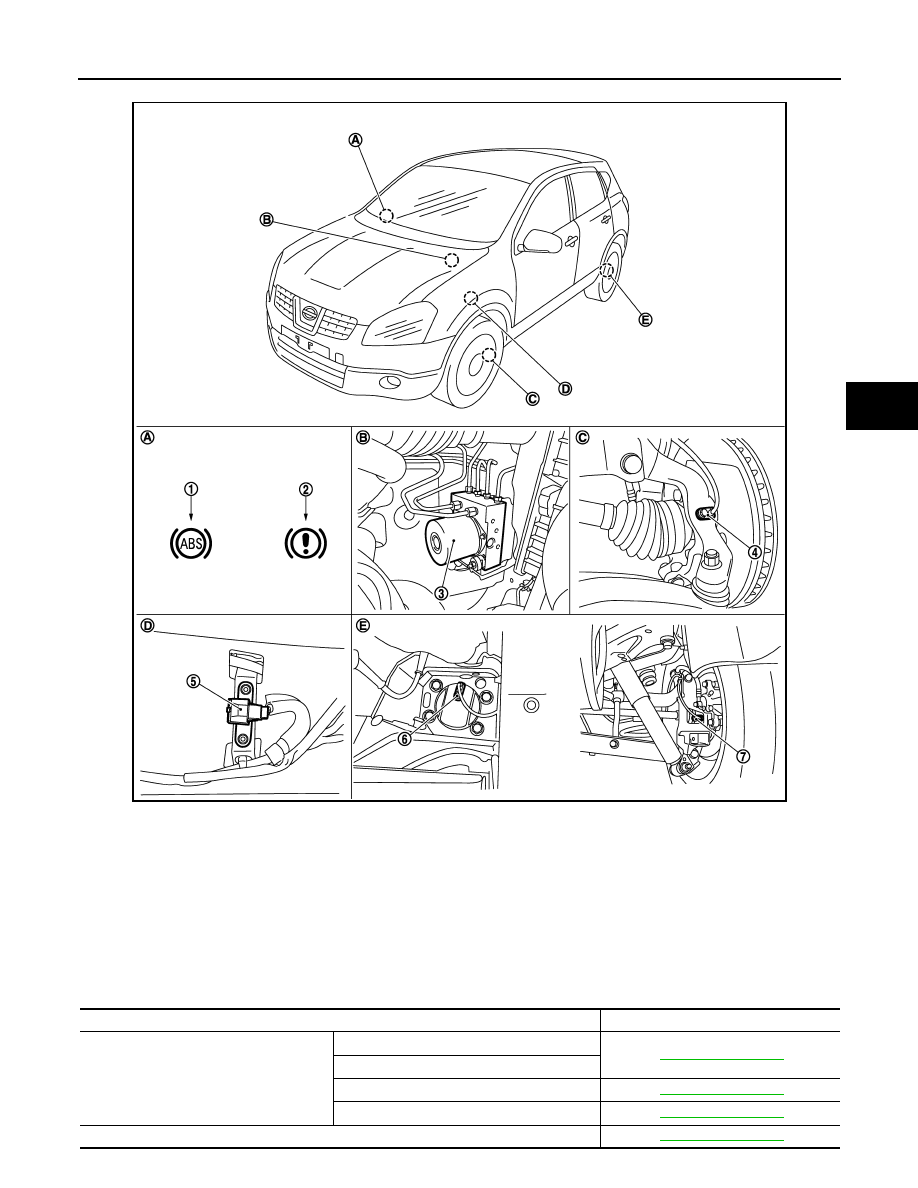

RHD models

Component Description

INFOID:0000000000924962

JSFIA0048ZZ

1.

ABS warning lamp

2.

Brake warning lamp

3.

ABS actuator and electric unit (con-
trol unit)

4.

Front wheel sensor

5.

G sensor

6.

Rear wheel sensor (2WD models)

7.

Rear wheel sensor (4WD models)

A.

Combination meter

B.

Engine room (left side)

C.

Steering knuckle

D.

Lower instrument cover RH

E.

Rear axle

Component parts

Reference

ABS actuator and electric unit (control unit)

Pump

BRC-29, "Description"

Motor

Actuator relay (Main relay)

BRC-33, "Description"

Solenoid valve

BRC-40, "Description"

Wheel sensor

BRC-20, "Description"

BRC-12

< FUNCTION DIAGNOSIS >

[ABS]

ABS

ABS warning lamp

BRC-49, "Description"

Brake warning lamp

BRC-50, "Description"

Component parts

Reference

EBD

BRC-13

< FUNCTION DIAGNOSIS >

[ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

EBD

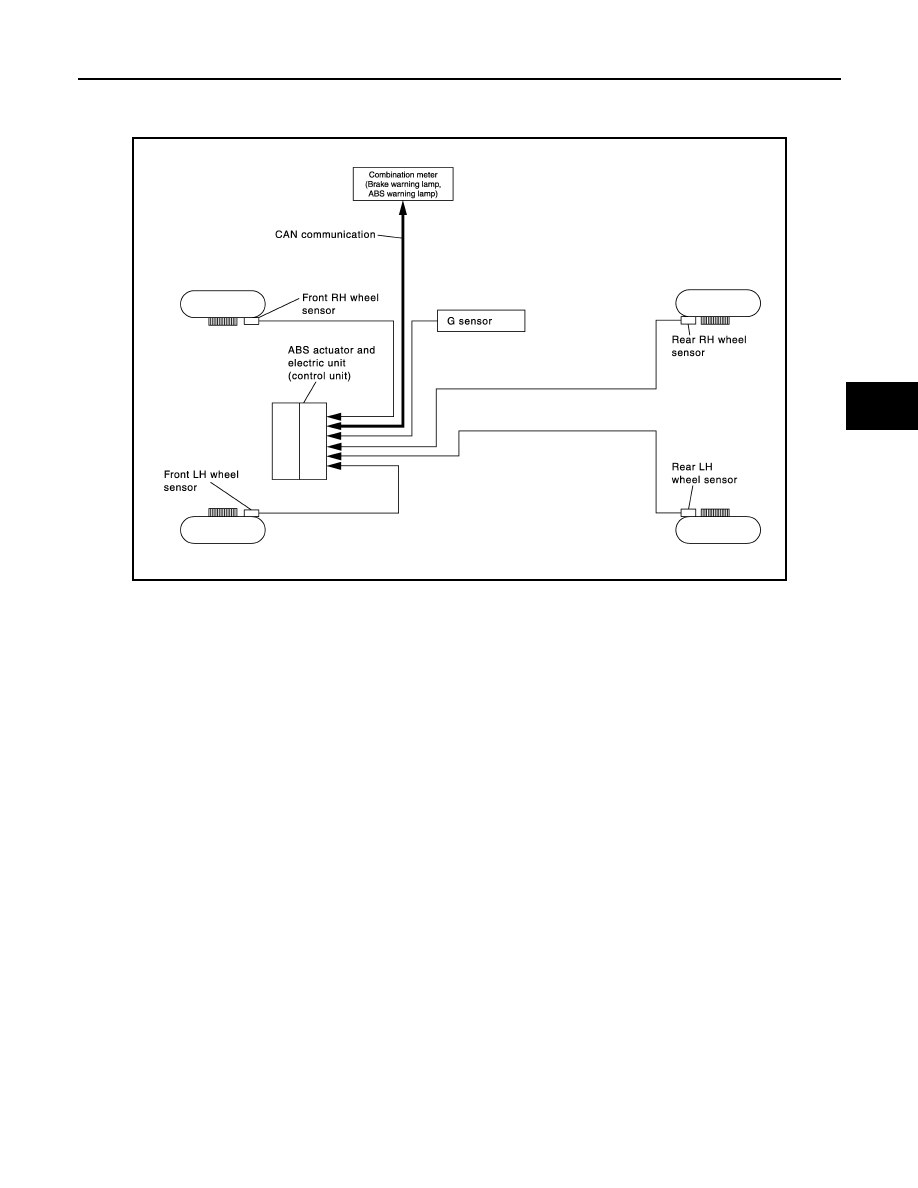

System Diagram

INFOID:0000000000977414

System Description

INFOID:0000000000924964

• Electric Brake force Distribution is a following function. ABS actuator and electric unit (control unit) detects

subtle slippages between the front and rear wheels during braking. Then is electronically controls the rear
braking force (brake fluid pressure) to reducing and reduces rear wheel slippage. Accordingly it improves
vehicle stability.

• Electrical system diagnosis by CONSULT-III is available.

Component Parts Location

INFOID:0000000000977415

JSFIA0033GB
