BRAKE PIPING

FRONT BRAKE (WITH ABS)

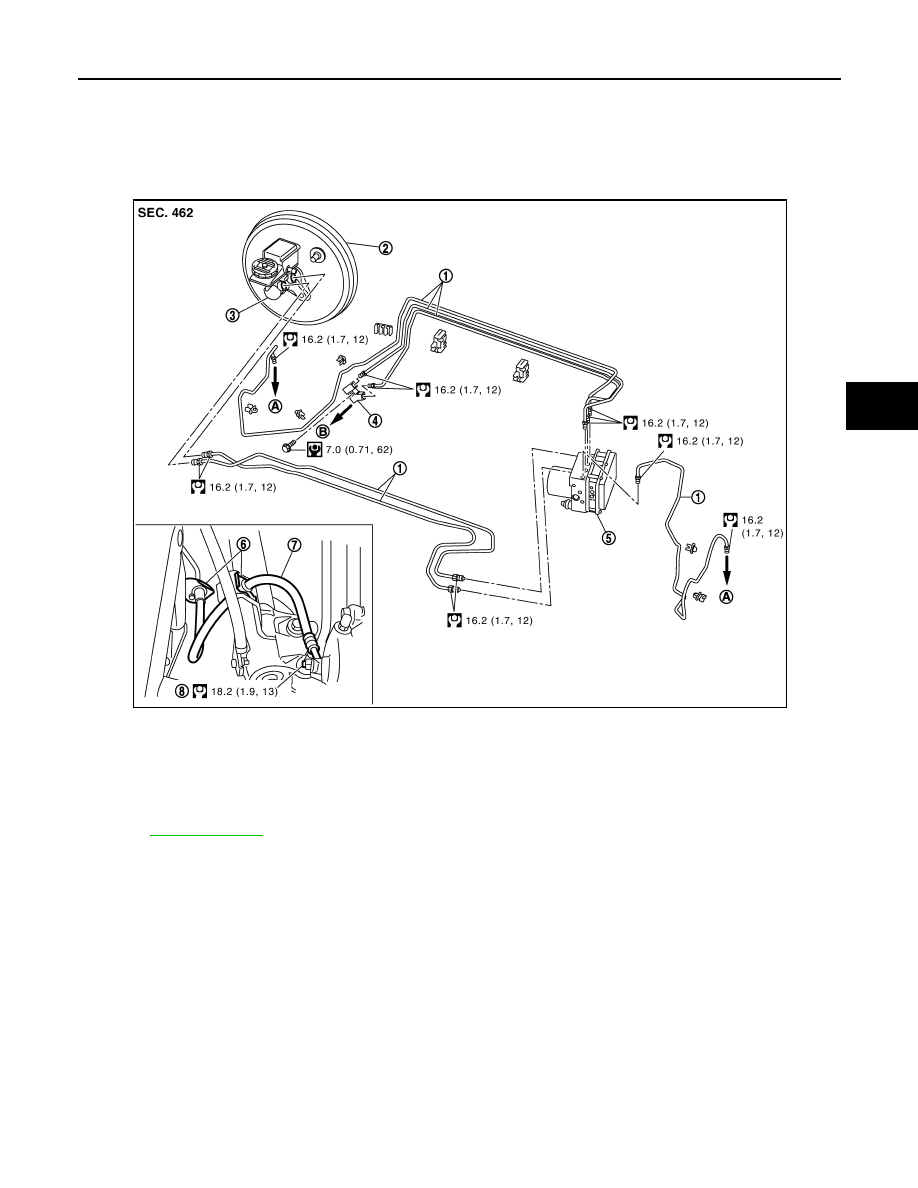

FRONT BRAKE (WITH ABS) : Exploded View

INFOID:0000000000938058

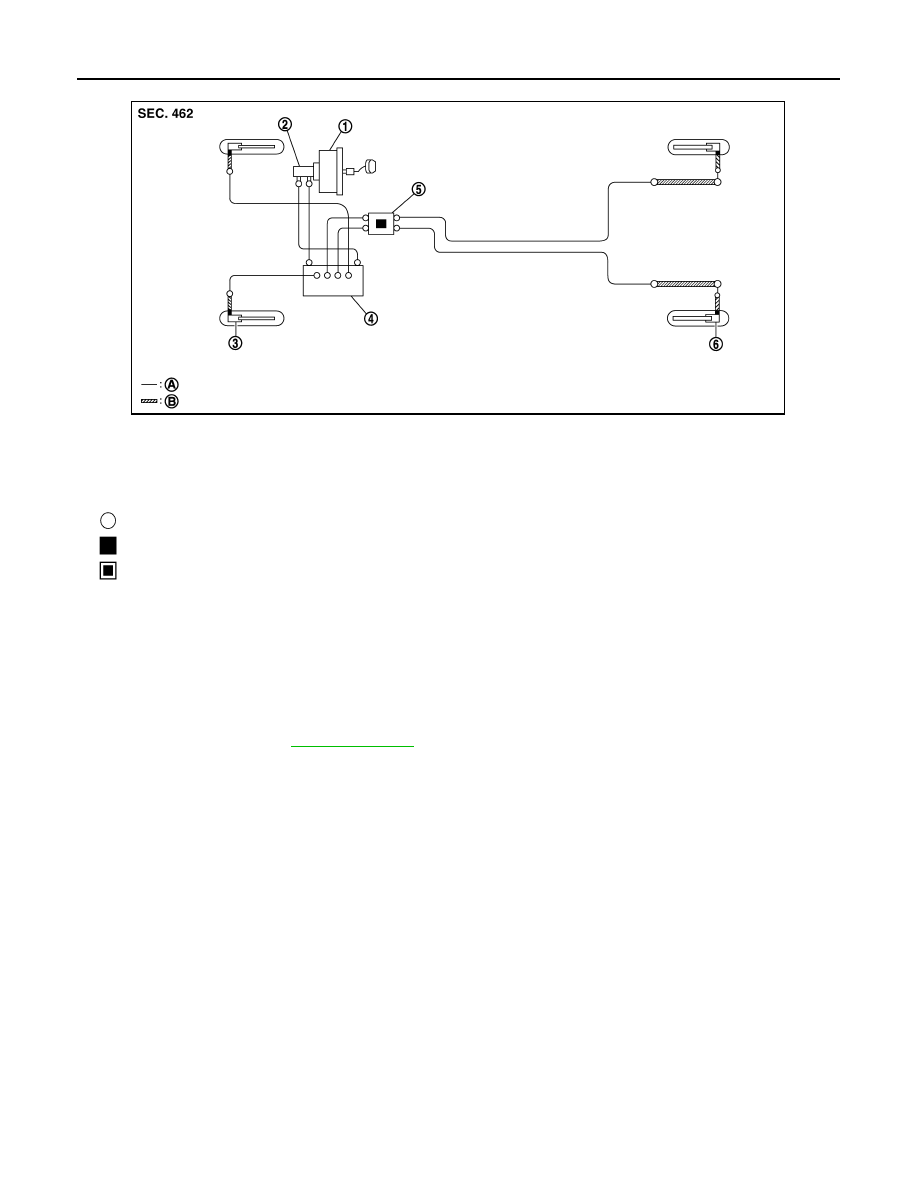

FRONT BRAKE (WITH ABS) : Hydraulic Piping

INFOID:0000000000938059

1.

Brake tube

2.

Brake booster

3.

Master cylinder assembly

4.

Connector

5.

ABS actuator and electric unit (con-
trol unit)

6.

Lock plate

7.

Brake hose

8.

Union bolt

A.

To front brake hose

B.

To rear brake tube

Refer to

GI-4, "Components"

 for symbols in the figure.

JPFIA0076GB

BR-64

< ON-VEHICLE REPAIR >

[RHD]

BRAKE PIPING

FRONT BRAKE (WITH ABS) : Removal and Installation

INFOID:0000000000938060

REMOVAL

CAUTION:

Never spill or splash brake fluid on painted surfaces. Brake fluid may seriously damage paint. Wipe it
off immediately and wash with water if it gets on a painted surface.

1.

Remove tires.

2.

Drain brake fluid. Refer to

BR-55, "Draining"

.

3.

Loosen the flare nut with a flare nut wrench and separate the brake tube from the hose.

CAUTION:

• Never scratch the flare nut and the brake tube.
• Never bend sharply, twist or strongly pull out the brake hoses and tubes.
• Cover open end of brake tubes and hoses when disconnecting to prevent entrance of dirt.

4.

Remove the union bolt and remove the brake hose from the brake caliper assembly.

5.

Remove the lock plate and remove the brake hose.

INSTALLATION

CAUTION:

Never spill or splash brake fluid on painted surfaces. Brake fluid may seriously damage paint. Wipe it
off immediately and wash with water if it gets on a painted surface.
1.

Assemble the union bolt and the copper washer to the brake hose.

CAUTION:

Never reuse the copper washer.

1.

Brake booster

2.

Master cylinder assembly

3.

Front disc brake

4.

ABS actuator and electric unit (con-
trol unit)

5.

Connector

6.

Rear disc brake

A.

Brake tube

B.

Brake hose

 : Flare nut

 : Union bolt

 : Connector

JPFIA0079ZZ

BRAKE PIPING

BR-65

< ON-VEHICLE REPAIR >

[RHD]

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

2.

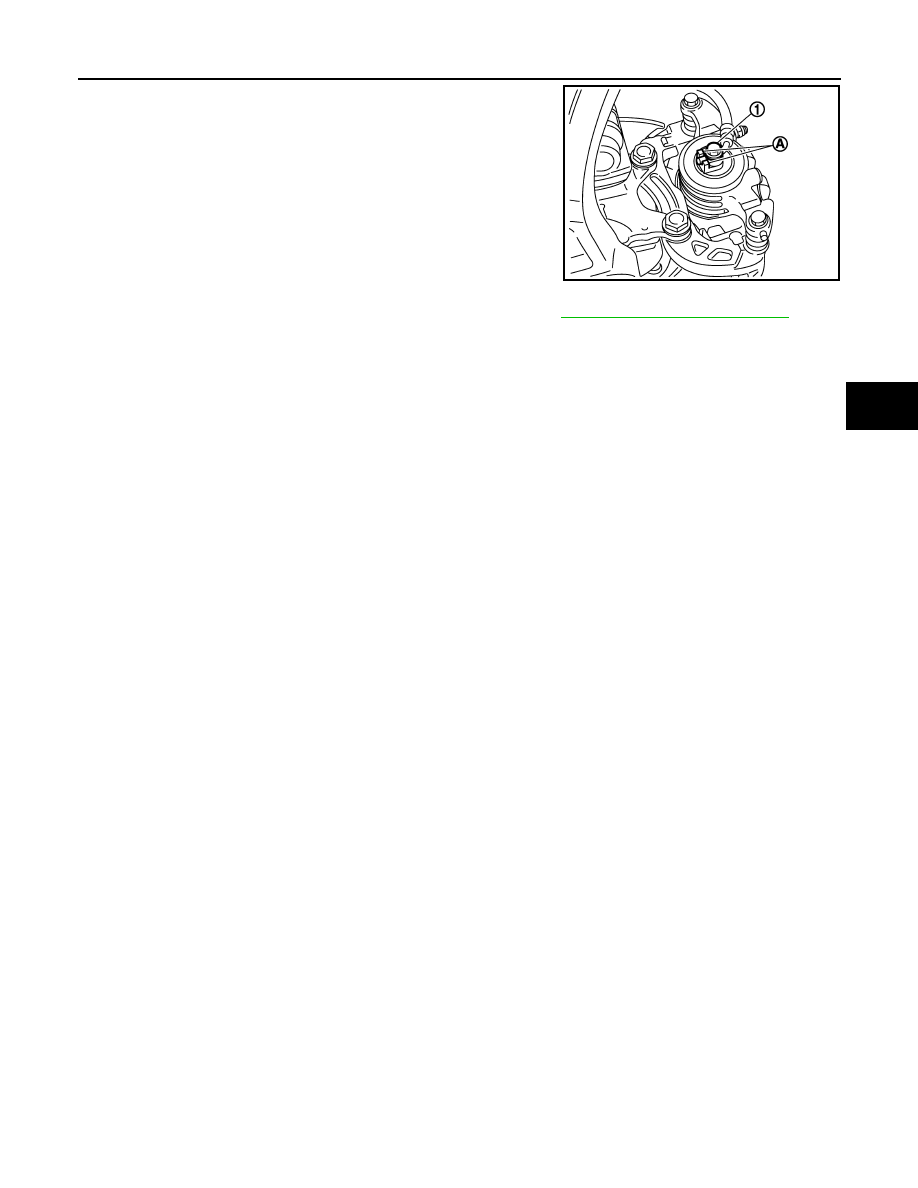

Align the brake hose pin to the projection (A) of the brake caliper
assembly and tighten the union bolt (1) to the specified torque.

3.

Install the brake tube to the brake hose, temporarily tighten the
flare nut by hand until it does not rotate further, and fix the brake
hose to the bracket with the lock plate.

CAUTION:

Check that all brake hoses and tubes are not twisted and
bent.

4.

Tighten the flare nut to the specified torque with a flare nut
torque wrench.

CAUTION:

Never scratch the flare nut and the brake tube.

5.

Refill with new brake fluid and perform the air bleeding. Refer to

BR-56, "Bleeding Brake System"

.

CAUTION:

Never reuse drained brake fluid.

6.

Install tires.

FRONT BRAKE (WITH ABS) : Inspection

INFOID:0000000000938061

INSPECTION AFTER INSTALLATOIN

1.

Check the brake hoses and tubes for the following: no scratches; no twist and deformation; no interfer-
ence with other components when steering the steering wheel; no looseness at connections.

2.

Depress the brake pedal with a force of 785 N (80 kg, 176 lb) and hold down the pedal for approximately
5 seconds with the engine running. Check for any fluid leakage.

CAUTION:

Retighten the applicable connection to the specified torque and repair any abnormal (damaged,
worn or deformed) part if any brake fluid leakage is present.

FRONT BRAKE (WITH ESP)

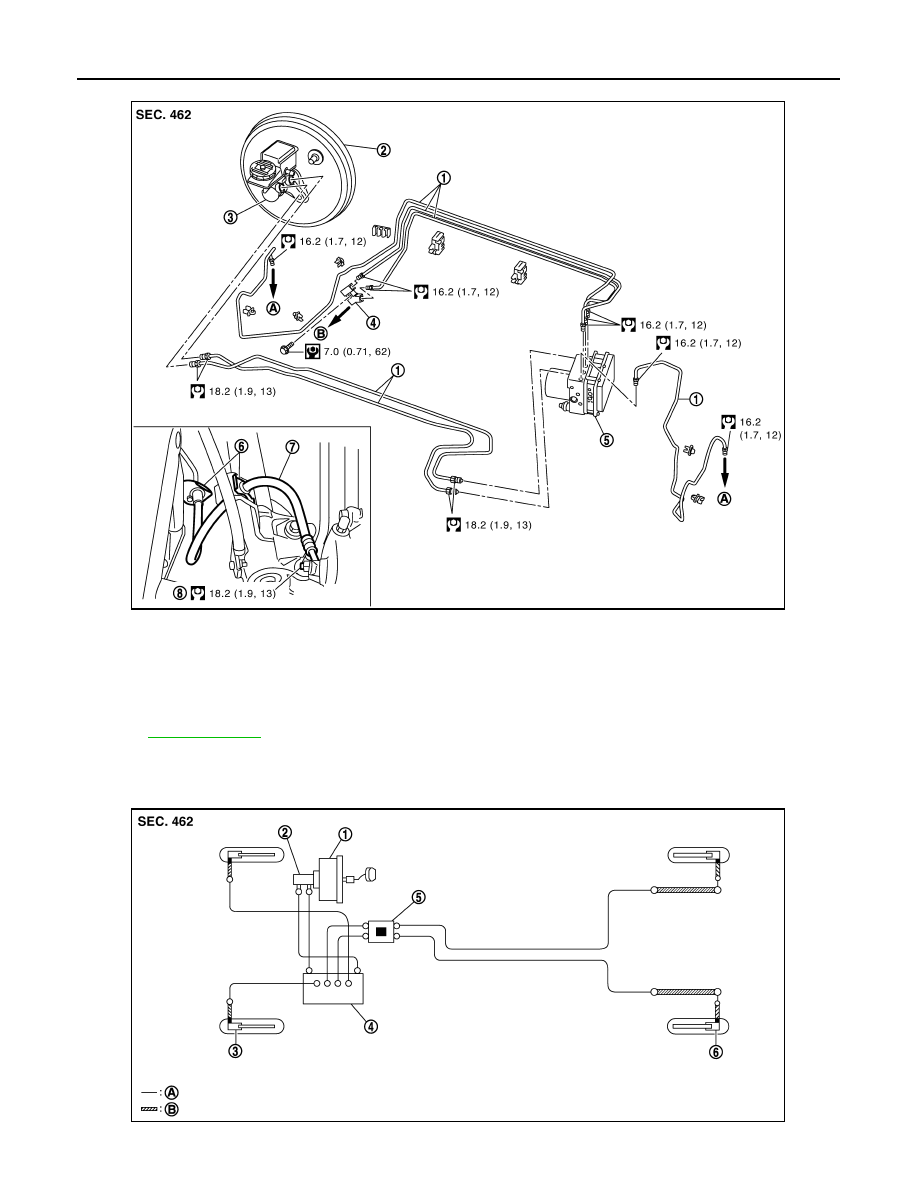

FRONT BRAKE (WITH ESP) : Exploded View

INFOID:0000000000953029

JPFIA0099ZZ

BR-66

< ON-VEHICLE REPAIR >

[RHD]

BRAKE PIPING

FRONT BRAKE (WITH ESP) : Hydraulic Piping

INFOID:0000000001102265

1.

Brake tube

2.

Brake booster

3.

Master cylinder assembly

4.

Connector

5.

ABS actuator and electric unit (con-
trol unit)

6.

Lock plate

7.

Brake hose

8.

Union bolt

A.

To front brake hose

B.

To rear brake tube

Refer to

GI-4, "Components"

 for symbols in the figure.

JPFIA0102GB
