FRONT DISC BRAKE

BR-15

< ON-VEHICLE MAINTENANCE >

[LHD]

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

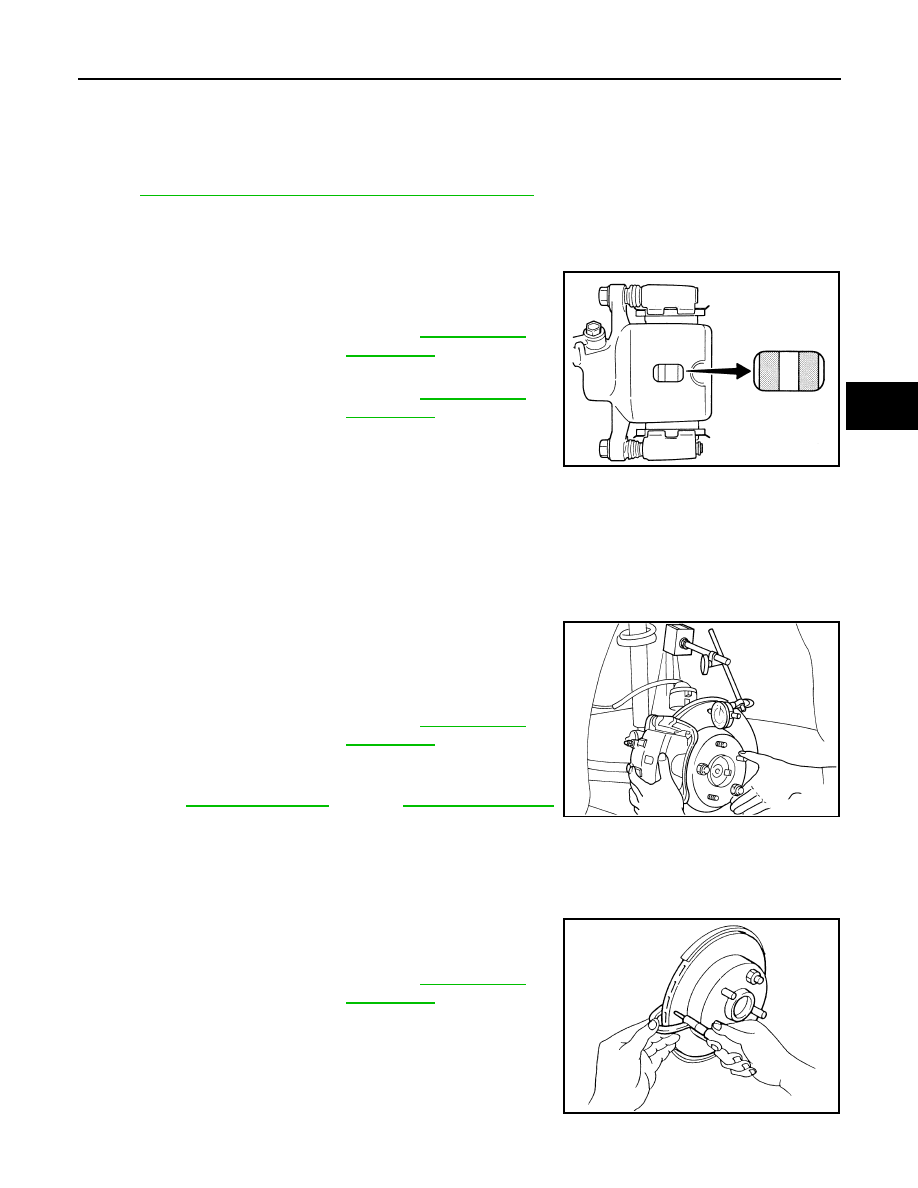

FRONT DISC BRAKE

BRAKE PAD

BRAKE PAD : Exploded View

INFOID:0000000000925781

Refer to

BR-37, "BRAKE CALIPER ASSEMBLY : Exploded View"

.

BRAKE PAD : Inspection

INFOID:0000000000925782

PAD WEAR

Check pad thickness from an inspection hole on cylinder body.
Check using a scale if necessary.

DISC ROTOR

DISC ROTOR : Inspection

INFOID:0000000000925783

APPEARANCE

Check surface of disc rotor for uneven wear, cracks, and serious damage. Replace if there are.

RUNOUT

1.

Fix the disc rotor to the wheel hub and bearing assembly with
wheel nuts (2 points at least).

2.

Inspect the runout with a dial gauge. [Measured at 10 mm (0.39
in) inside the disc edge.]

NOTE:
Check the wheel bearing axial end play before the inspection.
Refer to

FAX-7, "Inspection"

 (2WD),

FAX-47, "Inspection"

(4WD).

3.

Find the installation position with a minimum runout by shifting the disc rotor-to-wheel hub and bearing
assembly installation position by one hole at a time if the runout exceeds the limit value.

4.

Replace or lathe the disc rotor if the runout exceeds the limit even after the above operation.

THICKNESS

Check the thickness of the disc rotor using a micrometer. Replace
the disc rotor if the thickness is below the wear limit.

Standard thickness

: Refer to

BR-46, "Front

Disc Brake"

.

Wear limit thickness

: Refer to

BR-46, "Front

Disc Brake"

.

BRA0010D

Runout limit

: Refer to

BR-46, "Front

Disc Brake"

.

BRA0580D

Wear limit thickness

: Refer to

BR-46, "Front

Disc Brake"

.

SBR020B

BR-16

< ON-VEHICLE MAINTENANCE >

[LHD]

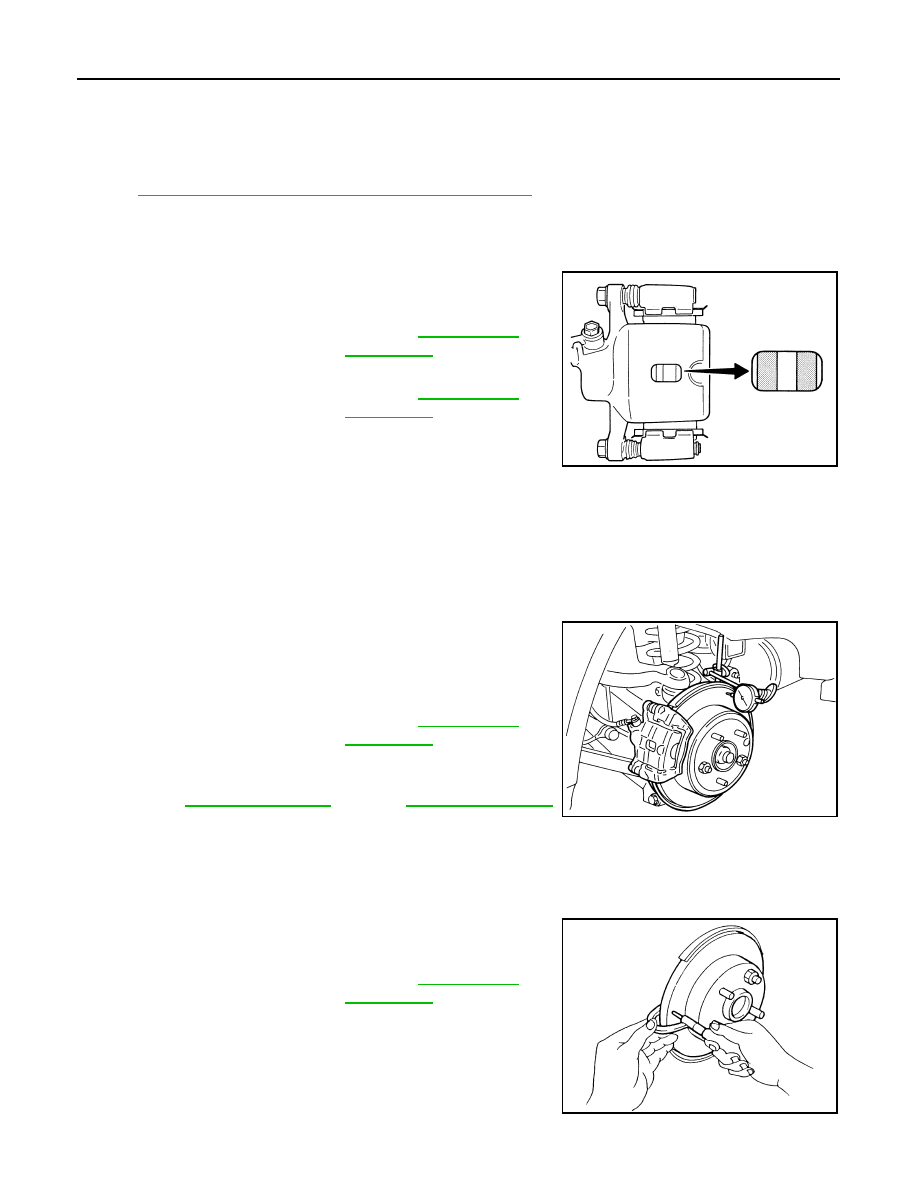

REAR DISC BRAKE

REAR DISC BRAKE

BRAKE PAD

BRAKE PAD : Exploded View

INFOID:0000000000925784

Refer to

BR-42, "BRAKE CALIPER ASSEMBLY : Exploded View"

.

BRAKE PAD : Inspection

INFOID:0000000000925785

PAD WEAR

Check pad thickness from an inspection hole on cylinder body.
Check using a scale if necessary.

DISC ROTOR

DISC ROTOR : Inspection

INFOID:0000000000925786

APPEARANCE

Check surface of disc rotor for uneven wear, cracks, and serious damage. Replace if there are.

RUNOUT

1.

Fix the disc rotor to the wheel hub and bearing assembly with
wheel nuts (2 points at least).

2.

Inspect the runout with a dial gauge. [Measured at 10 mm (0.39
in) inside disc edge.]

NOTE:
Check the wheel bearing axial end play before the inspection.
Refer to

RAX-3, "Inspection"

 (2WD),

RAX-9, "Inspection"

(4WD).

3.

Find the installation position with a minimum runout by shifting the disc rotor-to-wheel hub and bearing
assembly installation position by one hole at a time if the runout exceeds the limit value.

4.

Replace or lathe the disc rotor if the runout exceeds the limit even after the above operation.

THICKNESS

Check the thickness of the disc rotor using a micrometer. Replace
the disc rotor if the thickness is below the wear limit.

Standard thickness

: Refer to

BR-46, "Rear

Disc Brake"

.

Wear limit thickness

: Refer to

BR-46, "Rear

Disc Brake"

.

BRA0010D

Runout limit

: Refer to

BR-46, "Rear

Disc Brake"

.

BRA0697D

Wear limit thickness

: Refer to

BR-46, "Rear

Disc Brake"

.

SFIA2284E

BRAKE PEDAL

BR-17

< ON-VEHICLE REPAIR >

[LHD]

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

ON-VEHICLE REPAIR

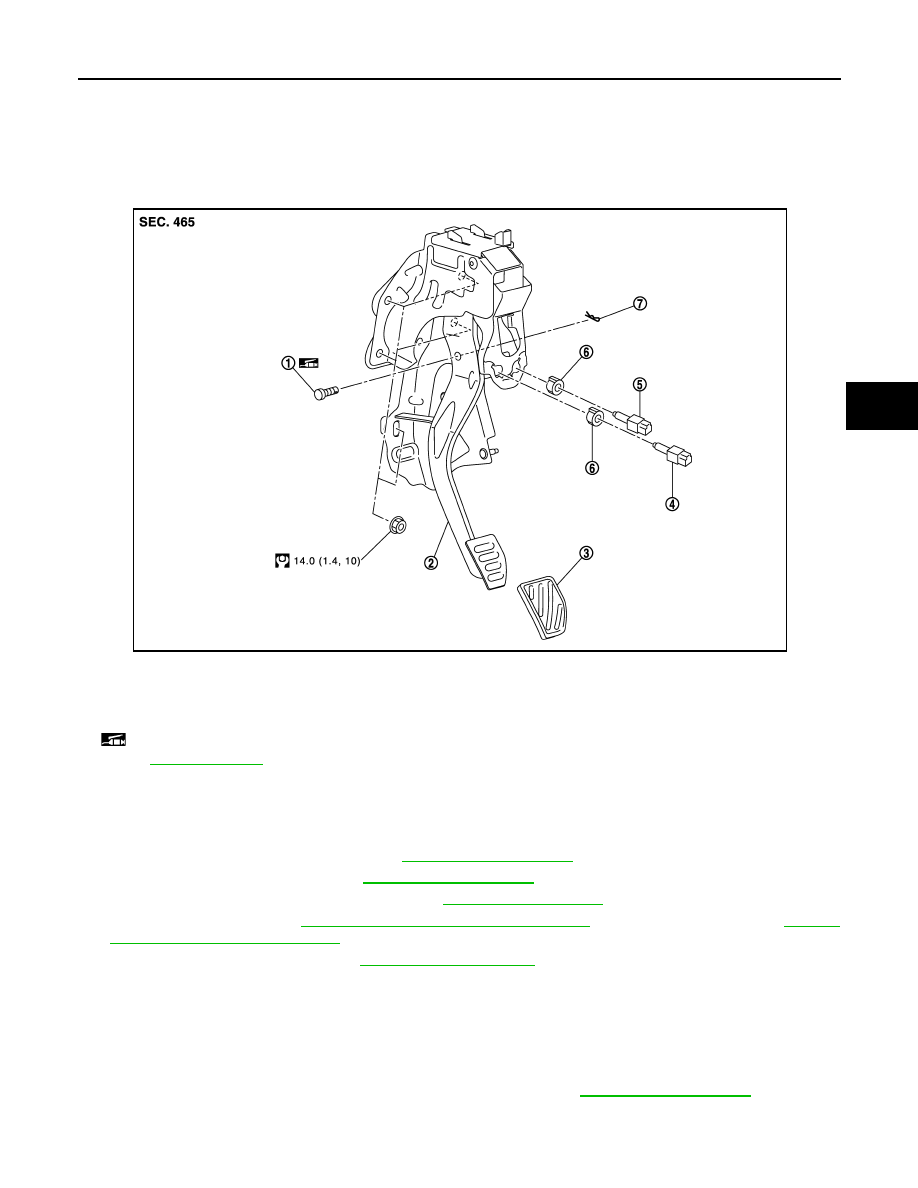

BRAKE PEDAL

Exploded View

INFOID:0000000000925787

Removal and Installation

INFOID:0000000000925788

REMOVAL

1.

Remove front kicking plate inner. Refer to

INT-14, "Exploded View"

.

2.

Remove dash side finisher. Refer to

INT-14, "Exploded View"

.

3.

Remove instrument driver lower panel. Refer to

IP-11, "Exploded View"

.

4.

Remove foot duct. Refer to

VTL-47, "FOOT DUCTS : Exploded View"

 (automatic air conditioner),

VTL-93,

"FOOT DUCTS : Exploded View"

 (manual air conditioner)

5.

Remove mode door motor. Refer to

VTL-35, "Exploded View"

 (automatic air conditioner).

6.

Disconnect ASCD cancel switch and the stop lamp switch harness connectors.

7.

Disconnect accelerator pedal position sensor harness connector.

8.

Remove steering member stay.

9.

Remove snap pin and clevis pin from clevis of brake booster.

10. Remove the brake pedal assembly and the accelerator pedal.

11. Remove the accelerator pedal from brake pedal assembly. Refer to

ACC-3, "Exploded View"

.

INSTALLATION

Note the following, and installation is the reverse order of removal.

1.

Clevis pin

2.

Brake pedal assembly

3.

Brake pedal pad

4.

ASCD cancel switch

5.

Stop lamp switch

6.

Clip

7.

Snap pin

: Apply multi-purpose grease.

Refer to

GI-4, "Components"

 for symbols not described on the above.

JPFIA0072GB

BR-18

< ON-VEHICLE REPAIR >

[LHD]

BRAKE PEDAL

• Apply the multi-purpose grease to the clevis pin and the mating faces. (Not necessary if grease has been

already applied.)

NOTE:
The clevis pin may be inserted in either direction.

Inspection and Adjustment

INFOID:0000000000925789

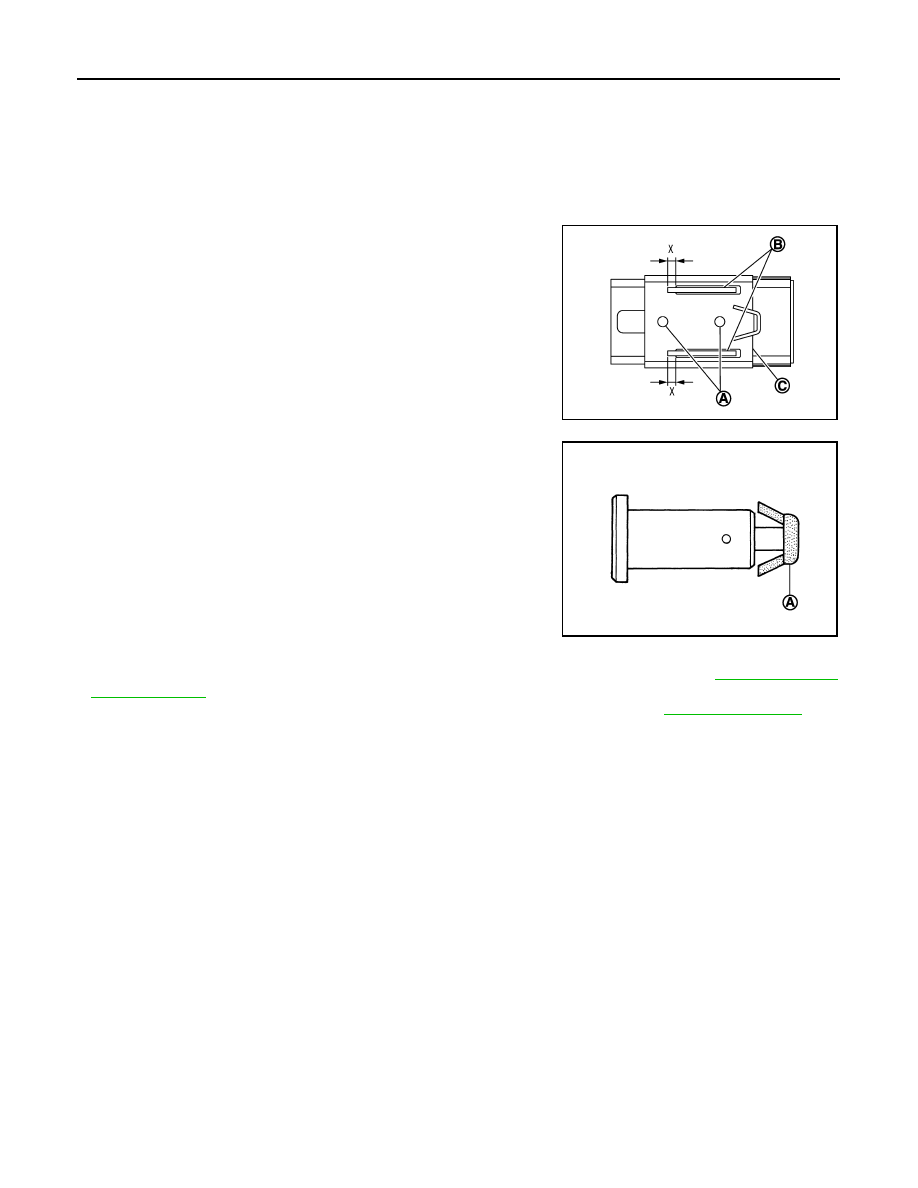

INSPECTION AFTER REMOVAL

• Check the following items and replace the brake pedal assembly if

necessary.

- Check the brake pedal upper rivet (A) for deformation.
- Check the brake pedal for bend, damage, and cracks on the

welded parts.

- Check the lapping length (X) of sub-bracket (B) and slide plate (C).

• Check clevis pin and plastic stopper (A) for damage and deforma-

tion. If any is found, replace clevis pin.

ADJUSTMENT AFTER INSTALLATION

• Perform the brake pedal adjustment after installing the brake pedal assembly. Refer to

BR-8, "Inspection

and Adjustment"

.

• Perform the accelerator pedal check after installing the accelerator pedal. Refer to

ACC-3, "Inspection"

.

Limit

Lapping length

: 5.0 mm (0.197 in)

PFIA0755J

PFIA0756J
