- If axial end play exceeds the standard value, replace transverse link assembly.

INSPECTION AFTER INSTALLATION

1.

Adjust neutral position of steering angle sensor. Refer to

BRC-78, "ADJUSTMENT OF STEERING

ANGLE SENSOR NEUTRAL POSITION : Special Repair Requirement"

 (with ESP).

2.

Check wheel alignment. Refer to

FSU-7, "Wheel Alignment Inspection"

.

Standard

Axial end play

:Refer to

FSU-18, "Ball Joint"

.

FSU-14

< ON-VEHICLE REPAIR >

FRONT STABILIZER

FRONT STABILIZER

Exploded View

INFOID:0000000000970540

Refer to

FSU-16, "Exploded View"

.

Removal and Installation

INFOID:0000000000970541

REMOVAL

1.

Remove tires from vehicle.

2.

Remove steering outer socket from steering knuckle. Refer to

ST-13, "Exploded View"

.

3.

Remove stabilizer connecting rod. Refer to

FSU-16, "Exploded View"

.

4.

Remove under cover from vehicle.

5.

Remove front suspension member stay from vehicle. Refer to

FSU-16, "Exploded View"

.

6.

Remove rear torque rod. Refer to

EM-83, "Exploded View"

 (HR16DE),

EM-194, "M/T : Exploded View"

(MR20DE M/T models),

EM-198, "CVT : Exploded View"

 (MR20DE CVT models),

EM-298, "Exploded

View"

 (K9K).

7.

Separate intermediate shaft from steering gear. Refer to

ST-10, "Exploded View"

.

8.

Set suitable jack front suspension member.

9.

Gradually lower jack front suspension member in order to
remove stabilizer mounting bolts.

10. Remove mounting bolts (

) of stabilizer clamp, and then

remove stabilizer clamp and stabilizer bushing from front sus-
pension member.

11. Remove stabilizer bar.

INSTALLATION

Install in the reverse order of removal.

Inspection

INFOID:0000000000970542

INSPECTION AFTER REMOVAL

Check stabilizer bar, stabilizer connecting rod, stabilizer bushing and stabilizer clamp for deformation, cracks
or damage. Replace it if necessary.

WEIA0181E

WEIA0182E

FRONT SUSPENSION MEMBER

FSU-15

< ON-VEHICLE REPAIR >

C

D

F

G

H

I

J

K

L

M

A

B

FSU

N

O

P

FRONT SUSPENSION MEMBER

Exploded View

INFOID:0000000000970543

Refer to

FSU-16, "Exploded View"

.

Removal and Installation

INFOID:0000000000970544

REMOVAL

1.

Remove tires from vehicle.

2.

Remove under cover from vehicle.

3.

Remove front suspension member stay from vehicle. Refer to

FSU-16, "Exploded View"

.

4.

Remove wheel sensor from steering knuckle. Refer to

BRC-67, "FRONT WHEEL SENSOR : Exploded

View"

 (with ABS),

BRC-172, "FRONT WHEEL SENSOR : Exploded View"

 (with ESP).

5.

Remove upper side of stabilizer connecting rod from strut assembly. Refer to

FSU-16, "Exploded View"

.

6.

Remove steering outer socket from steering knuckle. Refer to

ST-13, "Exploded View"

.

7.

Separate intermediate shaft from steering gear. Refer to

ST-10, "Exploded View"

.

8.

Remove transverse link from steering knuckle. Refer to

FSU-12, "Exploded View"

.

9.

Remove rear torque rod. Refer to

EM-83, "Exploded View"

 (HR16DE),

EM-194, "M/T : Exploded View"

(MR20DE M/T models),

EM-198, "CVT : Exploded View"

 (MR20DE CVT models),

EM-298, "Exploded

View"

 (K9K).

10. Set suitable jack front suspension member.

11. Remove mounting bolts and nuts of front suspension member.

12. Gradually lower jack to remove front suspension assembly from vehicle.

CAUTION:

Secure suspension assembly to suitable jack while removing it.

13. Remove mounting bolts and nuts, and then remove transverse link, stabilizer bar from front suspension

member.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Perform final tightening of installation position between front suspension member and transverse links (rub-

ber bushing) under unladen condition with tires on level ground.

Inspection

INFOID:0000000001116390

INSPECTION AFTER REMOVAL

Check the front suspension member for significant deformation, cracks, or damages. Replace it if necessary.

INSPECTION AFTER INSTALLATION

1.

Adjust the neutral position of the steering angle sensor. Refer to

BRC-78, "ADJUSTMENT OF STEERING

ANGLE SENSOR NEUTRAL POSITION : Special Repair Requirement"

 (with ESP).

2.

Check wheel alignment. Refer to

FSU-7, "Wheel Alignment Inspection"

.

FSU-16

< REMOVAL AND INSTALLATION >

FRONT SUSPENSION ASSEMBLY

REMOVAL AND INSTALLATION

FRONT SUSPENSION ASSEMBLY

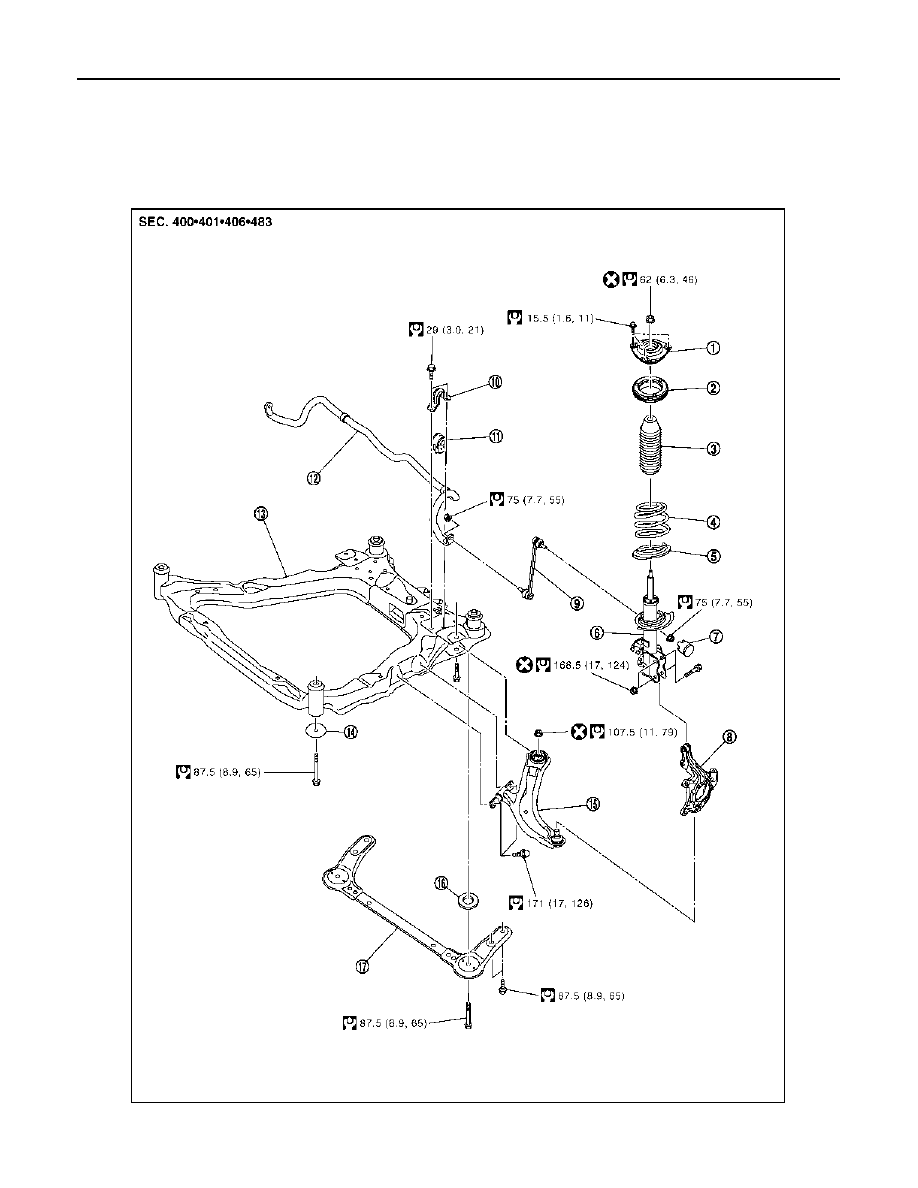

Exploded View

INFOID:0000000000970546
