Nissan Qashqai (2007-2010). Manual - part 651





FAX-26

< ON-VEHICLE REPAIR >

[2WD]

FRONT DRIVE SHAFT

• Place the protector (A) (SST:KV38107900) onto transaxle assem-

bly to prevent damage to the oil seal while inserting drive shaft.
Slide drive shaft sliding joint and tap with a hammer to install
securely.

• When installing support bearing bracket (1).
- Temporarily tighten mounting bolts in the order of (A), (B).
- Set plate (2) so that notch (C) becomes upper side. (Temporarily)

tighten mounting bolts in the order of (a), (b).

CAUTION:

Never reuse plate.

MR20DE MODELS : Disassembly and Assembly

INFOID:0000000001070381

DISASSEMBLY

Transaxle Assembly Side

1.

Fix shaft with a vise.

CAUTION:

Protect shaft using aluminum or copper plates when fixing with a vise.

2.

Remove boot bands, and then remove boot from housing.

3.

Remove stopper ring.

4.

Put matching marks on housing and shaft, and then pull out housing from shaft.

CAUTION:

Use paint or an equivalent for matching marks. Never scratch the surfaces.

5.

Put matching marks (A) on the spider assembly and shaft.

CAUTION:

Use paint or an equivalent for matching marks. Never
scratch the surfaces.

JPDIF0049ZZ

SDIA3224J

JPDIF0006ZZ

FRONT DRIVE SHAFT

FAX-27

< ON-VEHICLE REPAIR >

[2WD]

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

6.

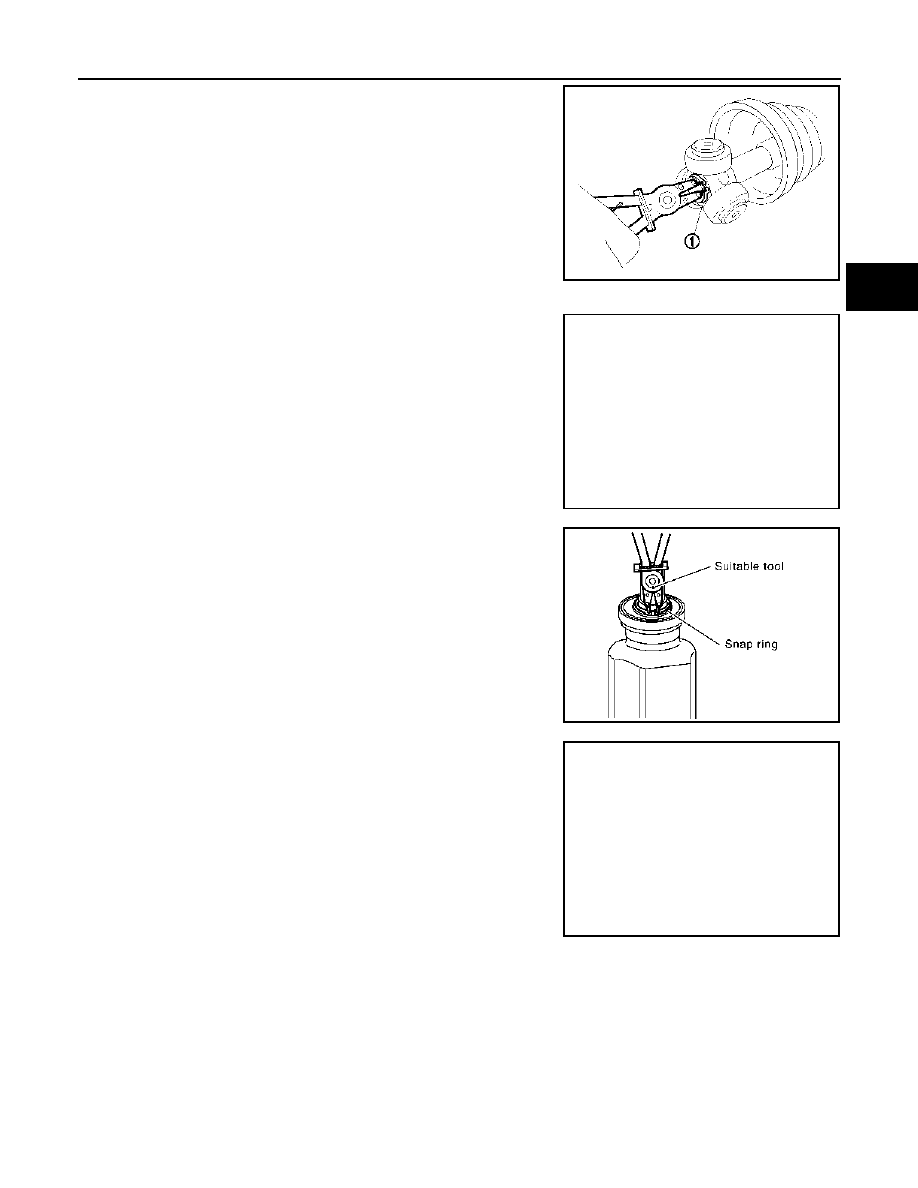

Remove snap ring (1), and then remove spider assembly from
shaft.

7.

Remove boot from shaft.

8.

Remove circular clip from shaft (left side).

9.

Remove dust shield from housing.

10. Clean old grease on housing with paper towels.

Support Bearing

1.

Remove dust shield from housing.

2.

Remove snap ring.

3.

Press out support bearing from housing.

4.

Remove dust shield.

Dynamic Damper

Remove damper bands, then remove dynamic damper from shaft.

Wheel Side

1.

Fix shaft with a vise.

CAUTION:

Protect shaft using aluminum or copper plates when fixing with a vise.

2.

Remove boot bands, and then remove boot from joint sub-assembly.

JPDIF0014ZZ

YAX002

YAX003

YAX004

FAX-28

< ON-VEHICLE REPAIR >

[2WD]

FRONT DRIVE SHAFT

3.

Screw the drive shaft puller (A) 30 mm (1.18 in) or more into the
thread of joint sub-assembly, and pull joint sub-assembly with a
sliding hammer (B) from shaft.

CAUTION:

• If joint sub-assembly cannot be removed after five or

more unsuccessful attempts, replace shaft and joint sub
assembly as a set.

• Align sliding hammer and drive shaft and remove them by

pulling directory.

4.

Remove circular clip from shaft.

5.

Remove boot from shaft.

6.

Clean old grease on joint sub-assembly with paper towels while
rotating ball cage.

ASSEMBLY

Transaxle Assembly Side

1.

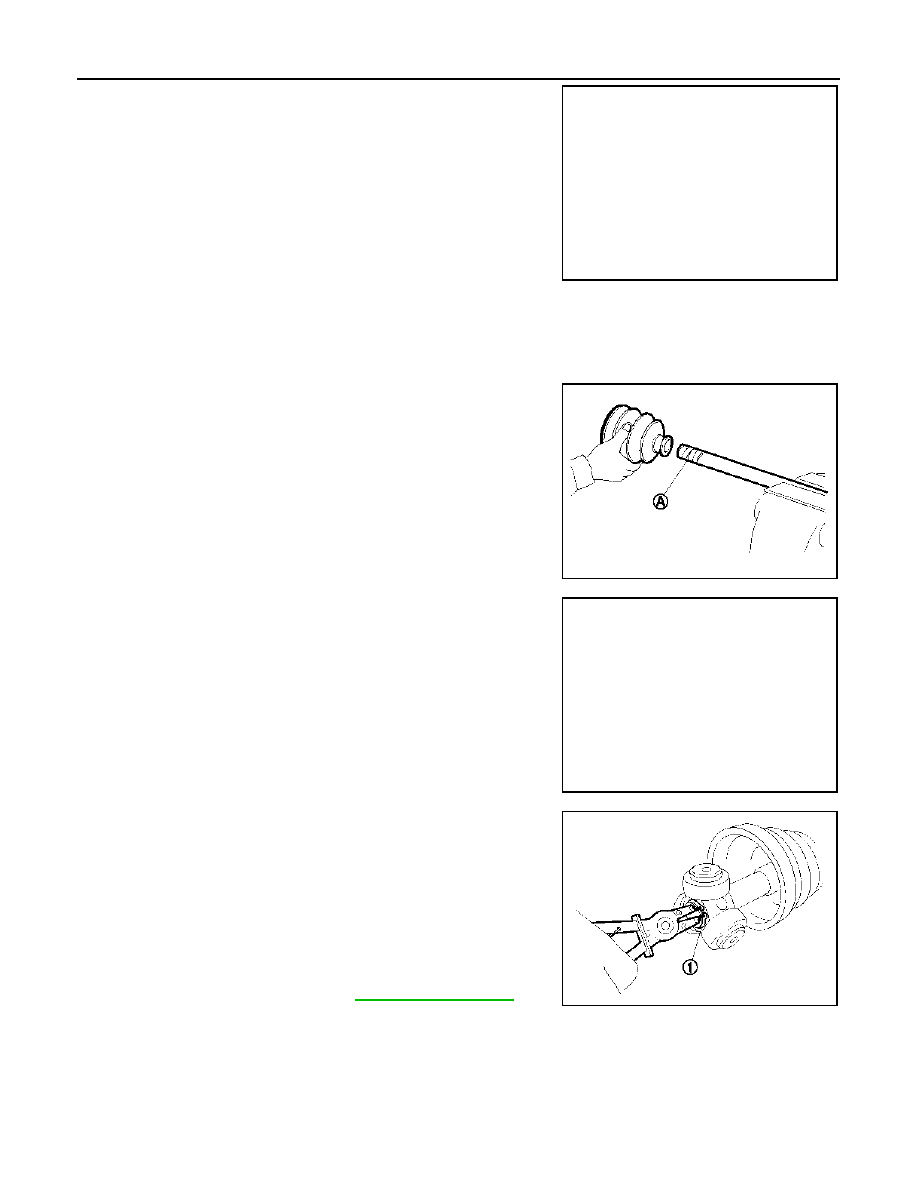

Wrap serration on shaft with tape (A) to protect boot from dam-
age. Install new boot and boot bands to shaft.

CAUTION:

Never reuse boot and boot band.

2.

Remove the tape wrapped around the serration on shaft.

3.

To install the spider assembly (1), align it with the matching
marks (A) on the shaft (2) during the removal, and direct the ser-
ration mounting surface (B) to the shaft.

4.

Secure spider assembly onto shaft with snap ring (1).

CAUTION:

Never reuse snap ring.

5.

Apply the appropriate amount of grease to spider assembly and
sliding surface.

6.

Assemble the housing onto spider assembly, and apply the bal-
ance of the specified amount grease.

7.

Align matching marks put during the removal of housing.

8.

Install stopper ring.

CAUTION:

Never reuse stopper ring.

JPDIF0015ZZ

JPDIF0009ZZ

JPDIF0017ZZ

Standard

Grease amount

: Refer to

FAX-40, "Drive Shaft"

.

JPDIF0014ZZ

FRONT DRIVE SHAFT

FAX-29

< ON-VEHICLE REPAIR >

[2WD]

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

9.

Install boot securely into grooves (indicated by “*” marks) shown
in the figure.

CAUTION:

If grease adheres to the boot mounting surface (with “*”
mark) on shaft or housing, boot may be removed. Remove
all grease from the surface.

10. To prevent from deformation of the boot, adjust the boot installa-

tion length to the value shown below (L) by inserting the suitable
tool into the inside of boot from the large diameter side of boot
and discharging inside air.

CAUTION:

• If the boot installation length exceeds the standard, it may cause breakage in boot.
• Be careful not to touch the inside of the boot with the tip of tool.

11. Install new larger and smaller boot bands securely.

CAUTION:

Never reuse boot band.

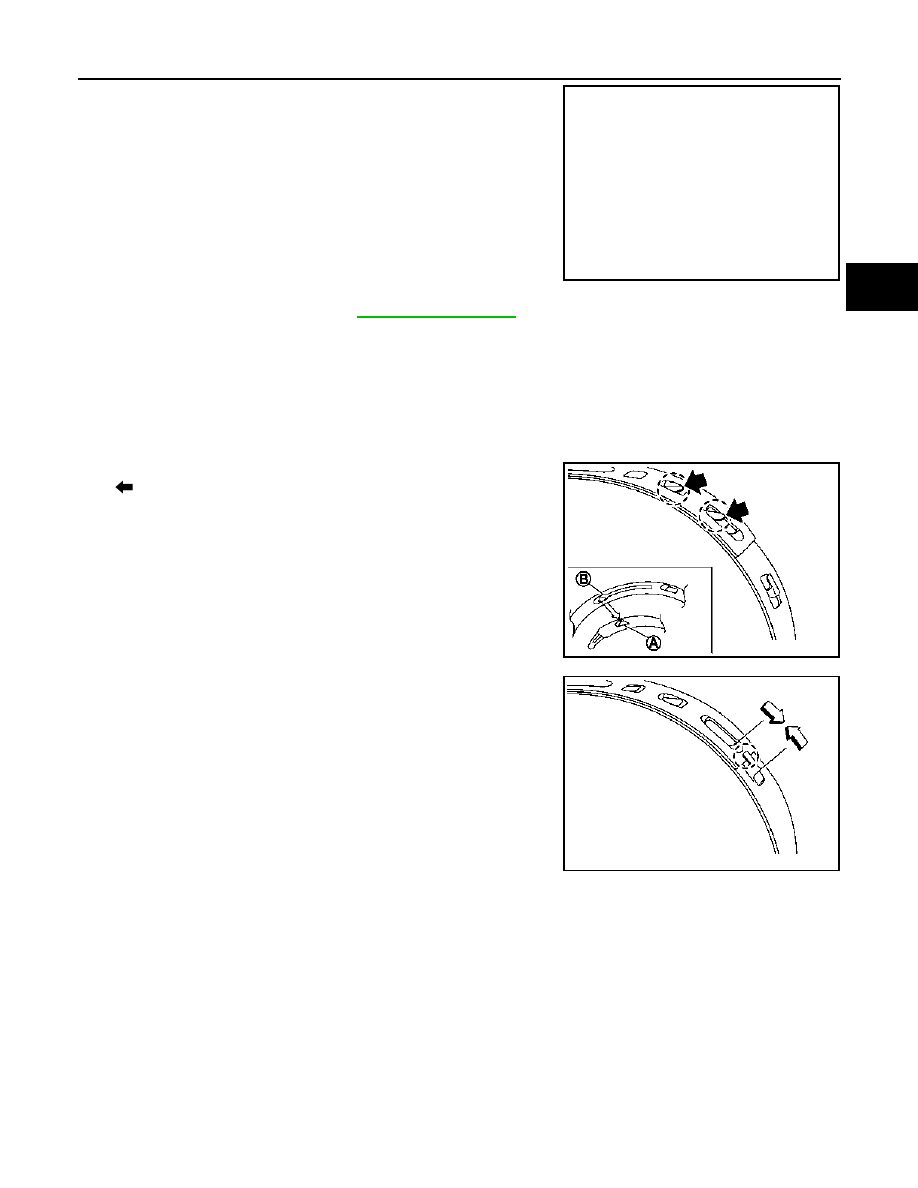

12. Put boot band in the groove on drive shaft boot. Then fit pawls

(

) into holes to temporary installation.

NOTE:
For the large diameter side, fit projection (A) and guide slit (B) at
first.

13. Pinch projection on the band with suitable pliers to tighten band.
14. Insert tip of band below end of the pawl.

15. Secure housing and shaft, and then make sure that they are in

the correct position when rotating boot. Install them with new
boot band when the mounting positions become incorrect.

16. Install circular clip to shaft (left side).

CAUTION:

Never reuse circular clip.

17. Install dust shield (left side).

CAUTION:

Never reuse dust shield.

Support Bearing

1.

Install dust shield on housing.

CAUTION:

Never reuse dust shield.

Standard

Boots installed
length (L)

: Refer to

FAX-40, "Drive Shaft"

.

JPDIF0032ZZ

SDIA3557E

SDIA3558E
