Nissan Qashqai (2007-2010). Manual - part 639

REAR FINAL DRIVE ASSEMBLY

DLN-129

< REMOVAL AND INSTALLATION >

[REAR FINAL DRIVE: R145]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

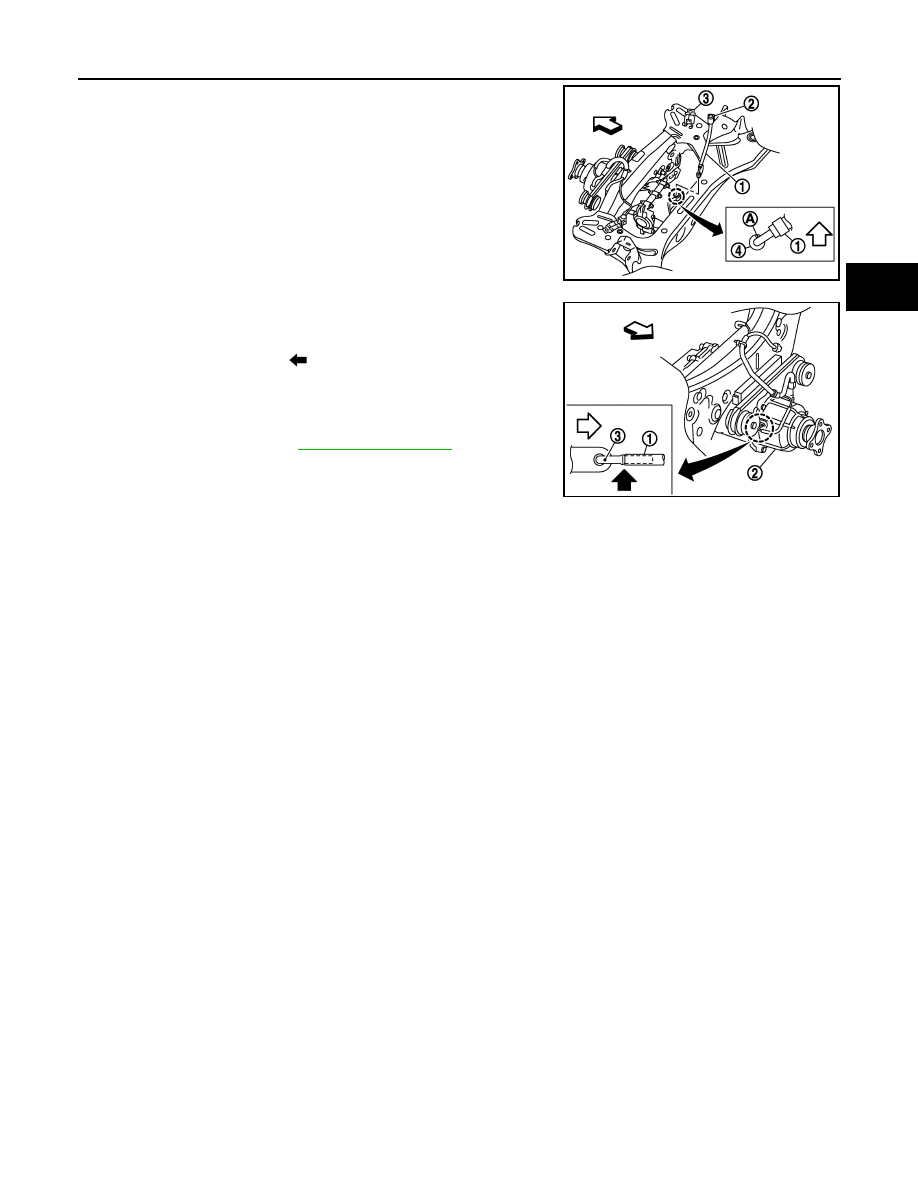

- Install rear final drive breather hose (1) to breather connector (2).

Install bracket (3) to the breather connector. Check that the paint
mark (A) of metal connector (4) faces forward of the vehicle as
shown by the arrow.

- Install electric controlled coupling breather hose (1) to metal tube

all way to the point shown by the solid arrow. Check that the cou-
pling cover (2) of metal tube (3) faces forward of the vehicle as
shown by the outline arrow (

).

• When oil leaks while removing final drive assembly, check oil level

after the installation. Refer to

DLN-120, "Inspection"

.

: Vehicle front

JSDIA0222ZZ

: Vehicle front

JSDIA0223ZZ

DLN-130

< DISASSEMBLY AND ASSEMBLY >

[REAR FINAL DRIVE: R145]

ELECTRIC CONTROLLED COUPLING

DISASSEMBLY AND ASSEMBLY

ELECTRIC CONTROLLED COUPLING

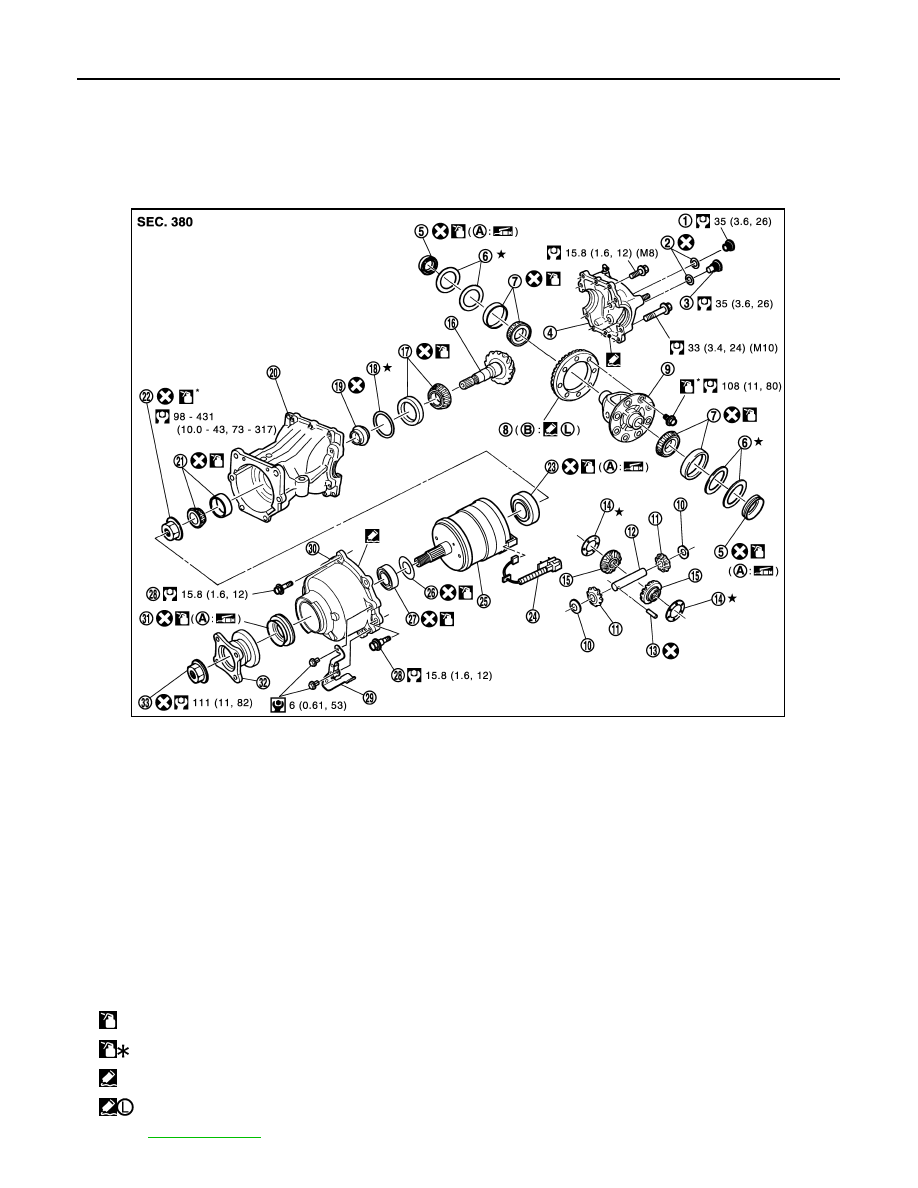

Exploded View

INFOID:0000000001076996

1.

Filler plug

2.

Gasket

3.

Drain plug

4.

Rear cover

5.

Side oil seal

6.

Side bearing adjusting shim

7.

Side bearing

8.

Drive gear

9.

Differential case

10. Pinion mate thrust washer

11.

Pinion mate gear

12. Pinion mate shaft

13. Lock pin

14. Side gear thrust washer

15. Side gear

16. Drive pinion

17. Pinion rear bearing

18. Drive pinion adjusting shim

19. Collapsible spacer

20. Gear carrier

21. Pinion front bearing

22. Drive pinion nut

23. Center oil seal

24. 4WD solenoid harness

25. Electric controlled coupling

26. Bearing shim

27. Coupling front bearing

28. Reamer bolt

29. Connector bracket

30. Coupling cover

31. Front oil seal

32. Companion flange

33. Companion flange lock nut

A: Oil seal lip

B: Screw hole

: Apply gear oil.

: Apply anti-corrosive oil.

: Apply Genuine Liquid Gasket, Three Bond TB1217 or equivalent.

: Apply Genuine Medium Strength Thread Locking Sealant, Three Bond TB1322B or equivalent.

Refer to

GI-4, "Components"

 for symbols not described on the above.

JSDIA0234GB

ELECTRIC CONTROLLED COUPLING

DLN-131

< DISASSEMBLY AND ASSEMBLY >

[REAR FINAL DRIVE: R145]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

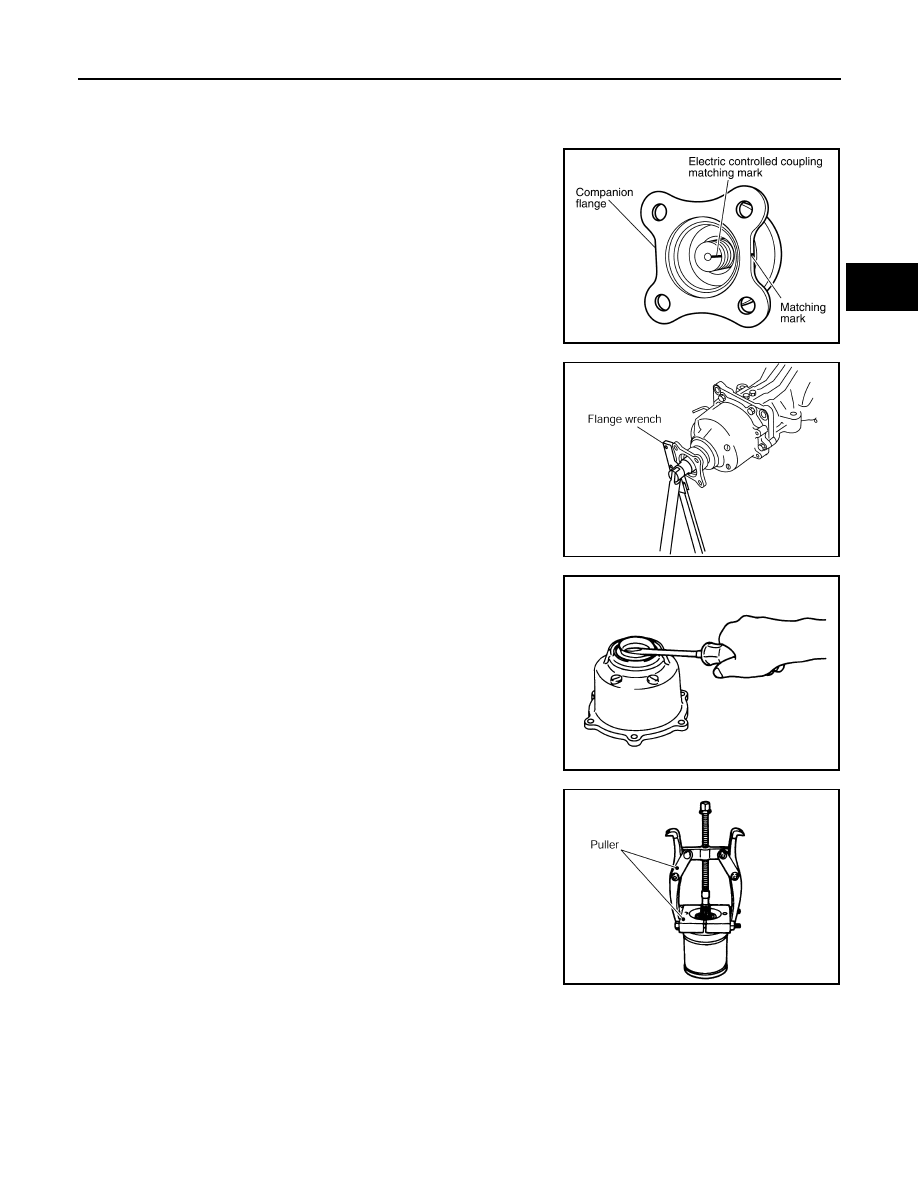

Disassembly

INFOID:0000000001076997

1.

Remove connector bracket.

2.

Put matching mark on the thread edge of electric controlled cou-
pling. The matching mark should be in line with the matching
mark on companion flange.

CAUTION:

For matching mark, use paint. Never damage electric con-
trolled coupling.
NOTE:
When replacing electric controlled coupling, matching mark is
not necessary.

3.

Remove companion flange lock nut, using a flange wrench
(commercial service tool).

4.

Remove companion flange.

5.

Remove coupling cover.

6.

Remove front oil seal from coupling cover, using flat-bladed
screwdriver.

CAUTION:

Be careful not to damage coupling cover.

7.

Remove electric controlled coupling.

8.

Remove 4WD solenoid harness.

9.

Remove coupling front bearing, using pullers and then take off
bearing shim from electric controlled coupling.

10. Remove center oil seal from gear carrier.

Assembly

INFOID:0000000001076998

PDIA0455E

PDIA0442E

PDG0213D

PDIA0444E

DLN-132

< DISASSEMBLY AND ASSEMBLY >

[REAR FINAL DRIVE: R145]

ELECTRIC CONTROLLED COUPLING

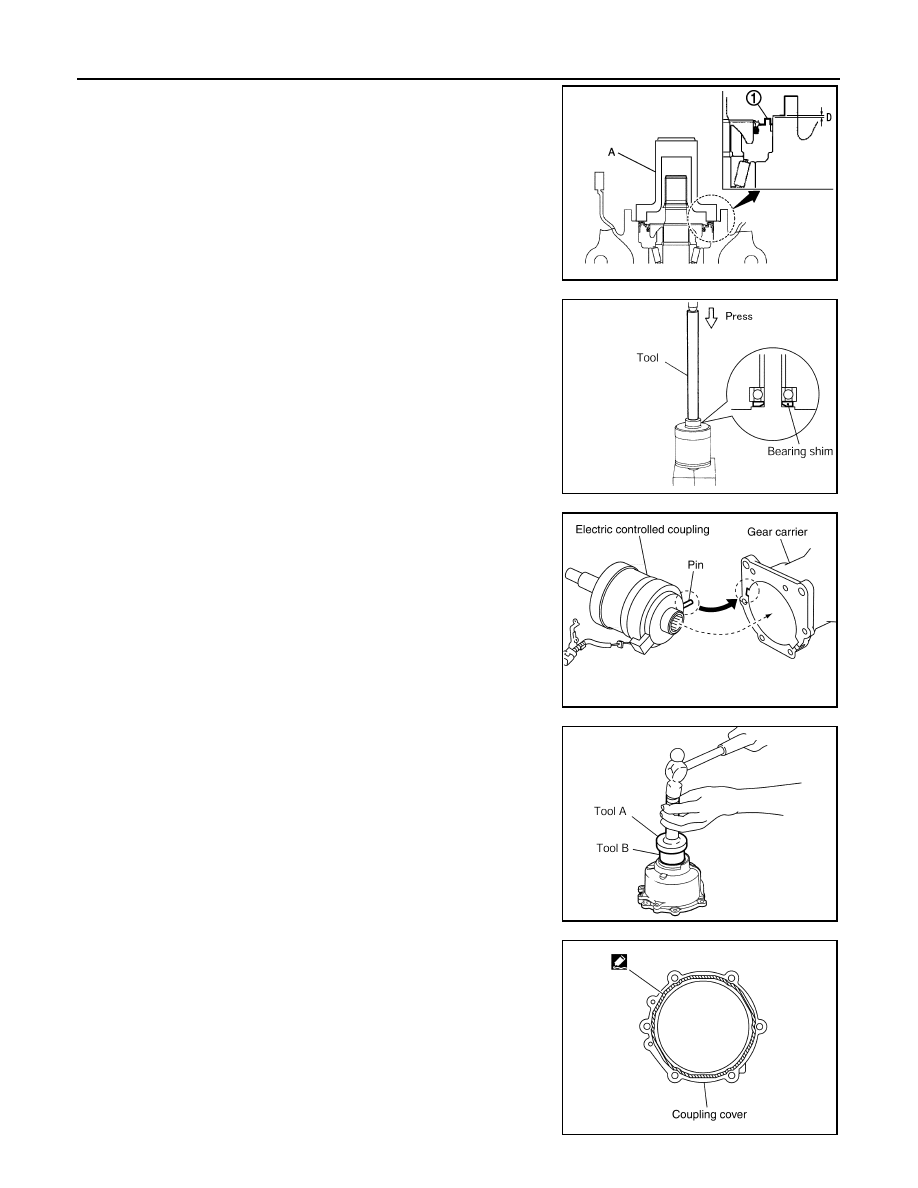

1.

Using the drift (A) (SST: ST35271000), install center oil seal (1)
as shown in the figure.

CAUTION:

• Never reuse oil seal.
• When installing, never incline oil seal.
• Apply multi-purpose grease onto oil seal lips, and gear oil

onto the circumference of oil seal.

2.

Install bearing shim and coupling front bearing to electric con-
trolled coupling, using the drift (SST: 22360002).

CAUTION:

• Never reuse bearing shim and coupling front bearing.
• When assembling bearing shim, shim chamfer side

should face electric controlled coupling side.

• Apply gear oil to coupling front bearing and bearing shim.

3.

Connect 4WD solenoid harness to electric controlled coupling.

4.

Install electric controlled coupling to spline of drive pinion inside
gear carrier.

CAUTION:

• Align the pin on electric controlled coupling with the

groove of gear carrier.

• Be careful not to damage center oil seal.

5.

Set 4WD solenoid harness guide to gear carrier.

6.

Using the drifts, drive front oil seal until it becomes flush with the
coupling cover end.

CAUTION:

• Never reuse oil seal.
• When installing, never incline oil seal.
• Apply multi-purpose grease onto oil seal lips, and gear oil

onto the circumference of oil seal.

7.

Apply liquid gasket to mating surface of coupling cover. Overlap
both ends of the bead for at least 3 mm (0.12 in).

CAUTION:

Remove old gasket adhering to the mounting surfaces.
Also remove any moisture, oil, or foreign material adhering
to the mounting surfaces.

Dimension “D”

: 0.8 – 1.2 mm (0.031 – 0.047 in)

JSDIA0260ZZ

PDIA0450E

PDIA0463E

A

: Drift (SST: KV38100200)

B

: Drift (SST: ST27861000)

PDIA0449E

PDIA0613E
