Electric Controlled Coupling

1.

The 4WD control unit supplies command current to electric con-
trolled coupling (4WD solenoid).

2.

The control clutch is engaged by electromagnet and torque is
detected in control clutch.

3.

The cam operates in response to control clutch torque and
applies pressure to main clutch.

4.

The main clutch transmits torque to front wheels according to
pressing power.

• Transmission torque to the rear wheels is determined accord-

ing to command current.

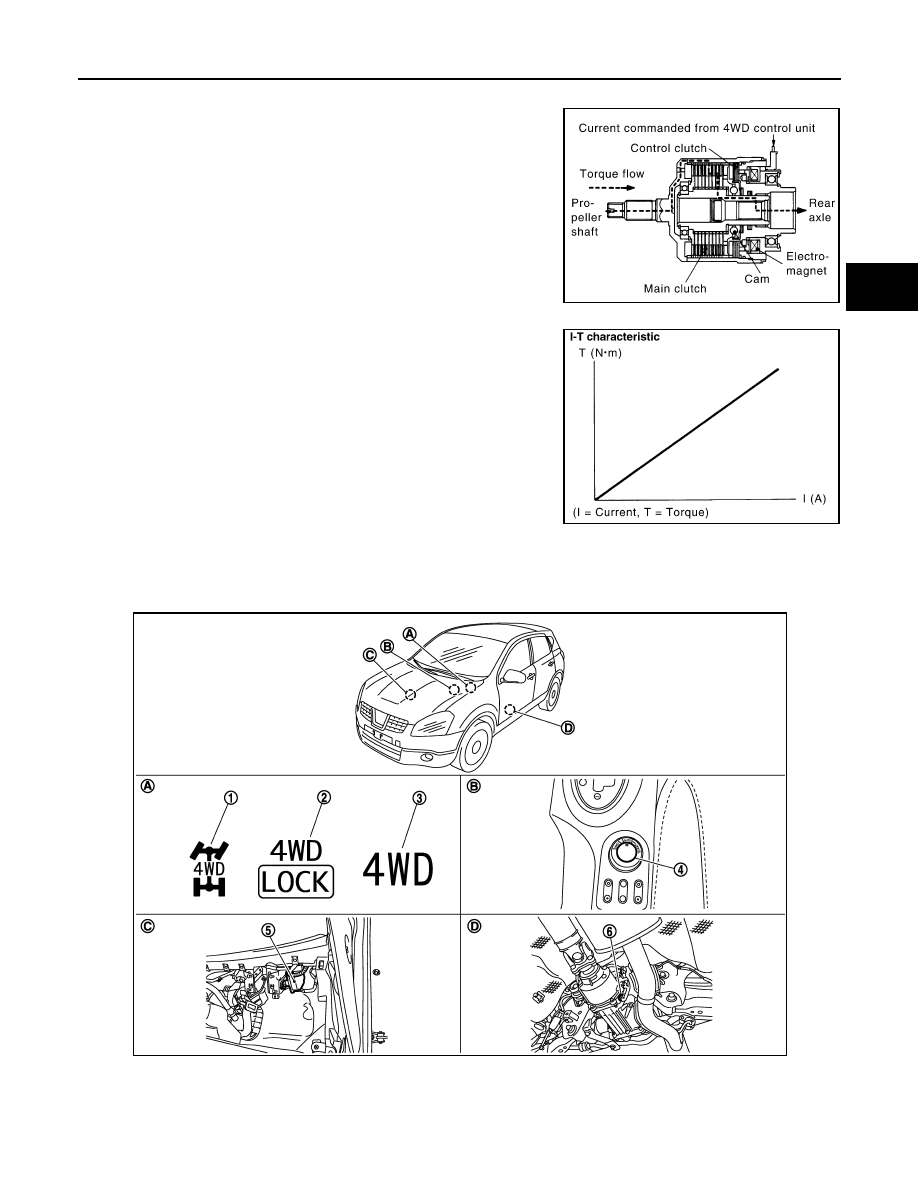

Component Parts Location

INFOID:0000000000972074

LHD MODELS

SFIA0284E

SDIA1844E

1.

4WD indicator lamp

2.

LOCK indicator lamp

3.

4WD warning lamp

4.

4WD mode switch

5.

4WD control unit

6.

4WD solenoid (in rear final drive)

JSDIA0207ZZ

DLN-10

< FUNCTION DIAGNOSIS >

[TRANSFER: TY30A]

4WD SYSTEM

RHD MODELS

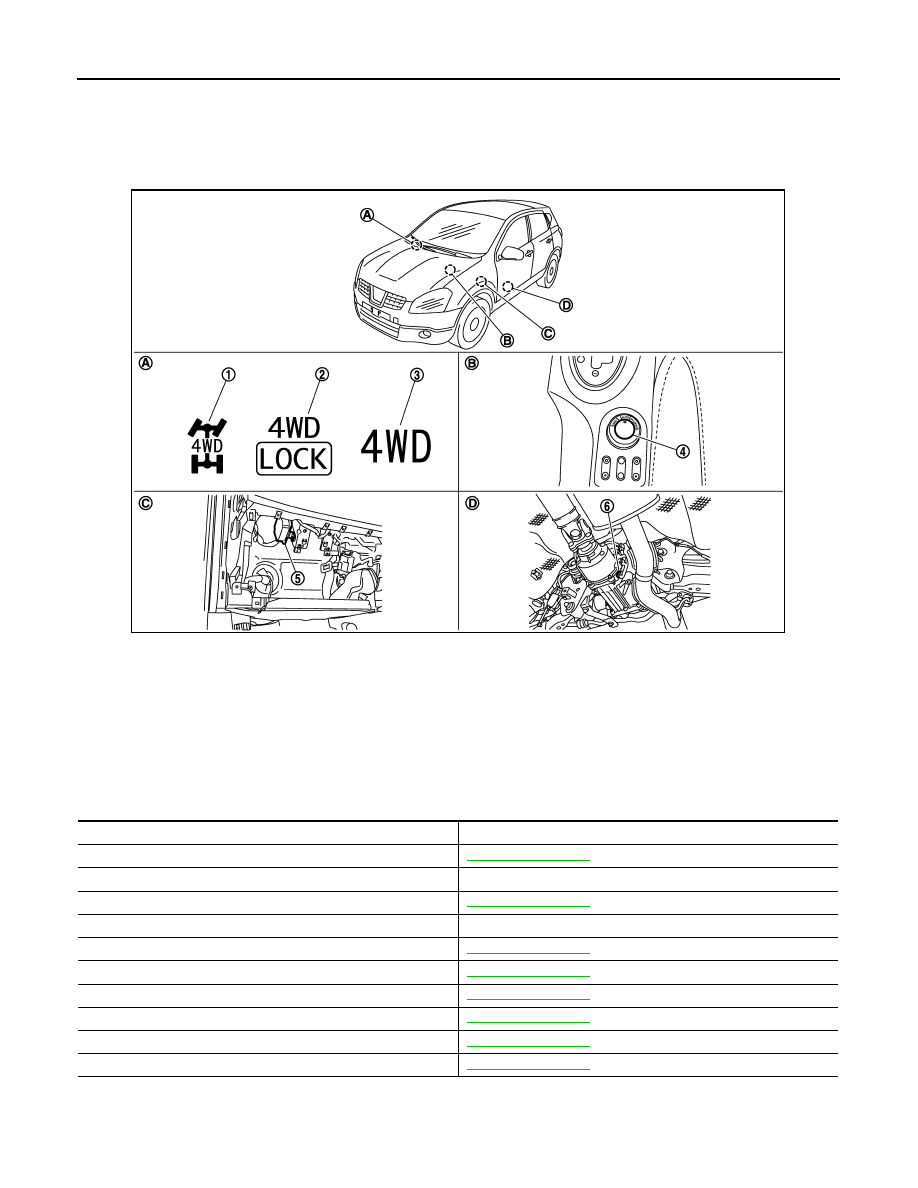

Component Description

INFOID:0000000000972075

A.

Combination meter

B.

Center console assembly

C.

Instrument assist lower panel re-
moved

D.

Rear final drive assembly

1.

4WD indicator lamp

2.

LOCK indicator lamp

3.

4WD warning lamp

4.

4WD mode switch

5.

4WD control unit

6.

4WD solenoid (in rear final drive)

A.

Combination meter

B.

Center console assembly

C.

Instrument assist lower panel re-
moved

D.

Rear final drive assembly

JSDIA0238ZZ

Component parts

Reference/Function

4WD control unit

DLN-14, "Description"

Wheel sensors

Detects wheel speed.

4WD solenoid

DLN-16, "Description"

Electric controlled coupling

Transmits driving force to rear final drive.

4WD warning lamp

DLN-28, "Description"

4WD indicator lamp

DLN-29, "Description"

LOCK indicator lamp

DLN-30, "Description"

4WD mode switch

DLN-20, "Description"

ABS actuator and electric unit (control unit)

DLN-15, "Description"

ECM

DLN-23, "Description"

4WD SYSTEM

DLN-11

< FUNCTION DIAGNOSIS >

[TRANSFER: TY30A]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

Combination meter

Transmits conditions of parking brake switch signal via CAN com-
munication to 4WD control unit.

Steering angle sensor

Transmits conditions of steering angle sensor signal via CAN com-
munication to 4WD control unit.

Component parts

Reference/Function

DLN-12

< FUNCTION DIAGNOSIS >

[TRANSFER: TY30A]

DIAGNOSIS SYSTEM (4WD CONTROL UNIT)

DIAGNOSIS SYSTEM (4WD CONTROL UNIT)

CONSULT-III Function (ALL MODE AWD/4WD)

INFOID:0000000000972076

FUNCTION

CONSULT-III can display each diagnostic item using the diagnostic test modes shown following.

SELF-DIAG RESULT MODE

Drive at 30 km/h or more for approximately 1 minute before performing the self-diagnosis.

Display Item List

How to Erase Self-Diagnostic Results

Before erasing DTC memory, start the engine and drive at 30 km/h or more for approximately 1 minute. Check
that ABS warning lamp turns OFF.
NOTE:
Make sure that ABS warning lamp turns OFF by driving for a minute at vehicle speed of 30 km/h (19 MPH) or
more after turning ignition switch OFF if 4WD warning lamp turns ON with system malfunction of “ABS SYS-
TEM [C1203]”. 4WD warning lamp may not turn OFF if it is normal unless ignition switch turns OFF at once
and engine restarts after that.

DATA MONITOR MODE

Display Item List

Diagnostic test mode

Function

Self-diagnostic results

Self-diagnostic results can be read and erased quickly.

Data monitor

Input/Output data in the 4WD control unit can be read.

CAN diagnostic support monitor

The results of transmit/receive diagnosis of CAN communication can be read.

Active test

Diagnostic Test Mode in which CONSULT-III drives some actuators apart from the 4WD control unit
and also shifts some parameters in a specified range.

ECU part number

4WD control unit part number can be read.

DTC

Items

(CONSULT-III screen terms)

Diagnostic item is detected when...

Possible cause

C1201

CONTROLLER FAILURE

Malfunction has occurred inside 4WD control unit.

Internal malfunction of 4WD
control unit

C1203

ABS SYSTEM

Malfunction related to wheel sensor has been de-
tected by ABS actuator and electric unit (control
unit).

ABS malfunction
• Vehicle speed signal error
• Stop lamp switch signal

(brake signal) error

C1204

4WD SOLENOID

Malfunction related to 4WD solenoid has been de-
tected.

Internal malfunction of elec-
tronic controlled coupling

C1205

4WD ACTUATOR RLY

Malfunction has been detected from 4WD actuator
relay integrated with 4WD control unit, or malfunc-
tion related to 4WD solenoid has been detected.

Internal malfunction of 4WD
control unit

C1209

MODE SW

More than two switch inputs are simultaneously
detected due to short circuit of 4WD mode switch.

Malfunction of 4WD mode
switch or 4WD mode switch
circuit.

C1210

ENGINE SIGNAL 1

Malfunction has been detected from ECM.

Malfunction of engine control
system
• Accelerator pedal position

signal error

• Engine speed signal error

U1000

CAN COMM CIRCUIT

When 4WD control unit is not transmitting or re-
ceiving CAN communication signal for 2 seconds
or more.

CAN communication line error

U1010

CONTROL UNIT (CAN)

When detecting error during the initial diagnosis of
CAN controller of 4WD control unit.

4WD control unit error
