FUNCTION DIAGNOSIS

CVT SYSTEM

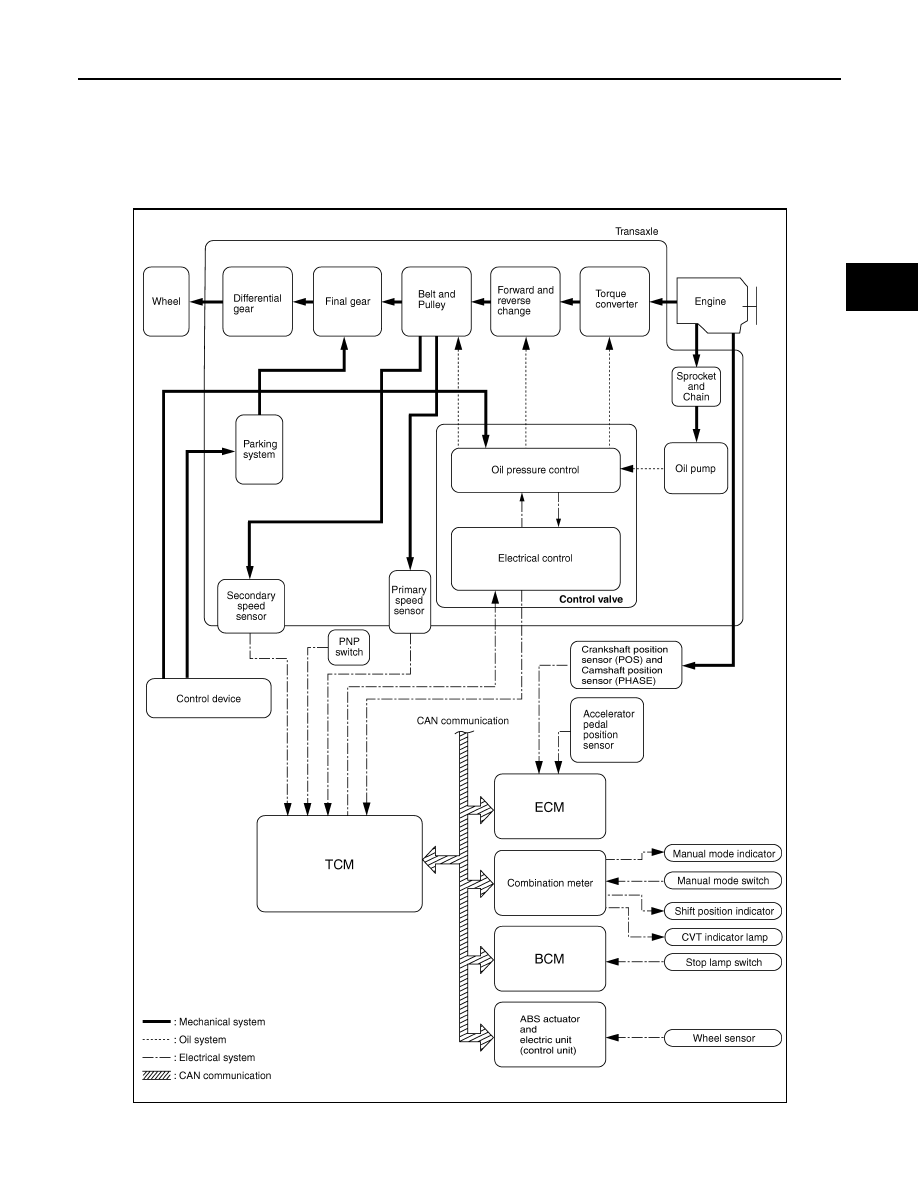

System Diagram

INFOID:0000000000988603

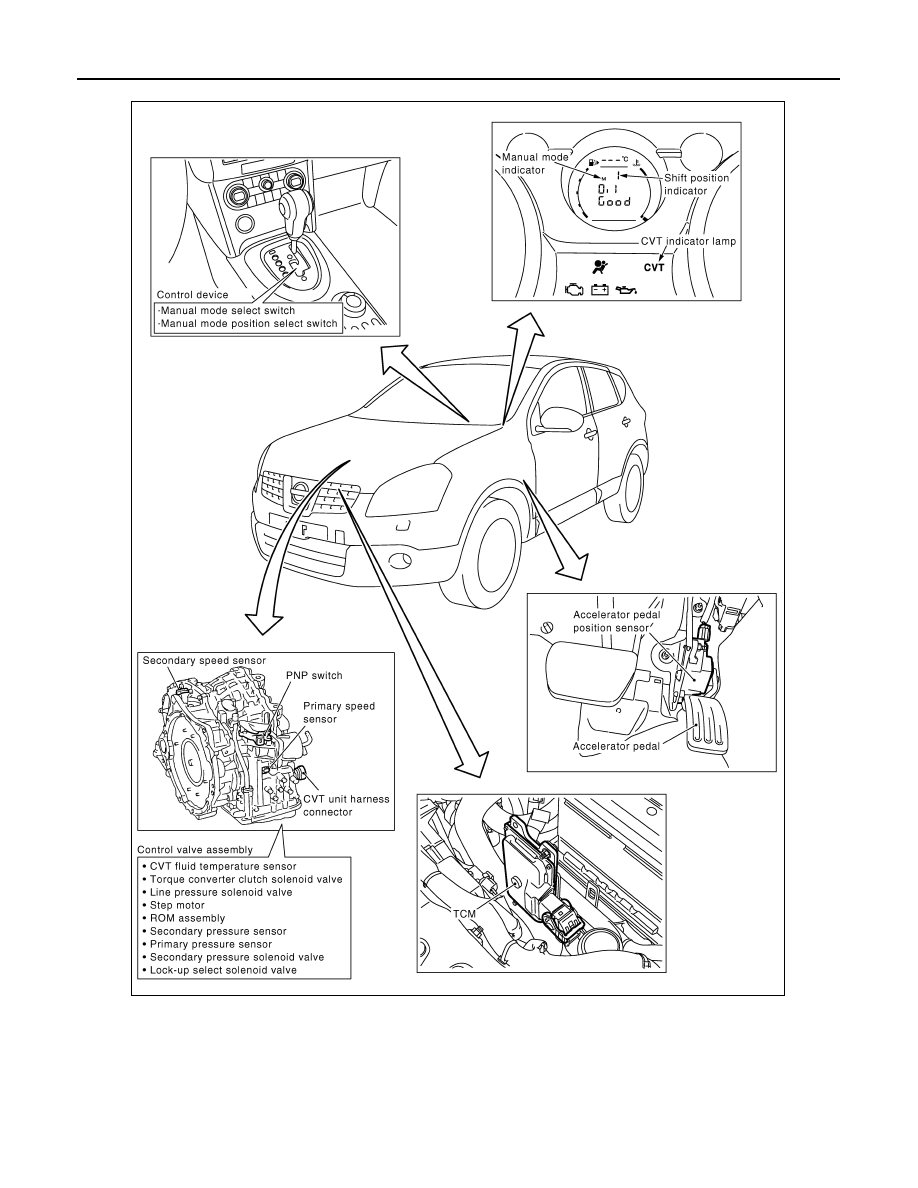

Component Parts Location

INFOID:0000000000988604

JPDIA0184GB

TM-192

< FUNCTION DIAGNOSIS >

[CVT: RE0F10A]

CVT SYSTEM

JPDIA0129GB

MECHANICAL SYSTEM

TM-193

< FUNCTION DIAGNOSIS >

[CVT: RE0F10A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

MECHANICAL SYSTEM

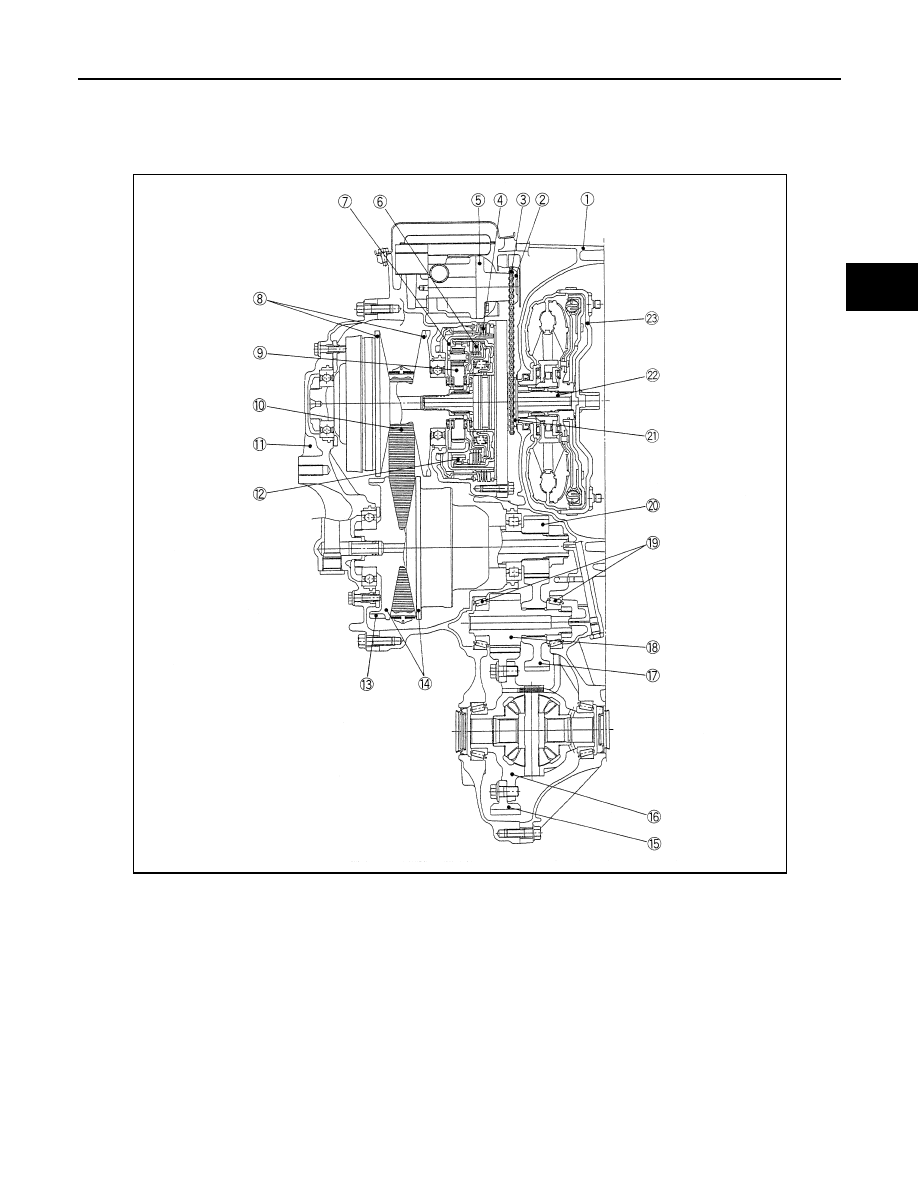

Cross-Sectional View

INFOID:0000000000988605

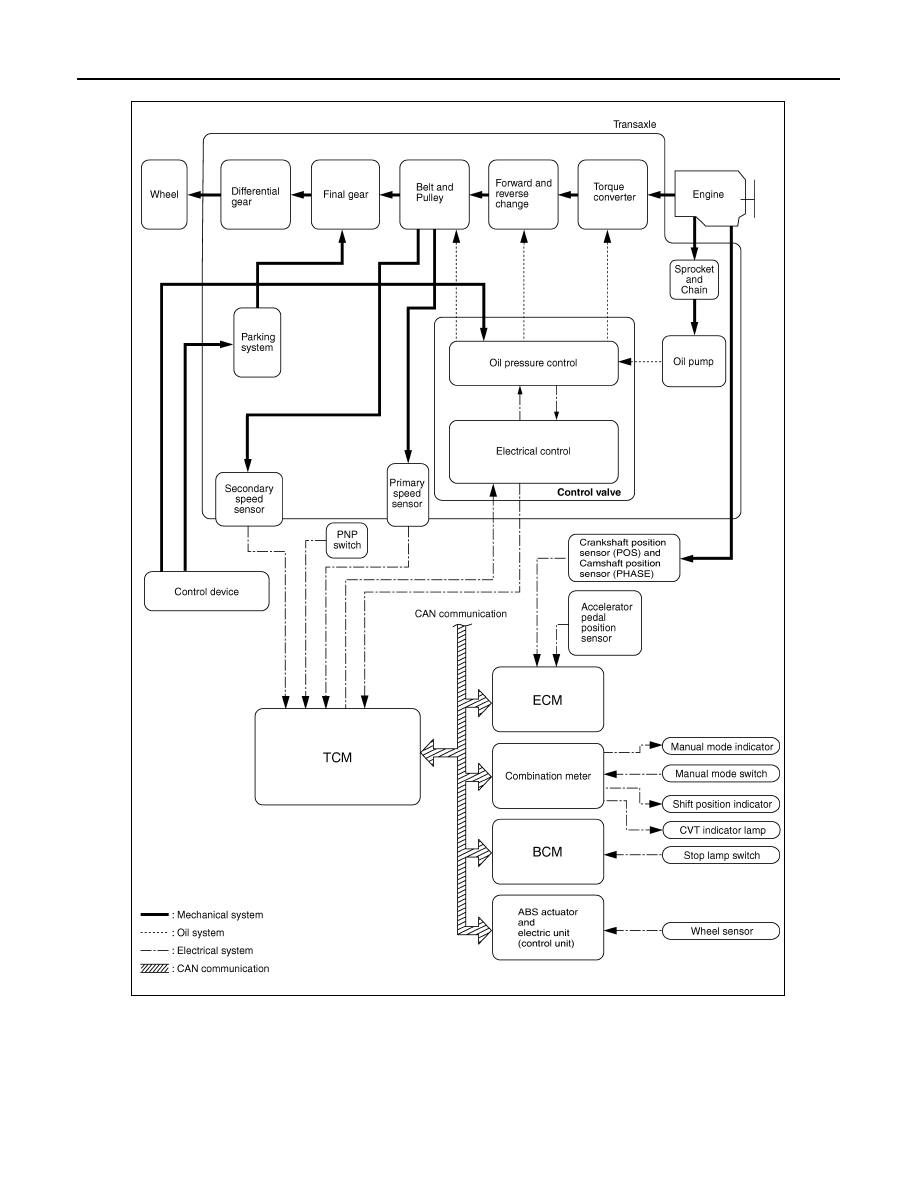

System Diagram

INFOID:0000000000988606

1.

Converter housing

2.

Driven sprocket

3.

Chain

4.

Reverse brake

5.

Oil pump

6.

Forward clutch

7.

Planetary carrier

8.

Primary pulley

9.

Sun gear

10. Steel belt

11.

Side cover

12. Internal gear

13. Parking gear

14. Secondary pulley

15. Final gear

16. Differential case

17. Idler gear

18. Reduction gear

19. Taper roller bearing

20. Output gear

21. Drive sprocket

22. Input shaft

23. Torque converter

SCIA7792J

TM-194

< FUNCTION DIAGNOSIS >

[CVT: RE0F10A]

MECHANICAL SYSTEM

System Description

INFOID:0000000000988607

Transmits the power from the engine to the drive wheel.

Component Parts Location

INFOID:0000000000988608

JPDIA0184GB
