Nissan Qashqai (2007-2010). Manual - part 561

FINAL DRIVE

TM-179

< DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

• Check output gear and reduction gear. If necessary, replace with a new one.

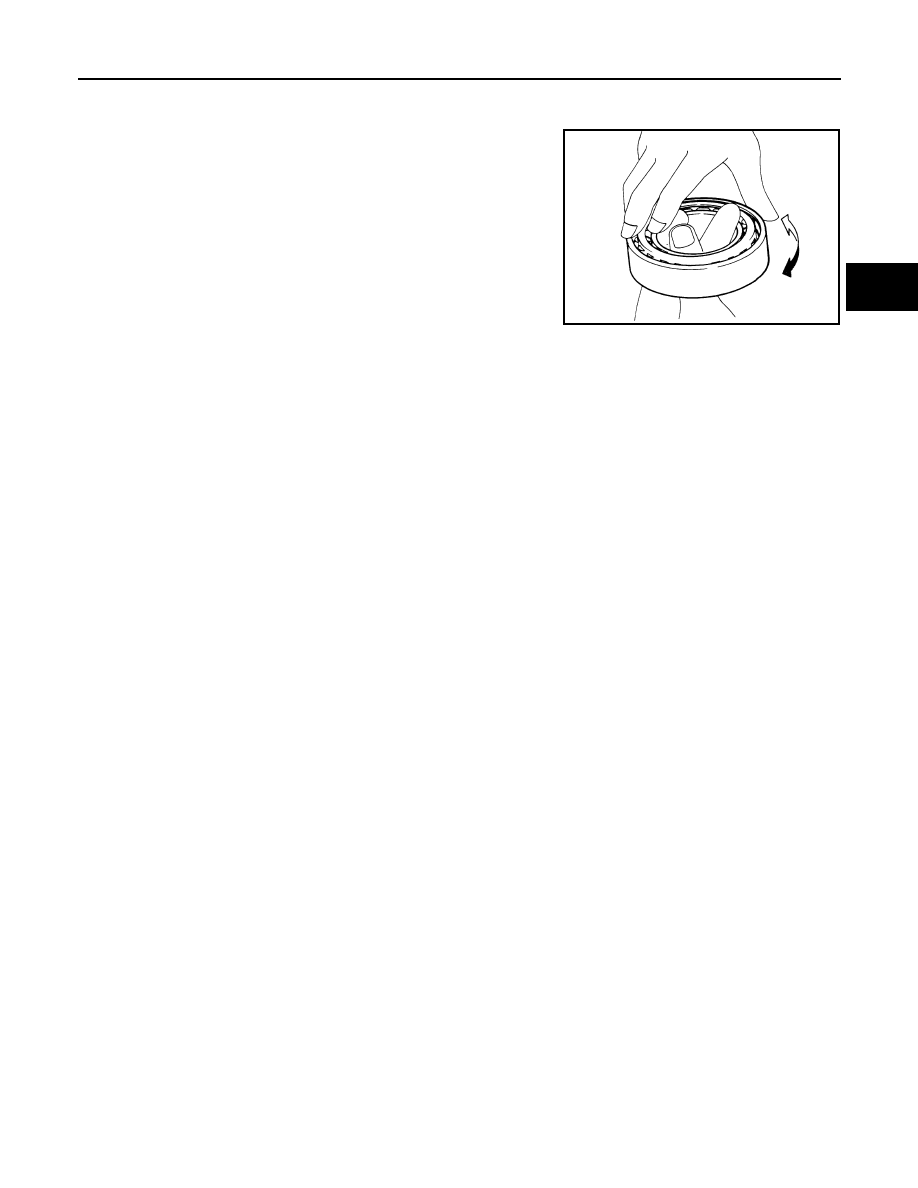

Bearing

Check for bearings damage and rough rotation. If necessary, replace
with a new one.

CAUTION:

When replacing tapered roller bearing, replace outer and inner
races as a set.

SPD715

TM-180

< DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

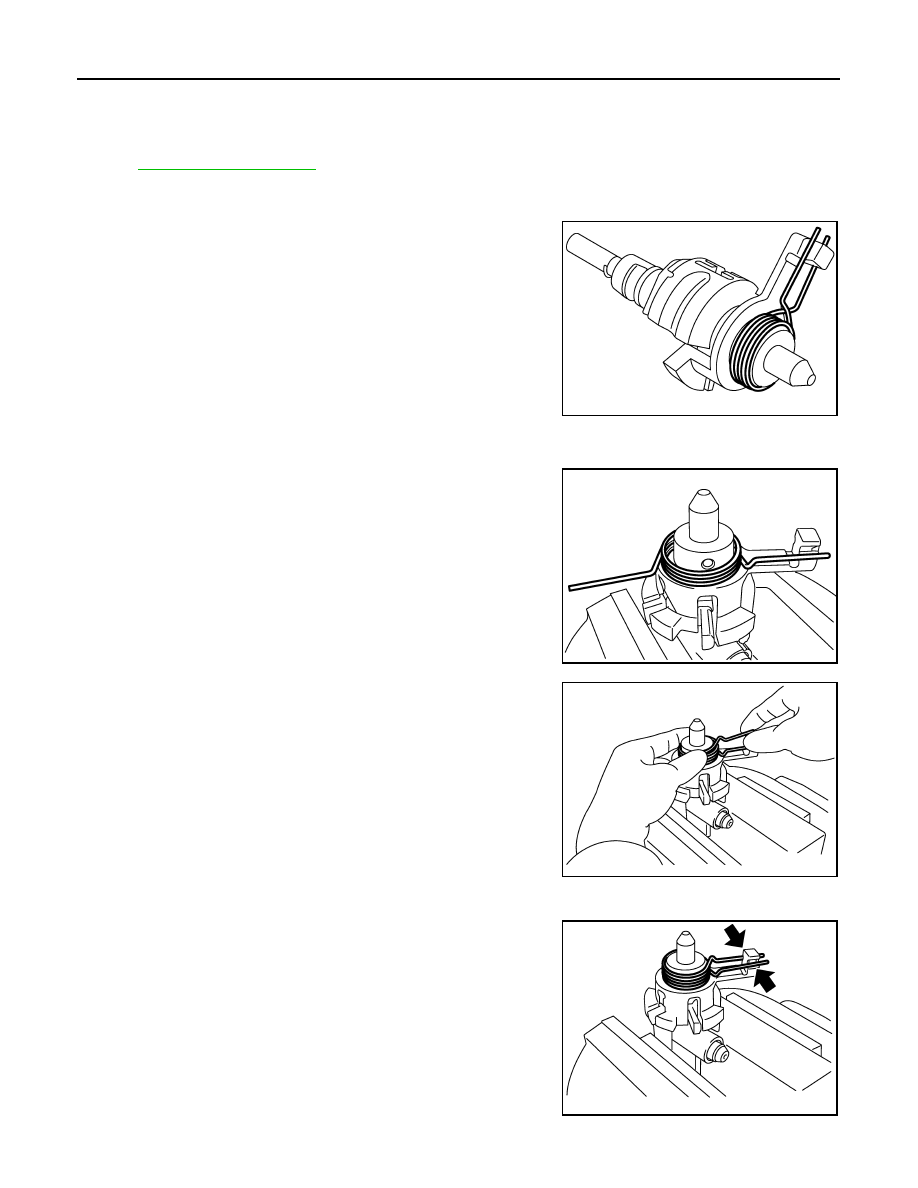

SHIFT FORK AND FORK ROD

SHIFT FORK AND FORK ROD

Exploded View

INFOID:0000000001034971

Refer to

TM-125, "Exploded View"

.

Disassembly

INFOID:0000000001034972

Remove return spring to striking rod assembly.

Assembly

INFOID:0000000001034973

1.

Temporarily install return spring to striking rod assembly.

CAUTION:

Be careful with the orientation of return spring.

2.

Attach one end of the return spring to striking interlock of striking
rod assembly while holding return spring.

CAUTION:

When installing, check that return spring is securely seated
in the groove of striking interlock of striking rod assembly.

Inspection

INFOID:0000000001034974

PCIB1867E

PCIB1830E

PCIB1831E

PCIB1833E

SHIFT FORK AND FORK ROD

TM-181

< DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

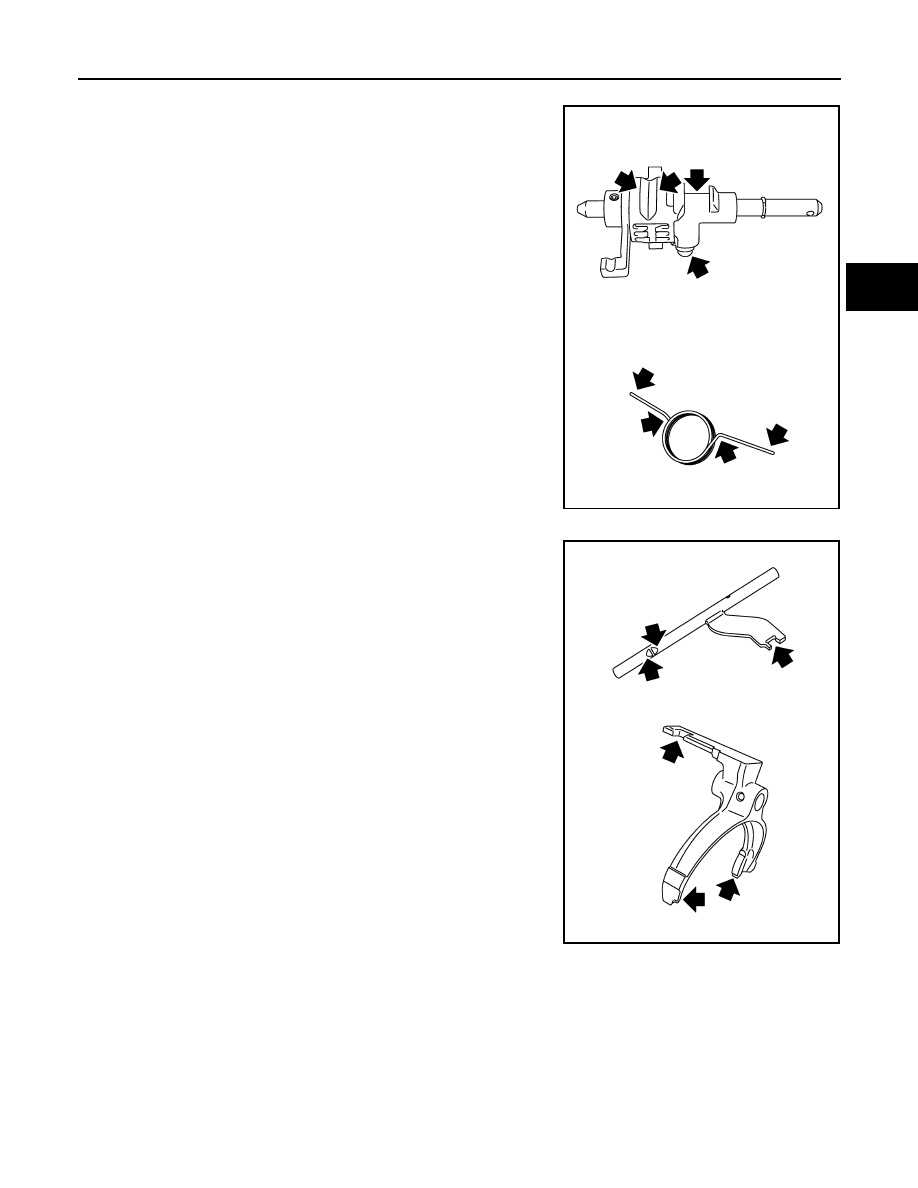

STRIKING ROD ASSEMBLY AND RETURN SPRING

Check contact surfaces and sliding area for wear, damage, bending,
etc. If necessary, replace parts.

FORK ROD AND SHIFT FORK

• Check contact surfaces and sliding area for wear, damage, bend-

ing, etc. If necessary, replace parts.

PCIB1868E

PCIB1869E

TM-182

< DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

SHIFT FORK AND FORK ROD

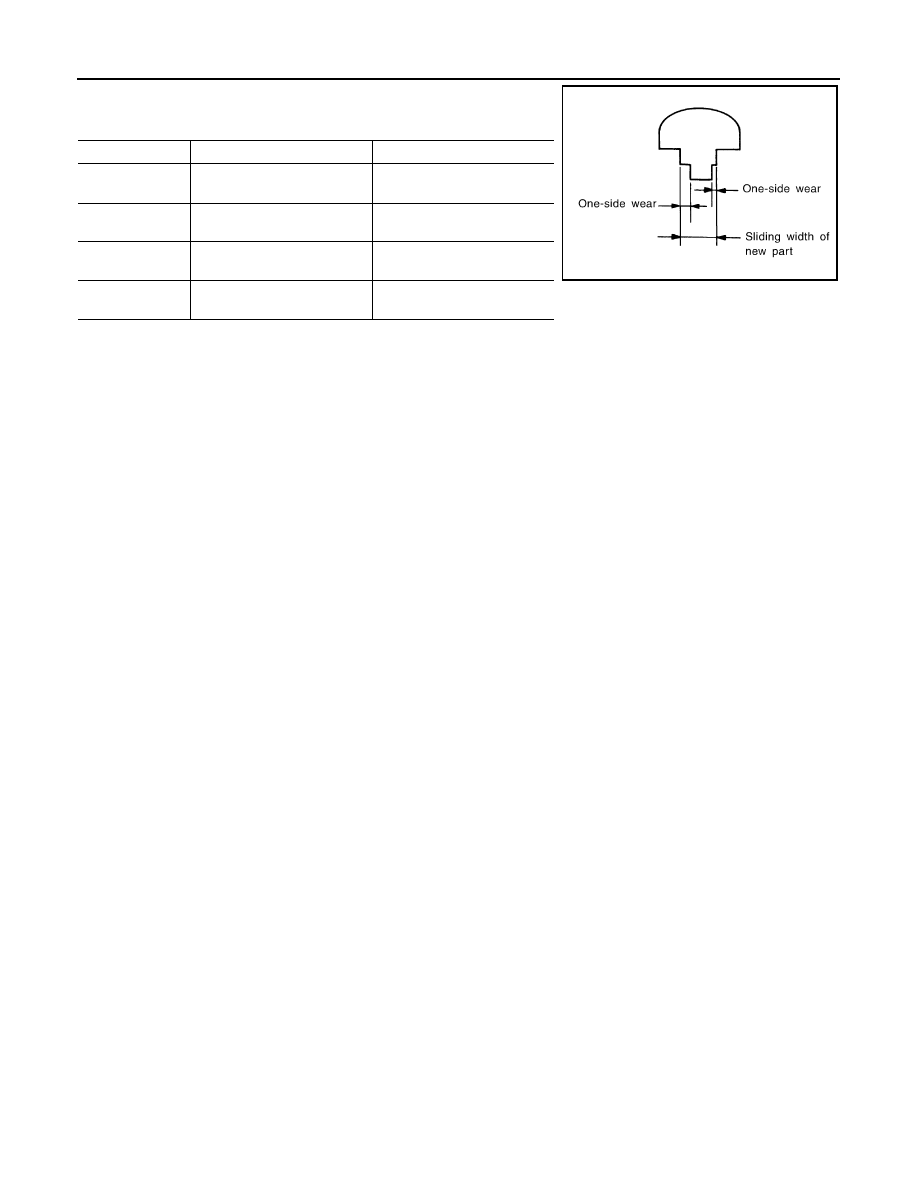

• Check if the width of shift fork hook (sliding area with coupling

sleeve) is within allowable specification below.

Item

One-side wear specification

Sliding width of new part

1st-2nd

0.2 mm (0.008 in)

7.80 - 7.93 mm

(0.3071 - 0.3122 in)

3rd-4th

0.2 mm (0.008 in)

7.80 - 7.93 mm

(0.3071 - 0.3122 in)

5th-6th

0.2 mm (0.008 in)

6.10 - 6.23 mm

(0.2402 - 0.2453 in)

Reverse

0.2 mm (0.008 in)

12.80 - 12.93 mm

(0.5039 - 0.5091 in)

SMT801D
