TRANSAXLE ASSEMBLY

TM-131

< DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

9.

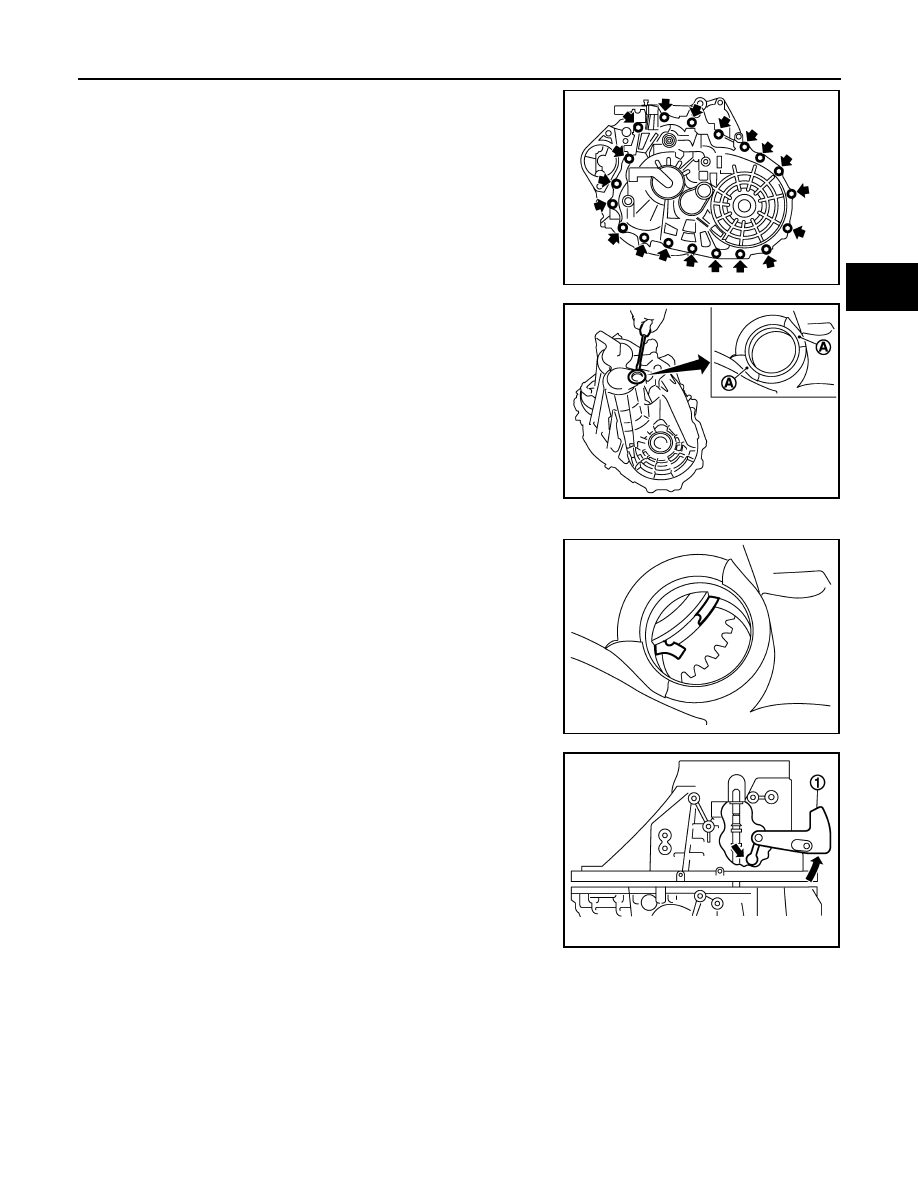

Remove transaxle case mounting bolts.

10. Remove bore plug from transaxle case.

CAUTION:

• Never damage transaxle case.
• Access bore plug from cutout (A) of transaxle case when

removing.

11. Remove transaxle case following the procedures below.

a.

Expand snap ring at mainshaft rear bearing accessing from the
bore plug hole. Then pull up transaxle case from clutch housing
until snap ring comes off.

b.

With shifter lever A (1) held in the position shown in the figure,
remove transaxle case from clutch housing.

CAUTION:

Never drop each adjusting shim.
NOTE:
Make sure to hold shifter lever A in the position shown in the fig-
ure. Otherwise transaxle case cannot be removed from clutch
housing.

PCIB1838E

PCIB1839E

PCIB1840E

PCIB1808E

TM-132

< DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

TRANSAXLE ASSEMBLY

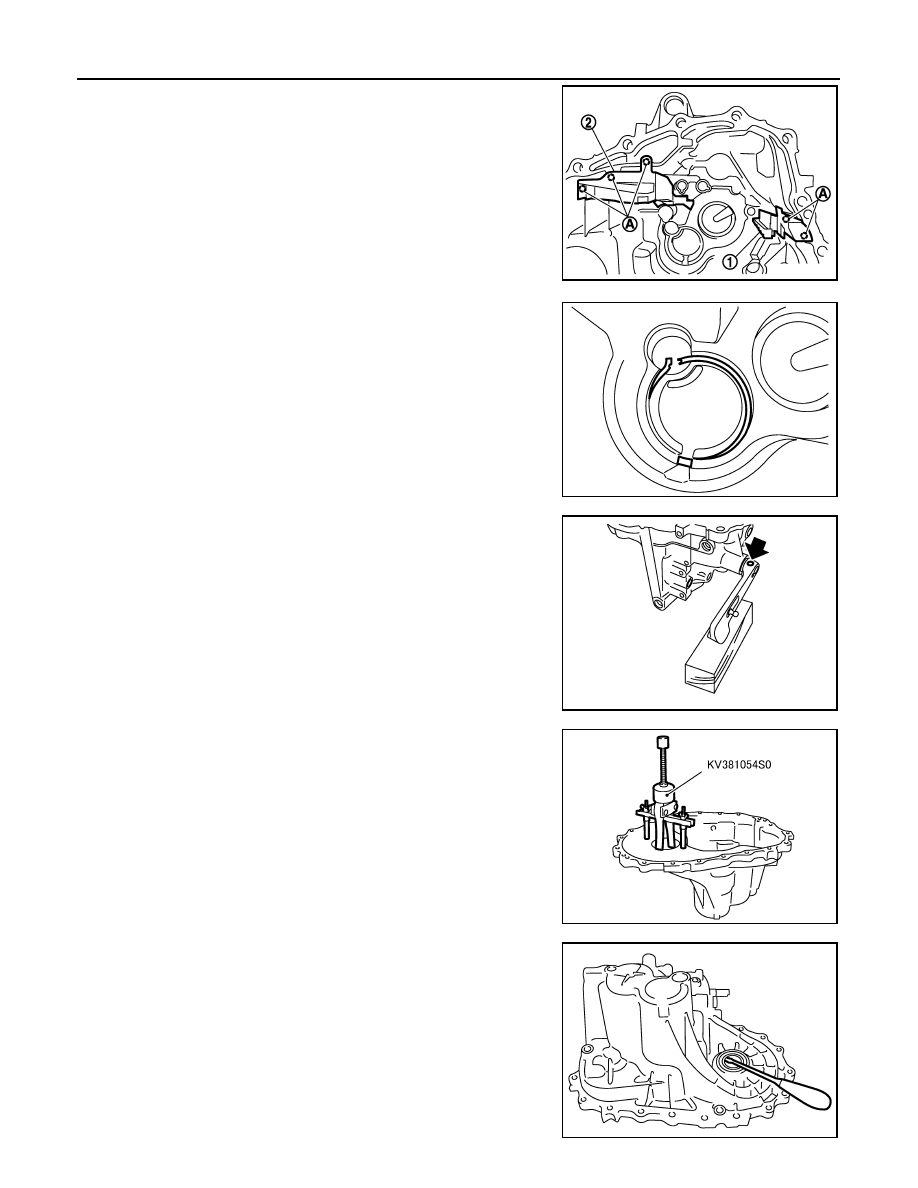

12. Remove oil gutter A (1) and oil gutter B (2) from transaxle case.

13. Remove snap ring from transaxle case.

14. Remove retaining pin using a pin punch and then remove shifter

lever A and shifter lever B from transaxle case.

15. Remove differential side bearing outer race (transaxle case

side) from transaxle case using the puller and then remove dif-
ferential side bearing adjusting shim from transaxle case.

CAUTION:

Never damage transaxle case and differential side bearing
outer race.

16. Remove differential side oil seal from transaxle case.

CAUTION:

Never damage transaxle case.

A

: Tab of oil gutter

PCIB1841E

PCIB1842E

PCIB1844E

SCIA0897E

SCIA0397E

TRANSAXLE ASSEMBLY

TM-133

< DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

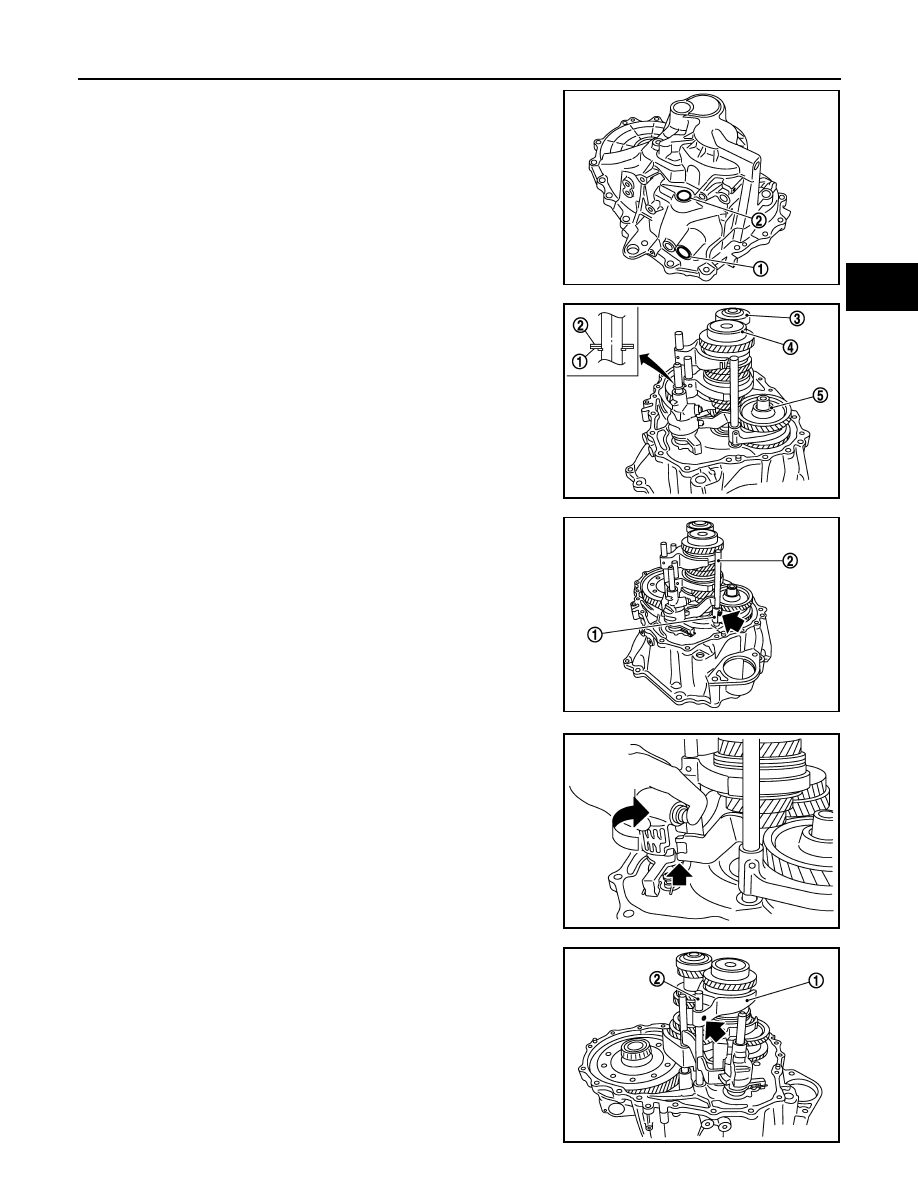

17. Remove shifter lever oil seal (1) and striking rod oil seal (2) from

transaxle case.

CAUTION:

Never damage transaxle case.

18. Remove striking rod shim (1), striking rod adjusting shim (2),

mainshaft rear bearing adjusting shim (3), input shaft rear bear-
ing adjusting shim (4), and reverse idler gear adjusting shim (5).

19. Remove retaining pin of reverse shift fork (1) using a pin punch.

20. Rotate striking lever of striking rod assembly as shown in the fig-

ure. Then rotate reverse fork rod to a position where bracket of
reverse fork rod does not interfere with striking lever of striking
rod assembly.

21. Pull out reverse shift fork and reverse fork rod.

22. Remove retaining pin of 5th-6th shift fork (1) using a pin punch.

PCIB1846E

PCIB1858E

2

: Reverse fork rod

PCIB1850E

PCIB1851E

2

: 5th-6th fork rod

PCIB1852E

TM-134

< DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

TRANSAXLE ASSEMBLY

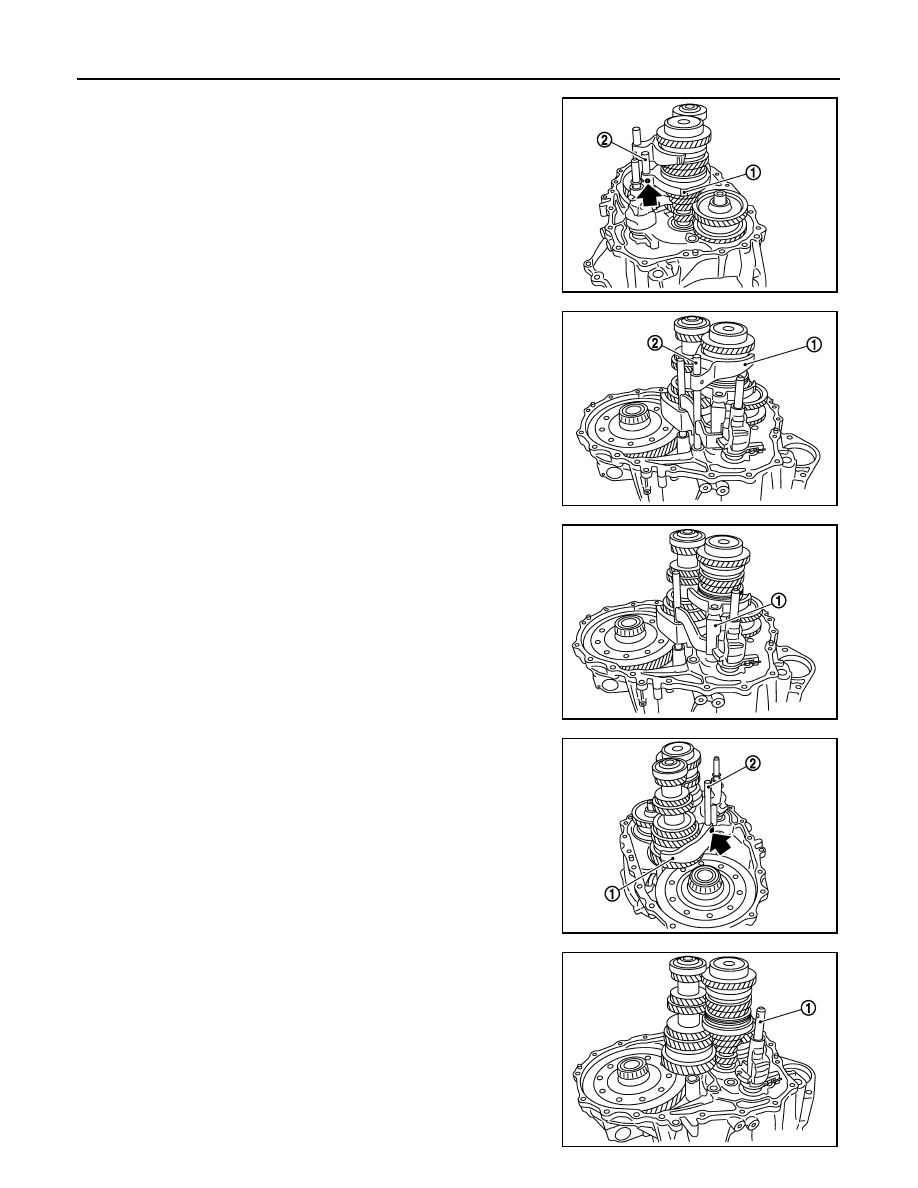

23. Remove retaining pin of 3rd-4th shift fork (1) using a pin punch.

24. Pull out 3rd-4th fork rod (2).

25. Pull out 5th-6th shift fork (1) and 5th-6th fork rod (2).

26. Pull out 3rd-4th shift fork (1).

27. Remove retaining pin of 1st-2nd shift fork (1) using a pin punch.

28. Pull out 1st-2nd shift fork and 1st-2nd fork rod (2).

29. Remove striking rod assembly (1).

PCIB1853E

PCIB1854E

PCIB1855E

PCIB1856E

PCIB1857E
