EGR SYSTEM

EC-1291

< FUNCTION DIAGNOSIS >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

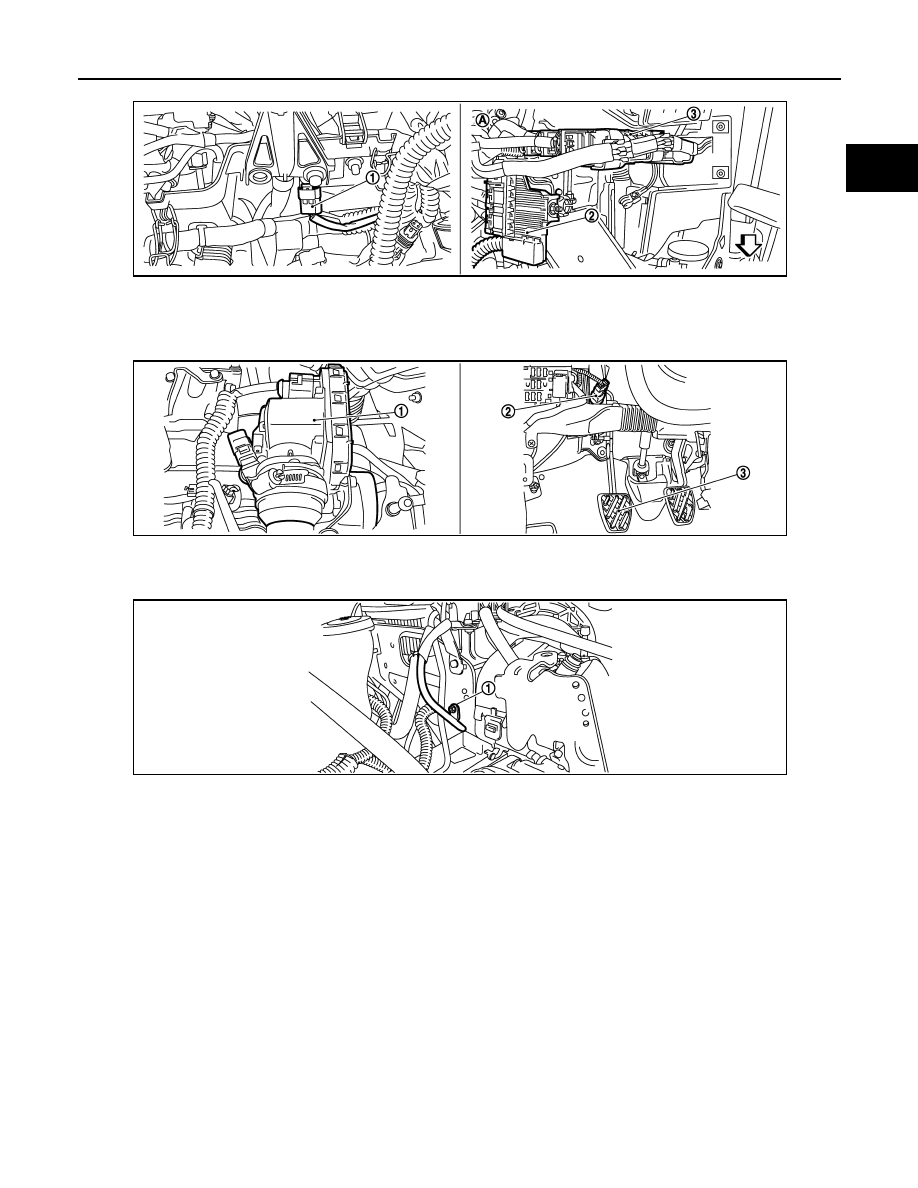

1.

Fuel rail pressure sensor

2.

Glow relay

3.

ECM

A.

View with battery removed

1.

Electric throttle control actuator

2.

Clutch switch

3.

Clutch pedal

1.

Body ground E17

JMBIA0426ZZ

JMBIA0427ZZ

JMBIA0428ZZ

EC-1292

< FUNCTION DIAGNOSIS >

[K9K]

IDLE SPEED CONTROL

IDLE SPEED CONTROL

System Diagram

INFOID:0000000001102318

System Description

INFOID:0000000001080389

The ECM is responsible for regulating the idle speed as a function of the idle speed setpoint which it calcu-
lates.
• The idle speed setpoint is dependent on:
- Engine coolant temperature
- Emission control program
- Air conditioning requirement
- Gear engaged
- Electrical load
- Battery voltage

Component Parts Location

INFOID:0000000001080391

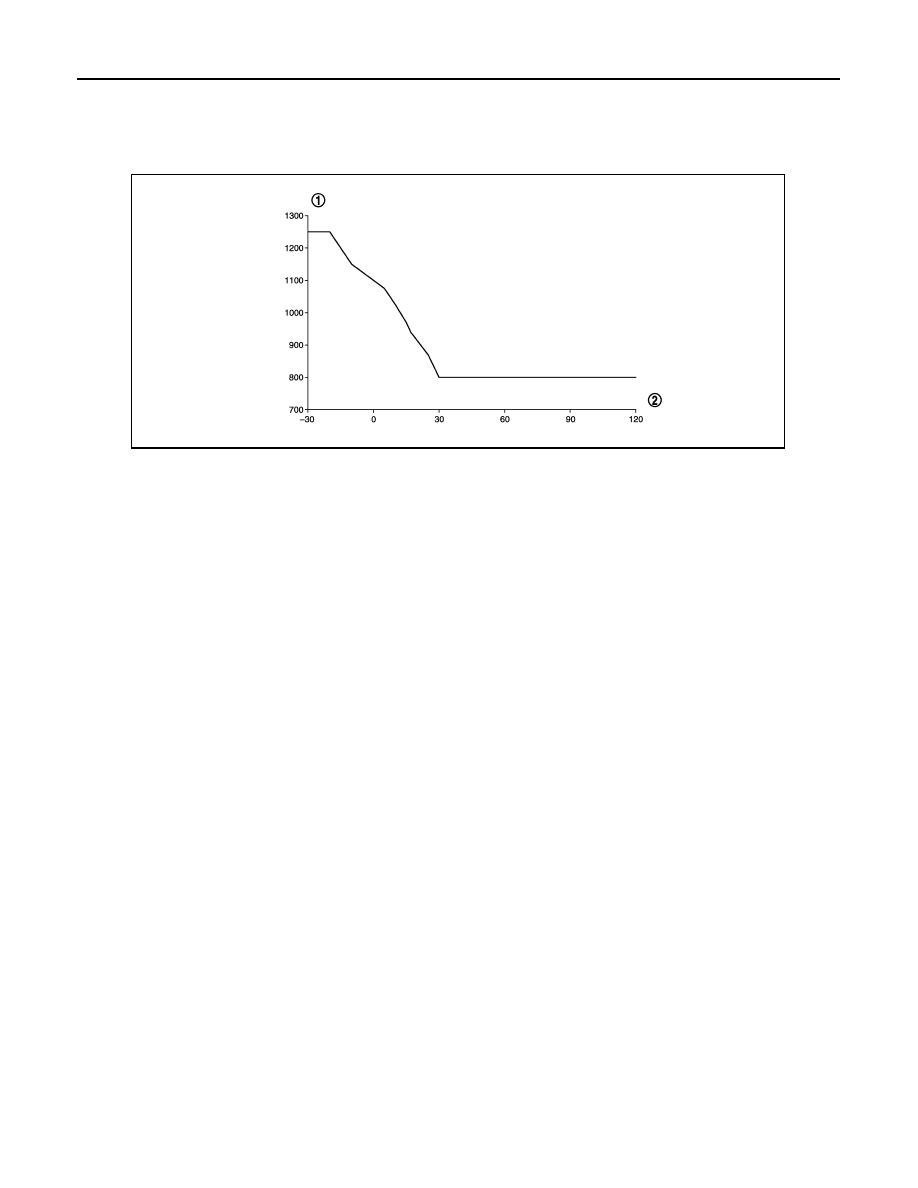

1.

Engine speed in rpm

2.

Engine coolant temperature

°

C

JMBIA0434ZZ

IDLE SPEED CONTROL

EC-1293

< FUNCTION DIAGNOSIS >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

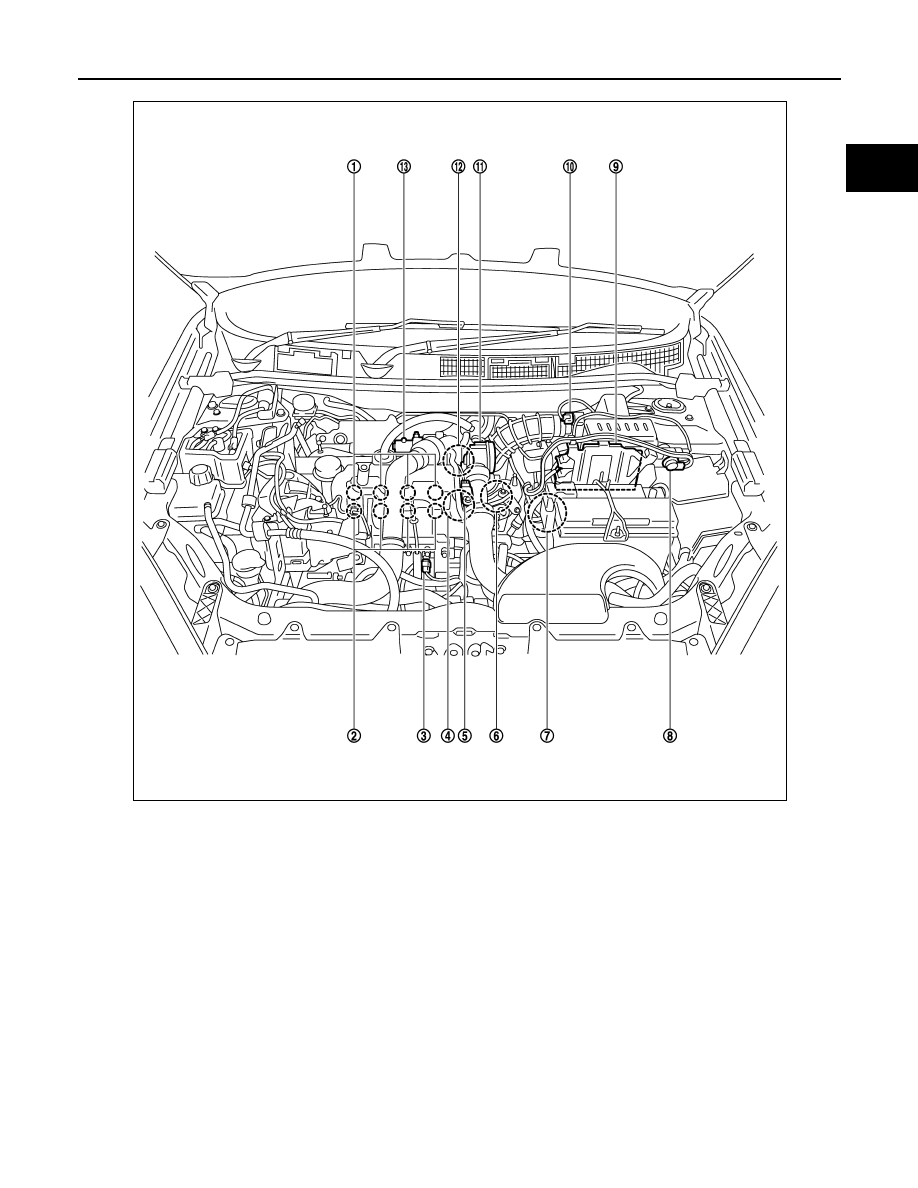

1.

Fuel injector

2.

Glow plug

3.

Fuel rail pressure sensor

4.

Crankshaft position sensor

5.

Turbocharger boost sensor

6.

Engine coolant temperature sensor

7.

Glow relay

8.

Turbocharger boost control solenoid
valve

9.

ECM

10. Mass air flow sensor (with intake air

temperature sensor)

11.

Electric throttle control actuator

12. Camshaft position sensor

13. EGR volume control valve

JMBIA0429ZZ

EC-1294

< FUNCTION DIAGNOSIS >

[K9K]

IDLE SPEED CONTROL

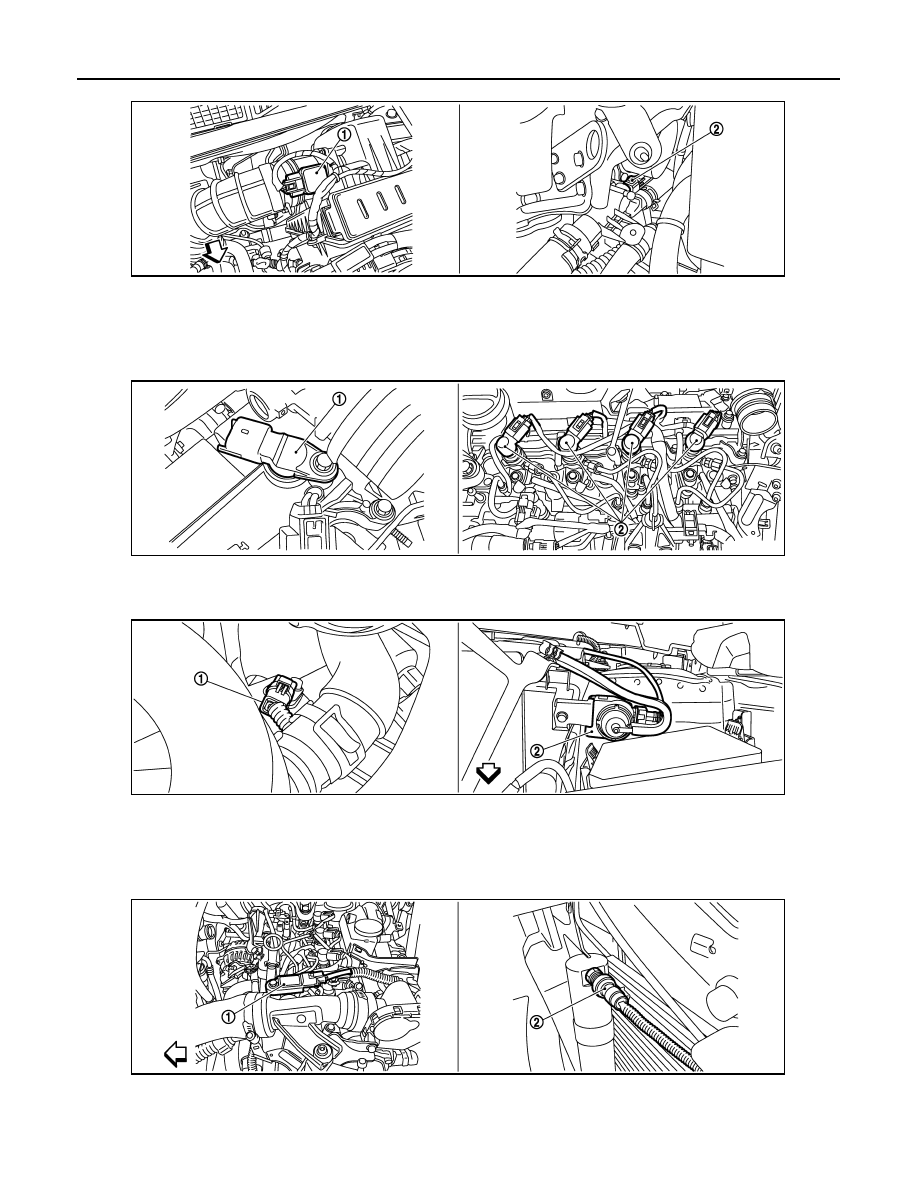

 : Vehicle front

1.

Mass air flow sensor (with intake air
temperature sensor)

2.

Engine coolant temperature sensor

1.

Camshaft Position Sensor

2.

Fuel injector

 : Vehicle front

1.

Crankshaft position sensor

2.

Turbocharger boost control solenoid
valve

 : Vehicle front

1.

Turbocharger boost sensor

2.

Refrigerant pressure sensor

JMBIA0419ZZ

JMBIA0420ZZ

JMBIA0421ZZ

JMBIA0422ZZ
