FUEL INJECTION CONTROL

EC-1279

< FUNCTION DIAGNOSIS >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

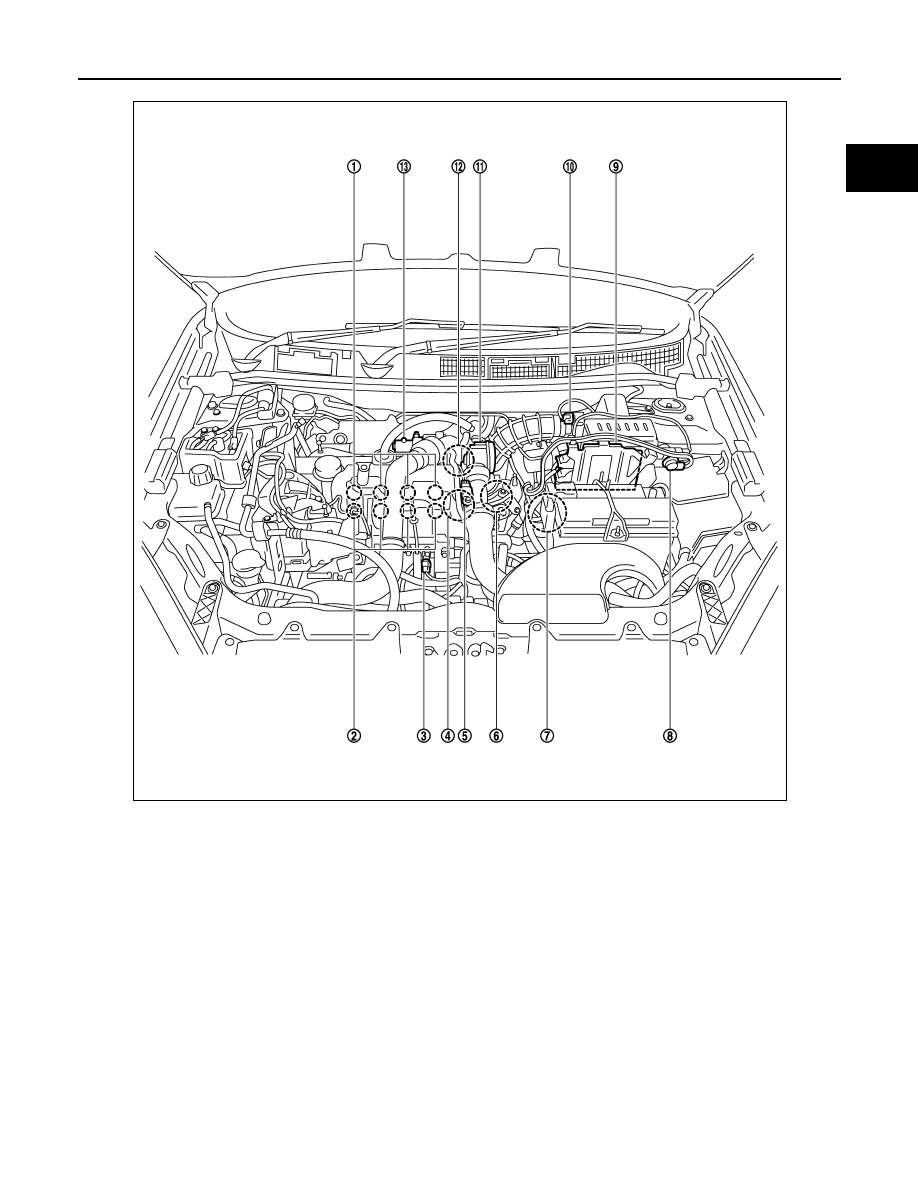

1.

Fuel injector

2.

Glow plug

3.

Fuel rail pressure sensor

4.

Crankshaft position sensor

5.

Turbocharger boost sensor

6.

Engine coolant temperature sensor

7.

Glow relay

8.

Turbocharger boost control solenoid
valve

9.

ECM

10. Mass air flow sensor (with intake air

temperature sensor)

11.

Electric throttle control actuator

12. Camshaft position sensor

13. EGR volume control valve

JMBIA0429ZZ

EC-1280

< FUNCTION DIAGNOSIS >

[K9K]

FUEL INJECTION CONTROL

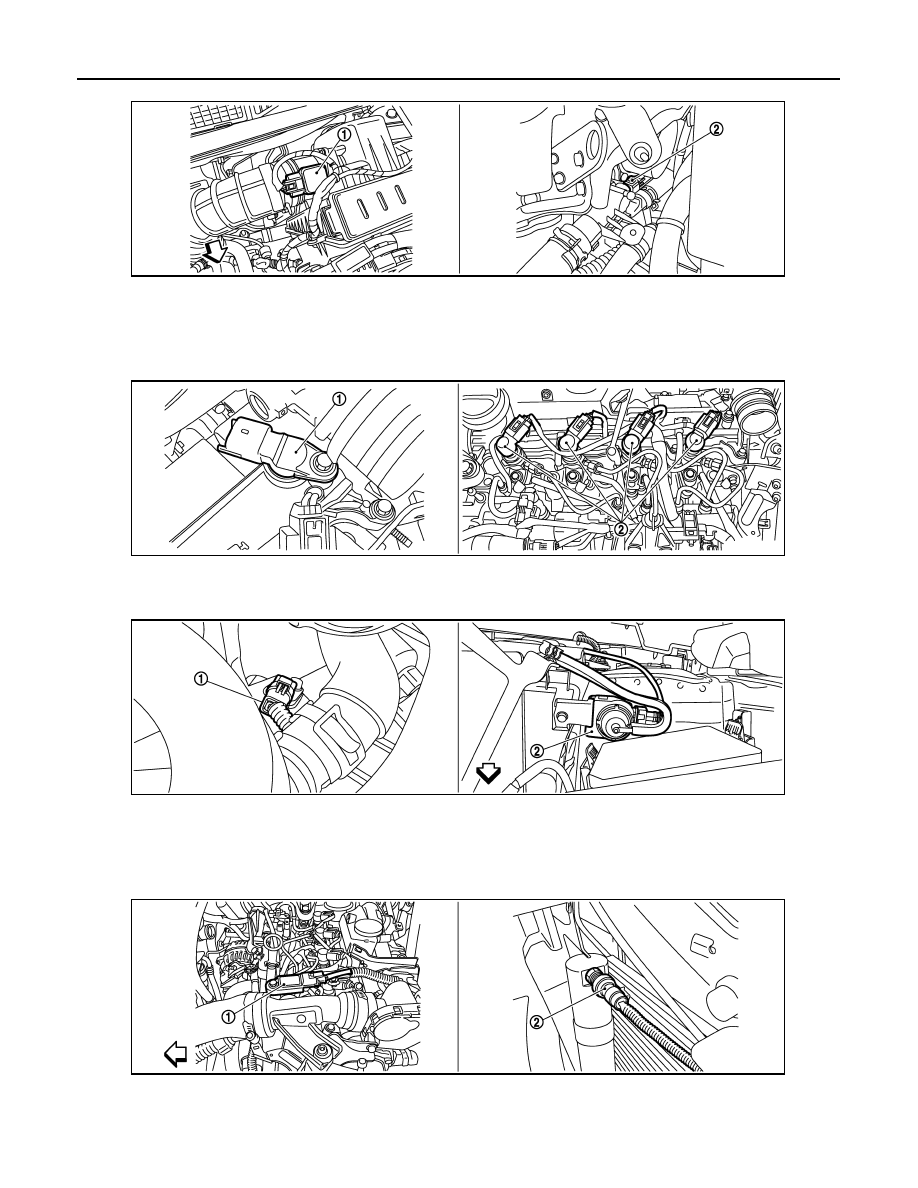

 : Vehicle front

1.

Mass air flow sensor (with intake air
temperature sensor)

2.

Engine coolant temperature sensor

1.

Camshaft Position Sensor

2.

Fuel injector

 : Vehicle front

1.

Crankshaft position sensor

2.

Turbocharger boost control solenoid
valve

 : Vehicle front

1.

Turbocharger boost sensor

2.

Refrigerant pressure sensor

JMBIA0419ZZ

JMBIA0420ZZ

JMBIA0421ZZ

JMBIA0422ZZ

FUEL INJECTION CONTROL

EC-1281

< FUNCTION DIAGNOSIS >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

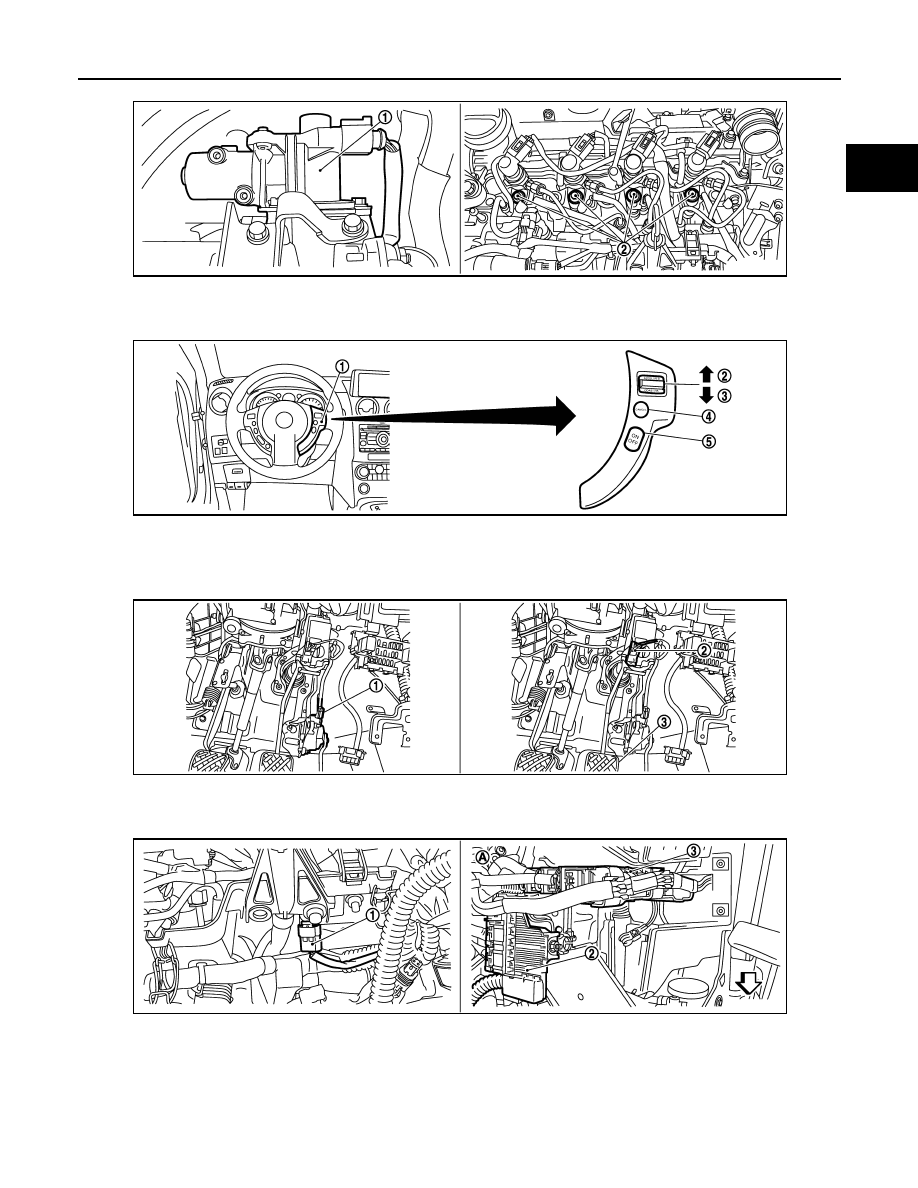

1.

EGR volume control valve

2.

Glow plug

1.

ASCD steering switch

2.

RESUME/ACCELERATE switch

3.

SET/COAST switch

4.

CANCEL switch

5.

MAIN switch

1.

Accelerator pedal position sensor

2.

Stop lamp switch

3.

Brake pedal

1.

Fuel rail pressure sensor

2.

Glow relay

3.

ECM

A.

View with battery removed

JMBIA0423ZZ

JMBIA0424ZZ

JMBIA0425ZZ

JMBIA0426ZZ

EC-1282

< FUNCTION DIAGNOSIS >

[K9K]

FUEL INJECTION CONTROL

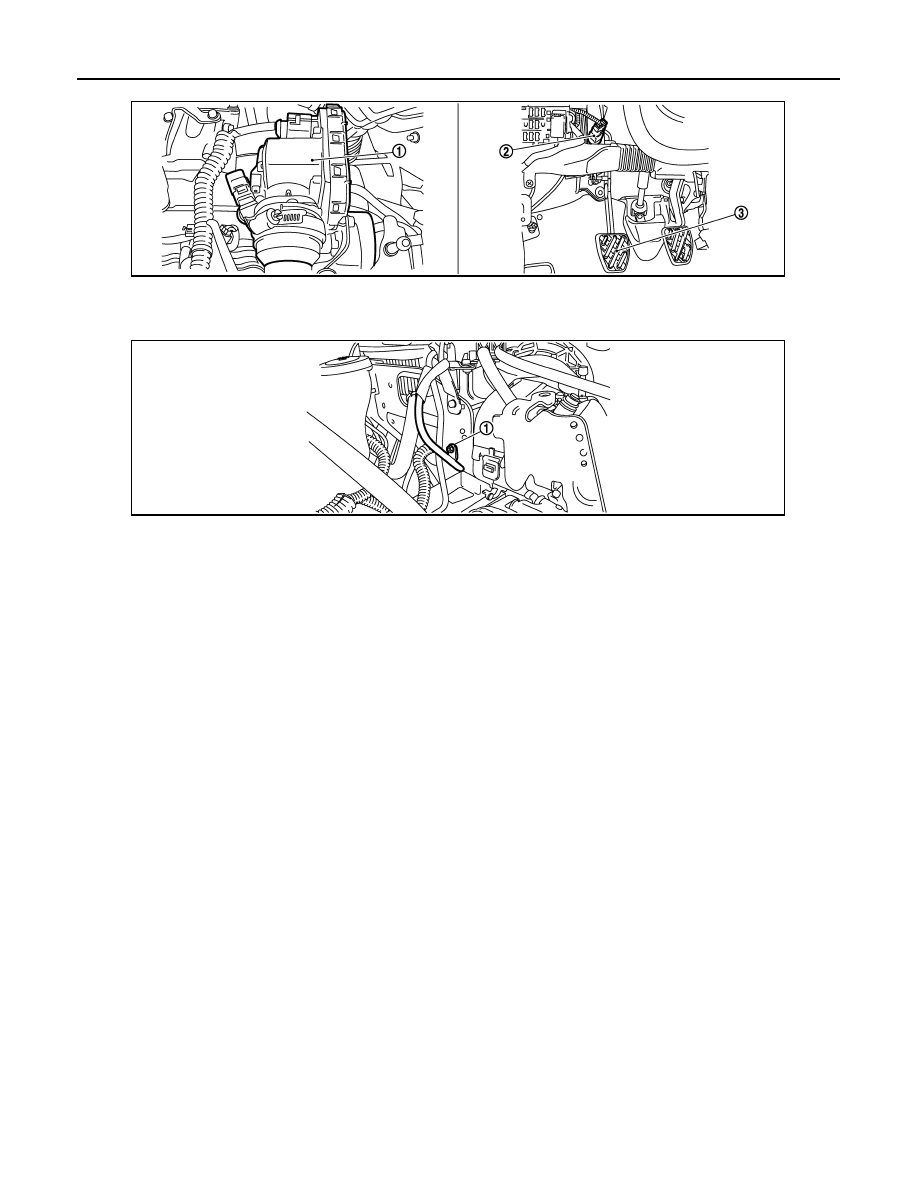

1.

Electric throttle control actuator

2.

Clutch switch

3.

Clutch pedal

1.

Body ground E17

JMBIA0427ZZ

JMBIA0428ZZ
