7.

CHECK COOLING FAN MOTOR

Refer to

EC-1179, "Component Inspection (Cooling Fan Motor)"

.

Is the inspection result normal?

YES

>> GO TO 8.

NO

>> Replace malfunctioning cooling fan motor.

8.

CHECK INTERMITTENT INCIDENT

Perform

GI-39, "Intermittent Incident"

.

Is the inspection result normal?

YES

>> Replace IPDM E/R.

NO

>> Repair or replace harness or connector.

Component Inspection (Cooling Fan Motor)

INFOID:0000000001094295

1.

CHECK COOLING FAN MOTOR

1.

Turn ignition switch OFF.

2.

Disconnect cooling fan motor harness connector.

3.

Supply cooling fan motor terminals with battery voltage and check operation.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace cooling fan motor.

Component Inspection (Cooling Fan Relay)

INFOID:0000000001094296

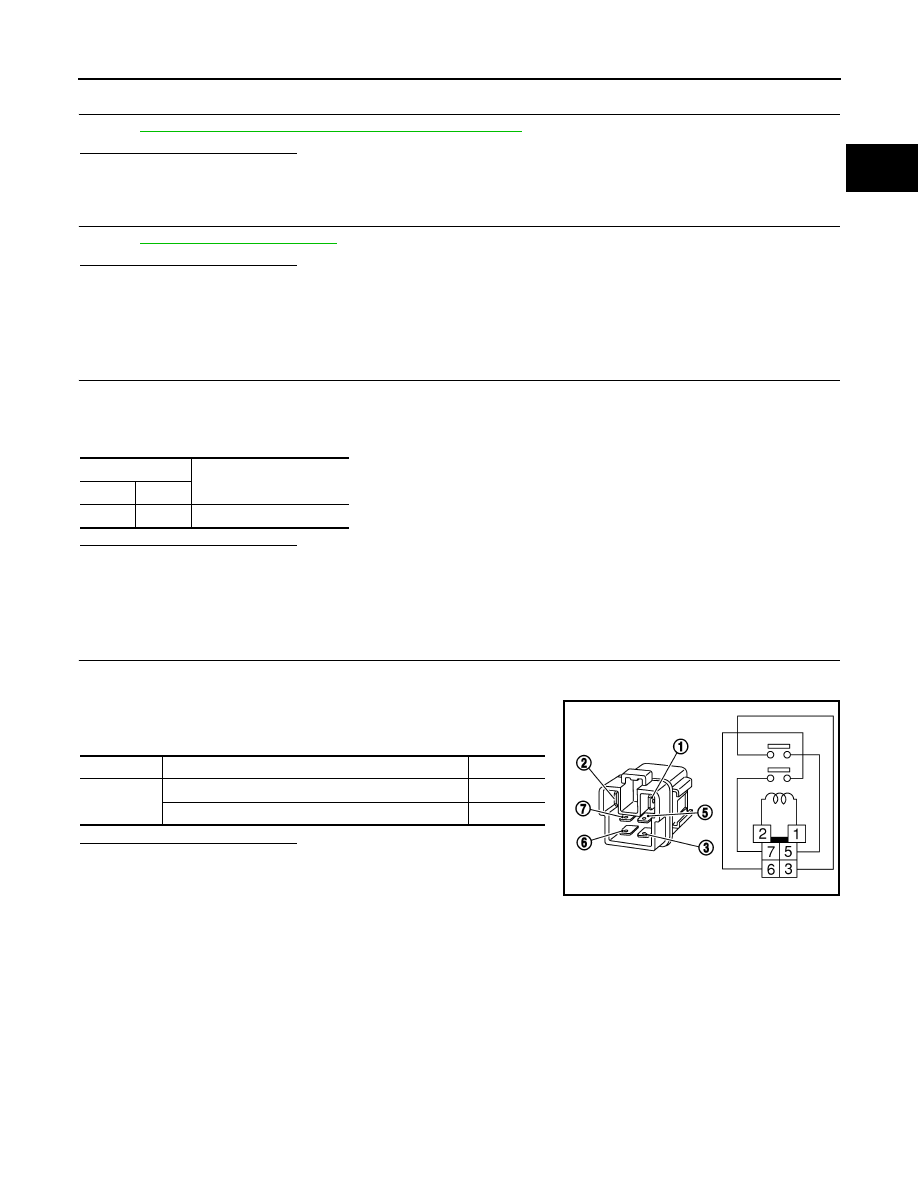

1.

CHECK COOLING FAN RELAY

1.

Turn ignition switch OFF.

2.

Remove cooling fan relay-3.

3.

Check the continuity between cooling fan relay terminals under
the following conditions.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace cooling fan relay.

Terminals

Operation

(+)

(–)

1

2

Cooling fans operates .

Terminals

Conditions

Continuity

1 and 2

12V direct current supply between terminals 1 and 2

Existed

No current supply

Not existed

PBIB0439E

EC-1176

< COMPONENT DIAGNOSIS >

[MR20DE (WITHOUT EURO-OBD)]

ELECTRICAL LOAD SIGNAL

ELECTRICAL LOAD SIGNAL

Description

INFOID:0000000001094297

The electrical load signal (Headlamp switch signal, rear window defogger switch signal, etc.) is transferred
through the CAN communication line from BCM to ECM via IPDM E/R.

Component Function Check

INFOID:0000000001094298

1.

CHECK REAR WINDOW DEFOGGER SWITCH FUNCTION

1.

Turn ignition switch ON.

2.

Connect CONSULT-III and select “DATA MONITOR” mode.

3.

Select “LOAD SIGNAL” and check indication under the following conditions.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Go to

EC-1180, "Diagnosis Procedure"

.

2.

CHECK LIGHTING SWITCH FUNCTION

Check “LOAD SIGNAL” indication under the following conditions.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Go to

EC-1180, "Diagnosis Procedure"

.

3.

CHECK HEATER FAN CONTROL SWITCH FUNCTION

Select “HEATER FAN SW” and check indication under the following conditions.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Go to

EC-1180, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000001094299

1.

INSPECTION START

Confirm the malfunctioning circuit (rear window defogger, headlamp or heater fan). Refer to

EC-1180, "Com-

ponent Function Check"

.

Which circuit is related to the incident?

Rear window defogger>>GO TO 2
Headlamp>>GO TO 3.
Heater fan>>GO TO 4.

2.

CHECK REAR WINDOW DEFOGGER SYSTEM

Refer to

DEF-4, "System Diagram"

.

Monitor item

Condition

Indication

LOAD SIGNAL

Rear window defogger switch

ON

ON

OFF

OFF

Monitor item

Condition

Indication

LOAD SIGNAL

Lighting switch

ON at 2nd position

ON

OFF

OFF

Monitor item

Condition

Indication

HEATER FAN SW

Heater fan control switch

ON

ON

OFF

OFF

ELECTRICAL LOAD SIGNAL

EC-1177

< COMPONENT DIAGNOSIS >

[MR20DE (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

>> INSPECTION END

3.

CHECK HEADLAMP SYSTEM

Refer to

EXL-11, "System Diagram"

 (XENON TYPE) or

EXL-191, "System Diagram"

 (HALOGEN TYPE).

>> INSPECTION END

4.

CHECK HEATER FAN CONTROL SYSTEM

Refer to

GI-39, "Intermittent Incident"

.

>> INSPECTION END

EC-1178

< COMPONENT DIAGNOSIS >

[MR20DE (WITHOUT EURO-OBD)]

EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

Description

INFOID:0000000001102408

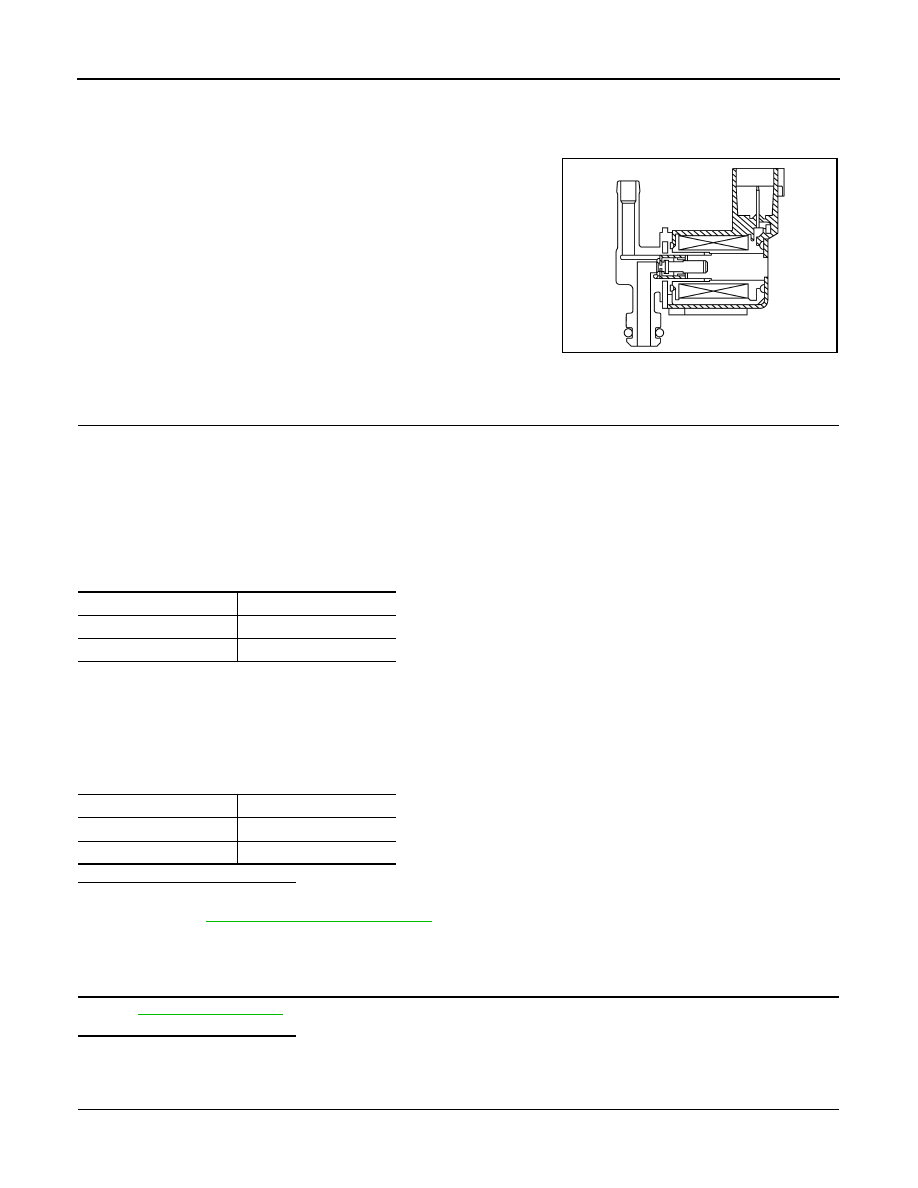

The EVAP canister purge volume control solenoid valve uses a ON/
OFF duty to control the flow rate of fuel vapor from the EVAP canis-
ter. The EVAP canister purge volume control solenoid valve is
moved by ON/OFF pulses from the ECM. The longer the ON pulse,
the greater the amount of fuel vapor that will flow through the valve.

Component Function Check

INFOID:0000000001102409

1.

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE FUNCTION

With CONSULT-III

1.

Turn ignition switch OFF.

2.

Disconnect the EVAP purge hose from EVAP canister purge volume control solenoid valve (EVAP canis-
ter side).

3.

Start engine and let it idle.

4.

Select “PURG VOL CONT/V” in “ACTIVE TEST” mode wit CONSULT-III.

5.

Touch “Qu” and “Qd” on CONSULT-III screen to adjust “PURG VOL CONT/V” and check vacuum exist-
ence under the following conditions.

Without CONSULT-III

1.

Turn ignition switch OFF.

2.

Disconnect the EVAP purge hose from EVAP canister purge volume control solenoid valve (EVAP canis-
ter side).

3.

Start engine and let it idle for at least 100 seconds.

4.

Check vacuum existence under the following conditions.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Go to

EC-1182, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000001102410

1.

CHECK EVAP CANISTER

Refer to

EC-636, "Inspection"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repaor or replace.

2.

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect EVAP canister purge volume control solenoid valve harness connector.

PBIA9215J

PURG VOL CONT/V

Vacuum

100%

Existed

0 %

Not existed

Condition

Vacuum

At idle

Not existed

About 2,000 rpm

Existed
