Nissan Qashqai (2007-2010). Manual - part 372





ELECTRIC IGNITION SYSTEM

EC-1007

< FUNCTION DIAGNOSIS >

[MR20DE (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

operate under normal driving conditions. If engine knocking occurs, the knock sensor monitors the condition.
The signal is transmitted to the ECM. The ECM retards the ignition timing to eliminate the knocking condition.

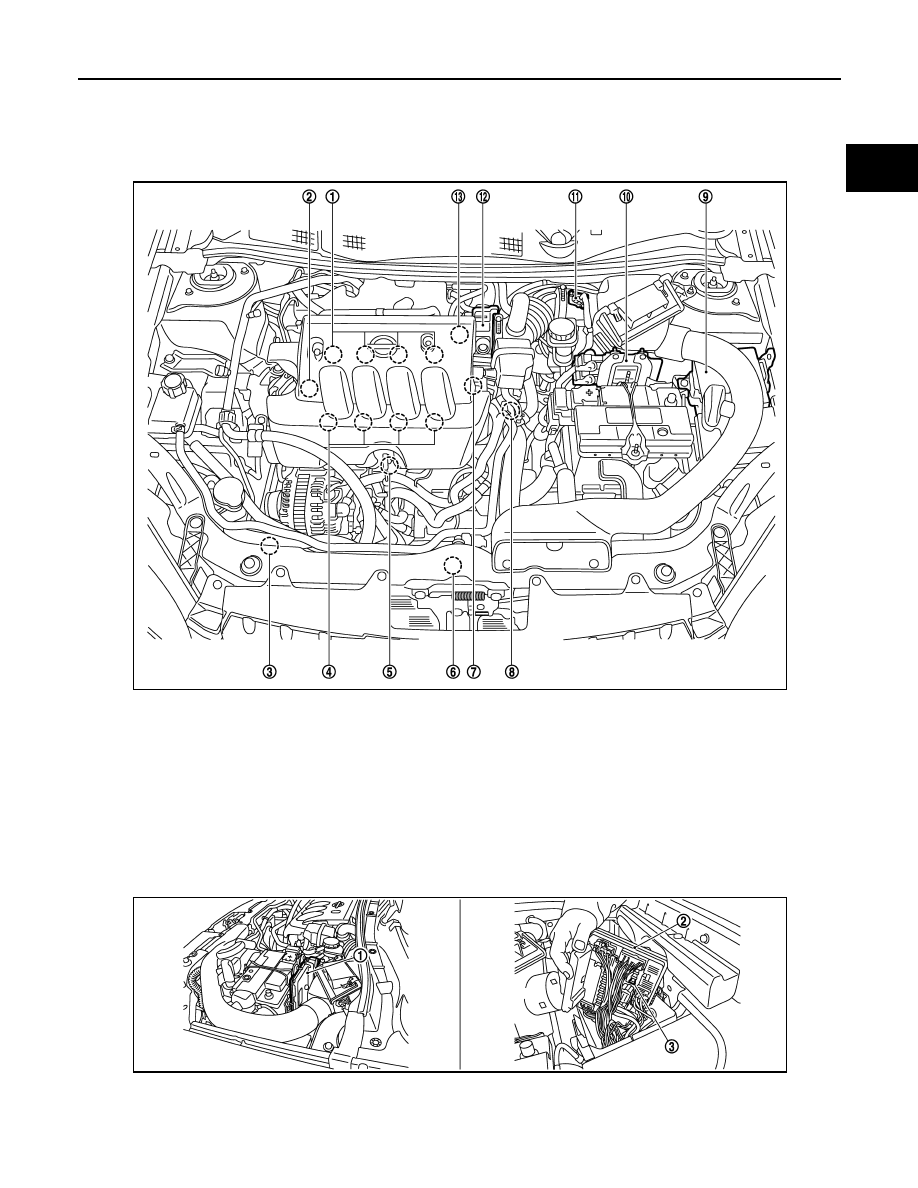

Component Parts Location

INFOID:0000000001115784

1.

Ignition coil (with power transistor)
and spark plug

2.

PCV valve

3.

Refrigerant pressure sensor

4.

Fuel injector

5.

Knock sensor

6.

Cooling fan motor

7.

Camshaft position sensor (PHASE)

8.

Engine coolant temperature sensor

9.

IPDM E/R

10. ECM

11.

Mass air flow sensor (with intake
temperature sensor)

12. Electric throttle control actuator

(with built in throttle position sensor
and throttle control motor)

13. EVAP canister purge volume control

solenoid valve

1.

ECM

2.

IPDM E/R

3.

Fuel pump fuse (15A)

JMBIA0338ZZ

JMBIA0340ZZ

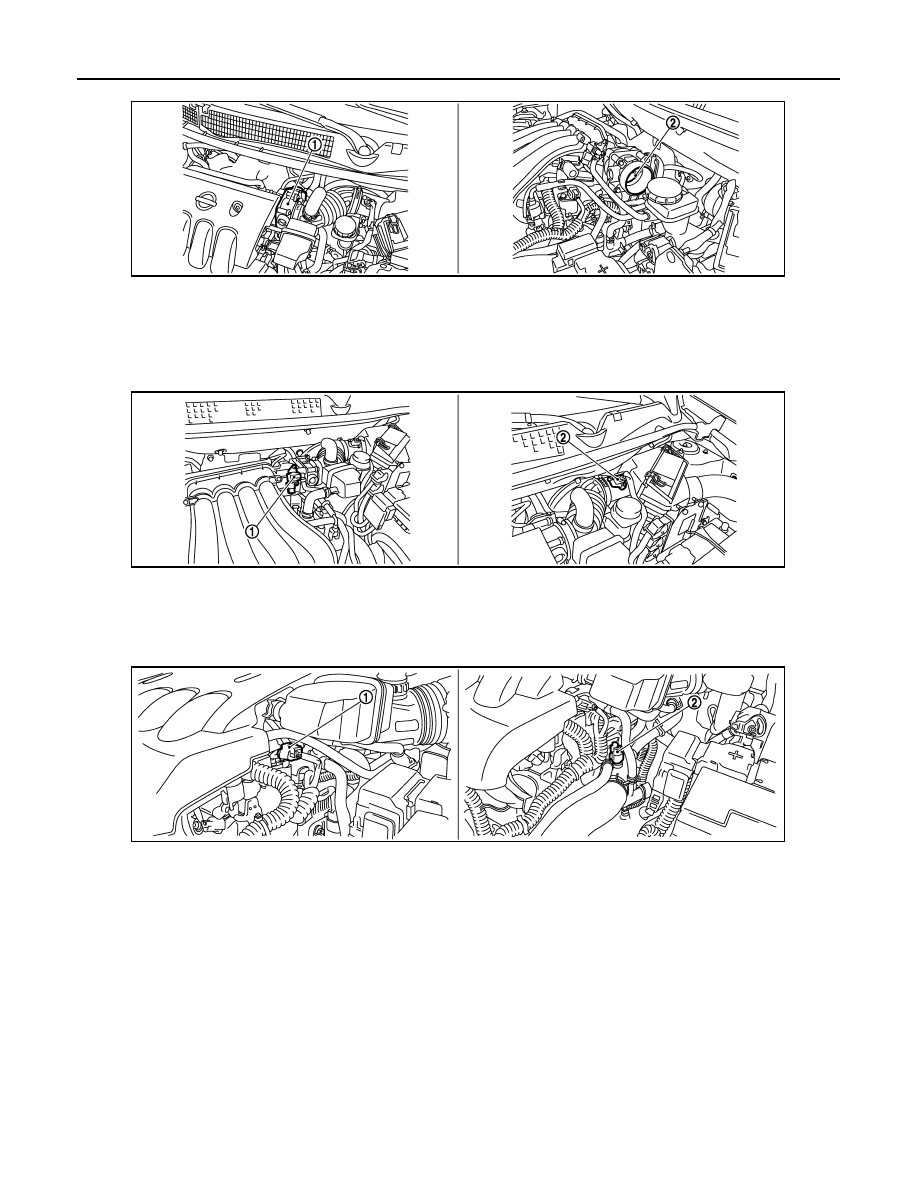

EC-1008

< FUNCTION DIAGNOSIS >

[MR20DE (WITHOUT EURO-OBD)]

ELECTRIC IGNITION SYSTEM

1.

Electric throttle control actuator
(with built-in position sensor, throttle
control motor)

2.

Throttle valve

1.

EVAP canister purge volume control
solenoid valve

2.

Mass air flow sensor
(with intake air temperature sensor)

1.

Camshaft position sensor

2.

Engine coolant temperature sensor

JMBIA0341ZZ

JMBIA0342ZZ

JMBIA0343ZZ

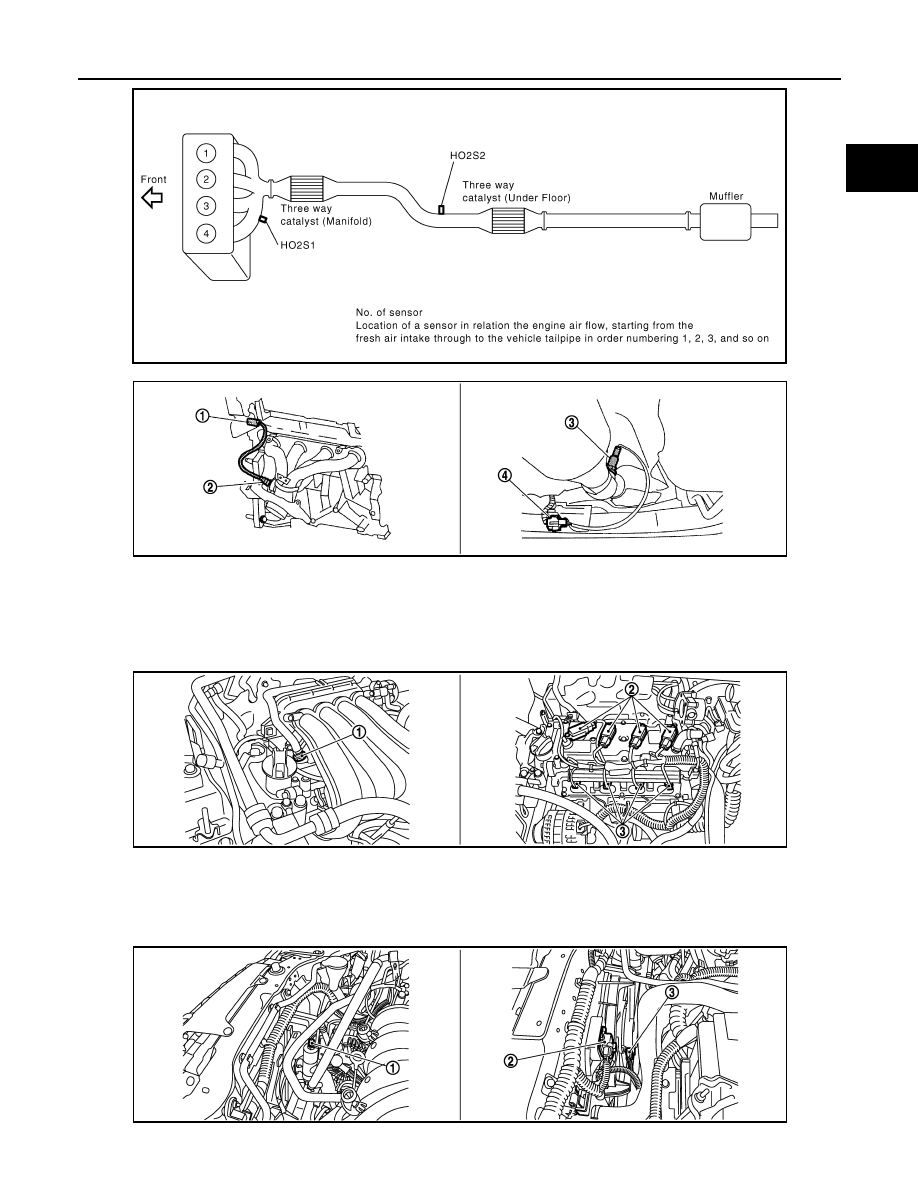

ELECTRIC IGNITION SYSTEM

EC-1009

< FUNCTION DIAGNOSIS >

[MR20DE (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

PBIB2942E

1.

Heated oxygen sensor 1 harness
connector

2.

Heated oxygen sensor 1

3.

Heated oxygen sensor 2

4.

Heated oxygen sensor 2 harness
connector

1.

PCV valve

2.

Ignition coil (with power transistor)
and spark plug

3.

Fuel injection

JMBIA0454ZZ

JMBIA0344ZZ

JMBIA0345ZZ

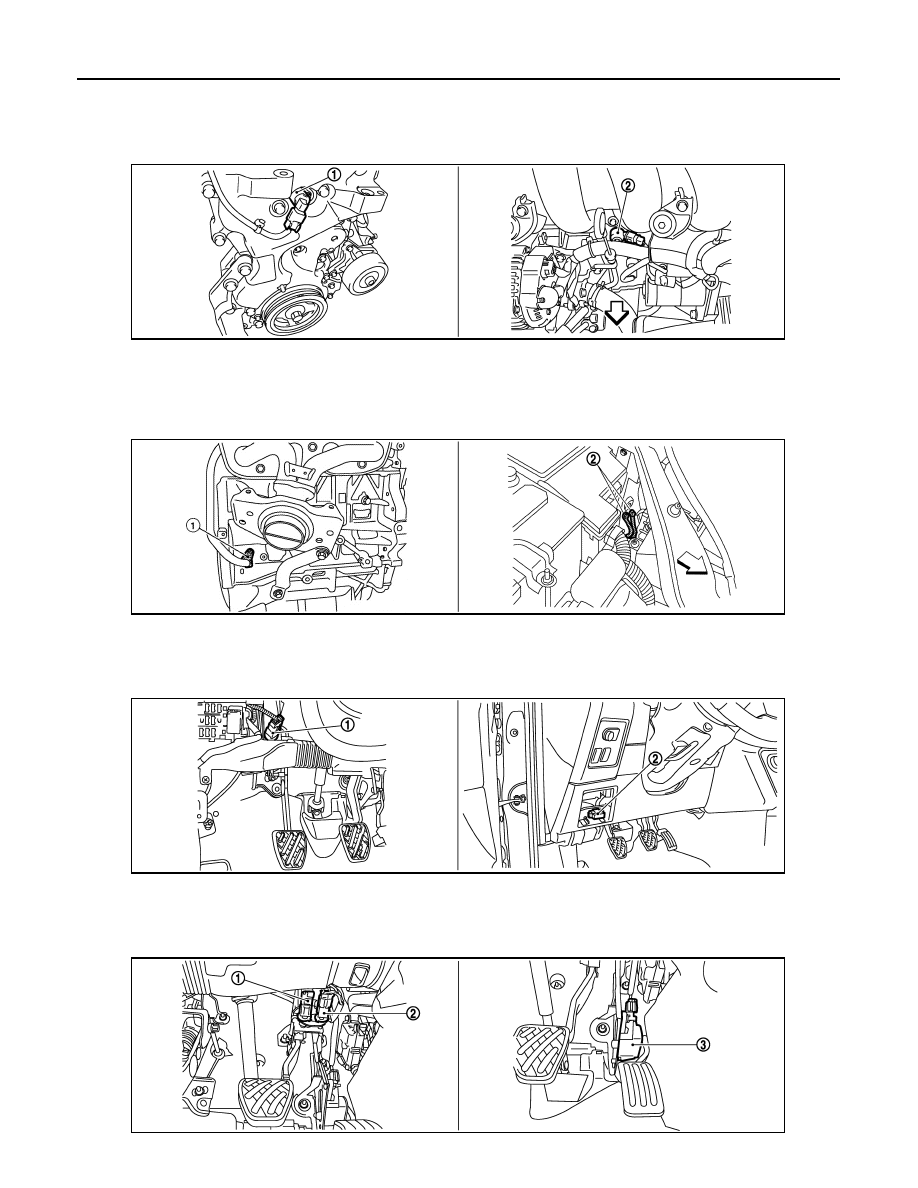

EC-1010

< FUNCTION DIAGNOSIS >

[MR20DE (WITHOUT EURO-OBD)]

ELECTRIC IGNITION SYSTEM

1.

Refrigerant pressure sensor

2.

Resister

3.

Cooling fan motor

1.

Intake valve timing control solenoid
valve

2.

Knock sensor

1.

Crankshaft position sensor (POS)

2.

Ground

1.

ASCD clutch switch

2.

Data link connector

JMBIA0445ZZ

JMBIA0446ZZ

JMBIA0347ZZ

JMBIA0348ZZ
