P0112, P0113 IAT SENSOR

EC-751

< COMPONENT DIAGNOSIS >

[MR20DE (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

1.

CHECK INTAKE AIR TEMPERATURE SENSOR

1.

Turn ignition switch OFF.

2.

Disconnect mass air flow sensor harness connector.

3.

Check resistance between mass air flow sensor terminals as follows.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace mass air flow sensor (with intake air temperature sensor).

Terminals

Condition

Resistance

1 and 2

Temperature

°

C (

°

F)

25 (77)

1.800 - 2.200 k

Ω



EC-752

< COMPONENT DIAGNOSIS >

[MR20DE (WITH EURO-OBD)]

P0117, P0118 ECT SENSOR

P0117, P0118 ECT SENSOR

Description

INFOID:0000000000936678

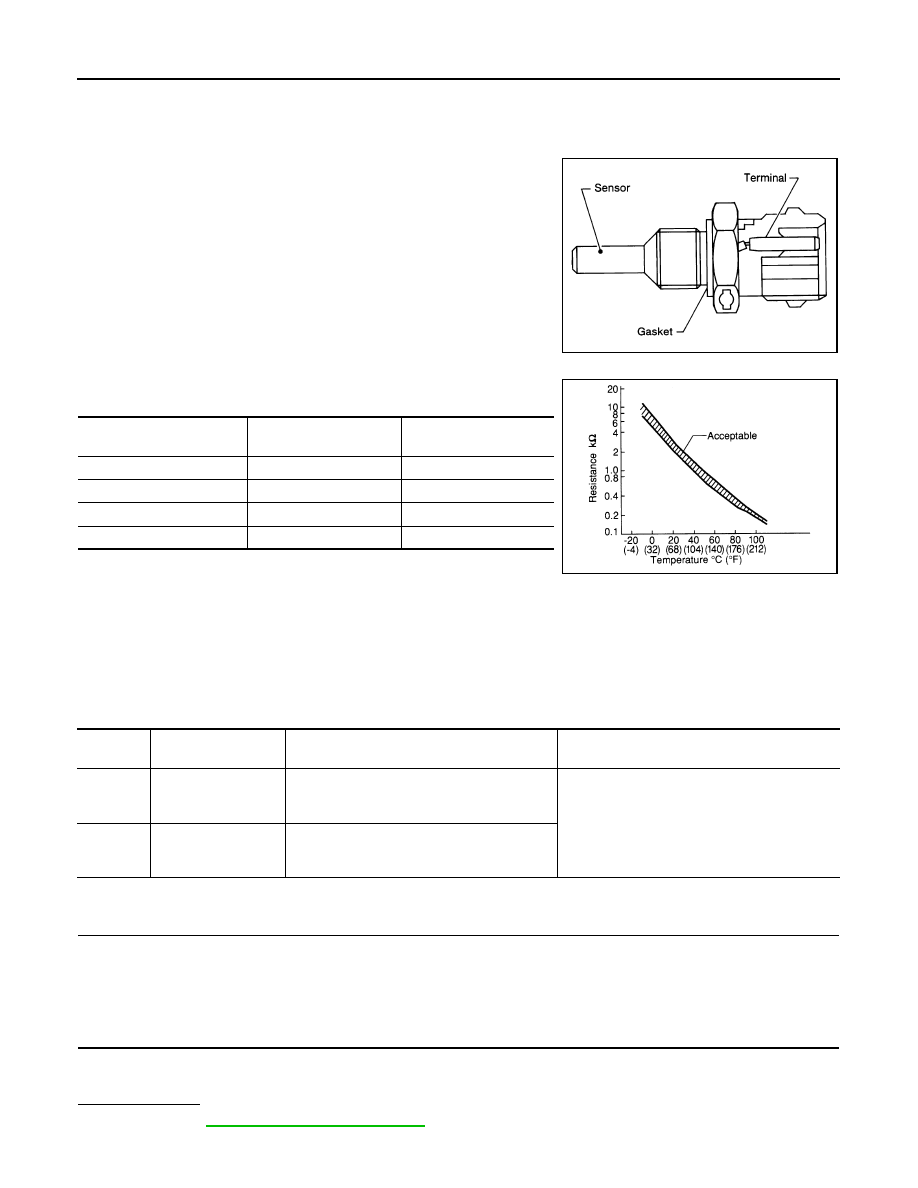

The engine coolant temperature sensor is used to detect the engine
coolant temperature. The sensor modifies a voltage signal from the
ECM. The modified signal returns to the ECM as the engine coolant
temperature input. The sensor uses a thermistor which is sensitive to
the change in temperature. The electrical resistance of the ther-
mistor decreases as temperature increases.

<Reference data>

*: These data are reference values and are measured between ECM terminal 38
(Engine coolant temperature sensor) and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transis-
tor. Use a ground other than ECM terminals, such as the ground.

DTC Logic

INFOID:0000000000936679

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE

1.

Turn ignition switch ON and wait at least 5 seconds.

2.

Check DTC.

Is DTC detected?

YES

>> Go to

EC-755, "Diagnosis Procedure"

.

NO

>> INSPECTION END

SEF594K

Engine coolant temperature

°

C (

°

F)

Voltage*

V

Resistance

k

Ω

–10 (14)

4.4

7.0 - 11.4

20 (68)

3.5

2.1 - 2.9

50 (122)

2.2

0.68 - 1.00

90 (194)

0.9

0.236 - 0.260

SEF012P

DTC No.

Trouble Diagnosis

Name

DTC Detecting Condition

Possible Cause

P0117

Engine coolant tem-
perature sensor cir-
cuit low input

An excessively low voltage from the sensor is
sent to ECM.

• Harness or connectors

(The sensor circuit is open or shorted.)

• Engine coolant temperature sensor

P0118

Engine coolant tem-
perature sensor cir-
cuit high input

An excessively high voltage from the sensor is
sent to ECM.

P0117, P0118 ECT SENSOR

EC-753

< COMPONENT DIAGNOSIS >

[MR20DE (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Diagnosis Procedure

INFOID:0000000000936680

1.

CHECK GROUND CONNECTION

1.

Turn ignition switch OFF.

2.

Check ground connection E21. Refer to Ground Inspection in

GI-41, "Circuit Inspection"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace ground connection.

2.

CHECK ECT SENSOR POWER SUPPLY CIRCUIT

1.

Disconnect engine coolant temperature (ECT) sensor harness connector.

2.

Turn ignition switch ON.

3.

Check the voltage between ECT sensor harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair open circuit or short to ground or short to power in harness or connectors.

3.

CHECK ECT SENSOR GROUND CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check the continuity between ECT sensor harness connector and ECM harness connector.

4.

Also check harness for short to ground and short to power.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair open circuit or short to ground or short to power in harness or connectors.

4.

CHECK ENGINE COOLANT TEMPERATURE SENSOR

Refer to

EC-755, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Replace engine coolant temperature sensor.

5.

CHECK INTERMITTENT INCIDENT

Refer to

GI-39, "Intermittent Incident"

.

>> INSPECTION END

Component Inspection

INFOID:0000000000936681

1.

CHECK ENGINE COOLANT TEMPERATURE SENSOR

1.

Turn ignition switch OFF.

2.

Disconnect engine coolant temperature sensor harness connector.

3.

Remove engine coolant temperature sensor.

ECT sensor

Ground

Voltage

Connector

Terminal

F28

1

Ground

Approx. 5V

ECT sensor

ECM

Continuity

Connector

Terminal

Connector

Terminal

F28

2

F8

44

Existed

EC-754

< COMPONENT DIAGNOSIS >

[MR20DE (WITH EURO-OBD)]

P0117, P0118 ECT SENSOR

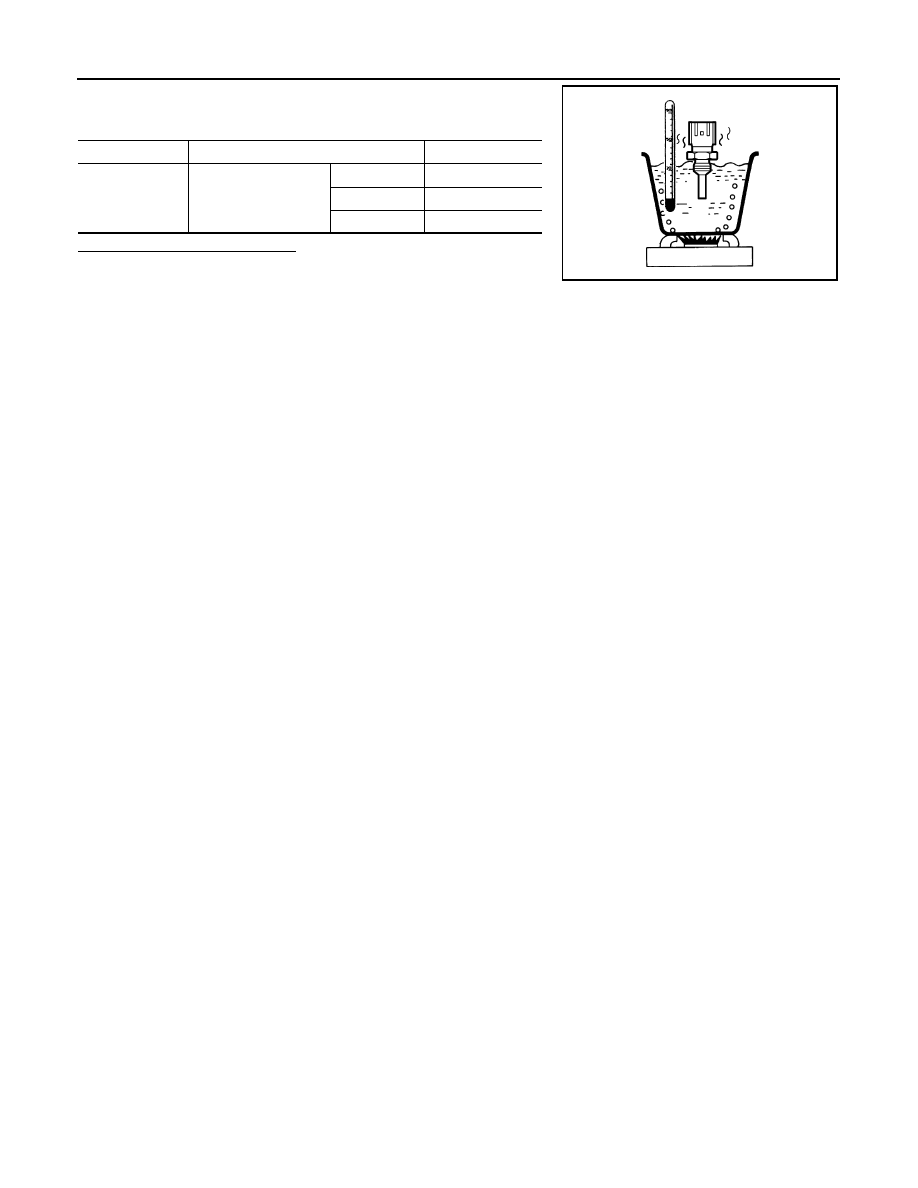

4.

Check resistance between engine coolant temperature sensor
terminals by heating with hot water as shown in the figure.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace engine coolant temperature sensor.

Terminals

Condition

Resistance

1 and 2

Temperature

°

C (

°

F)

20 (68)

2.1 - 2.9 k

Ω

50 (122)

0.68 - 1.00 k

Ω

90 (194)

0.236 - 0.260 k

Ω

JMBIA0080ZZ
