MULTIPORT FUEL INJECTION SYSTEM

EC-659

< FUNCTION DIAGNOSIS >

[MR20DE (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

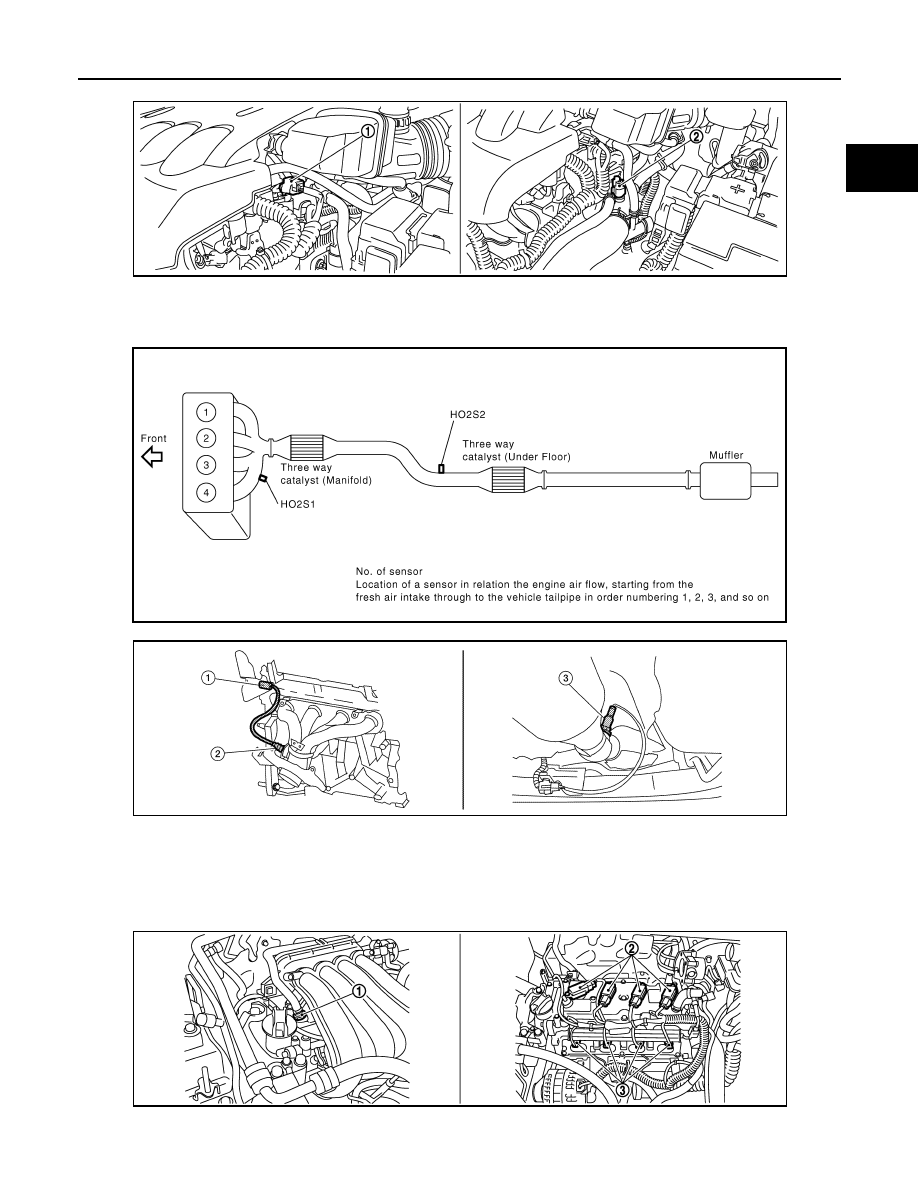

1.

Camshaft position sensor

2.

Engine coolant temperature sensor

JMBIA0343ZZ

PBIB2942E

1.

Heated oxygen sensor 1 harness
connector

2.

Heated oxygen sensor 1

3.

Heated oxygen sensor 2

4.

Heated oxygen sensor 2 harness
connector

BBIA0757E

JMBIA0344ZZ

EC-660

< FUNCTION DIAGNOSIS >

[MR20DE (WITH EURO-OBD)]

MULTIPORT FUEL INJECTION SYSTEM

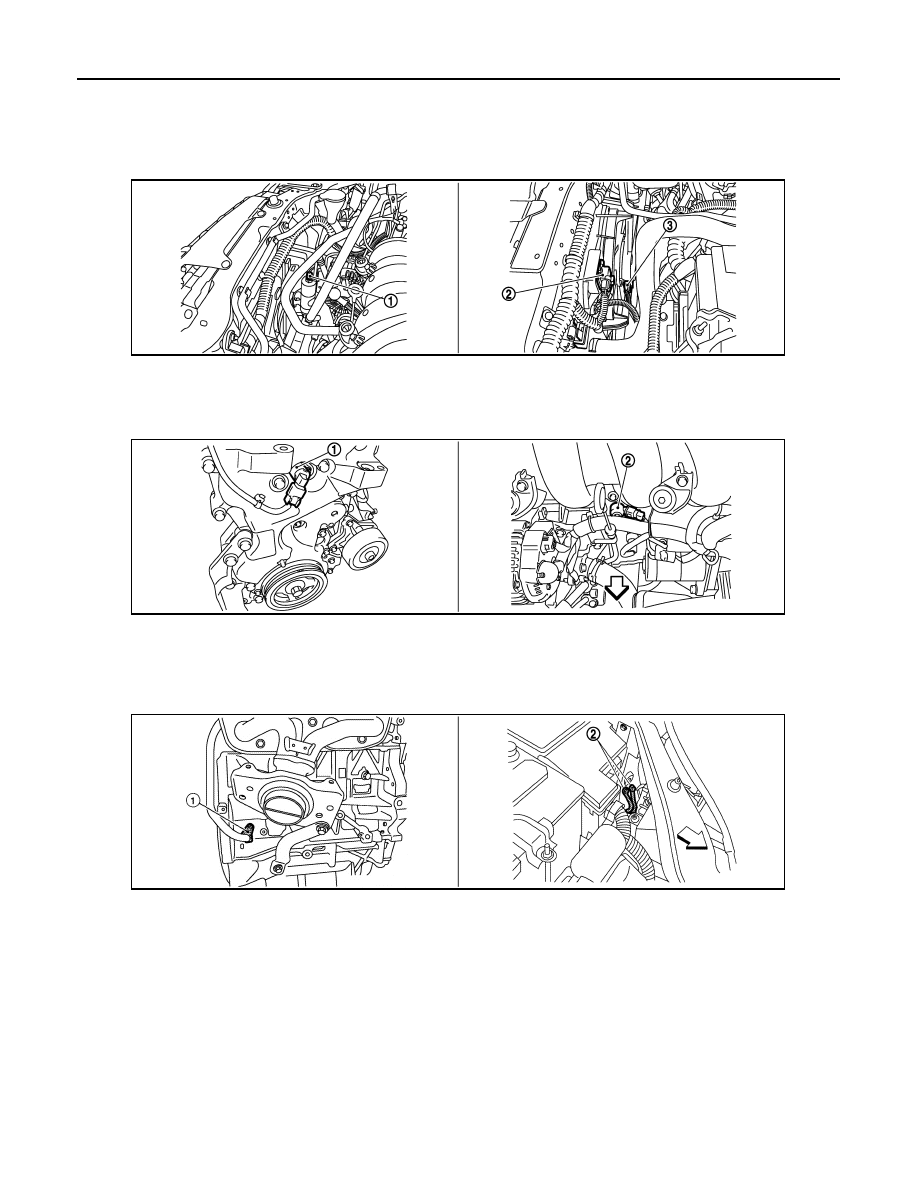

1.

PCV valve

2.

Ignition coil (with power transistor)
and spark plug

3.

Fuel injection

1.

Refrigerant pressure sensor

2.

Resister

3.

Cooling fan motor

1.

Intake valve timing control solenoid
valve

2.

Knock sensor

1.

Crankshaft position sensor (POS)

2.

Ground

JMBIA0345ZZ

JMBIA0445ZZ

JMBIA0446ZZ

MULTIPORT FUEL INJECTION SYSTEM

EC-661

< FUNCTION DIAGNOSIS >

[MR20DE (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

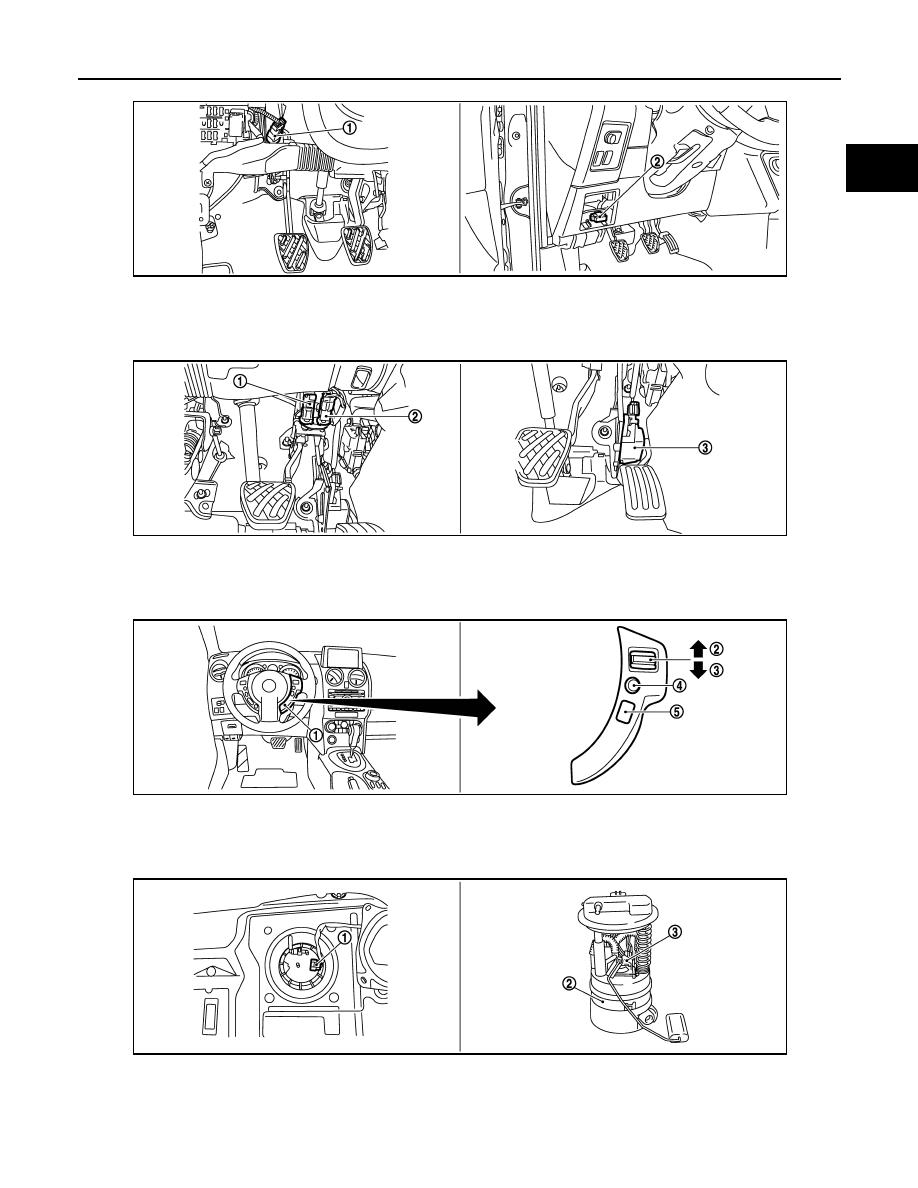

1.

ASCD clutch switch

2.

Data link connector

1.

Stop lamp switch

2.

ASCD brake switch

3.

Accelerator pedal position sensor

1.

ASDC steering switch

2.

CANSEL switch

3.

RESUME/ACCCELERATE switch

4.

SET/COAST switch

5.

MAIN SWITCH

6.

1.

Fuel level sensor unit and fuel pump
harness connector

2.

Fuel level sensor unit and fuel pump 3.

Fuel pressure regulator

JMBIA0347ZZ

JMBIA0348ZZ

JMBIA0349ZZ

JMBIA0346ZZ

EC-662

< FUNCTION DIAGNOSIS >

[MR20DE (WITH EURO-OBD)]

MULTIPORT FUEL INJECTION SYSTEM

Component Description

INFOID:0000000000936611

Component

Reference

Accelerator pedal position sensor

EC-909, "Description"

Camshaft position sensor (PHASE)

EC-813, "Description"

Crankshaft position sensor (POS)

EC-809, "Description"

Engine coolant temperature sensor

EC-754, "Description"

Fuel injector

EC-923, "Description"

Heated oxygen sensor 1

EC-760, "Description"

Heated oxygen sensor 2

EC-778, "Description"

Intake air temperature sensor

EC-751, "Description"

Knock sensor

EC-807, "Description"

Mass air flow sensor

EC-746, "Description"

Park/neutral position (PNP) switch

EC-892, "Description"

Throttle position sensor

EC-757, "Description"

Vehicle speed sensor

EC-825, "Description"
