SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Idle Speed

INFOID:0000000001097009

*: Under the following conditions

• A/C switch: OFF

• Electric load: OFF (Lights, heater fan & rear window defogger)

• Steering wheel: Kept in straight-ahead position

Ignition Timing

INFOID:0000000001097010

*: Under the following conditions

• A/C switch: OFF

• Electric load: OFF (Lights, heater fan & rear window defogger)

• Steering wheel: Kept in straight-ahead position

Transmission

Condition

Specification

M/T

No load* (in Neutral position)

650

±

50 rpm

Transmission

Condition

Specification

M/T

No load* (in Neutral position)

15

±

 5

°

 BTDC

EC-636

< BASIC INSPECTION >

[MR20DE (WITH EURO-OBD)]

DIAGNOSIS AND REPAIR WORKFLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000000936579

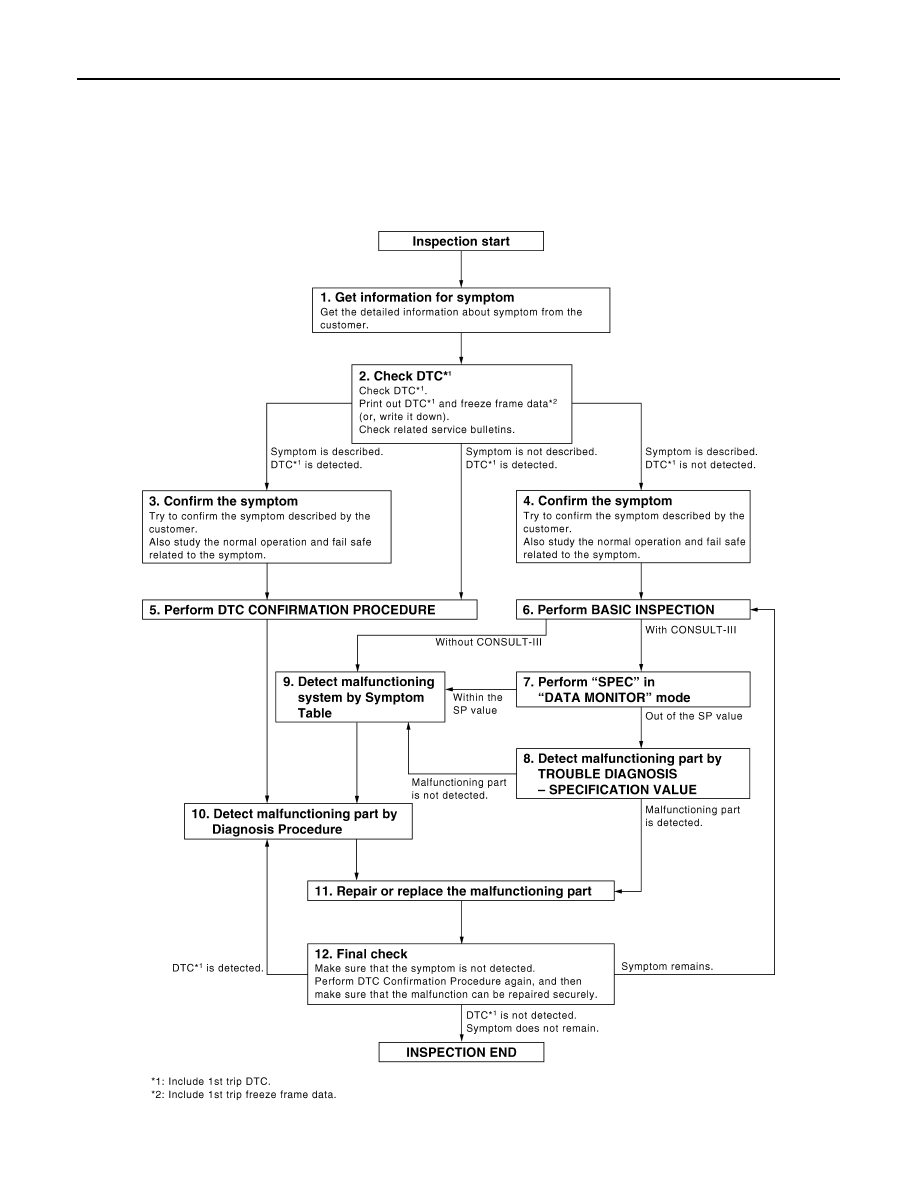

OVERALL SEQUENCE

DETAILED FLOW

JMBIA0078GB

DIAGNOSIS AND REPAIR WORKFLOW

EC-637

< BASIC INSPECTION >

[MR20DE (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

1.

GET INFORMATION FOR SYMPTOM

Get the detailed information from the customer about the symptom (the condition and the environment when
the incident/malfunction occurred) using the “Diagnostic Work Sheet”. (Refer to

EC-640, "Diagnostic Work

Sheet"

.)

>> GO TO 2.

2.

CHECK DTC

1.

Check DTC.

2.

Perform the following procedure if DTC is displayed.

-

Record DTC and freeze frame data. (Print them out with CONSULT-III or GST.)

-

Erase DTC. (Refer to

EC-706, "Diagnosis Description"

.)

-

Study the relationship between the cause detected by DTC and the symptom described by the customer.
(Symptom Table is useful. Refer to

EC-967, "Symptom Table"

.)

3.

Check related service bulletins for information.

Is any symptom described and is any DTC detected?

Symptom is described, DTC is detected>>GO TO 3.
Symptom is described, DTC is not detected>>GO TO 4.
Symptom is not described, DTC is detected>>GO TO 5.

3.

CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer (except MI ON).
Also study the normal operation and fail safe related to the symptom. Refer to

EC-971, "Description"

 and

EC-

959, "Fail Safe"

.

Diagnosis Work Sheet is useful to verify the incident.
Verify relation between the symptom and the condition when the symptom is detected.

>> GO TO 5.

4.

CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer.
Also study the normal operation and fail safe related to the symptom. Refer to

EC-971, "Description"

 and

EC-

959, "Fail Safe"

.

Diagnosis Work Sheet is useful to verify the incident.
Verify relation between the symptom and the condition when the symptom is detected.

>> GO TO 6.

5.

PERFORM DTC CONFIRMATION PROCEDURE

Perform DTC CONFIRMATION PROCEDURE for the displayed DTC, and then make sure that DTC is
detected again.
If two or more DTCs are detected, refer to

EC-961, "DTC Inspection Priority Chart"

 and determine trouble

diagnosis order.
NOTE:
• Freeze frame data is useful if the DTC is not detected.
• Perform Component Function Check if DTC CONFIRMATION PROCEDURE is not included on Service

Manual. This simplified check procedure is an effective alternative though DTC cannot be detected during
this check.
If the result of Component Function Check is NG, it is the same as the detection of DTC by DTC CONFIR-
MATION PROCEDURE.

Is DTC detected?

YES

>> GO TO 10.

NO

>> Check according to

EC-962, "DTC Index"

.

6.

PERFORM BASIC INSPECTION

Perform

EC-642, "BASIC INSPECTION : Special Repair Requirement"

.

Do you have CONSULT-III?

EC-638

< BASIC INSPECTION >

[MR20DE (WITH EURO-OBD)]

DIAGNOSIS AND REPAIR WORKFLOW

YES

>> GO TO 7.

NO

>> GO TO 9.

7.

PERFORM SPEC IN DATA MONITOR MODE

With CONSULT-III

Make sure that “MAS A/F SE-B1”, “B/FUEL SCHDL” and “A/F ALPHA-B1” are within the SP value using CON-
SULT-III in “SPEC” of “DATA MONITOR” mode. Refer to

EC-728, "Component Function Check"

.

Is the measurement value within the SP value?

YES

>> GO TO 9.

NO

>> GO TO 8.

8.

DETECT MALFUNCTIONING PART BY TROUBLE DIAGNOSIS - SPECIFICATION VALUE

Detect malfunctioning part according to

EC-728, "Diagnosis Procedure"

.

Is malfunctioning part detected?

YES

>> GO TO 11.

NO

>> GO TO 9.

9.

DETECT MALFUNCTIONING SYSTEM BY SYMPTOM TABLE

Detect malfunctioning system according to

EC-967, "Symptom Table"

 based on the confirmed symptom in

step 4, and determine the trouble diagnosis order based on possible causes and symptom.

>> GO TO 10.

10.

DETECT MALFUNCTIONING PART BY DIAGNOSIS PROCEDURE

Inspect according to Diagnosis Procedure of the system.
NOTE:
The Diagnosis Procedure in EC section described based on open circuit inspection. A short circuit inspection
is also required for the circuit check in the Diagnosis Procedure. For details, refer to Circuit Inspection in

GI-

41, "Circuit Inspection"

.

Is malfunctioning part detected?

YES

>> GO TO 11.

NO

>> Monitor input data from related sensors or check the voltage of related ECM terminals using CON-

SULT-III. Refer to

EC-938, "Reference Value"

.

11.

REPAIR OR REPLACE THE MALFUNCTIONING PART

1.

Repair or replace the malfunctioning part.

2.

Reconnect parts or connectors disconnected during Diagnosis Procedure again after repair and replace-
ment.

3.

Check DTC. If DTC is displayed, erase it. Refer to

EC-706, "Diagnosis Description"

.

>> GO TO 12.

12.

FINAL CHECK

When DTC was detected in step 2, perform DTC CONFIRMATION PROCEDURE or Component Function
Check again, and then make sure that the malfunction have been repaired securely.
When symptom was described from the customer, refer to confirmed symptom in step 3 or 4, and make sure
that the symptom is not detected.

Is DTC detected and does symptom remain?

YES-1 >> DTC is detected: GO TO 10.
YES-2 >> Symptom remains: GO TO 6.
NO

>> Before returning the vehicle to the customer, make sure to erase unnecessary DTC in ECM and

TCM (Transmission Control Module). (Refer to

EC-706, "Diagnosis Description"

.) If the comple-

tion of SRT is needed, drive vehicle under the specific DRIVING PATTERN in

EC-964,

"How to Set SRT Code"

.

Diagnostic Work Sheet
