P2122, P2123 APP SENSOR

EC-539

< COMPONENT DIAGNOSIS >

[HR16DE (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Component Inspection

INFOID:0000000001096938

1.

CHECK ACCELERATOR PEDAL POSITION SENSOR

1.

Reconnect all harness connectors disconnected.

2.

Turn ignition switch ON.

3.

Check the voltage between ECM harness connector and ground.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> GO TO 2.

2.

REPLACE ACCELERATOR PEDAL ASSEMBLY

1.

Replace accelerator pedal assembly.

2.

Go to

EC-541, "Special Repair Requirement"

.

>> INSPECTION END

Special Repair Requirement

INFOID:0000000001096939

1.

PERFORM ACCELERATOR PEDAL RELEASED POSITION LEARNING

Refer to

EC-369, "ACCELERATOR PEDAL RELEASED POSITION LEARNING : Special Repair Require-

ment"

.

>> GO TO 2.

2.

PERFORM THROTTLE VALVE CLOSED POSITION LEARNING

Refer to

EC-370, "THROTTLE VALVE CLOSED POSITION LEARNING : Special Repair Requirement"

.

>> GO TO 3.

3.

PERFORM IDLE AIR VOLUME LEARNING

Refer to

EC-370, "IDLE AIR VOLUME LEARNING : Special Repair Requirement"

.

>> END

ECM

Ground

Condition

Voltage

Connector

Terminal

E16

110

(APP sensor 1 signal)

Ground

Accelerator pedal

Fully released

0.6 - 0.9V

Fully depressed

3.9 - 4.7V

103

(APP sensor 2 signal)

Fully released

0.3 - 0.6V

Fully depressed

1.95 - 2.4V

EC-540

< COMPONENT DIAGNOSIS >

[HR16DE (WITHOUT EURO-OBD)]

P2127, P2128 APP SENSOR

P2127, P2128 APP SENSOR

Description

INFOID:0000000001096940

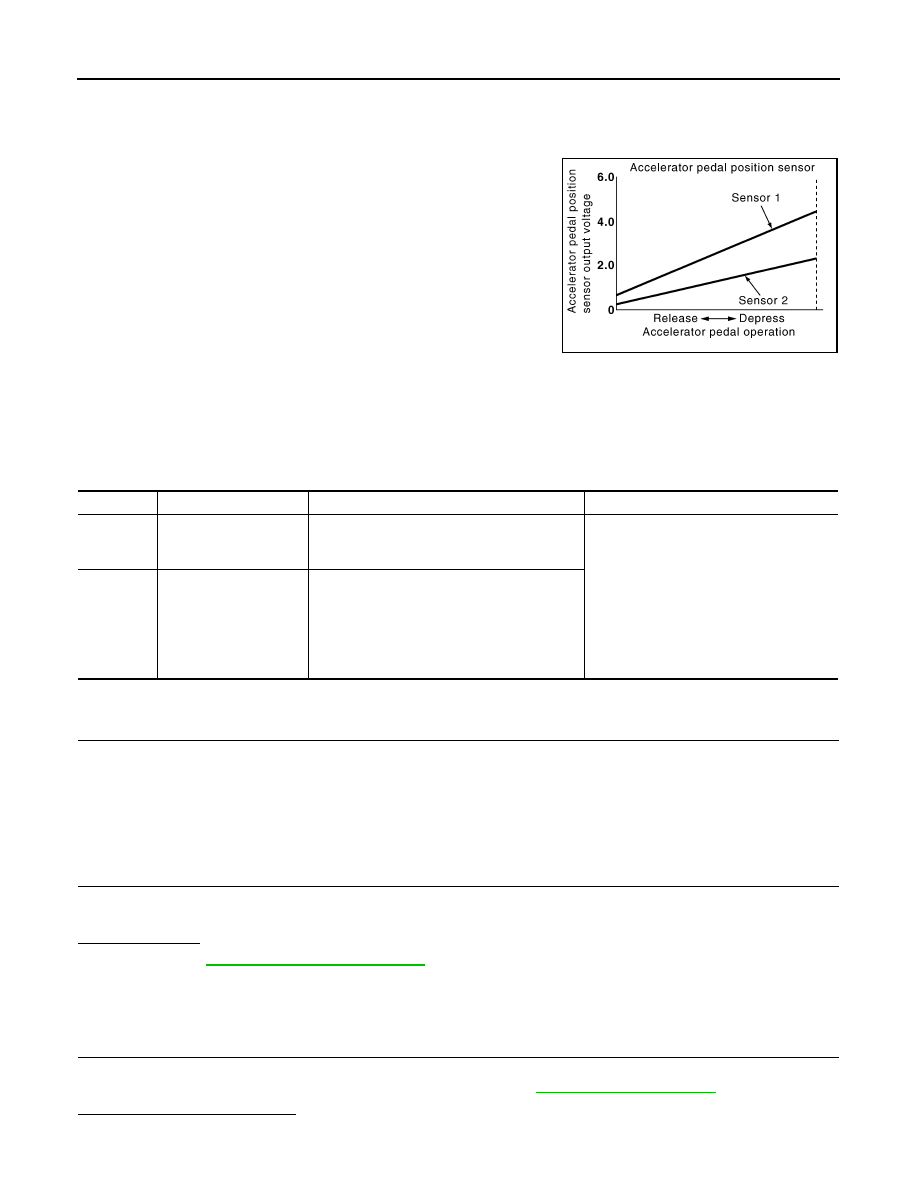

The accelerator pedal position sensor is installed on the upper end
of the accelerator pedal assembly. The sensor detects the accelera-
tor position and sends a signal to the ECM.
Accelerator pedal position sensor has two sensors. These sensors
are a kind of potentiometers which transform the accelerator pedal
position into output voltage, and emit the voltage signal to the ECM.
In addition, these sensors detect the opening and closing speed of
the accelerator pedal and feed the voltage signals to the ECM. The
ECM judges the current opening angle of the accelerator pedal from
these signals and controls the throttle control motor based on these
signals.
Idle position of the accelerator pedal is determined by the ECM
receiving the signal from the accelerator pedal position sensor. The ECM uses this signal for the engine oper-
ation such as fuel cut.

DTC Logic

INFOID:0000000001096941

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE

1.

Start engine and let it idle for 1 second.

2.

Check DTC.

Is DTC detected?

YES

>> Go to

EC-542, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000001096942

1.

CHECK GROUND CONNECTION

1.

Turn ignition switch OFF.

2.

Check ground connection E21. Refer to Ground Inspection in

GI-41, "Circuit Inspection"

.

Is the inspection result normal?

YES

>> GO TO 2.

PBIB1741E

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P2127

Accelerator pedal posi-
tion sensor 2 circuit low
input

An excessively low voltage from the APP sen-
sor 2 is sent to ECM.

• Harness or connectors

(APP sensor 2 circuit is open or shorted.)
[Crankshaft position sensor (POS) circuit
is shorted.]
(Refrigerant pressure sensor circuit is
shorted.)

• Accelerator pedal position sensor

(APP sensor 2)

• Crankshaft position sensor (POS)
• Refrigerant pressure sensor

P2128

Accelerator pedal posi-
tion sensor 2 circuit high
input

An excessively high voltage from the APP sen-
sor 2 is sent to ECM.

P2127, P2128 APP SENSOR

EC-541

< COMPONENT DIAGNOSIS >

[HR16DE (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

NO

>> Repair or replace ground connection.

2.

CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-I

1.

Disconnect accelerator pedal position (APP) sensor harness connector.

2.

Turn ignition switch ON.

3.

Check the voltage between APP sensor harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> GO TO 3.

3.

CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-II

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check the continuity between APP sensor harness connector and ECM harness connector.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair open circuit or short to ground or short to power in harness or connectors.

4.

CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-III

Check harness for short to power and short to ground, between the following terminals.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair short to ground or short to power in harness or connectors.

5.

CHECK COMPONENTS

Check the following.
• Crankshaft position sensor (POS) (Refer to

EC-488, "Component Inspection"

.)

• Refrigerant pressure sensor (Refer to

HAC-70, "Component Inspection"

.)

Is the inspection result normal?

YES

>> GO TO 10.

NO

>> Replace malfunctioning component.

6.

CHECK APP SENSOR 2 GROUND CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check the continuity between APP sensor harness connector and ECM harness connector.

APP sensor

Ground

Voltage

Connector

Terminal

E110

5

Ground

Approx. 5V

APP sensor

ECM

Continuity

Connector

Terminal

Connector

Terminal

E110

5

E16

102

Existed

ECM

Sensor

Connector

Terminal

Item

Connector

Terminal

F8

74

Refrigerant pressure sensor

E49

3

75

CKP sensor (POS)

F20

1

E16

102

APP sensor

E110

5

EC-542

< COMPONENT DIAGNOSIS >

[HR16DE (WITHOUT EURO-OBD)]

P2127, P2128 APP SENSOR

4.

Also check harness for short to ground and short to power.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> Repair open circuit or short to ground or short to power in harness or connectors.

7.

CHECK APP SENSOR 2 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1.

Check the continuity between APP sensor harness connector and ECM harness connector.

2.

Also check harness for short to ground and short to power.

Is the inspection result normal?

YES

>> GO TO 8.

NO

>> Repair open circuit or short to ground or short to power in harness or connectors.

8.

CHECK APP SENSOR

Refer to

EC-544, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 10.

NO

>> GO TO 9.

9.

REPLACE ACCELERATOR PEDAL ASSEMBLY

1.

Replace accelerator pedal assembly.

2.

Go to

EC-545, "Special Repair Requirement"

.

>> INSPECTION END

10.

CHECK INTERMITTENT INCIDENT

Refer to

GI-39, "Intermittent Incident"

.

>> INSPECTION END

Component Inspection

INFOID:0000000001096943

1.

CHECK ACCELERATOR PEDAL POSITION SENSOR

1.

Reconnect all harness connectors disconnected.

2.

Turn ignition switch ON.

3.

Check the voltage between ECM harness connector and ground.

Is the inspection result normal?

YES

>> INSPECTION END

APP sensor

ECM

Continuity

Connector

Terminal

Connector

Terminal

E110

1

E16

104

Existed

APP sensor

ECM

Continuity

Connector

Terminal

Connector

Terminal

E110

6

E16

103

Existed

ECM

Ground

Condition

Voltage

Connector

Terminal

E16

110

(APP sensor 1 signal)

Ground

Accelerator pedal

Fully released

0.6 - 0.9V

Fully depressed

3.9 - 4.7V

103

(APP sensor 2 signal)

Fully released

0.3 - 0.6V

Fully depressed

1.95 - 2.4V
