P0340 CMP SENSOR (PHASE)

EC-491

< COMPONENT DIAGNOSIS >

[HR16DE (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace camshaft position sensor (PHASE).

Terminals (Polarity)

Resistance [at 25

°

C (77

°

F)]

1 (+) - 2 (-)

Except 0 or

∞



Ω

1 (+) - 3 (-)

2 (+) - 3 (-)

EC-492

< COMPONENT DIAGNOSIS >

[HR16DE (WITHOUT EURO-OBD)]

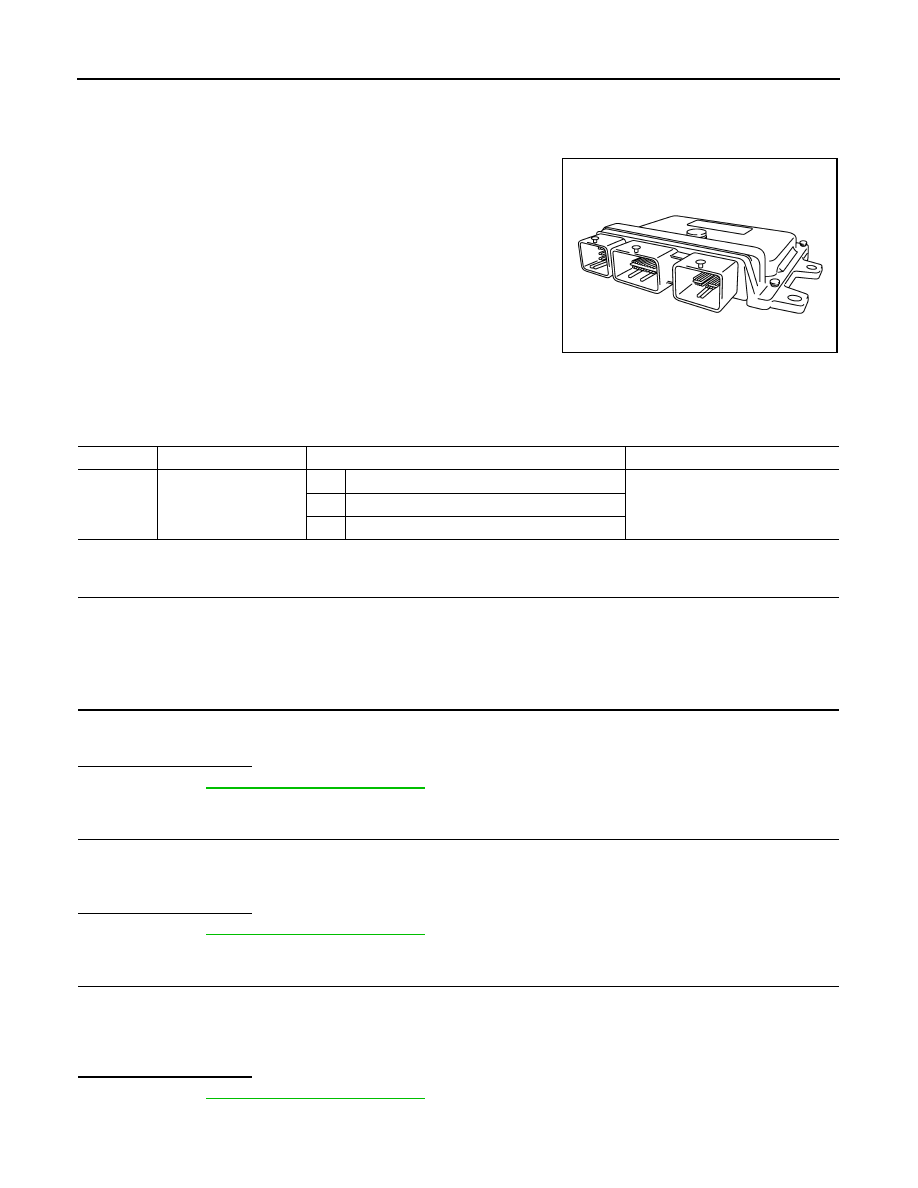

P0605 ECM

P0605 ECM

Description

INFOID:0000000001096869

The ECM consists of a microcomputer and connectors for signal
input and output and for power supply. The ECM controls the engine.

DTC Logic

INFOID:0000000001096870

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE FOR MALFUNCTION A

1.

Turn ignition switch ON.

2.

Check 1st trip DTC.

Is 1st trip DTC detected?

YES

>> Go to

EC-494, "Diagnosis Procedure"

.

NO

>> GO TO 3.

3.

PERFORM DTC CONFIRMATION PROCEDURE FOR MALFUNCTION B

1.

Turn ignition switch ON and wait at least 1 second.

2.

Turn ignition switch OFF, wait at least 10 seconds, and then turn ON.

3.

Check 1st trip DTC.

Is 1st trip DTC detected?

YES

>> Go to

EC-494, "Diagnosis Procedure"

.

NO

>> GO TO 4.

4.

PERFORM DTC CONFIRMATION PROCEDURE FOR MALFUNCTION C

1.

Turn ignition switch ON and waitait at least 1 second.

2.

Turn ignition switch OFF, wait at least 10 seconds, and then turn ON.

3.

Repeat step 2 for 32 times.

4.

Check 1st trip DTC.

Is 1st trip DTC detected?

YES

>> Go to

EC-494, "Diagnosis Procedure"

.

NO

>> INSPECTION END

PBIA9222J

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0605

Engine control module

A)

ECM calculation function is malfunctioning.

• ECM

B)

ECM EEP-ROM system is malfunctioning.

C)

ECM self shut-off function is malfunctioning.

P0605 ECM

EC-493

< COMPONENT DIAGNOSIS >

[HR16DE (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Diagnosis Procedure

INFOID:0000000001096871

1.

INSPECTION START

With CONSULT-III

1.

Turn ignition switch ON.

2.

Select “SELF-DIAG RESULTS” mode with CONSULT-III.

3.

Touch “ERASE”.

4.

Perform DTC CONFIRMATION PROCEDURE.
See

EC-493, "DTC Logic"

.

Without CONSULT-III

1.

Turn ignition switch ON.

2.

Erase the Diagnostic Test Mode II (Self-diagnostic results) memory.

3.

Perform DTC CONFIRMATION PROCEDURE.
See

EC-493, "DTC Logic"

.

Is the 1st trip DTC P0605 displayed again?

YES

>> GO TO 2.

NO

>> INSPECTION END

2.

REPLACE ECM

1.

Replace ECM.

2.

Go to

EC-368, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Require-

ment"

.

>> INSPECTION END

EC-494

< COMPONENT DIAGNOSIS >

[HR16DE (WITHOUT EURO-OBD)]

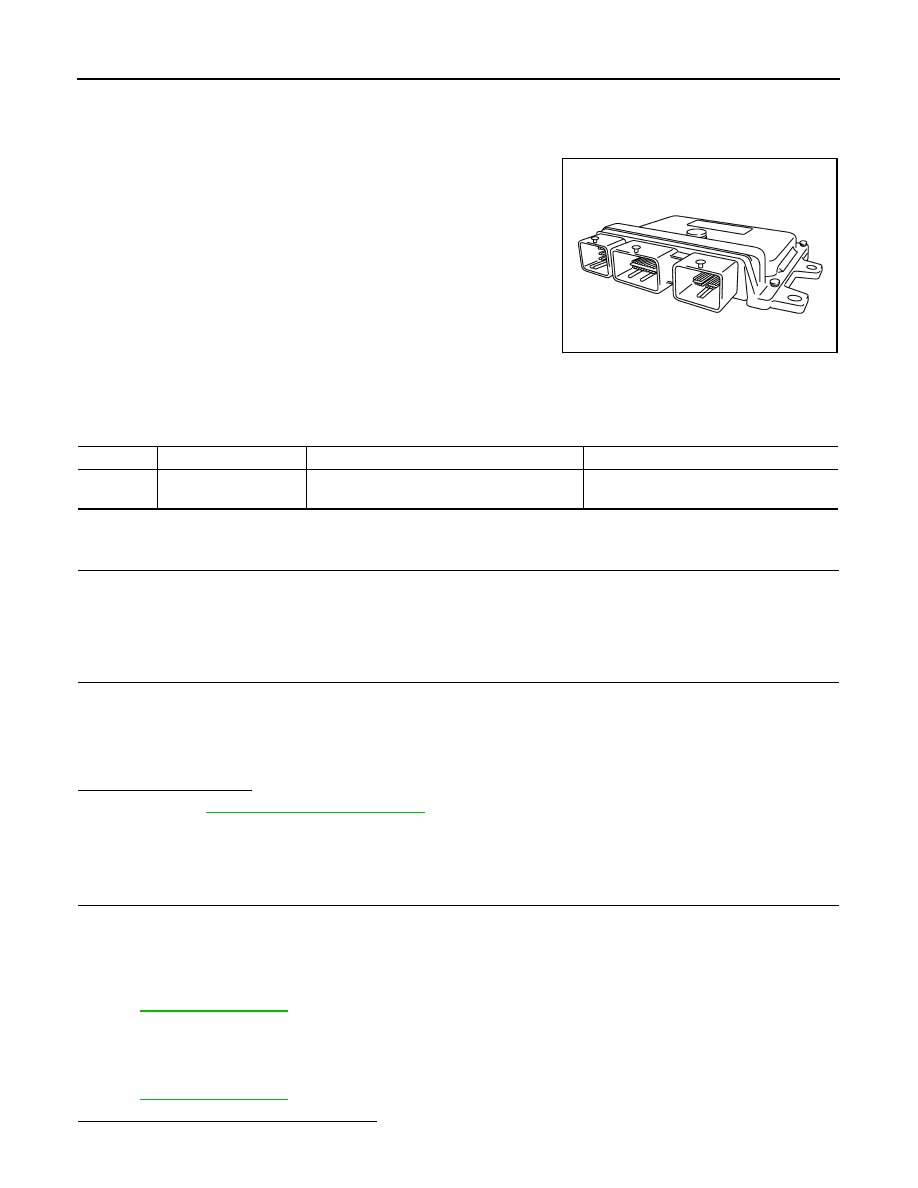

P1065 ECM

P1065 ECM

Description

INFOID:0000000001096872

ECM has the memory function of the DTC memory, the air-fuel ratio
feedback compensation value memory, the Idle Air Volume Learning
value memory, etc. even when the ignition switch is turned OFF.

DTC Logic

INFOID:0000000001096873

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE

1.

Turn ignition switch ON and wait at least 1 second.

2.

Start engine and let it idle for 1 second.

3.

Turn ignition switch OFF, wait at least 10 seconds, and then turn ON.

4.

Repeat steps 2 and 3 for four times.

5.

Check 1st trip DTC.

Is 1st trip DTC detected?

YES

>> Go to

EC-495, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000001096874

1.

INSPECTION START

With CONSULT-III

1.

Turn ignition switch ON.

2.

Select “SELF-DIAG RESULTS” mode with CONSULT-III.

3.

Touch “ERASE”.

4.

Perform DTC CONFIRMATION PROCEDURE.
See

EC-495, "DTC Logic"

.

Without CONSULT-III

1.

Turn ignition switch ON.

2.

Erase the Diagnostic Test Mode II (Self-diagnostic results) memory.

3.

Perform DTC CONFIRMATION PROCEDURE.
See

EC-495, "DTC Logic"

.

Is the 1st trip DTC P1065 displayed again?

YES

>> GO TO 2.

PBIA9222J

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P1065

Engine control module

ECM back-up RAM system does not function
properly.

• ECM
