ELECTRIC IGNITION SYSTEM

EC-391

< FUNCTION DIAGNOSIS >

[HR16DE (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

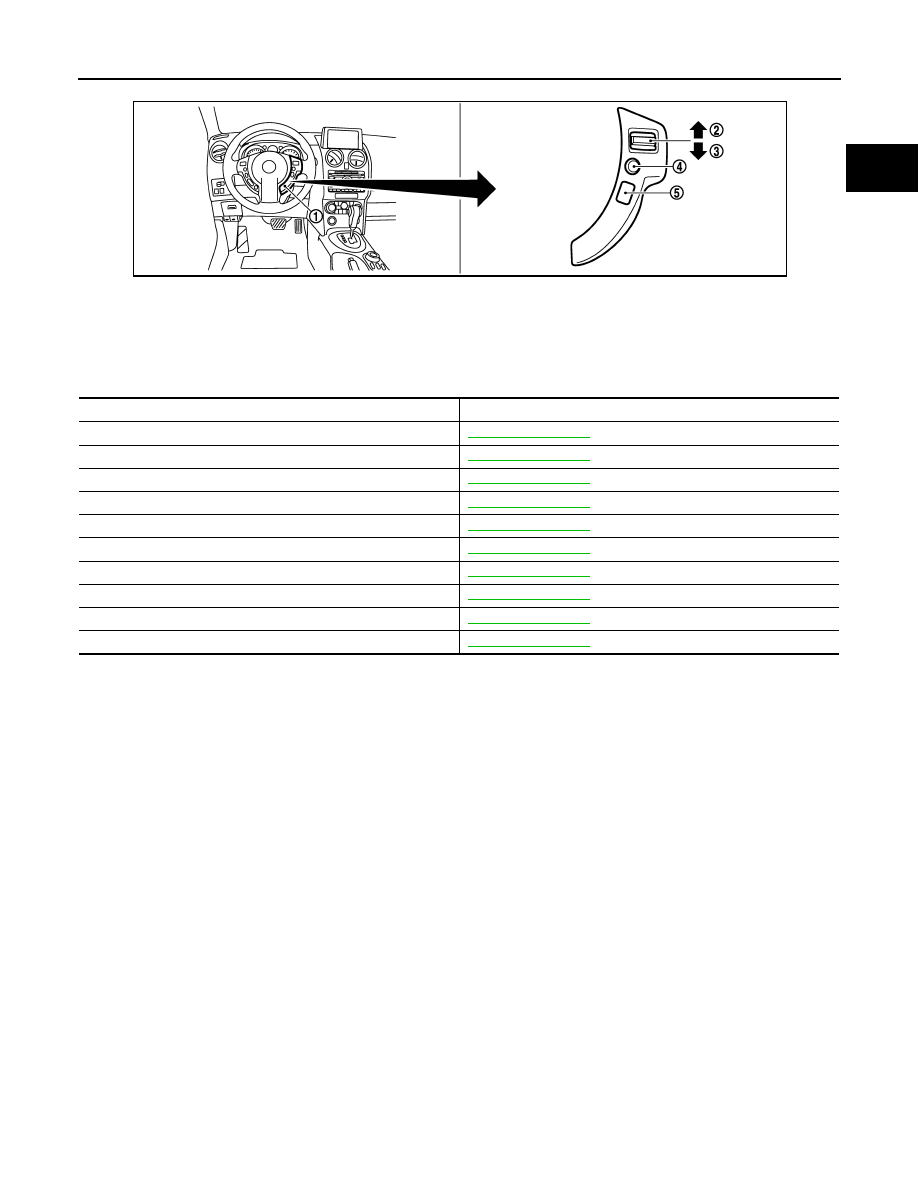

Component Description

INFOID:0000000001096751

1.

ASCD steering switch

2.

CANSEL switch

3.

RESUME/ACCELERATE switch

4.

SET/COAST switch

5.

MAIN switch

JMBIA0349ZZ

Component

Reference

Accelerator pedal position sensor

EC-539, "Description"

Camshaft position sensor (PHASE)

EC-489, "Description"

Crankshaft position sensor (POS)

EC-485, "Description"

Engine coolant temperature sensor

EC-461, "Description"

Ignition signal

EC-588, "Description"

Knock sensor

EC-483, "Description"

Mass air flow sensor

EC-127, "Description"

Park/neutral position (PNP) switch

EC-274, "Description"

Throttle position sensor

EC-464, "Description"

Vehicle speed sensor

EC-597, "Description"

EC-392

< FUNCTION DIAGNOSIS >

[HR16DE (WITHOUT EURO-OBD)]

AIR CONDITIONING CUT CONTROL

AIR CONDITIONING CUT CONTROL

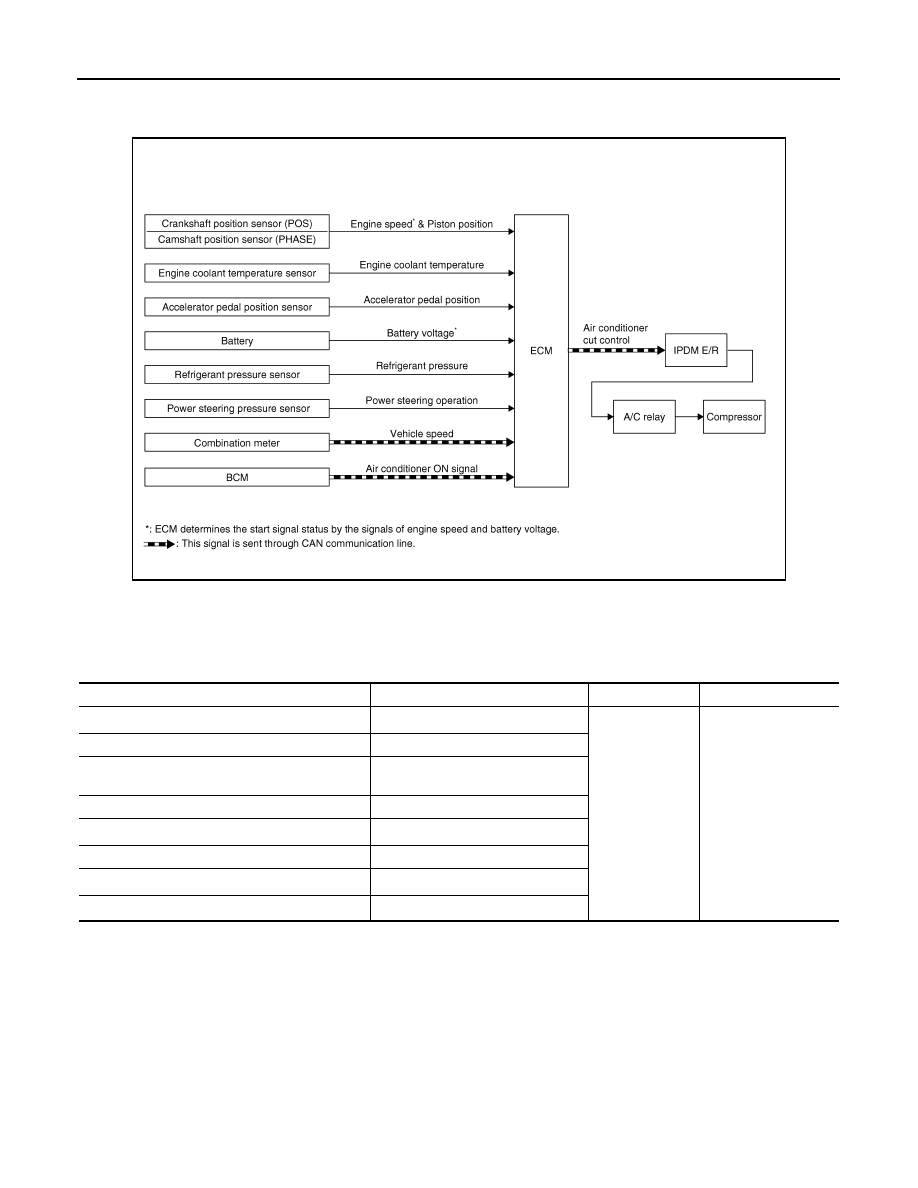

System Diagram

INFOID:0000000001096752

System Description

INFOID:0000000001096753

INPUT/OUTPUT SIGNAL CHART

*1: This signal is sent to the ECM through CAN communication line.

*2: ECM determines the start signal status by the signals of engine speed and battery voltage.

SYSTEM DESCRIPTION

This system improves engine operation when the air conditioner is used.
Under the following conditions, the air conditioner is turned off.
• When the accelerator pedal is fully depressed.
• When cranking the engine.
• At high engine speeds.
• When the engine coolant temperature becomes excessively high.
• When operating power steering during low engine speed or low vehicle speed.
• When engine speed is excessively low.
• When refrigerant pressure is excessively low or high.

JMBIA0175GB

Sensor

Input Signal to ECM

ECM function

Actuator

BCM*

1

Air conditioner ON signal

Air conditioner
cut control

IPDM E/R

↓

Air conditioner relay

↓

Compressor

Accelerator pedal position sensor

Accelerator pedal position

Crankshaft position sensor (POS)
Camshaft position sensor (PHASE)

Engine speed*

2

Engine coolant temperature sensor

Engine coolant temperature

Battery

Battery voltage*

2

Refrigerant pressure sensor

Refrigerant pressure

EPS control unit*

1

Power steering operation

Combination meter*

1

Vehicle speed

AIR CONDITIONING CUT CONTROL

EC-393

< FUNCTION DIAGNOSIS >

[HR16DE (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

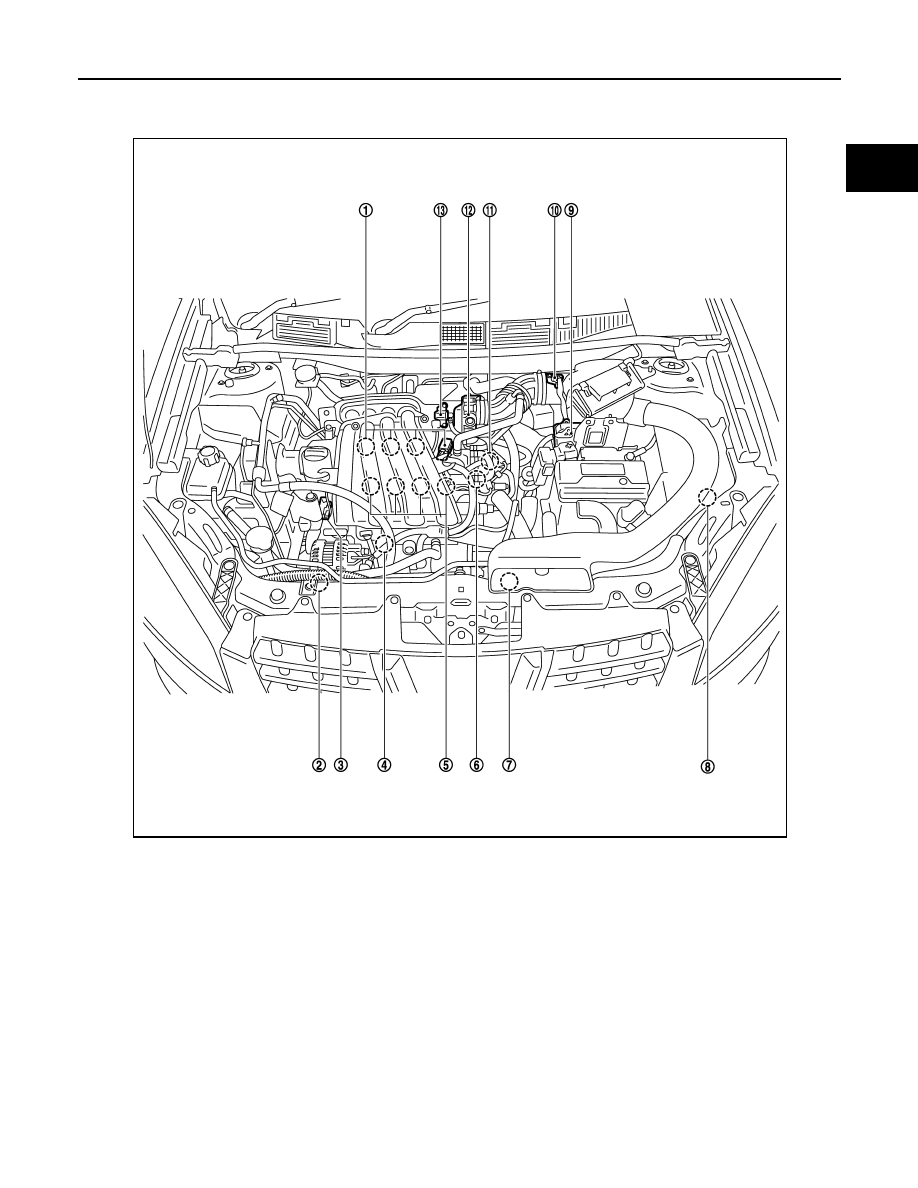

Component Parts Location

INFOID:0000000001096754

1.

Ignition coil (with power transistor)
and spark plug

2.

Refrigerant pressure sensor

3.

Intake valve timing control solenoid
valve

4.

Knock sensor,
Crankshaft position sensor (POS)

5.

Fuel injector

6.

Camshaft position sensor (PHASE)

7.

Cooling fan motor

8.

IPDM E/R

9.

ECM

10. Mass air flow sensor (with intake

temperature sensor)

11.

Engine coolant temperature sensor

12. Electric throttle control actuator

(with built in throttle position sensor
and throttle control motor)

13. EVAP canister purge volume control

solenoid valve

JMBIA0399ZZ

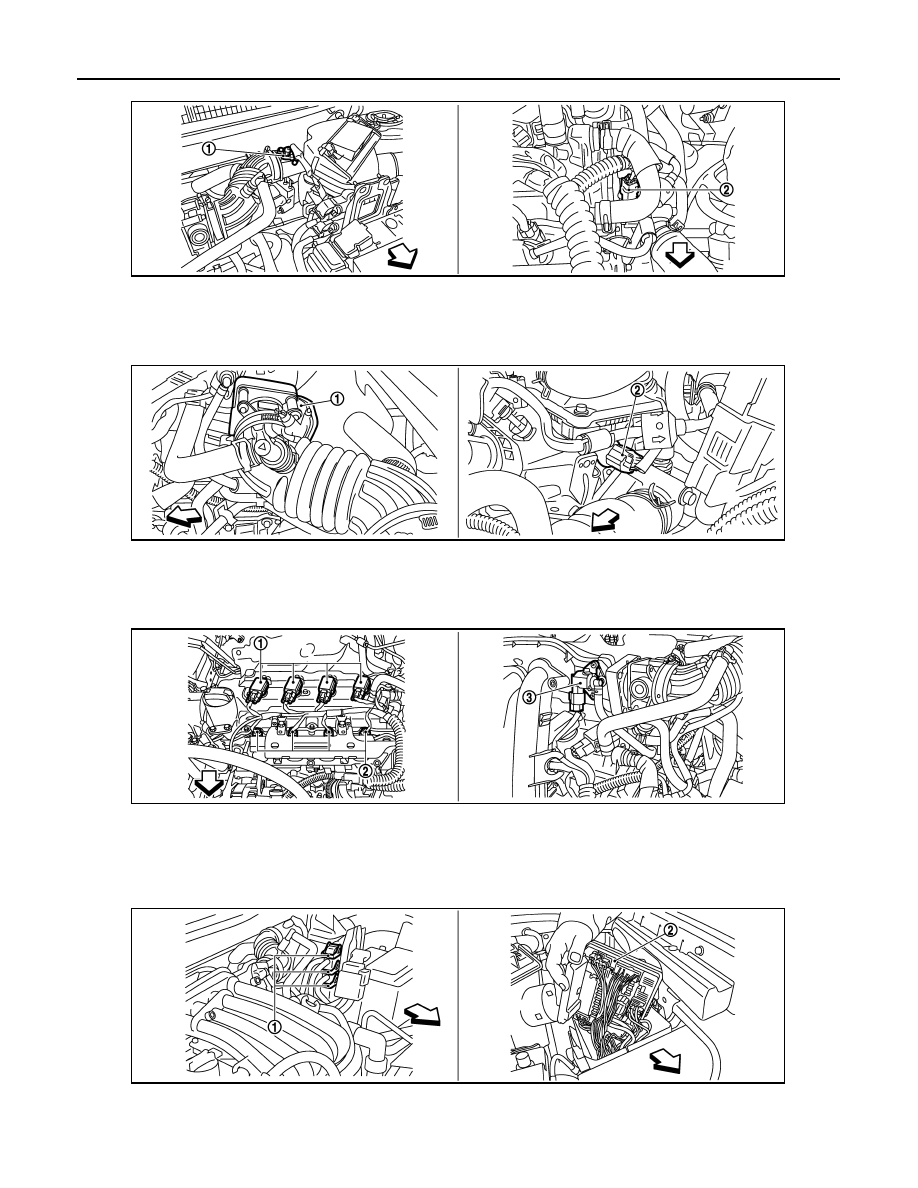

EC-394

< FUNCTION DIAGNOSIS >

[HR16DE (WITHOUT EURO-OBD)]

AIR CONDITIONING CUT CONTROL

1.

Mass air flow sensor

2.

Engine coolant temperature sensor

Vehicle front

1.

Electric throttle control actuator

2.

Camshaft position sensor (PHASE)

Vehicle front

1.

Ignition coil (with power transistor)
and spark plug

2.

Fuel injector

3

EVAP canister purge volume control
solenoid valve

Vehicle front

1.

ECM harness connector

2.

IPDM E/R

Vehicle front

JMBIA0400ZZ

JMBIA0401ZZ

JMBIA0402ZZ

JMBIA0403ZZ
