INSPECTION AND ADJUSTMENT

EC-367

< BASIC INSPECTION >

[HR16DE (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

17.

DETECT MALFUNCTIONING PART

Check the following.
• Check camshaft position sensor (PHASE) and circuit. Refer to

EC-489, "DTC Logic"

.

• Check crankshaft position sensor (POS) and circuit. Refer to

EC-485, "DTC Logic"

.

Is the inspection result normal?

YES

>> GO TO 18.

NO

>> Repair or replace. Then GO TO 4.

18.

CHECK ECM FUNCTION

1.

Substitute another known-good ECM to check ECM function. (ECM may be the cause of an incident, but
this is a rare case.)

2.

Perform initialization of and registration of all NATS ignition key IDs. Refer to

SEC-8, "ECM RE-COMMU-

NICATING FUNCTION : Description"

.

>> GO TO 4.

19.

INSPECTION END

If ECM is replaced during this BASIC INSPECTION procedure, go to

EC-368, "ADDITIONAL SERVICE

WHEN REPLACING CONTROL UNIT : Special Repair Requirement"

.

>> INSPECTION END

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Description

INFOID:0000000001096726

When replacing ECM, this procedure must be performed.

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Re-
quirement

INFOID:0000000001096727

1.

PERFORM INITIALIZATION OF NATS SYSTEM AND REGISTRATION OF ALL NATS IGNITION KEY IDS

Refer to

EC-368, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Require-

ment"

.

>> GO TO 2.

2.

PERFORM ACCELERATOR PEDAL RELEASED POSITION LEARNING

Refer to

EC-368, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Require-

ment"

.

>> GO TO 3.

3.

PERFORM THROTTLE VALVE CLOSED POSITION LEARNING

Refer to

EC-31, "THROTTLE VALVE CLOSED POSITION LEARNING : Special Repair Requirement"

.

>> GO TO 4.

4.

PERFORM IDLE AIR VOLUME LEARNING

Refer to

EC-31, "IDLE AIR VOLUME LEARNING : Special Repair Requirement"

.

>> END

IDLE SPEED

IDLE SPEED : Description

INFOID:0000000001096728

EC-368

< BASIC INSPECTION >

[HR16DE (WITHOUT EURO-OBD)]

INSPECTION AND ADJUSTMENT

This describes how to check the idle speed. For the actual procedure, follow the manuals in “BASIC
INSPECTION”.

IDLE SPEED : Special Repair Requirement

INFOID:0000000001096729

1.

CHECK IDLE SPEED

With CONSULT-III

Check idle speed in “DATA MONITOR” mode with CONSULT-III.

Without CONSULT-III

Check the idle speed by installing the pulse type tachometer clamp on No.4 ignition coil harness.

>> INSPECTION END

IGNITION TIMING

IGNITION TIMING : Description

INFOID:0000000001096730

This describes how to check the ignition timing. For the actual procedure, follow the manuals in “BASIC
INSPECTION”.

IGNITION TIMING : Special Repair Requirement

INFOID:0000000001096731

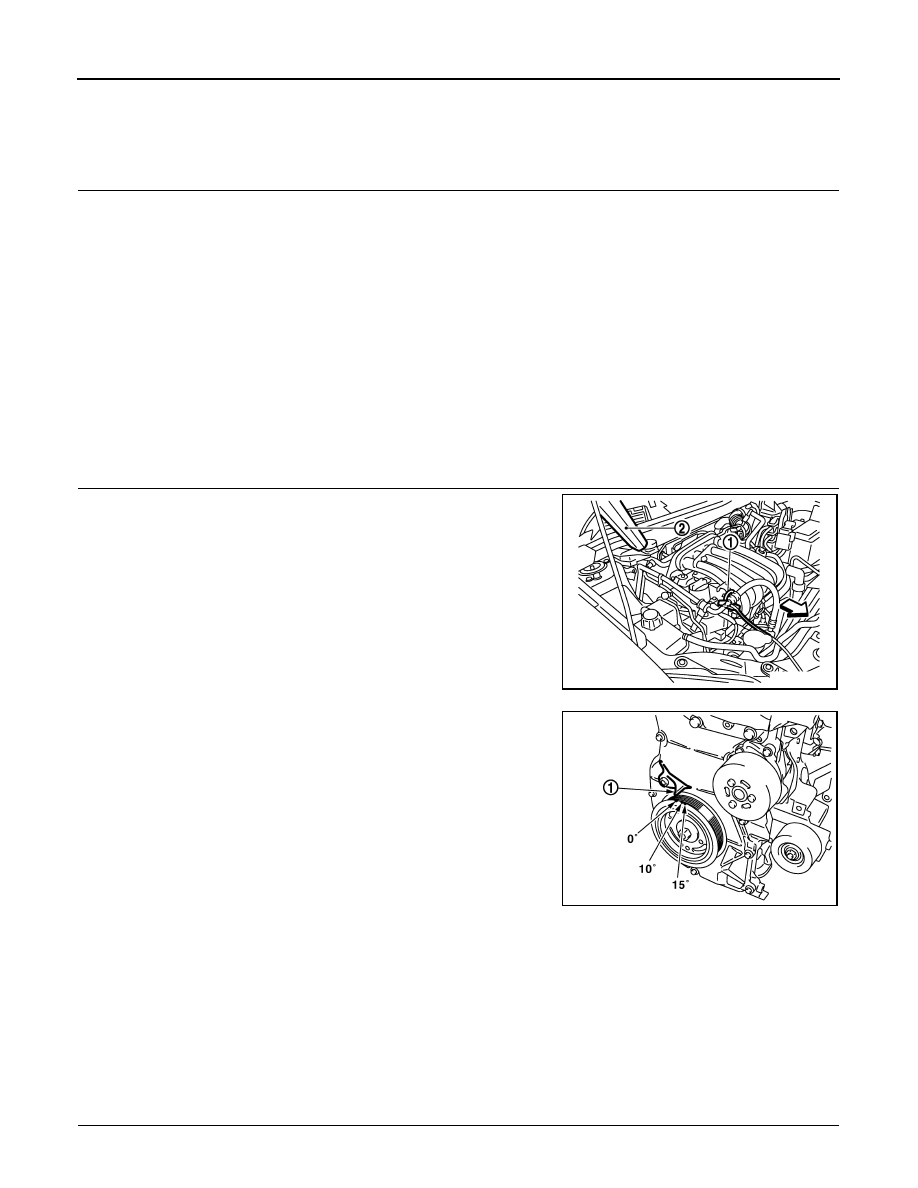

1.

CHECK IGNITION TIMING

1.

Attach timing light to No.1 ignition coil wire harness (1) as
shown.

2.

Check ignition timing.

>> INSPECTION END

ACCELERATOR PEDAL RELEASED POSITION LEARNING

ACCELERATOR PEDAL RELEASED POSITION LEARNING : Description

INFOID:0000000001096732

Accelerator Pedal Released Position Learning is a function of ECM to learn the fully released position of the
accelerator pedal by monitoring the accelerator pedal position sensor output signal. It must be performed each
time harness connector of accelerator pedal position sensor or ECM is disconnected.

ACCELERATOR PEDAL RELEASED POSITION LEARNING : Special Repair Re-
quirement

INFOID:0000000001096733

1.

START

1.

Make sure that accelerator pedal is fully released.

2

: Timing light

: Vehicle front

JMBIA0397ZZ

1

: Timing indicator

MBIB1331E

INSPECTION AND ADJUSTMENT

EC-369

< BASIC INSPECTION >

[HR16DE (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

2.

Turn ignition switch ON and wait at least 2 seconds.

3.

Turn ignition switch OFF and wait at least 10 seconds.

4.

Turn ignition switch ON and wait at least 2 seconds.

5.

Turn ignition switch OFF and wait at least 10 seconds.

>> END

THROTTLE VALVE CLOSED POSITION LEARNING

THROTTLE VALVE CLOSED POSITION LEARNING : Description

INFOID:0000000001096734

Throttle Valve Closed Position Learning is a function of ECM to learn the fully closed position of the throttle
valve by monitoring the throttle position sensor output signal. It must be performed each time harness connec-
tor of electric throttle control actuator or ECM is disconnected.

THROTTLE VALVE CLOSED POSITION LEARNING : Special Repair Requirement

INFOID:0000000001096735

1.

START

1.

Make sure that accelerator pedal is fully released.

2.

Turn ignition switch ON.

3.

Turn ignition switch OFF and wait at least 10 seconds.
Make sure that throttle valve moves during above 10 seconds by confirming the operating sound.

>> END

IDLE AIR VOLUME LEARNING

IDLE AIR VOLUME LEARNING : Description

INFOID:0000000001096736

Idle Air Volume Learning is a function of ECM to learn the idle air volume that keeps each engine idle speed
within the specific range. It must be performed under any of the following conditions:
• Each time electric throttle control actuator or ECM is replaced.
• Idle speed or ignition timing is out of specification.

IDLE AIR VOLUME LEARNING : Special Repair Requirement

INFOID:0000000001096737

1.

PRECONDITIONING

Make sure that all of the following conditions are satisfied.
Learning will be cancelled if any of the following conditions are missed for even a moment.
• Battery voltage: More than 12.9V (At idle)
• Engine coolant temperature: 70 - 100

°

C (158 - 212

°

F)

• Park/neutral position switch: ON
• Electric load switch: OFF

(Air conditioner, headlamp, rear window defogger)
On vehicles equipped with daytime light systems, set lighting switch to the 1st position to light only
small lamps.

• Steering wheel: Neutral (Straight-ahead position)
• Vehicle speed: Stopped
• Transmission: Warmed-up
• Drive vehicle for 10 minutes
Do you have CONSULT-III?

YES

>> GO TO 2.

NO

>> GO TO 3.

2.

IDLE AIR VOLUME LEARNING

With CONSULT-III

1.

Perform Accelerator Pedal Released Position Learning. Refer to

EC-369, "ACCELERATOR PEDAL

RELEASED POSITION LEARNING : Special Repair Requirement"

.

2.

Perform Throttle Valve Closed Position Learning. Refer to

EC-370, "THROTTLE VALVE CLOSED POSI-

TION LEARNING : Special Repair Requirement"

.

EC-370

< BASIC INSPECTION >

[HR16DE (WITHOUT EURO-OBD)]

INSPECTION AND ADJUSTMENT

3.

Start engine and warm it up to normal operating temperature.

4.

Select “IDLE AIR VOL LEARN” in “WORK SUPPORT” mode.

5.

Touch “START” and wait 20 seconds.

Is “CMPLT” displayed on CONSULT-III screen?

YES

>> GO TO 4.

NO

>> GO TO 5.

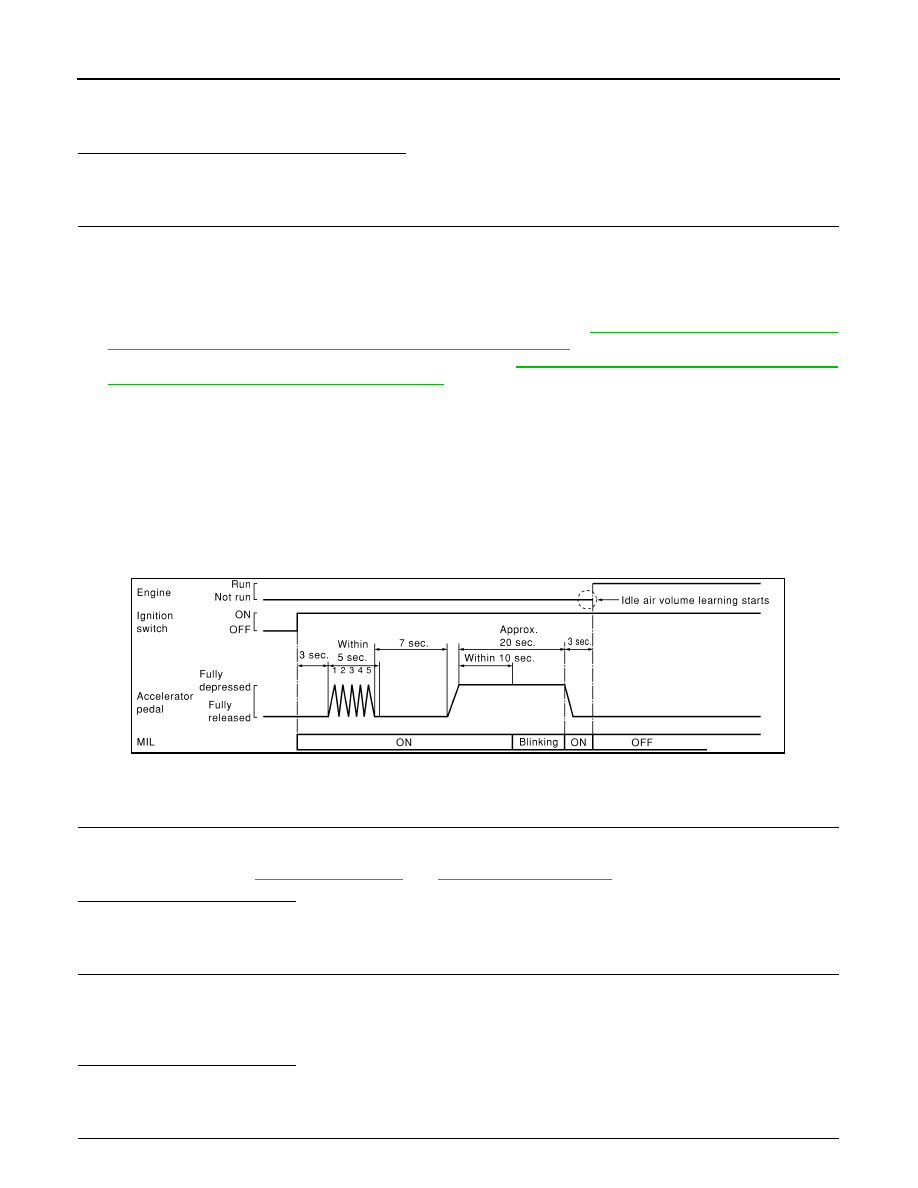

3.

IDLE AIR VOLUME LEARNING

Without CONSULT-III

NOTE:
• It is better to count the time accurately with a clock.
• It is impossible to switch the diagnostic mode when an accelerator pedal position sensor circuit has

a malfunction.

1.

Perform Accelerator Pedal Released Position Learning. Refer to

EC-369, "ACCELERATOR PEDAL

RELEASED POSITION LEARNING : Special Repair Requirement"

.

2.

Perform Throttle Valve Closed Position Learning. Refer to

EC-370, "THROTTLE VALVE CLOSED POSI-

TION LEARNING : Special Repair Requirement"

.

3.

Start engine and warm it up to normal operating temperature.

4.

Turn ignition switch OFF and wait at least 10 seconds.

5.

Confirm that accelerator pedal is fully released, turn ignition switch ON and wait 3 seconds.

6.

Repeat the following procedure quickly five times within 5 seconds.

-

Fully depress the accelerator pedal.

-

Fully release the accelerator pedal.

7.

Wait 7 seconds, fully depress the accelerator pedal and keep it for approx. 20 seconds until the MI stops
blinking and turned ON.

8.

Fully release the accelerator pedal within 3 seconds after the MI turned ON.

9.

Start engine and let it idle.

10. Wait 20 seconds.

>> GO TO 4.

4.

CHECK IDLE SPEED AND IGNITION TIMING

Rev up the engine two or three times and make sure that idle speed and ignition timing are within the specifi-
cations.
For specification, refer to

EC-637, "Idle Speed"

 and

EC-637, "Ignition Timing"

.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> GO TO 5.

5.

DETECT MALFUNCTIONING PART

Check the following
• Check that throttle valve is fully closed.
• Check PCV valve operation.
• Check that downstream of throttle valve is free from air leakage.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Repair or replace malfunctioning part.

6.

DETECT MALFUNCTIONING PART

SEC897C
