ECM

EC-327

< ECU DIAGNOSIS >

[HR16DE (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)

110

Ground

G

Accelerator pedal position
sensor 1

Input

[Ignition switch: ON]
• Engine stopped
• Accelerator pedal: Fully re-

leased

 0.6 - 0.9V

[Ignition switch: ON]
• Engine stopped
• Accelerator pedal: Fully de-

pressed

 3.9 - 4.7V

111

Ground

R

Sensor ground
(Accelerator pedal position
sensor 1)

—

[Engine is running]
• Warm-up condition
• Idle speed

 0V

Terminal No.

Wire

color

Description

Condition

Value

(Approx.)

+

-–

Signal name

Input/

Output

EC-328

< ECU DIAGNOSIS >

[HR16DE (WITH EURO-OBD)]

ECM

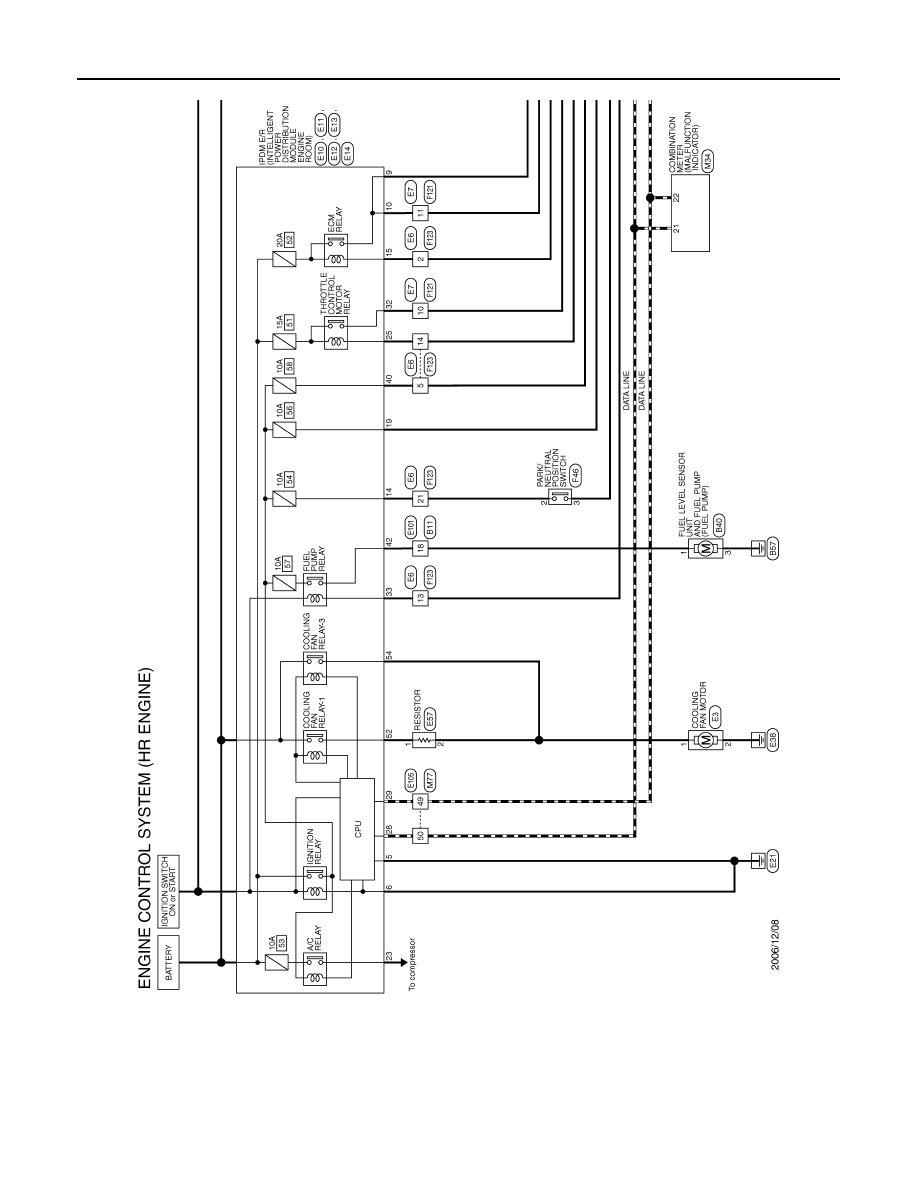

Wiring Diagram - ENGINE CONTROL SYSTEM -

INFOID:0000000001056530

JCBWA0179GB

ECM

EC-329

< ECU DIAGNOSIS >

[HR16DE (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

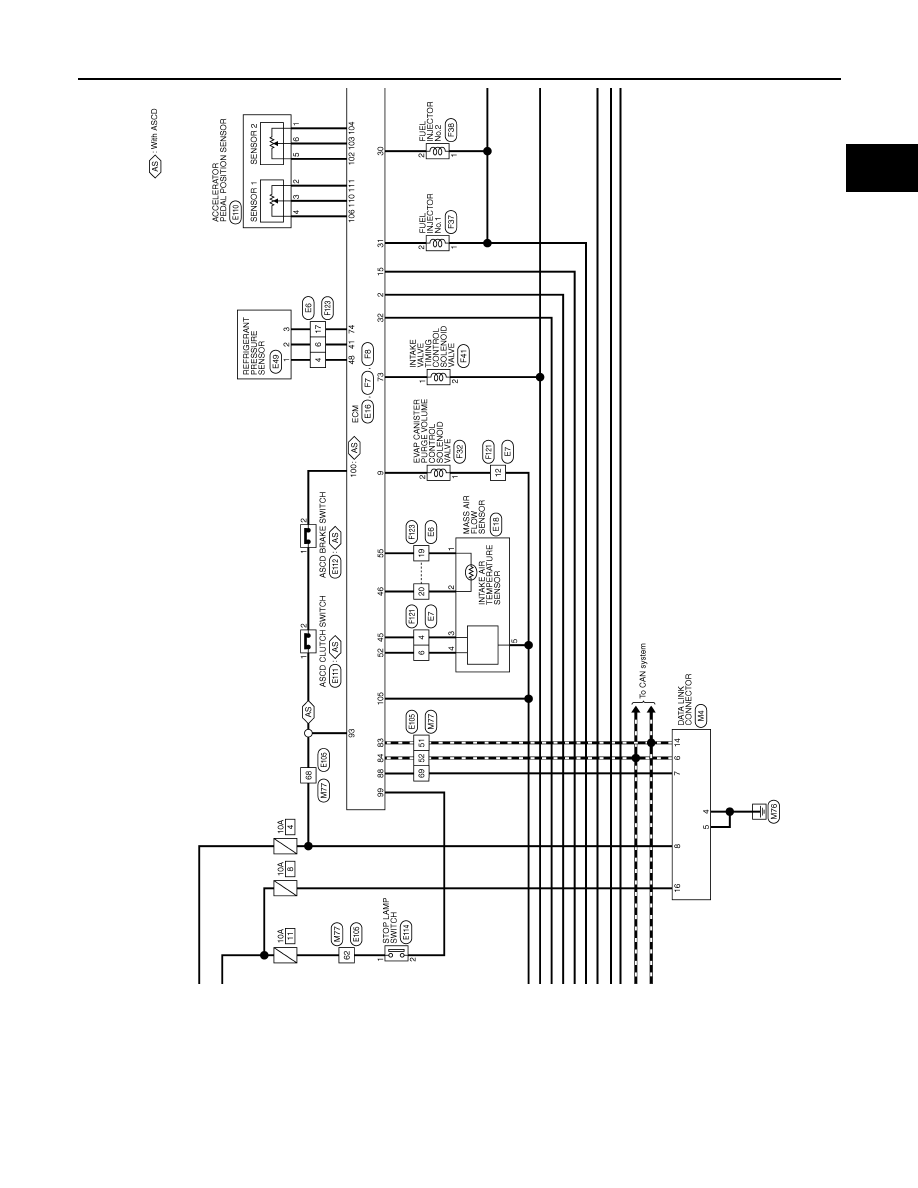

JCBWA0180GB

EC-330

< ECU DIAGNOSIS >

[HR16DE (WITH EURO-OBD)]

ECM

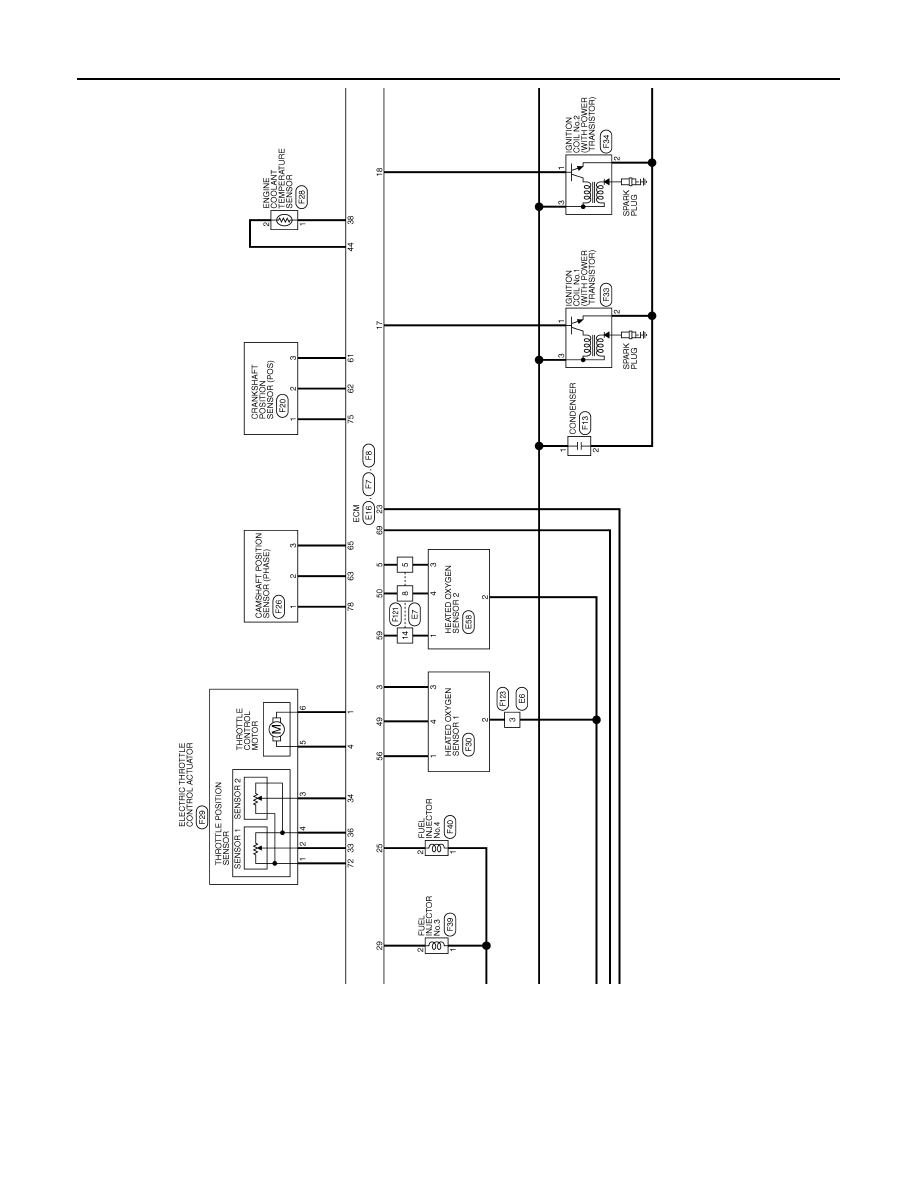

JCBWA0181GB
