Nissan Qashqai (2007-2010). Manual - part 1978

AV-170

< ECU DIAGNOSIS >

[AUDIO WITH NAVIGATION]

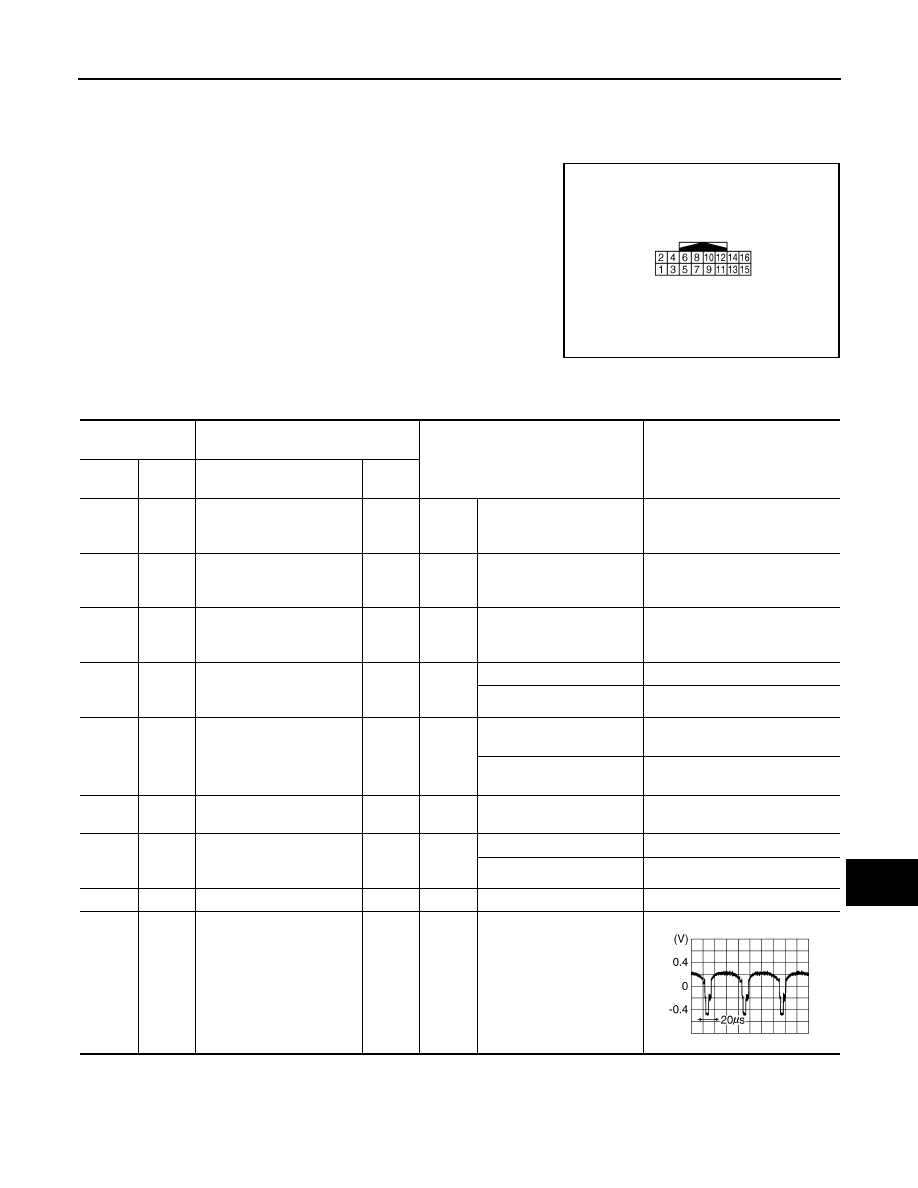

DISPLAY UNIT

JCNWA0252GB

AV

DISPLAY UNIT

AV-171

< ECU DIAGNOSIS >

[AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

JCNWA0253GB

AV-172

< ECU DIAGNOSIS >

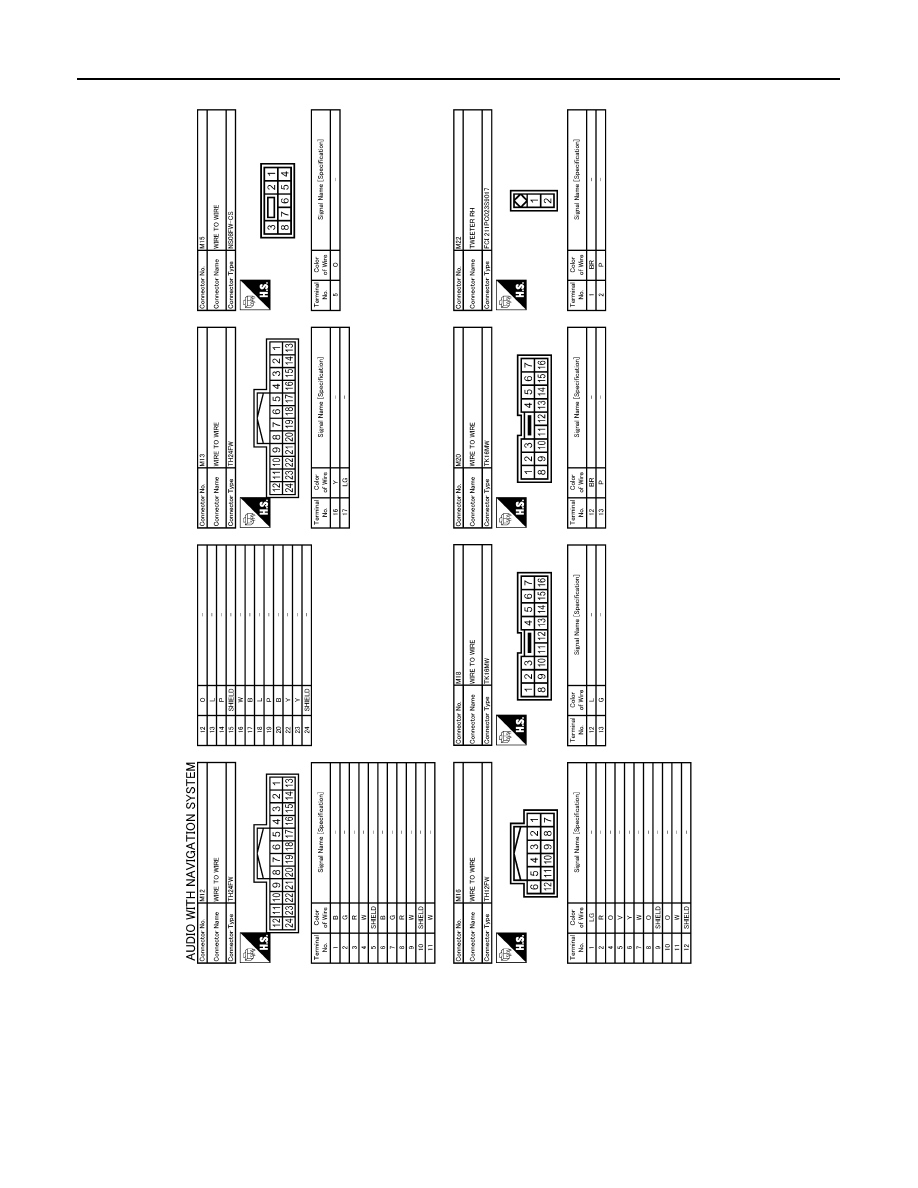

[AUDIO WITH NAVIGATION]

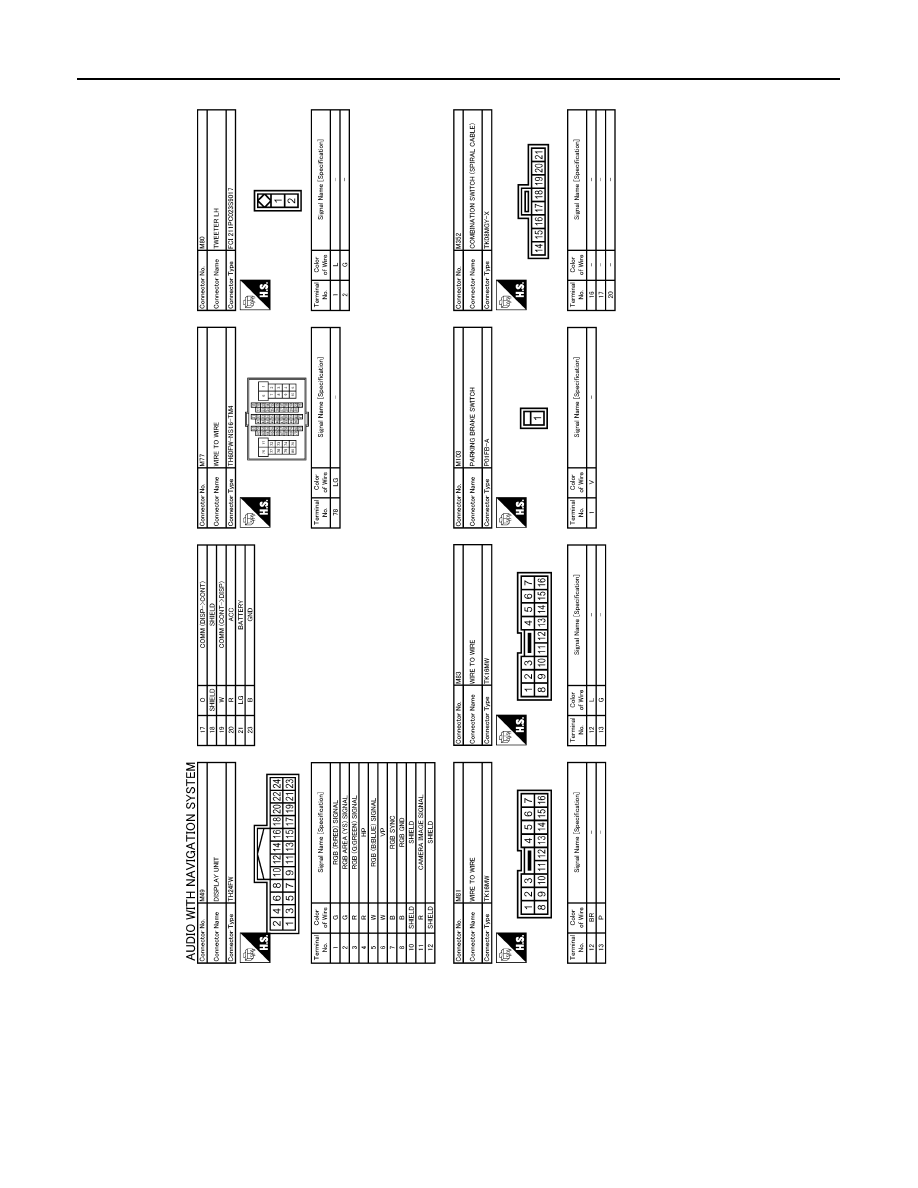

DISPLAY UNIT

JCNWA0254GB

AV

CAMERA CONTROL UNIT

AV-173

< ECU DIAGNOSIS >

[AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

CAMERA CONTROL UNIT

Reference Value

INFOID:0000000000947136

TERMINAL LAYOUT

PHYSICAL VALUES

JPNIA0229ZZ

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

1

(LG)

Ground

Battery power supply

Input

Ignition

switch

OFF

—

Battery voltage

2

(R)

Ground

ACC power supply

Input

Ignition

switch

ACC

—

Battery voltage

3

(B)

Ground

GND

—

Ignition

switch

ON

—

0  V

4

(Y/G)

Ground

Reverse signal

Input

Ignition

switch

ON

R position

12 V

Other than R position

0 V

5

(Y)

Ground

Camera-connection recog-
nition signal

—

Ignition

switch

ON

Connected to camera con-
trol unit connector

0 V

Not connected to camera
control unit connector

5 V

6

(O)

—

Data transmit/receive sig-
nal

—

—

—

—

8

(V)

Ground

Camera ON signal

Output

Ignition

switch

ON

R position

6 V

Other than R position

0 V

9

—

Shield

—

—

—

—

10

(W)

Ground

Camera image signal

Input

Ignition

switch

ON

At rear view camera image
displayed

SKIB0827E
