AV-142

< ECU DIAGNOSIS >

[AUDIO WITH NAVIGATION]

AUDIO UNIT

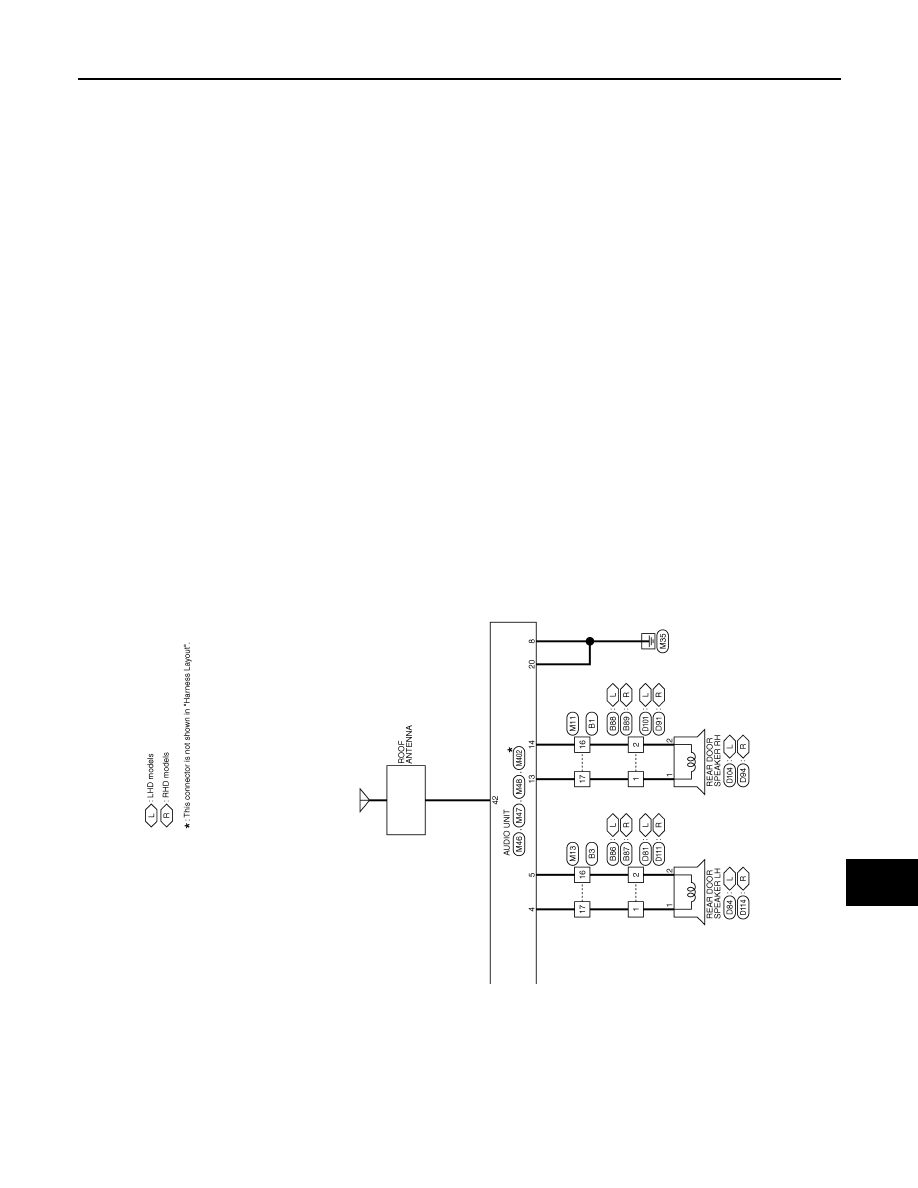

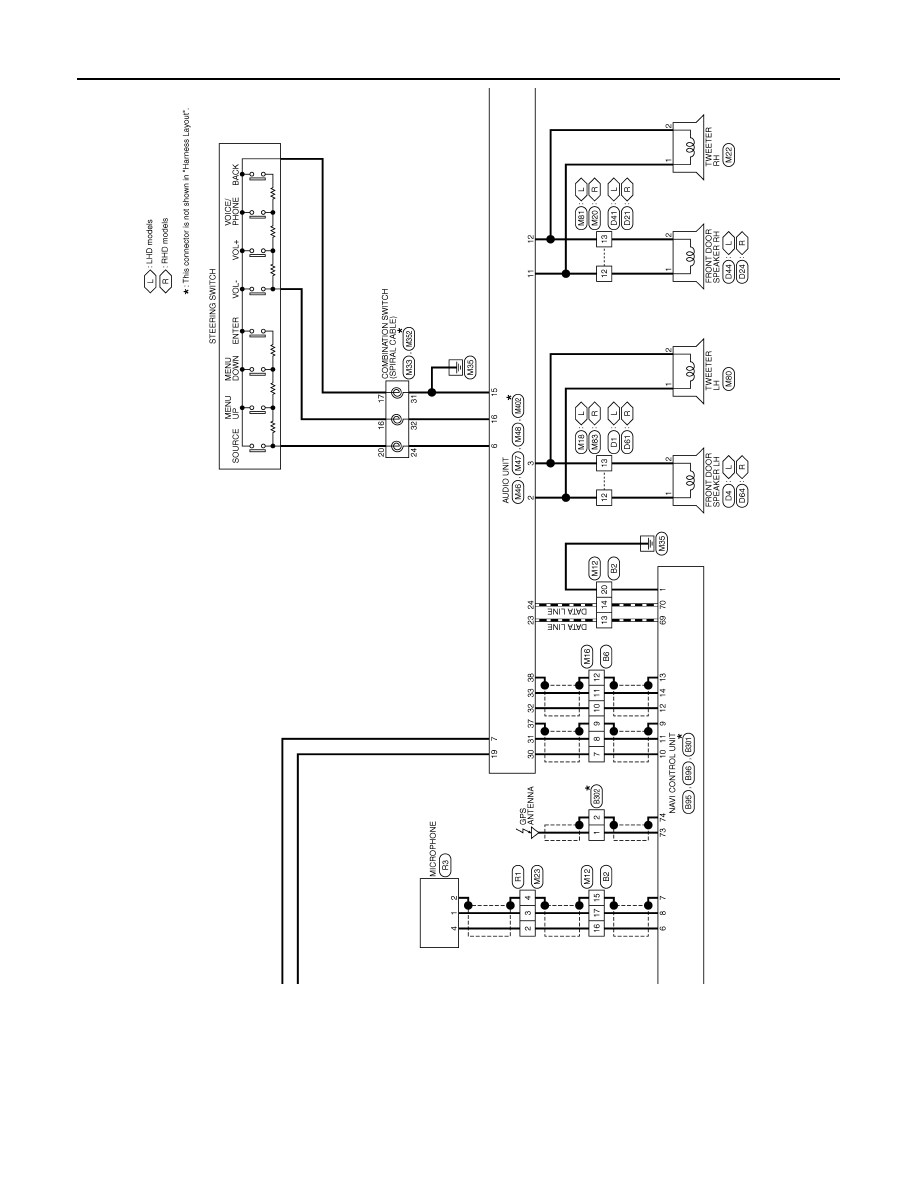

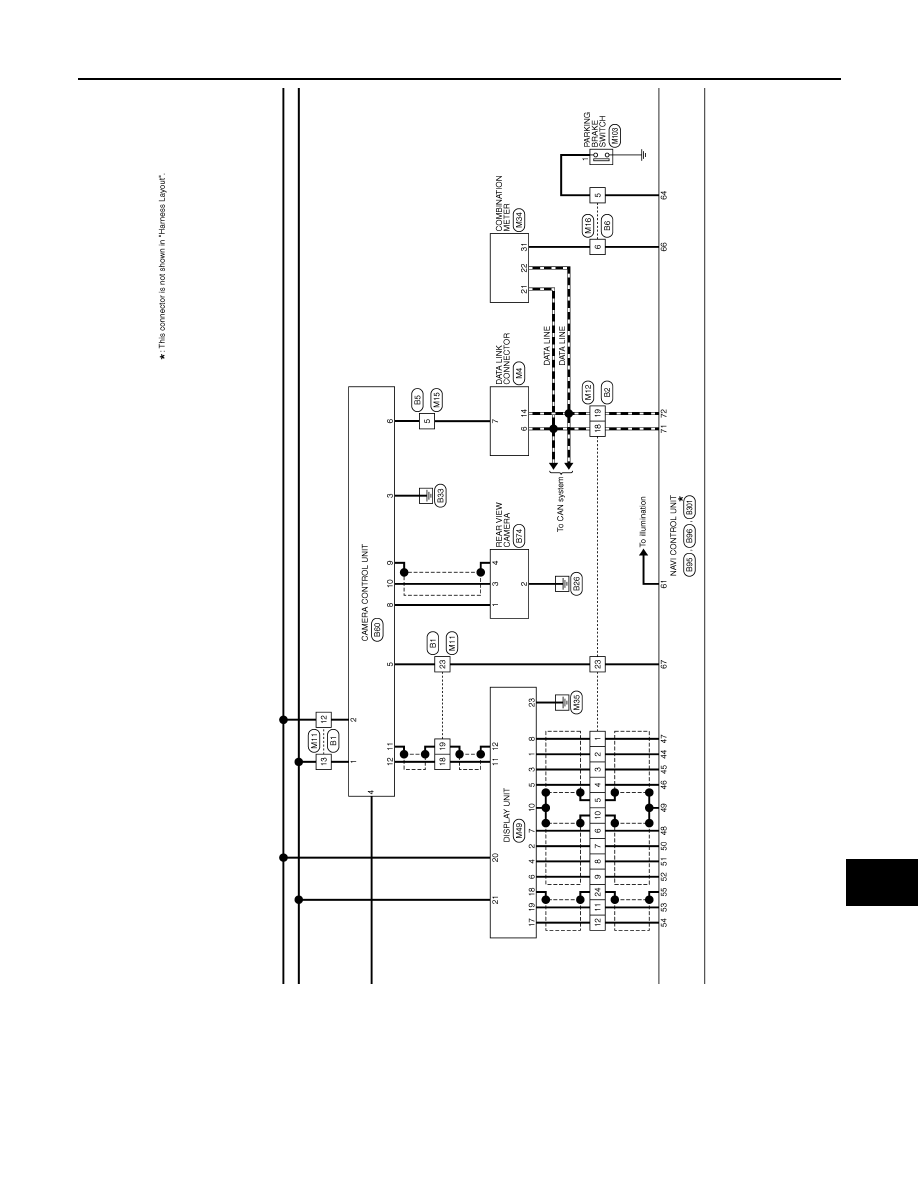

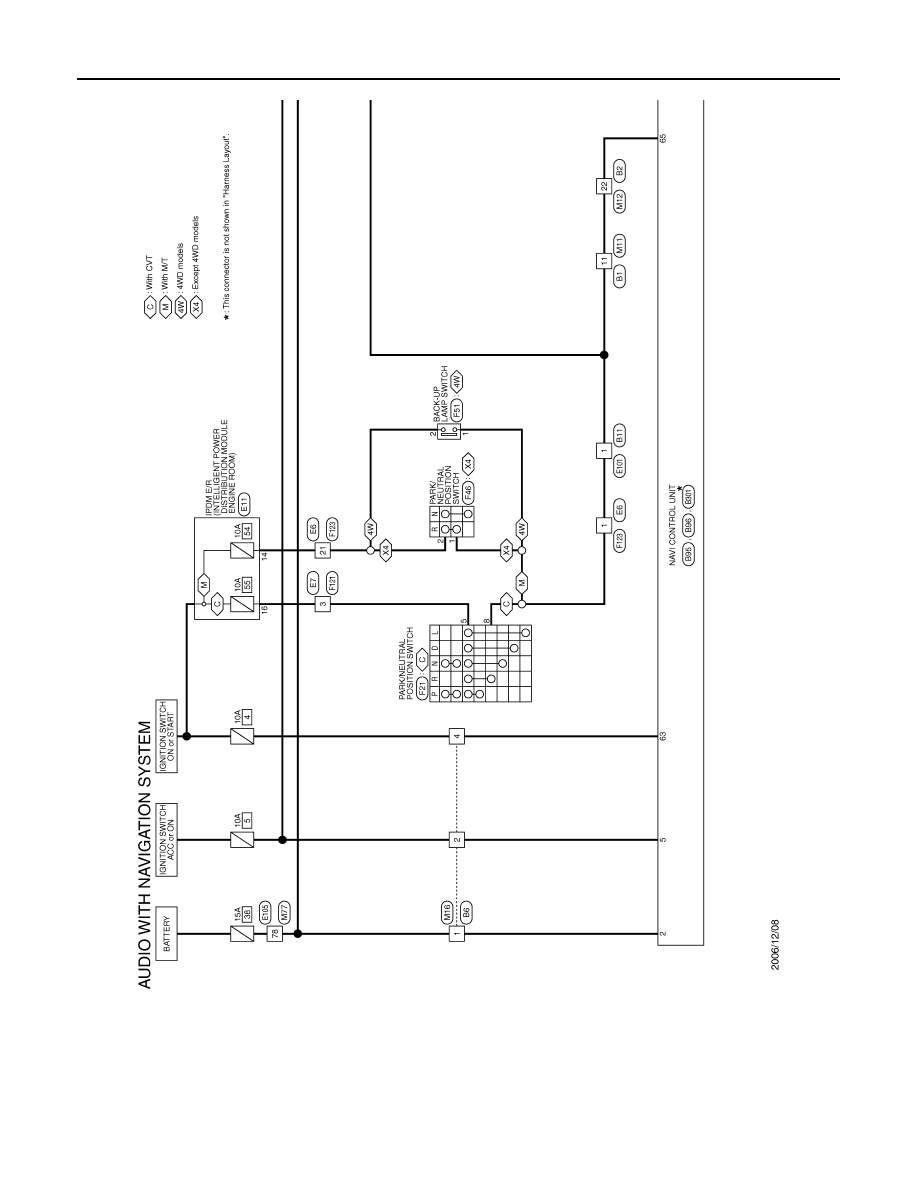

Wiring Diagram - AUDIO WITH NAVIGATION SYSTEM -

INFOID:0000000000955707

JCNWA0241GB

AV

AUDIO UNIT

AV-143

< ECU DIAGNOSIS >

[AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

JCNWA0242GB

AV-144

< ECU DIAGNOSIS >

[AUDIO WITH NAVIGATION]

AUDIO UNIT

JCNWA0243GB

AV

AUDIO UNIT

AV-145

< ECU DIAGNOSIS >

[AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

JCNWA0244GB
