COOLING FAN

EC-299

< COMPONENT DIAGNOSIS >

[HR16DE (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

YES

>> GO TO 4.

NO

>> GO TO 3.

3.

DETECT MALFUNCTIONING PART

Check the following.
• Resistor E57.
• Harness for open or short between IPDM E/R and cooling fan.
• Harness for open or short between cooling fan and ground.
• Harness for open or short between IPDM E/R and ground.

>> Repair or replace malfunctioning part.

4.

CHECK GROUND CONNECTION

1.

Turn ignition switch OFF.

2.

Check ground connection E21. Refer to Ground Inspection in

GI-41, "Circuit Inspection"

.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair or replace ground connection.

5.

CHECK COOLING FAN MOTOR

Refer to

EC-300, "Component Inspection (Cooling Fan Motor)"

.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Replace malfunctioning cooling fan motor.

6.

CHECK INTERMITTENT INCIDENT

Refer to

GI-39, "Intermittent Incident"

.

Is the inspection result normal?

YES

>> Replace IPDM E/R.

NO

>> Repair or replace harness or connector.

Component Inspection (Cooling Fan Motor)

INFOID:0000000001056498

1.

CHECK COOLING FAN MOTOR

1.

Turn ignition switch OFF.

2.

Disconnect cooling fan motor harness connector E3.

3.

Supply cooling fan motor terminals with battery voltage and check operation.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace cooling fan motor.

Terminals

Operation

(+)

(–)

1

2

Cooling fan operates.

EC-300

< COMPONENT DIAGNOSIS >

[HR16DE (WITH EURO-OBD)]

ELECTRICAL LOAD SIGNAL

ELECTRICAL LOAD SIGNAL

Description

INFOID:0000000001056500

The electrical load signal (Headlamp switch signal, rear window defogger switch signal, etc.) is transferred
through the CAN communication line from BCM to ECM via IPDM E/R.

Component Function Check

INFOID:0000000001056501

1.

CHECK REAR WINDOW DEFOGGER SWITCH FUNCTION

1.

Turn ignition switch ON.

2.

Connect CONSULT-III and select “DATA MONITOR” mode.

3.

Select “LOAD SIGNAL” and check indication under the following conditions.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Go to

EC-301, "Diagnosis Procedure"

.

2.

CHECK LIGHTING SWITCH FUNCTION

Check “LOAD SIGNAL” indication under the following conditions.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Go to

EC-301, "Diagnosis Procedure"

.

3.

CHECK HEATER FAN CONTROL SWITCH FUNCTION

Select “HEATER FAN SW” and check indication under the following conditions.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Go to

EC-301, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000001056502

1.

INSPECTION START

Confirm the malfunctioning circuit (rear window defogger, headlamp or heater fan). Refer to

EC-301, "Compo-

nent Function Check"

.

Which circuit is related to the incident?

Rear window defogger>>GO TO 2
Headlamp>>GO TO 3.
Heater fan>>GO TO 4.

2.

CHECK REAR WINDOW DEFOGGER SYSTEM

Refer to

DEF-3, "Work Flow"

.

Monitor item

Condition

Indication

LOAD SIGNAL

Rear window defogger switch

ON

ON

OFF

OFF

Monitor item

Condition

Indication

LOAD SIGNAL

Lighting switch

ON at 2nd position

ON

OFF

OFF

Monitor item

Condition

Indication

HEATER FAN SW

Heater fan control switch

ON

ON

OFF

OFF

ELECTRICAL LOAD SIGNAL

EC-301

< COMPONENT DIAGNOSIS >

[HR16DE (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

>> INSPECTION END

3.

CHECK HEADLAMP SYSTEM

Refer to

EXL-191, "System Description"

.

>> INSPECTION END

4.

CHECK HEATER FAN CONTROL SYSTEM

Refer to

GI-39, "Intermittent Incident"

.

>> INSPECTION END

EC-302

< COMPONENT DIAGNOSIS >

[HR16DE (WITH EURO-OBD)]

FUEL INJECTOR

FUEL INJECTOR

Description

INFOID:0000000001056503

The fuel injector is a small, precise solenoid valve. When the ECM
supplies a ground to the fuel injector circuit, the coil in the fuel injec-
tor is energized. The energized coil pulls the ball valve back and
allows fuel to flow through the fuel injector into the intake manifold.
The amount of fuel injected depends upon the injection pulse dura-
tion. Pulse duration is the length of time the fuel injector remains
open. The ECM controls the injection pulse duration based on
engine fuel needs.

Component Function Check

INFOID:0000000001056504

1.

INSPECTION START

Turn ignition switch to START.
Is any cylinder ignited?

YES

>> GO TO 2.

NO

>> Go to

EC-303, "Diagnosis Procedure"

.

2.

CHECK FUEL INJECTOR FUNCTION

With CONSULT-III

1.

Start engine.

2.

Perform “POWER BALANCE” in “ACTIVE TEST” mode with CONSULT-III.

3.

Make sure that each circuit produces a momentary engine speed drop.

Without CONSULT-III

1.

Let engine idle.

2.

Listen to each fuel injector operating sound.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Go to

EC-303, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000001056505

1.

CHECK FUEL INJECTOR POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect fuel injector harness connector.

3.

Turn ignition switch ON.

4.

Check the voltage between fuel injector harness connector and ground.

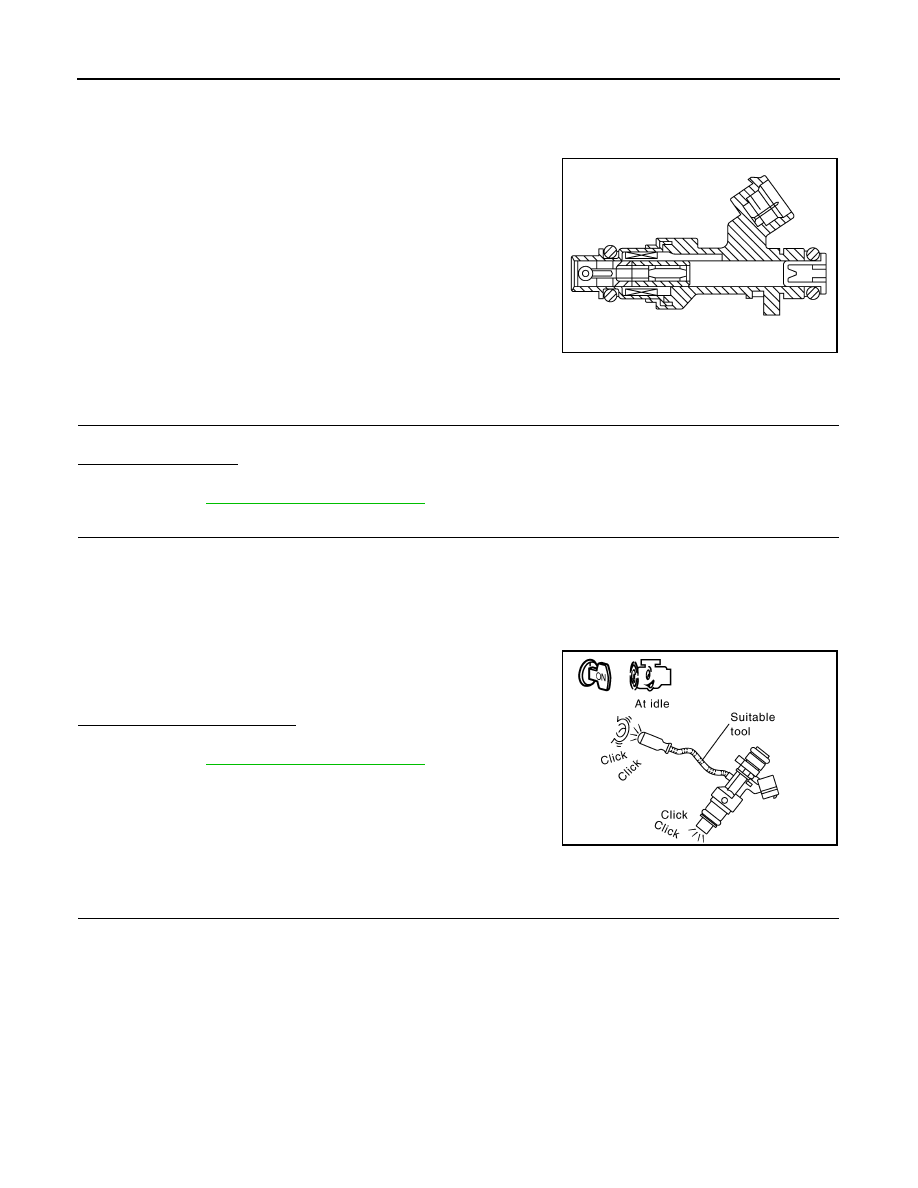

PBIA9664J

Clicking noise should be heard.

PBIB3332E
