Nissan Qashqai (2007-2010). Manual - part 1935

SN

SONAR CONTROL UNIT

SN-17

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ON-VEHICLE REPAIR

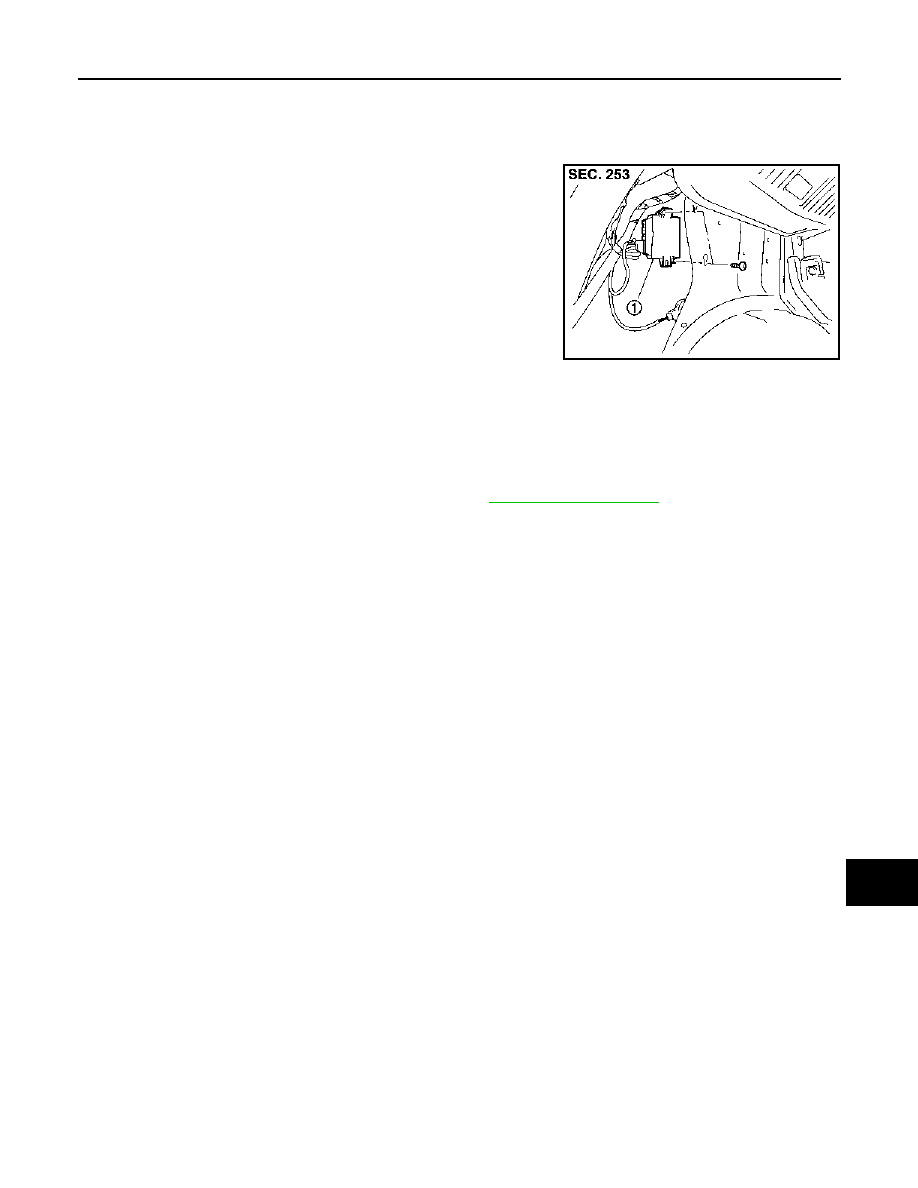

SONAR CONTROL UNIT

Exploded View

INFOID:0000000000939633

Removal and Installation

INFOID:0000000000939634

REMOVAL

1.

Remove the luggage side lower finisher (LH). Refer to

INT-24, "Exploded View"

.

2.

Remove sonar control unit.

INSTALLATION

Install in the reverse order of removal.

JSNIA0334ZZ

1.

Sonar control unit

SN-18

< ON-VEHICLE REPAIR >

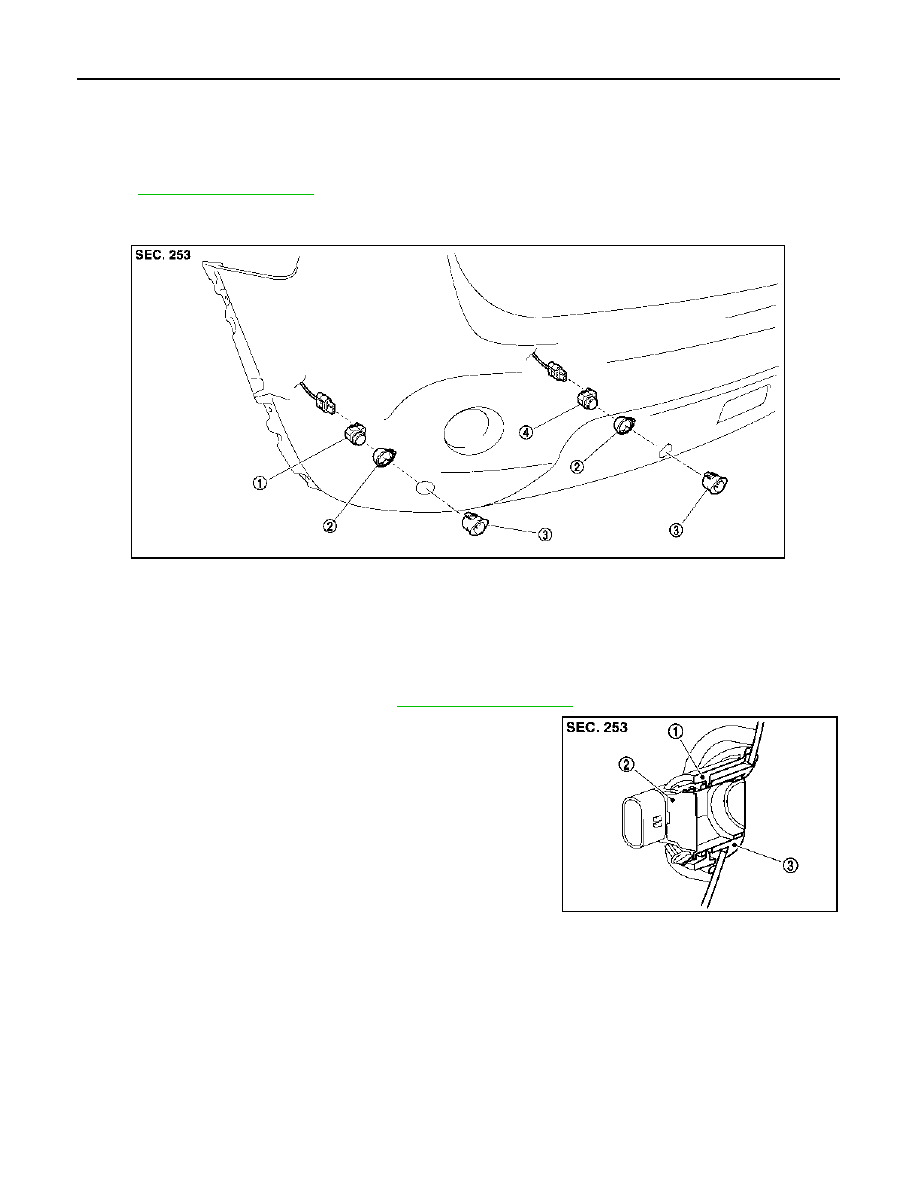

SONAR SENSOR

SONAR SENSOR

Exploded View

INFOID:0000000000935769

REMOVAL

Refer to

EXT-14, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000000935770

REMOVAL

1.

Remove the rear bumper fascia. Refer to

EXT-14, "Exploded View"

.

2.

Separate the sensor (2) and the clip (1) from the finisher (3).

3.

Separate the finisher from the rear bumper fascia.

INSTALLATION

Install in the reverse order of removal.

1.

Corner sensor rear LH

2.

Clip

3.

Finisher

4.

Center sensor rear LH

JSNIA0335ZZ

JSNIA0336ZZ

SN

BUZZER

SN-19

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BUZZER

Exploded View

INFOID:0000000000935771

Removal and Installation

INFOID:0000000000935772

REMOVAL

1.

Remove the luggage side lower finisher (LH). Refer to

INT-24, "Exploded View"

.

2.

Remove the buzzer.

INSTALLATION

Install in the reverse order of removal.

JSNIA0337ZZ

1.

Buzzer

AV

AV-1

DRIVER INFORMATION & MULTIMEDIA

C

D

E

F

G

H

I

J

K

L

M

B

SECTION

AV

A

O

P

CONTENTS

AUDIO, VISUAL & NAVIGATION SYSTEM

AUDIO WITHOUT NAVIGATION

BASIC INSPECTION  ....................................

5

DIAGNOSIS AND REPAIR WORKFLOW  ..........

5

Work Flow  .................................................................

5

FUNCTION DIAGNOSIS ...............................

6

AUDIO SYSTEM ..................................................

6

System Diagram ........................................................

6

System Description  ...................................................

6

Component Parts Location ........................................

8

Component Description .............................................

8

COMPONENT DIAGNOSIS  ..........................

9

POWER SUPPLY AND GROUND CIRCUIT .......

9

AUDIO UNIT  ................................................................

9

AUDIO UNIT : Diagnosis Procedure  .........................

9

MICROPHONE SIGNAL CIRCUIT  .....................

10

Description ..............................................................

10

Diagnosis Procedure ...............................................

10

STEERING SWITCH SIGNAL A CIRCUIT .........

11

Description ..............................................................

11

Diagnosis Procedure ...............................................

11

Component Inspection  ............................................

11

STEERING SWITCH SIGNAL B CIRCUIT .........

13

Description ..............................................................

13

Diagnosis Procedure ...............................................

13

Component Inspection  ............................................

13

STEERING SWITCH SIGNAL GND CIRCUIT ....

15

Description ..............................................................

15

Diagnosis Procedure ...............................................

15

Component Inspection  ............................................

15

ECU DIAGNOSIS .........................................

16

AUDIO UNIT ......................................................

16

Reference Value ......................................................

16

Wiring Diagram - AUDIO WITHOUT NAVIGA-
TION SYSTEM (LHD MODELS) -  ...........................

18

Wiring Diagram - AUDIO WITHOUT NAVIGA-
TION SYSTEM (RHD MODELS) - ...........................

24

SYMPTOM DIAGNOSIS  ..............................

30

MULTI AV SYSTEM SYMPTOMS  ....................

30

Symptom Table  .......................................................

30

NORMAL OPERATING CONDITION  ...............

31

Description ...............................................................

31

PRECAUTION ..............................................

32

PRECAUTIONS .................................................

32

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................

32

ON-VEHICLE REPAIR .................................

33

AUDIO UNIT ......................................................

33

Exploded View .........................................................

33

Removal and Installation  .........................................

33

FRONT DOOR SPEAKER  ................................

34

Exploded View .........................................................

34

Removal and Installation  .........................................

34

REAR DOOR SPEAKER  ..................................

35

Exploded View .........................................................

35

Removal and Installation  .........................................

35

TWEETER .........................................................

36

Exploded View .........................................................

36

Removal and Installation  .........................................

36

STEERING SWITCH  .........................................

37

Exploded View .........................................................

37

Removal and Installation  .........................................

37
