WCS-38

< ECU DIAGNOSIS >

COMBINATION METER

JCNWA0218GB

WCS

COMBINATION METER

WCS-39

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

JCNWA0219GB

WCS-40

< ECU DIAGNOSIS >

COMBINATION METER

Fail Safe

INFOID:0000000000936441

The combination meter activates the fail-safe control if the CAN communication lines between each unit are
malfunctioning.

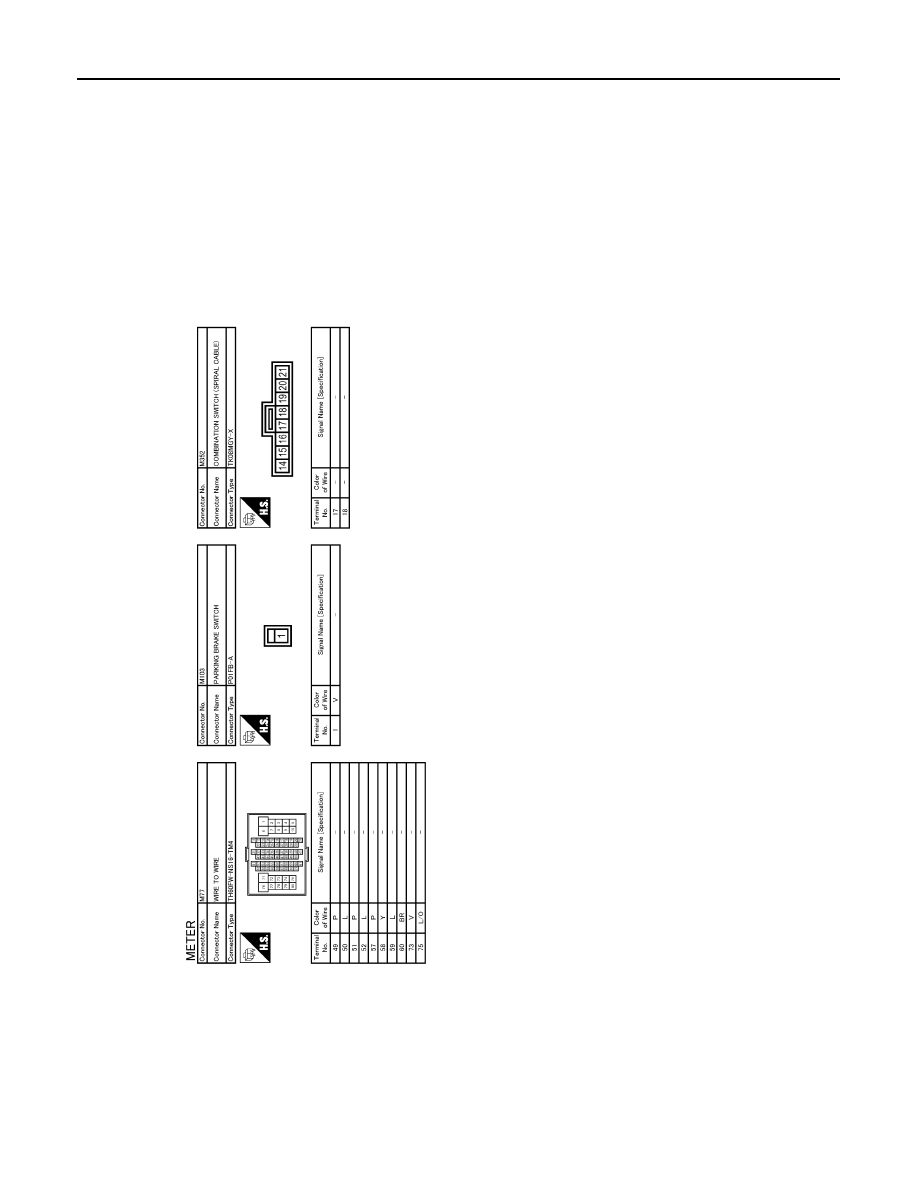

JCNWA0220GB

WCS

COMBINATION METER

WCS-41

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DTC Index

INFOID:0000000000936442

Function

Specifications

Speedometer

Reset to zero by suspending communication.

Tachometer

Meter illumination control

Changed to nighttime mode.

Buzzer

Turned off by suspending communication.

Warning lamp/indicator
lamp

ABS warning lamp

Turned on by suspending communication.

Brake warning lamp

EPS OFF indicator lamp

VDC OFF indicator lamp

SLIP indicator lamp

CVT warning lamp

Turned off by suspending communication.

Oil pressure warning lamp

Door warning lamp

Malfunction indicator lamp

CRUISE indicator lamp

Tail lamp indicator

Front fog indicator lamp

Rear fog indicator lamp

Glow indicator lamp

Malfunction indicator lamp 2

Trailer indicator lamp

Key R/G warning lamp

KEY LOCK warning lamp

High beam indicator lamp

Turn signal indicator lamp

Display contents of CONSULT-III

Time

Diagnostic item is detected when ...

Refer to

CAN COMM CIRCUIT
[U1000]

CRNT, 1 - 39

Combination meter is not transmitting or receiving CAN communica-
tion signal for 2 seconds or more.

MWI-26

VEHICLE SPEED
[B2205]

CRNT, 1 - 39

The abnormal vehicle speed signal is input from ABS actuator and
electric unit (control unit) for 2 seconds or more.

MWI-27
