PG-82

< COMPONENT DIAGNOSIS >

[POWER SUPPLY & GROUND CIRCUIT]

HARNESS LAYOUT

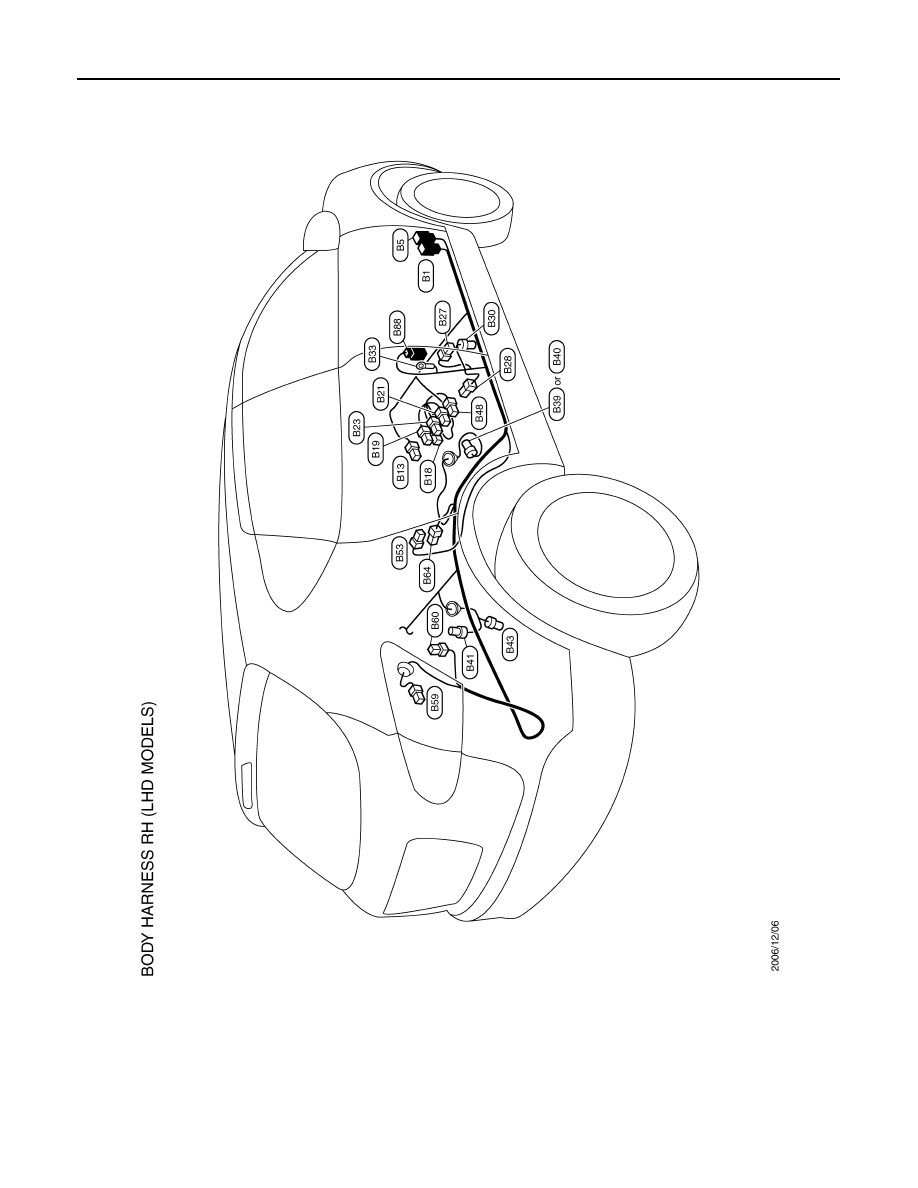

RH SIDE

JCMIA0100GB

PG

HARNESS LAYOUT

PG-83

< COMPONENT DIAGNOSIS >

[POWER SUPPLY & GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

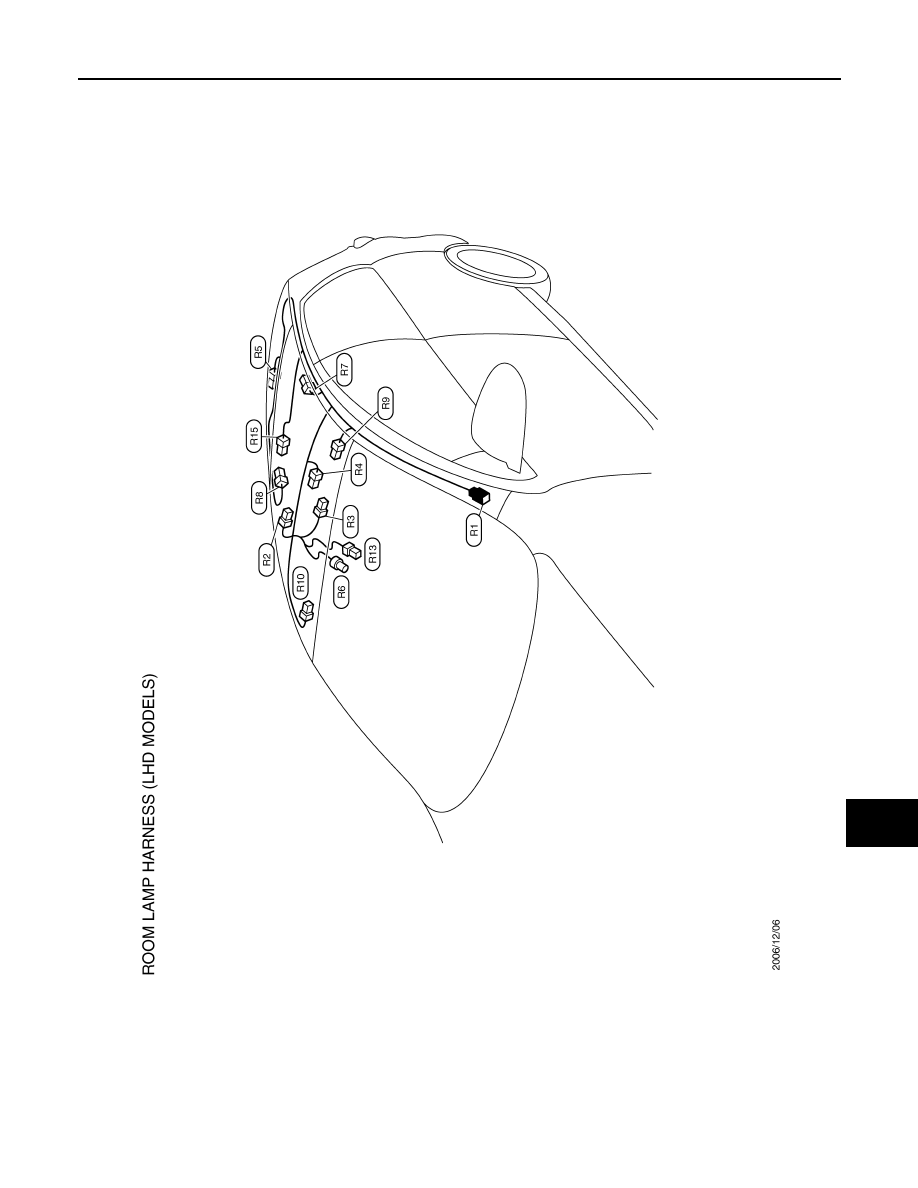

LHD : Room Lamp Harness

INFOID:0000000000956076

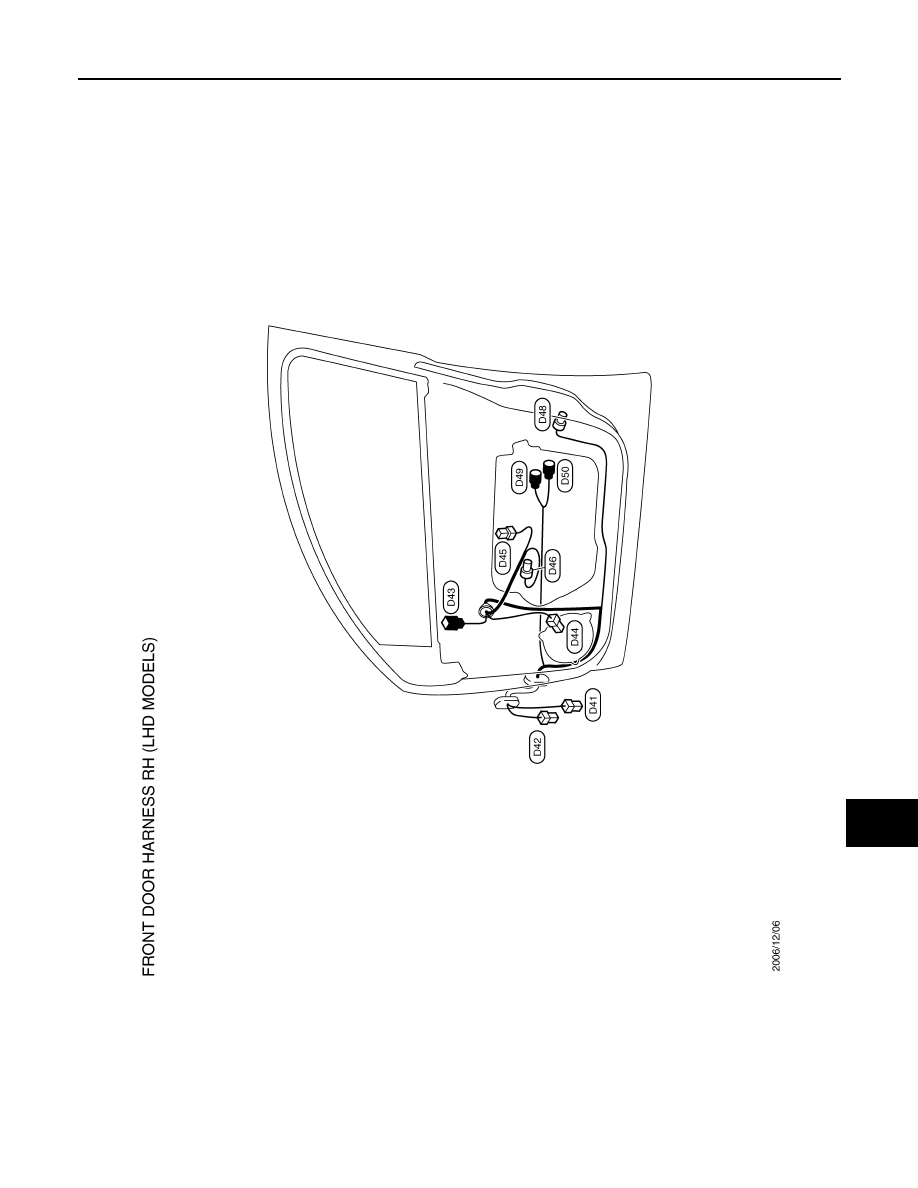

LHD : Front Door Harness

INFOID:0000000000956077

JCMIA0102GB

PG-84

< COMPONENT DIAGNOSIS >

[POWER SUPPLY & GROUND CIRCUIT]

HARNESS LAYOUT

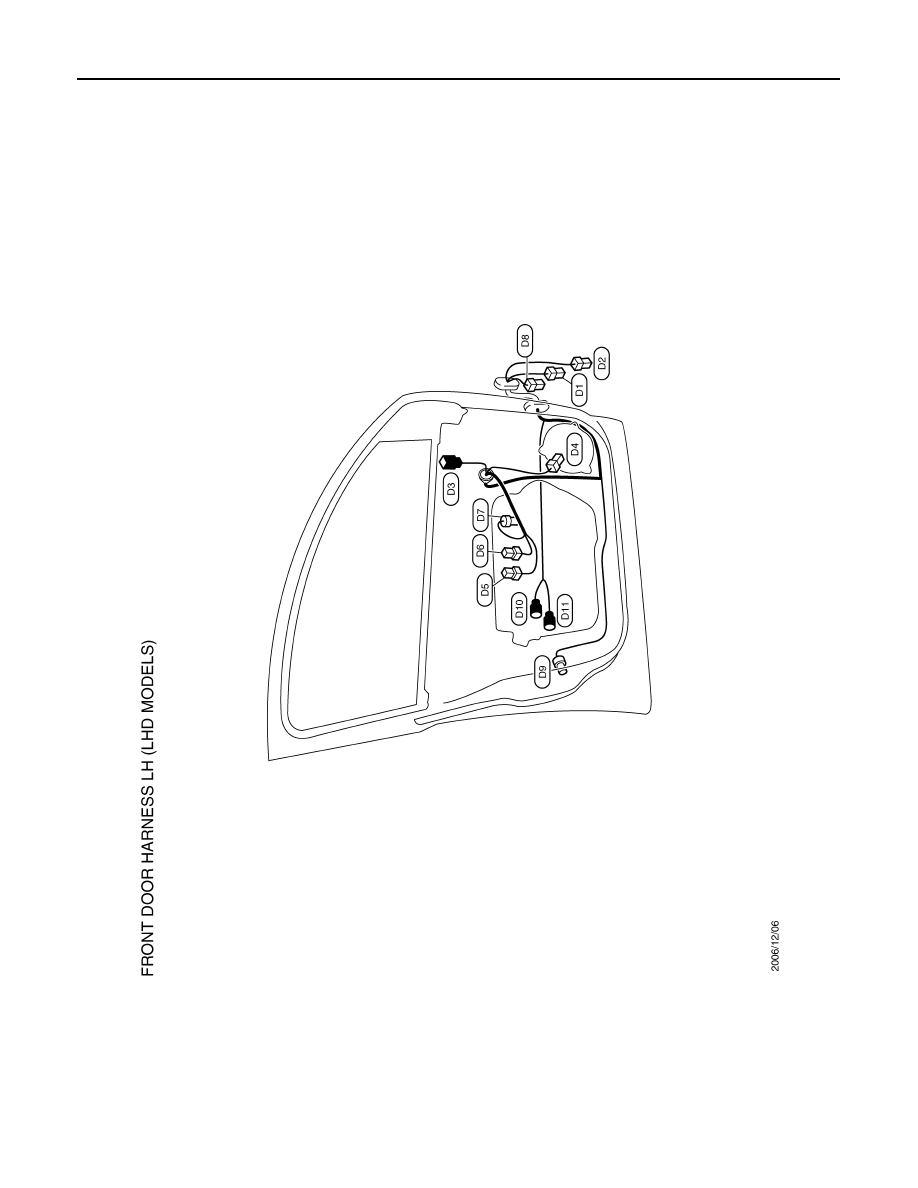

LH SIDE

JCMIA0104GB

PG

HARNESS LAYOUT

PG-85

< COMPONENT DIAGNOSIS >

[POWER SUPPLY & GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

RH SIDE

LHD : Rear Door Harness

INFOID:0000000000956078

JCMIA0105GB
