Nissan Qashqai (2007-2010). Manual - part 1865





CHG-32

< ON-VEHICLE REPAIR >

ALTERNATOR

1.

Fit brush assembly, diode assembly, regulator assembly and
stator.

2.

Push brushed up with fingers and install them to rotor.
NOTE:
Take care not damage slip ring sliding surface.

MR20DE MODELS : Inspection

INFOID:0000000000955733

INSPECTION AFTER DISASSEMBLY

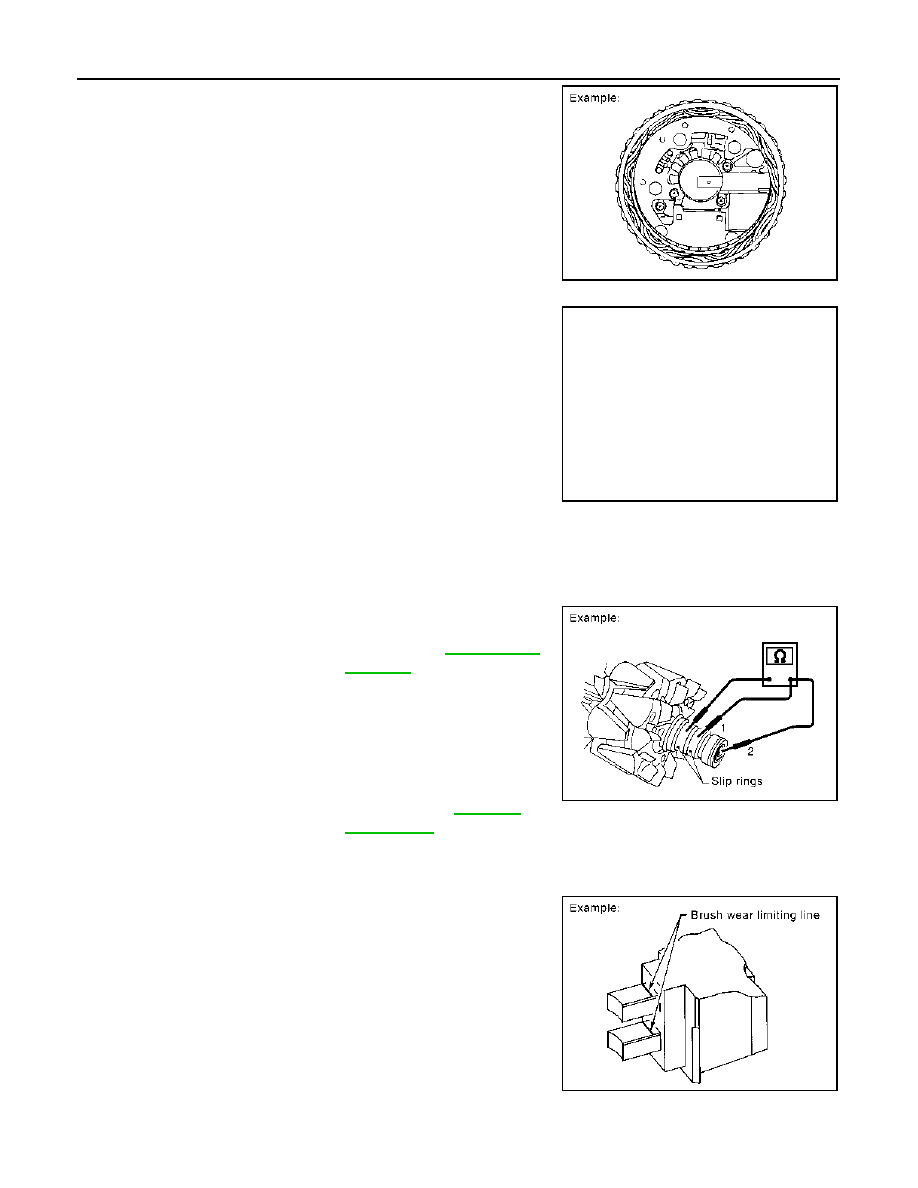

Rotor Check

1.

Resistance test

• Replace the rotor if the measurement value is outside of the

specified range.

2.

Insulator test
• Replace the rotor if continuity exists.

3.

Check slip ring for wear.

• Replace the rotor if the measurement value is outside of the specified range.

Brush Check

1.

Check smooth movement of brush.
• Check brush holder and clean if it is not smooth.

2.

Check brush for wear.
• Replace brush if it is worn down to the limit line.

Stator Check

SKIB4529E

SKIB4530E

Resistance

Refer to SDS

CHG-34, "Al-

ternator"

.

Slip ring minimum outer
diameter

: Refer to SDS

CHG-34,

"Alternator"

.

SKIB4525E

SKIB4526E

CHG

ALTERNATOR

CHG-33

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

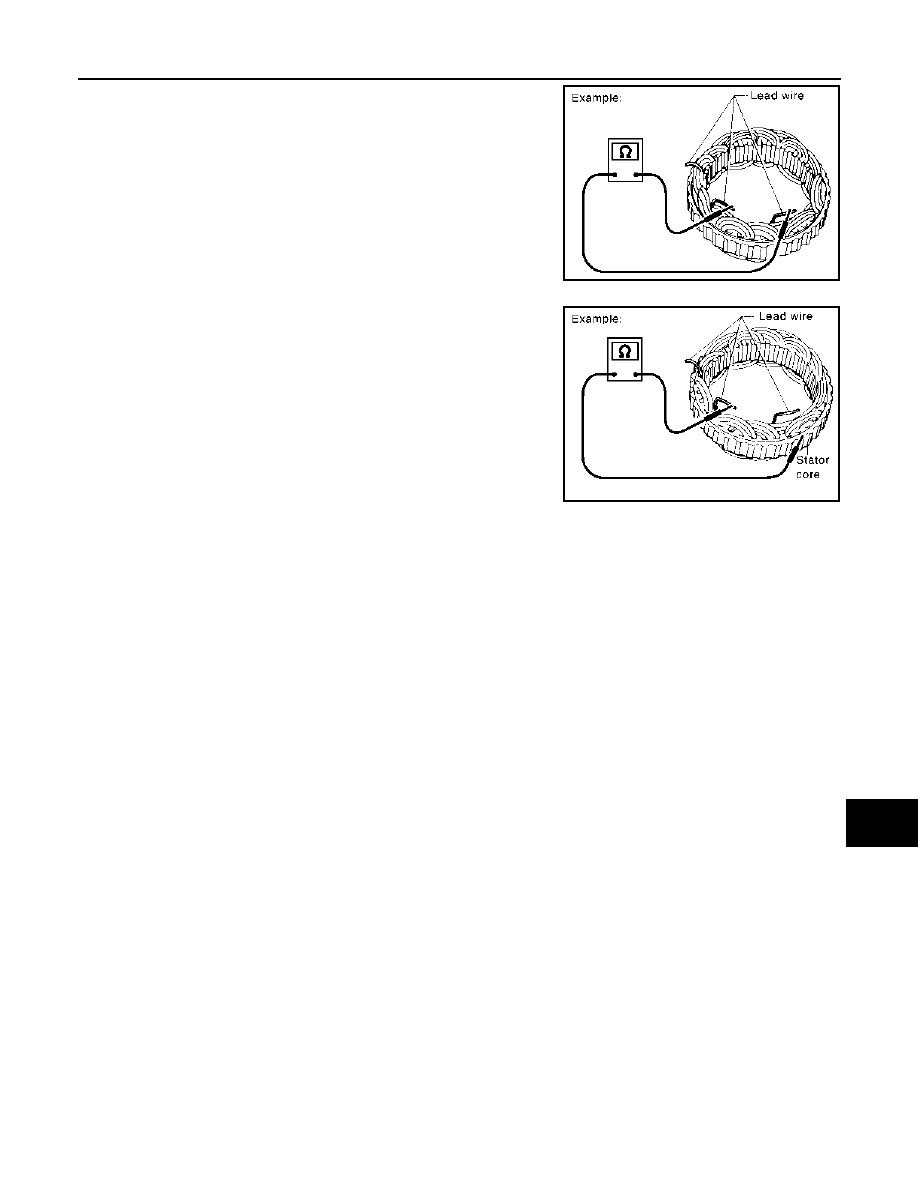

1.

Continuity test
• Replace the stator if continuity does not exist.

2.

Ground test
• Replace the stator if continuity exists.

SKIB4527E

SKIB4528E

CHG-34

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Alternator

INFOID:0000000000955262

Applied model

HR16DE

MR20DE

K9K

Type

A2TJ0291ZE

A2TJ0281ZE

0 124 525 082

MITSUBISHI make

MITSUBISHI make

BOSCH make

Nominal rating

[V - A]

12 - 120

Ground polarity

Negative

Minimum revolution under no-
load (When 13.5 V is applied)

[rpm]

Less than 1,300

Hot output current (When 13.5
V is applied)

[A/rpm]

More than 27/1,300
More than 95/2,500

More than 116/5,000

Regulated output voltage

[V]

14.1 - 14.7

Minimum length of brush

[mm (in)]

More than 5.00 (0.197)

Brush spring pressure

[N (g, oz)]

4.1 - 5.3 (418 - 541, 14.7 - 19.1)

Slip ring minimum outer diam-
eter

[mm (in)]

More than 22.1 (0.870)

Rotor (Field coil) resistance

[

]

1.7  -  2.2

PG

PG-1
