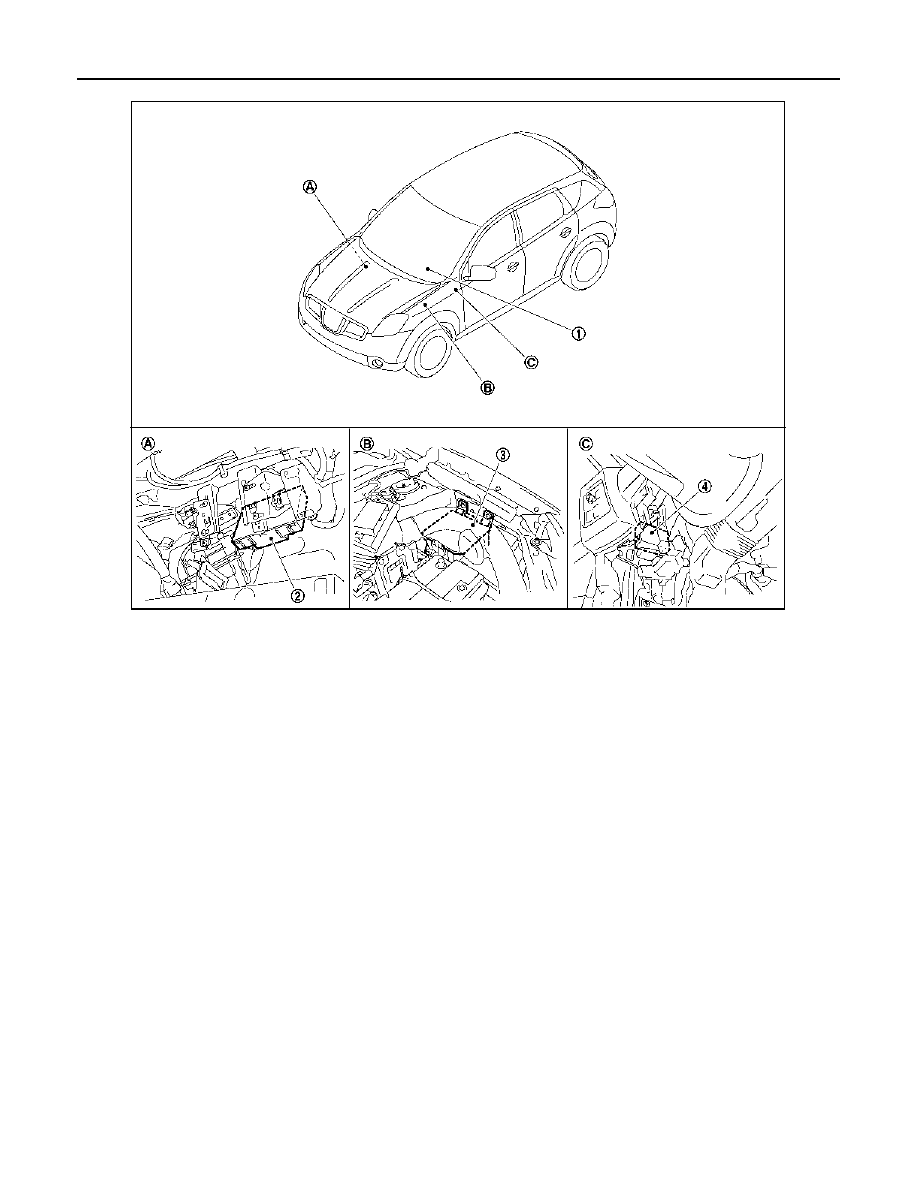

POWER CONSUMPTION CONTROL SYSTEM

1.

Combination meter

2.

BCM

3.

IPDM E/R

4.

Intelligent Key unit

A.

Over the glove box

B.

Engine room (left side)

C.

Over the instrument lower panel
(driver side)

JPMIA0239ZZ

PCS

DIAGNOSIS SYSTEM (IPDM E/R)

PCS-9

< FUNCTION DIAGNOSIS >

[IPDM E/R]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

DIAGNOSIS SYSTEM (IPDM E/R)

Diagnosis Description

INFOID:0000000000926991

Auto active test

Description

In auto active test mode, the IPDM E/R sends a drive signal to the following systems to check their operation.
• Oil pressure warning lamp
• Rear window defogger
• Front wiper (LO, HI)
• Parking lamps
• License plate lamps
• Tail lamps
• Front fog lamps
• Headlamps (LO, HI)
• A/C compressor (magnet clutch)
• Cooling fan (LO, HI)

Operation procedure

1.

Close the hood and lift the wiper arms from the windshield. (Prevent windshield damage due to wiper
operation)
NOTE:
When auto active test is performed with hood opened, sprinkle water on windshield beforehand.

2.

Turn ignition switch OFF.

3.

Turn the ignition switch ON, and within 20 seconds, press the driver door switch 10 times. Then turn the
ignition switch OFF.

CAUTION:

Close passenger door.

4.

Turn the ignition switch ON within 10 seconds. Then the horn sounds once and the auto active test starts.

5.

The oil pressure warning lamp starts blinking when the auto active test starts.

6.

After a series of the following operations is repeated 3 times, auto active test is completed.

NOTE:
When auto active test mode has to be cancelled halfway through test, turn ignition switch OFF.

CAUTION:

• If auto active test mode cannot be actuated, check door switch system.
• Never start the engine.

Inspection in auto active test mode

When auto active test mode is actuated, the following 6 steps are repeated 3 times.

JPMIA0234ZZ

PCS-10

< FUNCTION DIAGNOSIS >

[IPDM E/R]

DIAGNOSIS SYSTEM (IPDM E/R)

Concept of auto active test

• IPDM E/R starts the auto active test with the door switch signals transmitted by BCM via CAN communica-

tion. Therefore, the CAN communication line between IPDM E/R and BCM is considered normal if the auto
active test starts successfully.

• The auto active test facilitates troubleshooting if any systems controlled by IPDM E/R cannot be operated.

Diagnosis chart in auto active test mode

Operation
sequence

Inspection location

Operation

1

Oil pressure warning lamp

Blinks continuously during operation of auto active test.

2

Rear window defogger

10 seconds

3

Front wiper

LO for 5 seconds

→

 HI for 5 seconds

4

• Parking  lamps
• License plate lamps
• Tail lamps
• Front fog lamps

10 seconds

5

Headlamps

LO

⇔

 HI 5 times

6

A/C compressor (magnet clutch)

ON

⇔

 OFF 5 times

7

Cooling fan

LO for 5 seconds

→

 HI for 5 seconds

JPMIA0235GB

Symptom

Inspection contents

Possible cause

Rear window defogger does not operate

Perform auto active test.
Does the rear window defog-
ger operate?

YES

BCM signal input circuit

NO

• Rear window defogger
• Rear window defogger ground circuit
• Harness or connector between IPDM

E/R and rear window defogger

• IPDM E/R

Any of the following components do not operate
• Parking  lamps
• License plate lamps
• Tail lamps
• Front fog lamps
• Headlamp (HI, LO)
• Front wiper (HI, LO)

Perform auto active test.
Does the applicable system
operate?

YES

BCM signal input circuit

NO

• Lamp or motor
• Lamp or motor ground circuit
• Harness or connector between IPDM

E/R and applicable system

• IPDM E/R

PCS

DIAGNOSIS SYSTEM (IPDM E/R)

PCS-11

< FUNCTION DIAGNOSIS >

[IPDM E/R]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

NOTE:

*: MR engine and K9K engine models

CONSULT - III Function (IPDM E/R)

INFOID:0000000000926992

APPLICATION ITEM

CONSULT-III performs the following functions via CAN communication with IPDM E/R.

SELF DIAGNOSTIC

Refer to

PCS-30, "DTC Index"

.

DATA MONITOR

Monitor item

A/C compressor does not operate

Perform auto active test.
Does the magnet clutch oper-
ate?

YES

• Communication signal between BCM

and auto amp. (with auto A/C)

• Communication signal between BCM

and heater control panel (without auto
A/C, with manual A/C)

• BCM
• CAN communication signal between

BCM and ECM

• CAN communication signal between

ECM and IPDM E/R

NO

• Magnet clutch
• Harness or connector between IPDM

E/R and magnet clutch

• IPDM E/R

Oil pressure warning lamp does not operate

Perform auto active test.
Does the oil pressure warning
lamp blink?

YES

• Harness or connector between IPDM

E/R and oil pressure switch

• Oil pressure switch
• IPDM E/R

NO

• CAN communication signal between

IPDM E/R and BCM

• CAN communication signal between

BCM and combination meter

• Combination meter

Cooling fan does not operate

Perform auto active test.
Does the cooling fan operate?

YES

• ECM signal input circuit
• CAN communication signal between

ECM and IPDM E/R

NO

• Cooling fan
• Cooling fan ground circuit
• Harness or connector between IPDM

E/R and cooling fan

• IPDM E/R
• Cooling fan relay-3*
• Harness or connector between IPDM

E/R and cooling fan relay-3*

• Harness or connector between cooling

fan and cooling fan relay-3*

Symptom

Inspection contents

Possible cause

Diagnosis mode

Description

Ecu Identification

Allows confirmation of IPDM E/R part number.

Self Diagnostic Result

Displays the diagnosis results judged by IPDM E/R.

Data Monitor

Displays the real-time input/output data from IPDM E/R input/output data.

Active Test

IPDM E/R can provide a drive signal to electronic components to check their operations.

CAN Diag Support Monitor

The results of transmit/receive diagnosis of CAN communication can be read.
