P0300, P0301, P0302, P0303, P0304 MISFIRE
EC-187
< COMPONENT DIAGNOSIS >
[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
M
A
EC
N
P
O
2.
Listen to each fuel injector operating sound.
Is the inspection result normal?
YES
>> GO TO 5.
NO
>> Perform trouble diagnosis for FUEL INJECTOR, refer to
EC-304, "Component Inspection"
.
5.
CHECK FUNCTION OF IGNITION COIL-I
CAUTION:
Do the following procedure in the place where ventilation is good without the combustible.
1.
Turn ignition switch OFF.
2.
Remove fuel pump fuse in IPDM E/R to release fuel pressure.
NOTE:
Do not use CONSULT-III to release fuel pressure, or fuel pressure applies again during the following pro-
cedure.
3.
Start engine.
4.
After engine stalls, crank it two or three times to release all fuel pressure.
5.
Turn ignition switch OFF.
6.
Remove all ignition coil harness connectors to avoid the electrical discharge from the ignition coils.
7.
Remove ignition coil and spark plug of the cylinder to be checked.
8.
Crank engine for 5 seconds or more to remove combustion gas in the cylinder.
9.
Connect spark plug and harness connector to ignition coil.

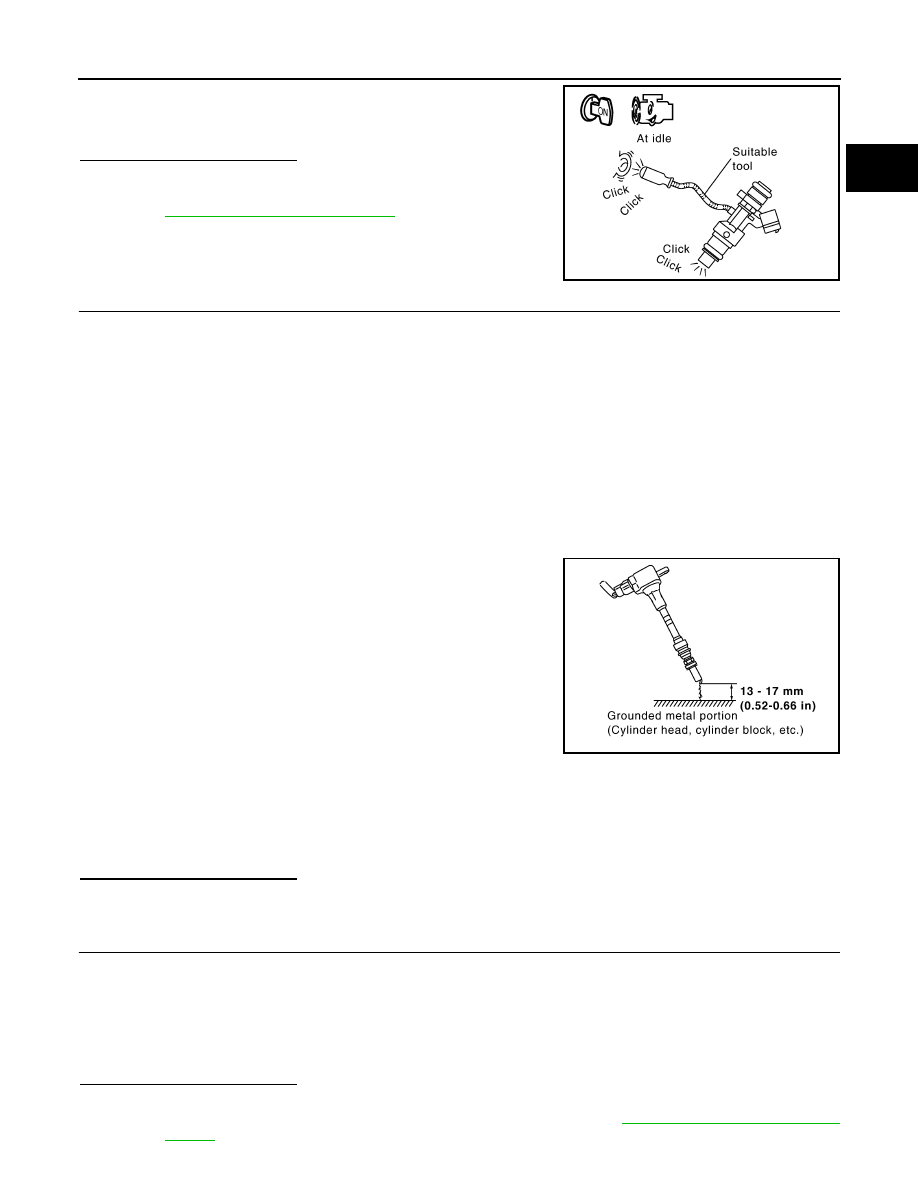

10. Fix ignition coil using a rope etc. with gap of 13 - 17 mm (0.52 -
0.66 in) between the edge of the spark plug and grounded metal
portion as shown in the figure.
11. Crank engine for about 3 seconds, and check whether spark is
generated between the spark plug and the grounded metal por-
tion.
CAUTION:
• Do not approach to the spark plug and the ignition coil
within 50 cm (19.7 in). Be careful not to get an electrical
shock while checking, because the electrical discharge
voltage becomes 20kV or more.
• It might cause to damage the ignition coil if the gap of more than 17 mm (0.66 in) is taken.
NOTE:
When the gap is less than 13 mm (0.52 in), the spark might be generated even if the coil is mal-
functioning.
Is the inspection result normal?
YES
>> GO TO 9.
NO
>> GO TO 6.
6.
CHECK FUNCTION OF IGNITION COIL-II
1.
Turn ignition switch OFF.
2.
Disconnect spark plug and connect a known-good spark plug.
3.
Crank engine for about 3 seconds, and recheck whether spark is generated between the spark plug and
the grounded metal portion.
Is the inspection result normal?
YES
>> GO TO 7.
NO
>> Check ignition coil, power transistor and their circuits. Refer to
.
Clicking noise should be heard.
PBIB3332E

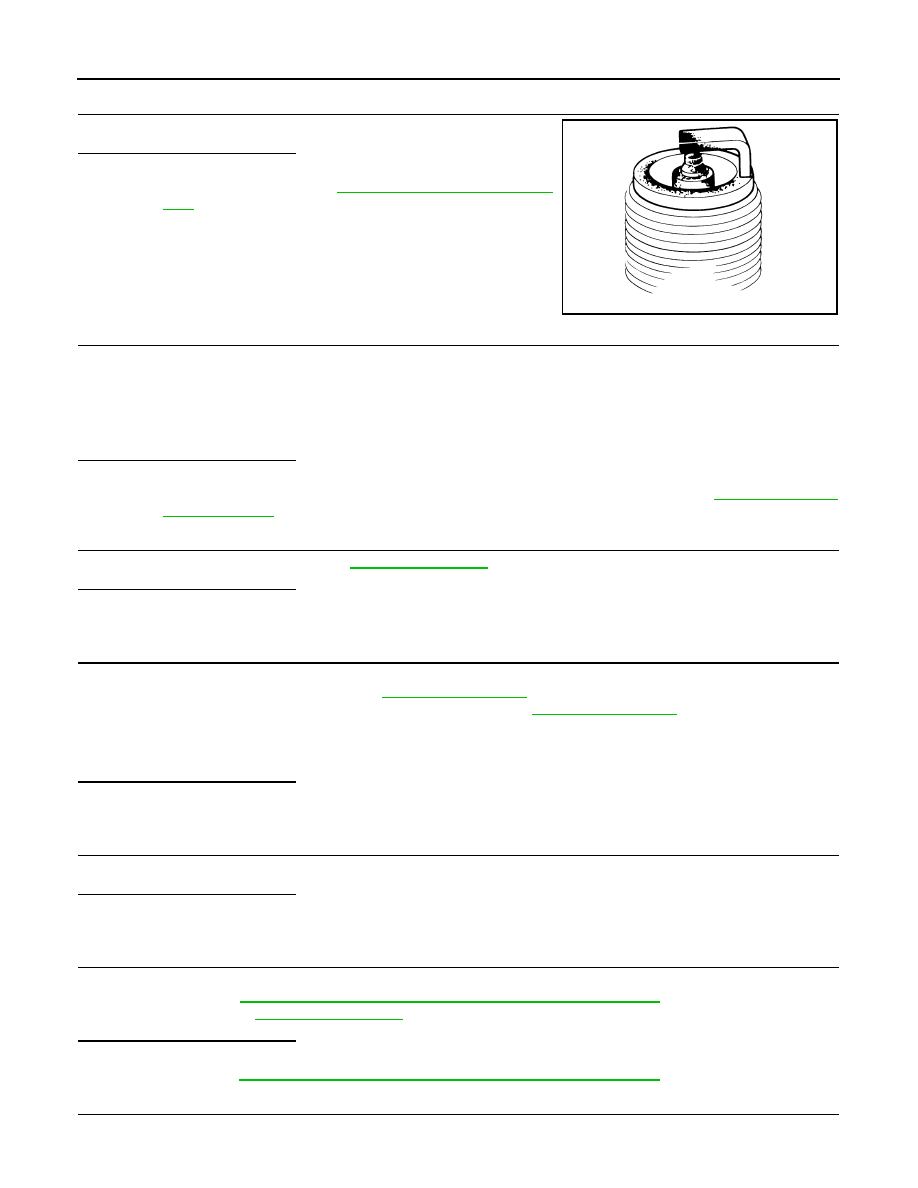

Spark should be generated.
JMBIA0066GB
Spark should be generated.
