LAN

CAN COMMUNICATION SYSTEM

LAN-69

< COMPONENT DIAGNOSIS >

[CAN]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

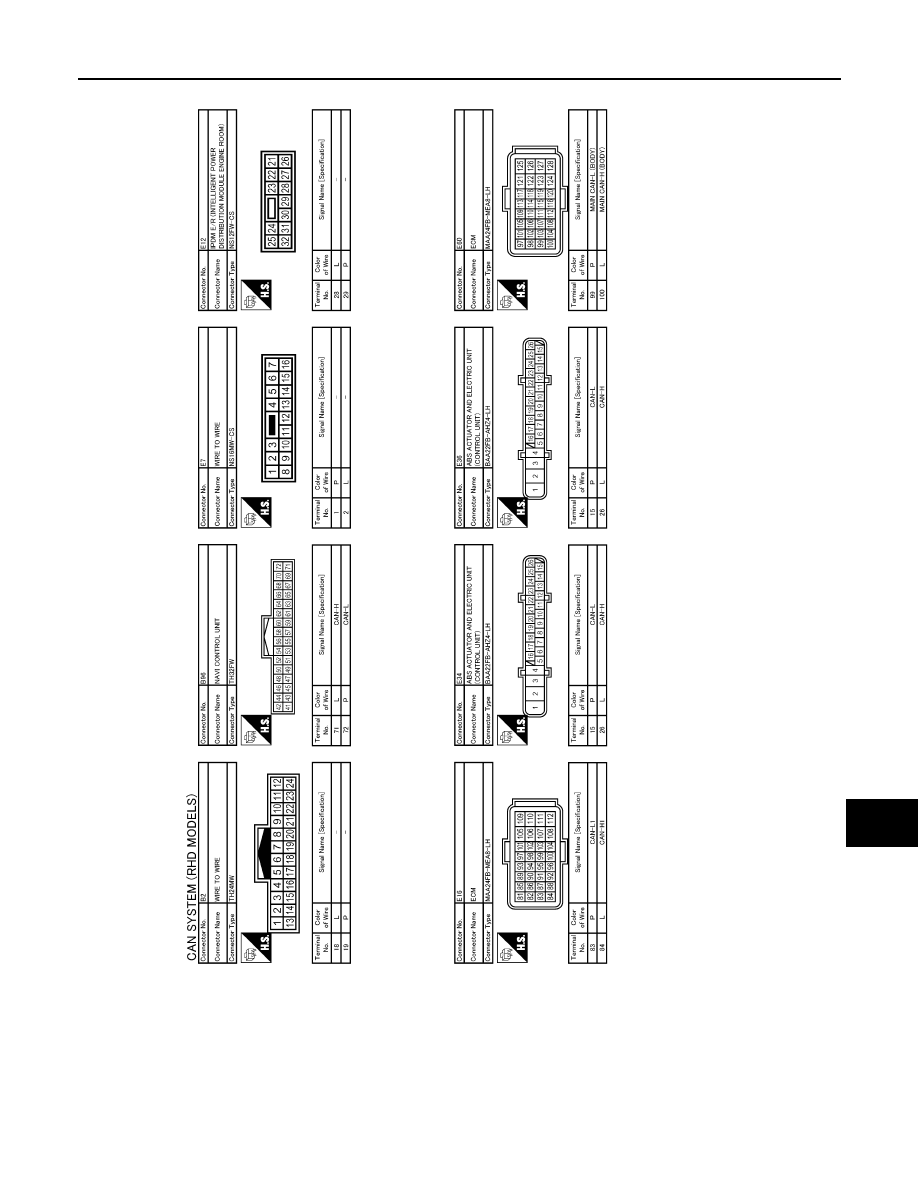

JCMWA0417GB

LAN-70

< COMPONENT DIAGNOSIS >

[CAN]

CAN COMMUNICATION SYSTEM

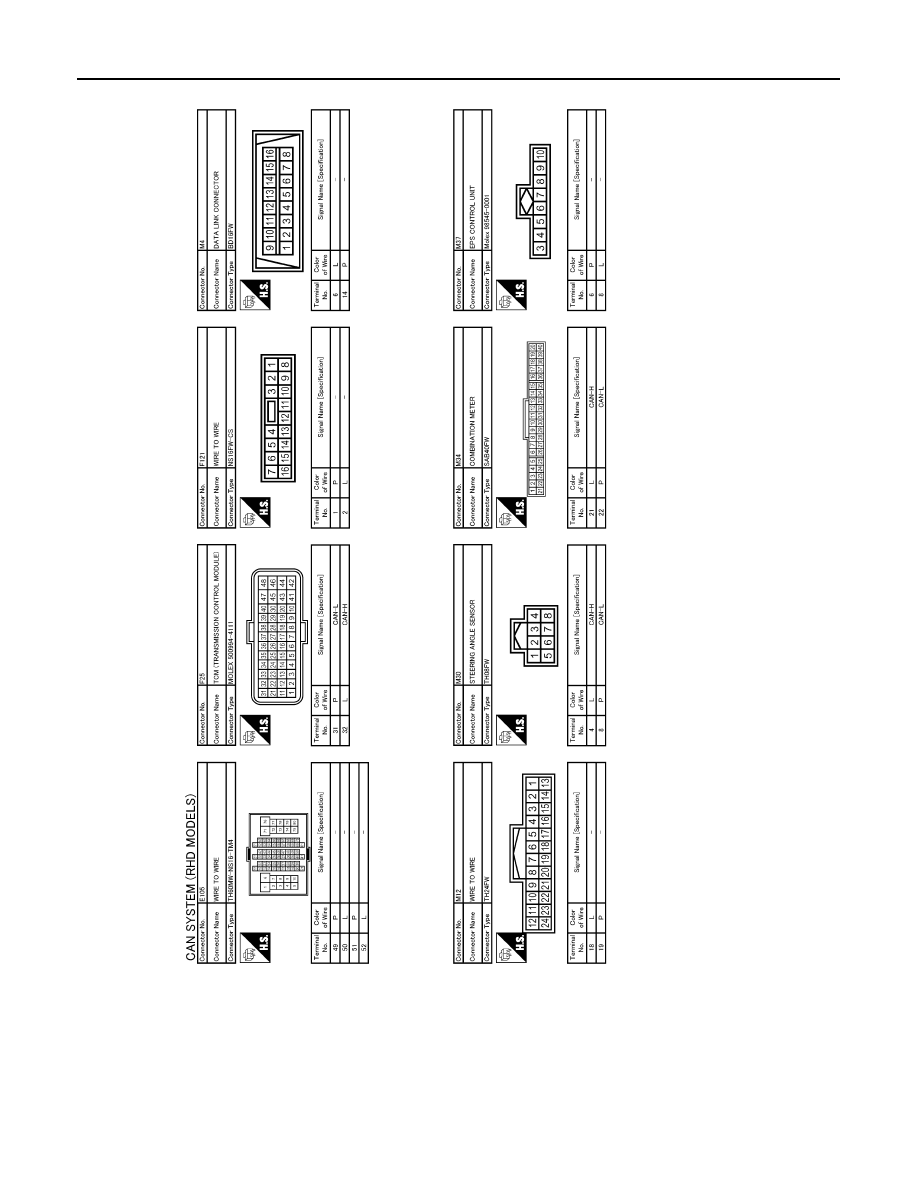

JCMWA0418GB

LAN

CAN COMMUNICATION SYSTEM

LAN-71

< COMPONENT DIAGNOSIS >

[CAN]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

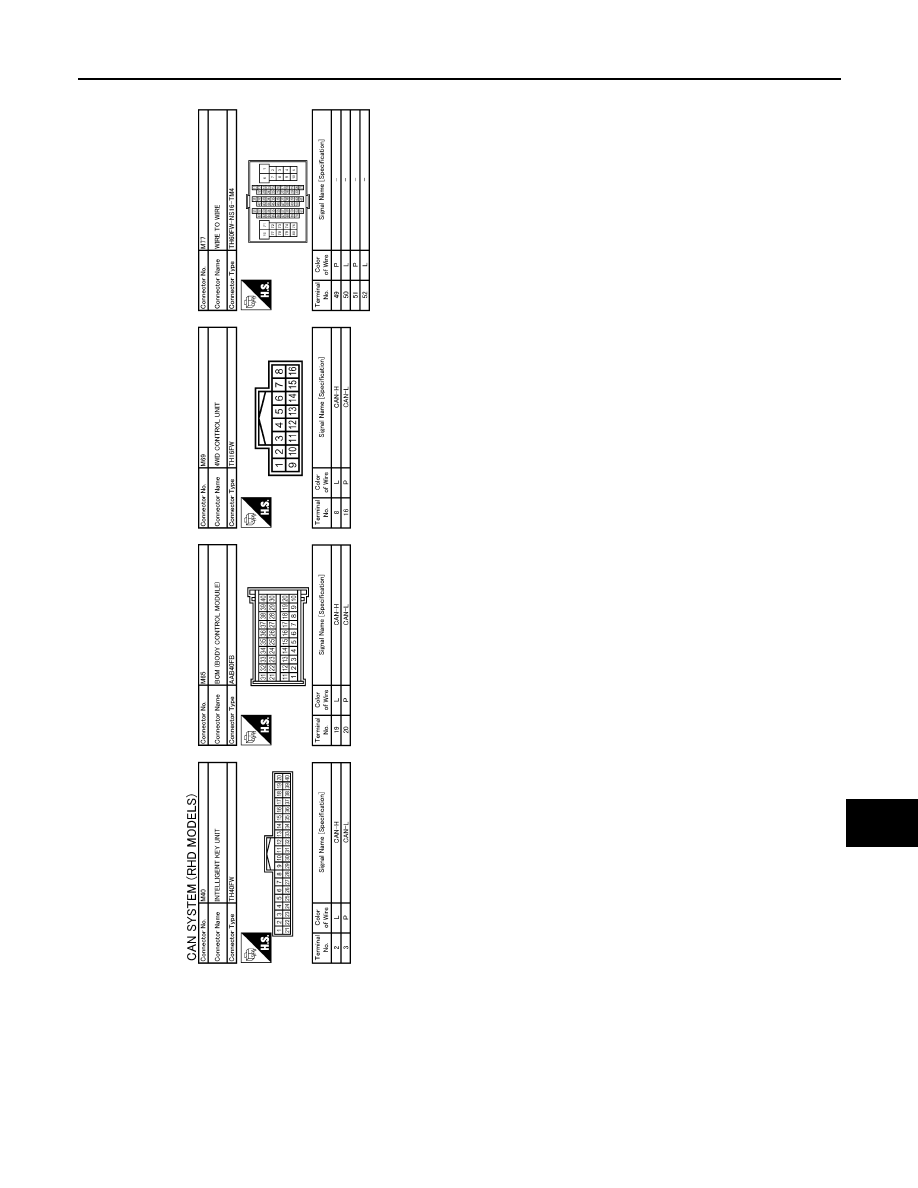

JCMWA0419GB

LAN-72

< COMPONENT DIAGNOSIS >

[CAN]

MALFUNCTION AREA CHART

MALFUNCTION AREA CHART

Main Line

INFOID:0000000000977605

Branch Line

INFOID:0000000000977606

Short Circuit

INFOID:0000000000977607

Malfunction Area

Reference

Main line between ABS actuator and electric unit (control unit)
and BCM

LAN-73, "Diagnosis Procedure"

Main line between ABS actuator and electric unit (control unit)
and TCM

LAN-74, "Diagnosis Procedure"

Main line between TCM and BCM

LAN-75, "Diagnosis Procedure"

Main line between BCM and data link connector

LAN-76, "Diagnosis Procedure"

Main line between ABS actuator and electric unit (control unit)
and data link connector

LAN-77, "Diagnosis Procedure"

Main line between TCM and data link connector

LAN-78, "Diagnosis Procedure"

Main line between data link connector and BCM

LAN-79, "Diagnosis Procedure"

Malfunction Area

Reference

ECM branch line circuit

LAN-80, "Diagnosis Procedure"

ABS actuator and electric unit (control unit) branch line circuit

LAN-81, "Diagnosis Procedure"

TCM branch line circuit

LAN-82, "Diagnosis Procedure"

4WD control unit branch line circuit

LAN-83, "Diagnosis Procedure"

BCM branch line circuit

LAN-84, "Diagnosis Procedure"

Combination meter branch line circuit

LAN-85, "Diagnosis Procedure"

NAVI control unit branch line circuit

LAN-86, "Diagnosis Procedure"

Data link connector branch line circuit

LAN-87, "Diagnosis Procedure"

EPS control unit branch line circuit

LAN-88, "Diagnosis Procedure"

Intelligent Key unit branch line circuit

LAN-89, "Diagnosis Procedure"

Steering angle sensor branch line circuit

LAN-90, "Diagnosis Procedure"

IPDM E/R branch line circuit

LAN-91, "Diagnosis Procedure"

Malfunction Area

Reference

CAN communication circuit

LAN-92, "Diagnosis Procedure"
