HEADLAMP WASHER SYSTEM

WW-51

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

HEADLAMP WASHER SYSTEM

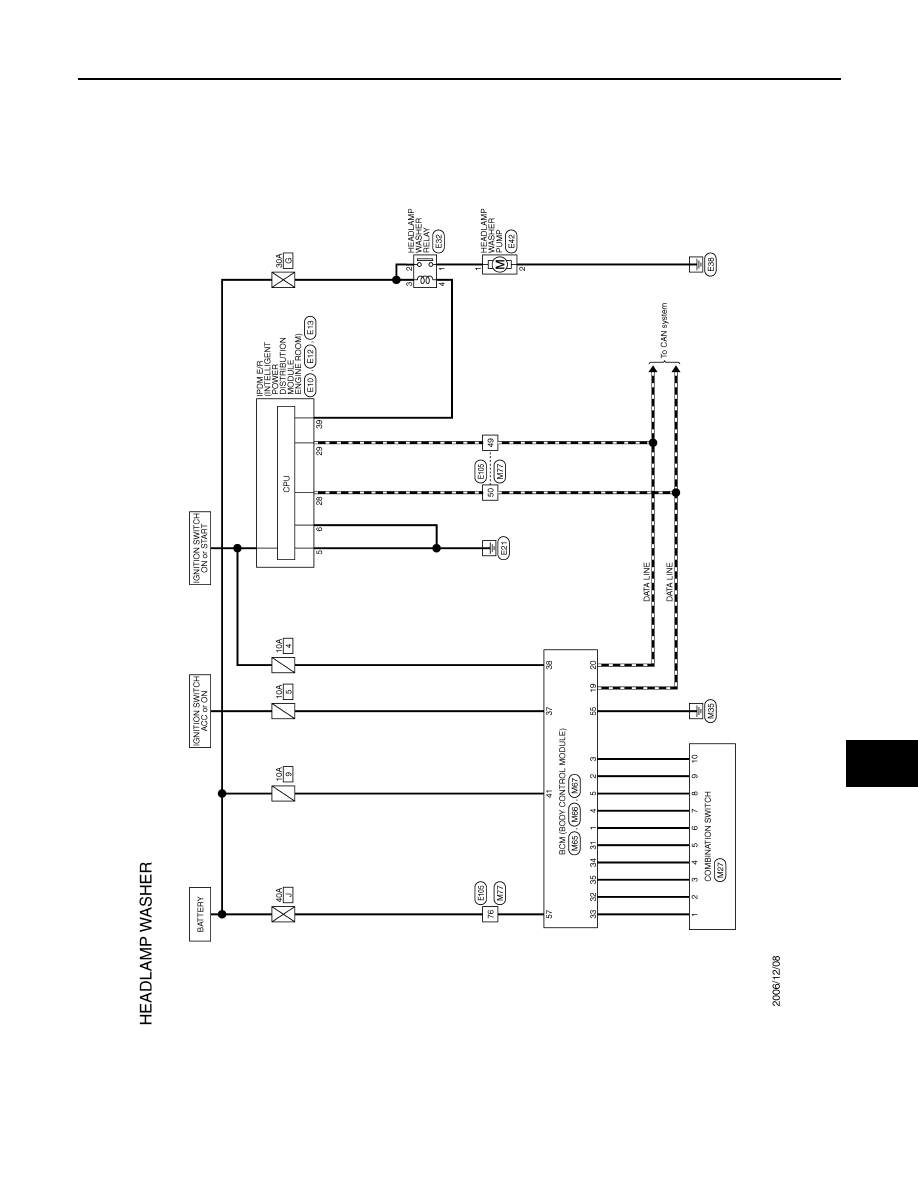

Wiring Diagram - HEADLAMP WASHER SYSTEM -

INFOID:0000000000978703

JCLWA0401GB

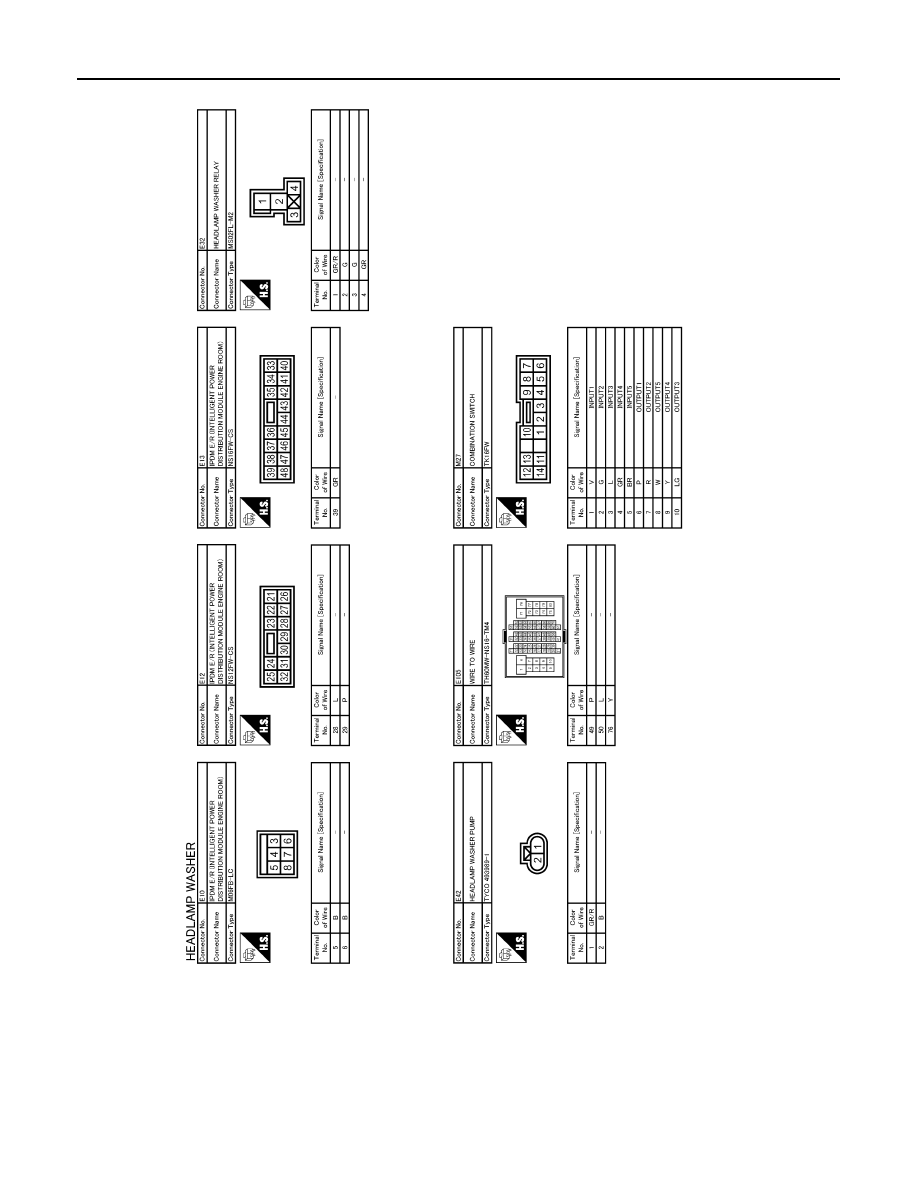

WW-52

< COMPONENT DIAGNOSIS >

HEADLAMP WASHER SYSTEM

JCLWA0402GB

HEADLAMP WASHER SYSTEM

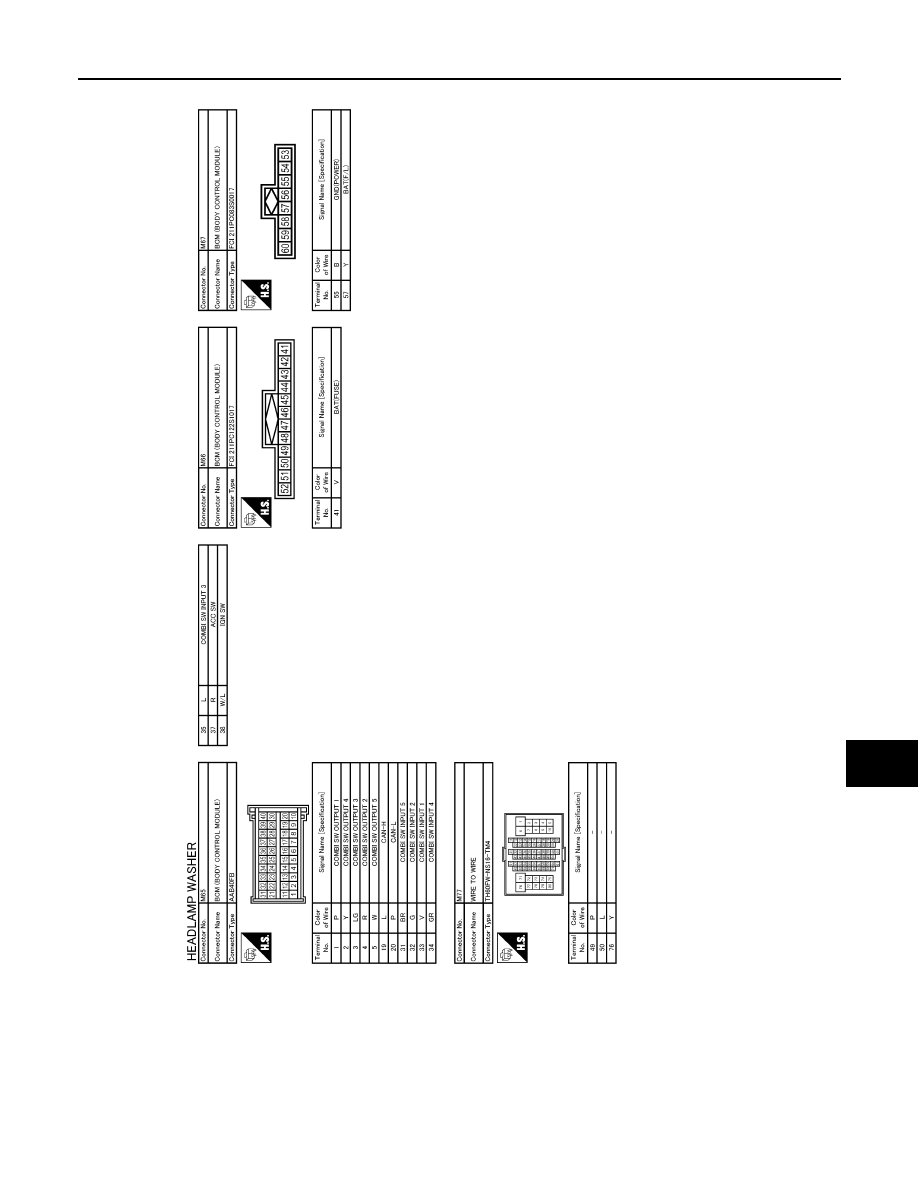

WW-53

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

JCLWA0403GB

WW-54

< ECU DIAGNOSIS >

BCM (BODY CONTROL MODULE)

ECU DIAGNOSIS

BCM (BODY CONTROL MODULE)

Reference Value

INFOID:0000000001116753

VALUES ON THE DIAGNOSIS TOOL

Monitor Item

Condition

Value/Status

ACC ON SW

Ignition switch OFF

OFF

Ignition switch ACC or ON

ON

AIR COND SW

A/C switch OFF

OFF

A/C switch ON

ON

AUT LIGHT SYS

Outside of the room is dark

OFF

Outside of the room is bright

ON

AUTO LIGHT SW

Lighting switch OFF

OFF

Lighting switch AUTO

ON

BACK DOOR SW

Back door closed

OFF

Back door opened

ON

BATTERY VOLT
NOTE:
Diesel engine models
only

Ignition switch ON

Approximately the same as power
supply voltage

BUCKLE SW

Driver's seat belt unfastened

OFF

Driver's seat belt fastened

ON

CDL LOCK SW

Door lock/unlock switch does not operate

OFF

Press door lock/unlock switch to the LOCK side

ON

CDL UNLOCK SW

Door lock/unlock switch does not operate

OFF

Press door lock/unlock switch to the UNLOCK side

ON

DOOR SW-AS

Passenger door closed

OFF

Passenger door opened

ON

DOOR SW-DR

Driver door closed

OFF

Driver door opened

ON

DOOR SW-RL

Rear LH door closed

OFF

Rear LH door opened

ON

DOOR SW-RR

Rear RH door closed

OFF

Rear RH door opened

ON

ELEC PWR CUT
NOTE:
Diesel engine models
only

Engine running

Fan switch ON (when engine coolant is
cool)
NOTE:
Depending on the ambient tempera-
ture, battery voltage, etc.

OFF

The current status maintained with the
signal from ECM received.

FREEZ

• Fan switch OFF
• Fan switch ON after engine warming

UP
NOTE:
Depending on the engine coolant
temperature, ambient temperature,
battery voltage, etc.

INHBT
