HEADLAMP WASHER CIRCUIT

Component Function Check

INFOID:0000000000904047

1.

CHECK HEADLAMP WASHER OPERATION

CONSULT-III ACTIVE TEST

1.

Select "HEADLAMP WASHER" of IPDM E/R active test item.

2.

With operating the test item, check headlamp washer operation.

Is the headlamp washer operation normally?

YES

>> Headlamp washer circuit is normal.

NO

>> Refer to

WW-39, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000000903230

1.

CHECK HEADLAMP WASHER FUSIBLE LINK

1.

Turn the ignition switch OFF.

2.

Check that the headlamp washer 30A fusible link (#G) is not fusing.

Is the fusible link fusing?

YES

>> Replace the fusible link after repairing the applicable circuit.

NO

>> GO TO 2.

2.

CHECK HEADLAMP WASHER RELAY POWER SUPPLY

1.

Remove headlamp washer relay.

2.

Turn the ignition switch ON.

3.

Check voltage between headlamp washer harness connector and ground.

Is the measurement value normal?

YES

>> GO TO 3.

NO

>> Repair the harnesses or connectors.

3.

CHECK HEADLAMP WASHER RELAY

1.

Check headlamp washer relay. Refer to

WW-38, "Component Inspection"

.

Is the headlamp washer relay normal?

YES

>> GO TO 4.

NO

>> Replace the headlamp washer relay.

4.

CHECK HEADLAMP WASHER RELAY SIGNAL OUTPUT

CONSULT-III ACTIVE TEST

1.

Turn the ignition switch OFF.

2.

Install headlamp washer relay.

3.

Turn the ignition switch ON.

4.

Select "HEADLAMP WASHER" of IPDM E/R active test item.

5.

With operating the test item, check voltage between IPDM E/R harness connector and ground.

ON

: Headlamp washer ON op-
eration

OFF

: Stop the headlamp wash-
er.

Terminals

Voltage (Ap-

prox.)

(+)

(

−

)

Headlamp washer relay

Ground

Connector

Terminal

E32

2

Battery voltage

3

WW-40

< COMPONENT DIAGNOSIS >

HEADLAMP WASHER CIRCUIT

Is the measurement value normal?

YES

>> GO TO 7.

Fixed at 0 V >> GO TO 5.
Fixed at Battery voltage >> Replace IPDM E/R.

5.

CHECK HEADLAMP WASHER RELAY CONTROL SIGNAL OPEN CIRCUIT

1.

Remove headlamp washer relay.

2.

Disconnect IPDM E/R harness connector.

3.

Check continuity between IPDM E/R harness connector and headlamp washer relay harness connector.

Does continuity exist?

YES

>> GO TO 6.

NO

>> Repair the harnesses or connectors.

6.

CHECK HEADLAMP WASHER RELAY CONTROL SIGNAL SHORT CIRCUIT

Check continuity between IPDM E/R harness connector and ground.

Does continuity exist?

YES

>> Repair the harnesses or connectors.

NO

>> Replace IPDM E/R.

7.

CHECK HEADLAMP WASHER PUMP OPEN CIRCUIT

1.

Disconnect headlamp washer pump connector.

2.

Remove headlamp washer relay.

3.

Check continuity between headlamp washer relay harness connector and headlamp washer pump har-
ness connector.

Does continuity exist?

YES

>> GO TO 8.

NO

>> Repair the harnesses or connectors.

8.

CHECK HEADLAMP WASHER PUMP SHORT CIRCUIT

Check continuity between headlamp washer pump harness connector and ground.

Terminals

Test item

Voltage (Ap-

prox.)

(+)

(

−

)

IPDM E/R

Ground

HEAD-

LAMP

WASHER

Connector

Terminal

E13

39

ON

0 V

OFF

Battery volt-

age

IPDM E/R

Headlamp washer relay

Continuity

Connector

Terminal

Connector

Terminal

E13

39

E32

4

Existed

IPDM E/R

Ground

Continuity

Connector

Terminal

E13

39

Not existed

Headlamp washer relay

Headlamp washer pump

Continuity

Connector

Terminal

Connector

Terminal

E32

1

E42

1

Existed

HEADLAMP WASHER CIRCUIT

WW-41

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

Does continuity exist?

YES

>> Repair the harnesses or connectors.

NO

>> GO TO 9.

9.

CHECK HEADLAMP WASHER PUMP (GROUND) OPEN CIRCUIT

1.

Check continuity between headlamp washer pump harness connector and ground.

Does continuity exist?

YES

>> Replace the headlamp washer pump.

NO

>> Repair the harnesses or connectors.

Headlamp washer pump

Ground

Continuity

Connector

Terminal

E42

1

Not existed

Headlamp washer pump

Ground

Continuity

Connector

Terminal

E42

2

Existed

WW-42

< COMPONENT DIAGNOSIS >

FRONT WIPER AND WASHER SYSTEM

FRONT WIPER AND WASHER SYSTEM

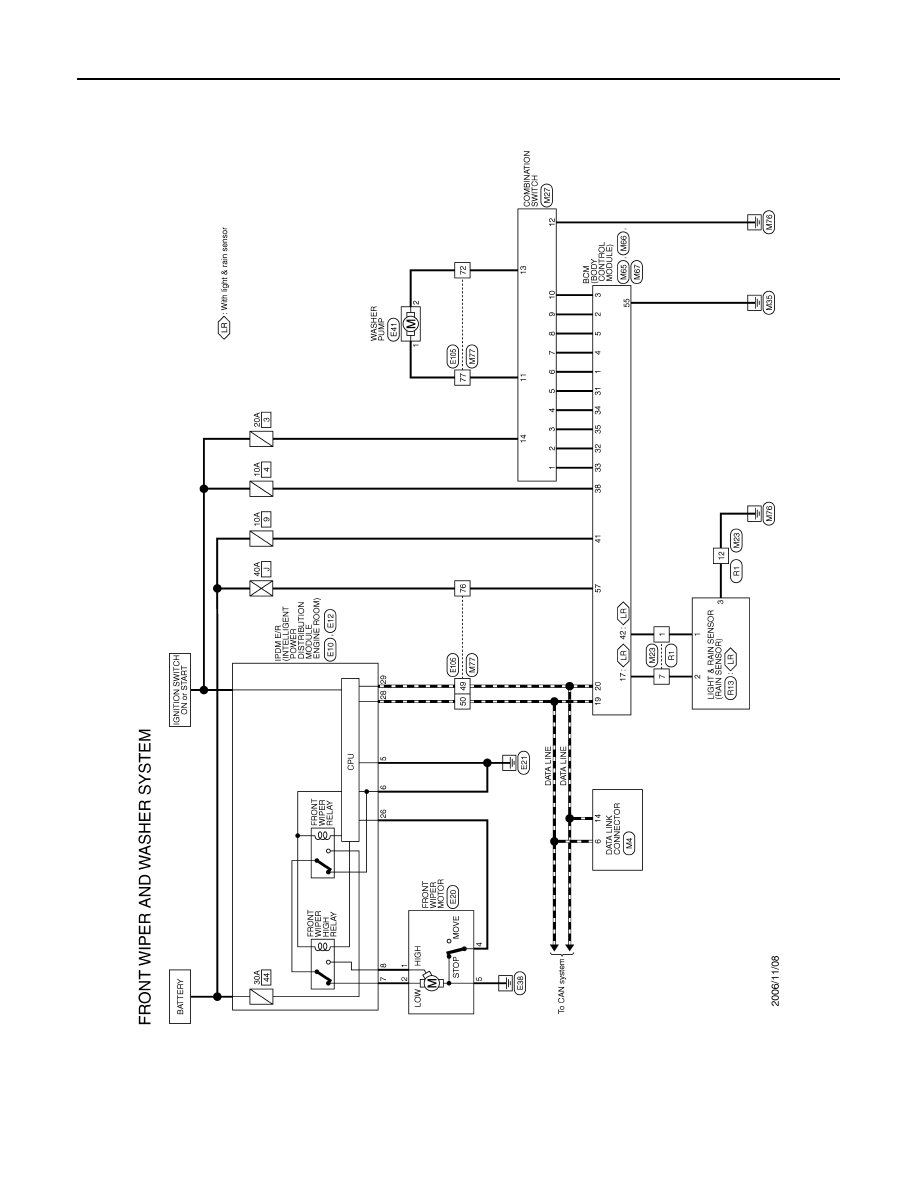

Wiring Diagram - FRONT WIPER AND WASHER SYSTEM -

INFOID:0000000000924454
