HEADLAMP WASHER SYSTEM

WW-15

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

HEADLAMP WASHER SYSTEM

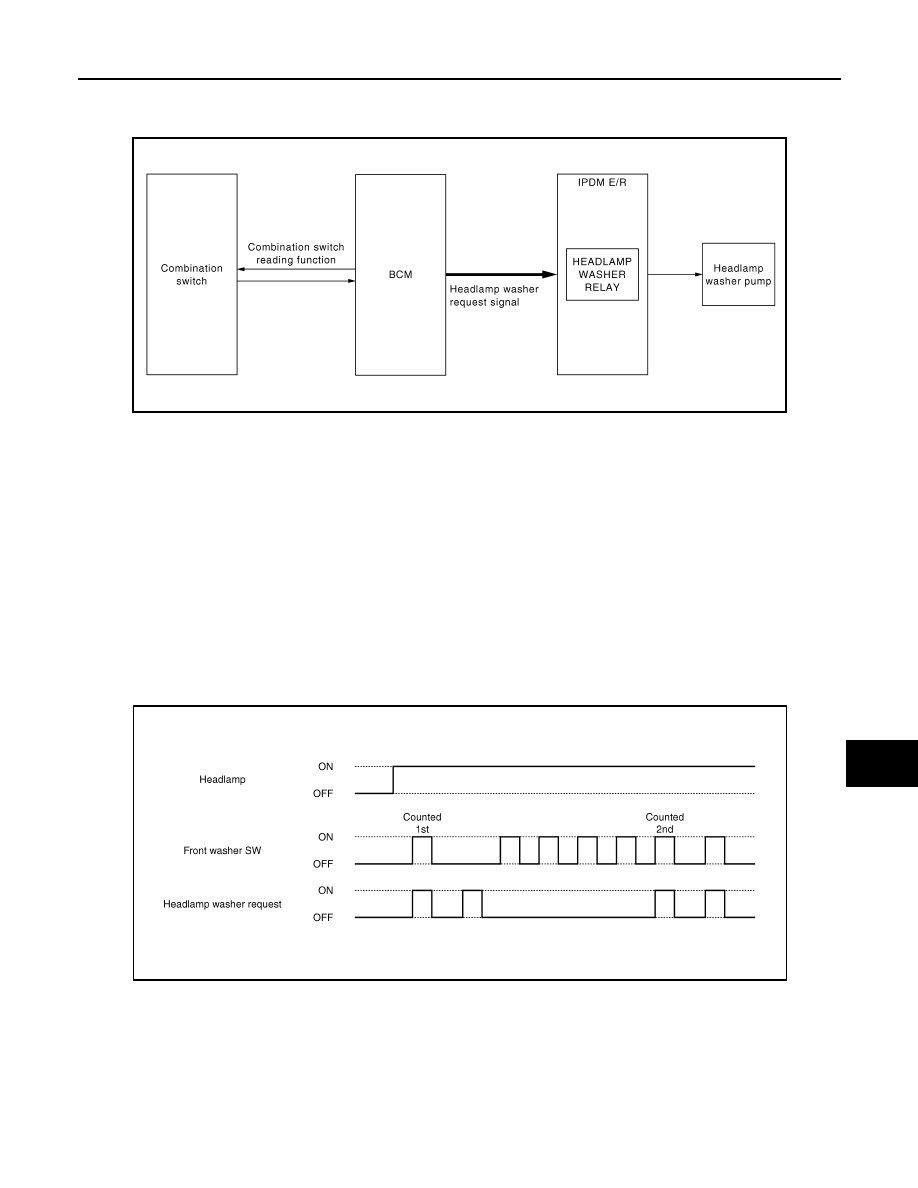

System Diagram

INFOID:0000000000896814

System Description

INFOID:0000000000896815

OUTLINE

The headlamp washer is controlled by each function of BCM and IPDM E/R.

Control by BCM

• Combination switch reading function
• Headlamp washer control function

Control by IPDM E/R

• Relay control function

HEADLAMP WASHER BASIC OPERATION

• BCM detects the combination switch condition by the combination switch reading function.
• BCM transmits the headlamp washer request signal to IPDM E/R with CAN communication depending on

each operating condition of the headlamp washer.

Operating conditions (The first time)

- Ignition switch ON
- Headlamps ON (PASS excluded)
- Front washer switch ON at first time.

Operating conditions (From the second time)

- Ignition switch ON
- Headlamps ON (PASS excluded)
- Front washer switch ON at fifth time after the first time.

JPLIA0152GB

JPLIA0177GB

WW-16

< FUNCTION DIAGNOSIS >

HEADLAMP WASHER SYSTEM

• IPDM E/R turns ON/OFF the headlamp washer relay by receiving the headlamp washer request signal, and

controls the headlamp washer twice.

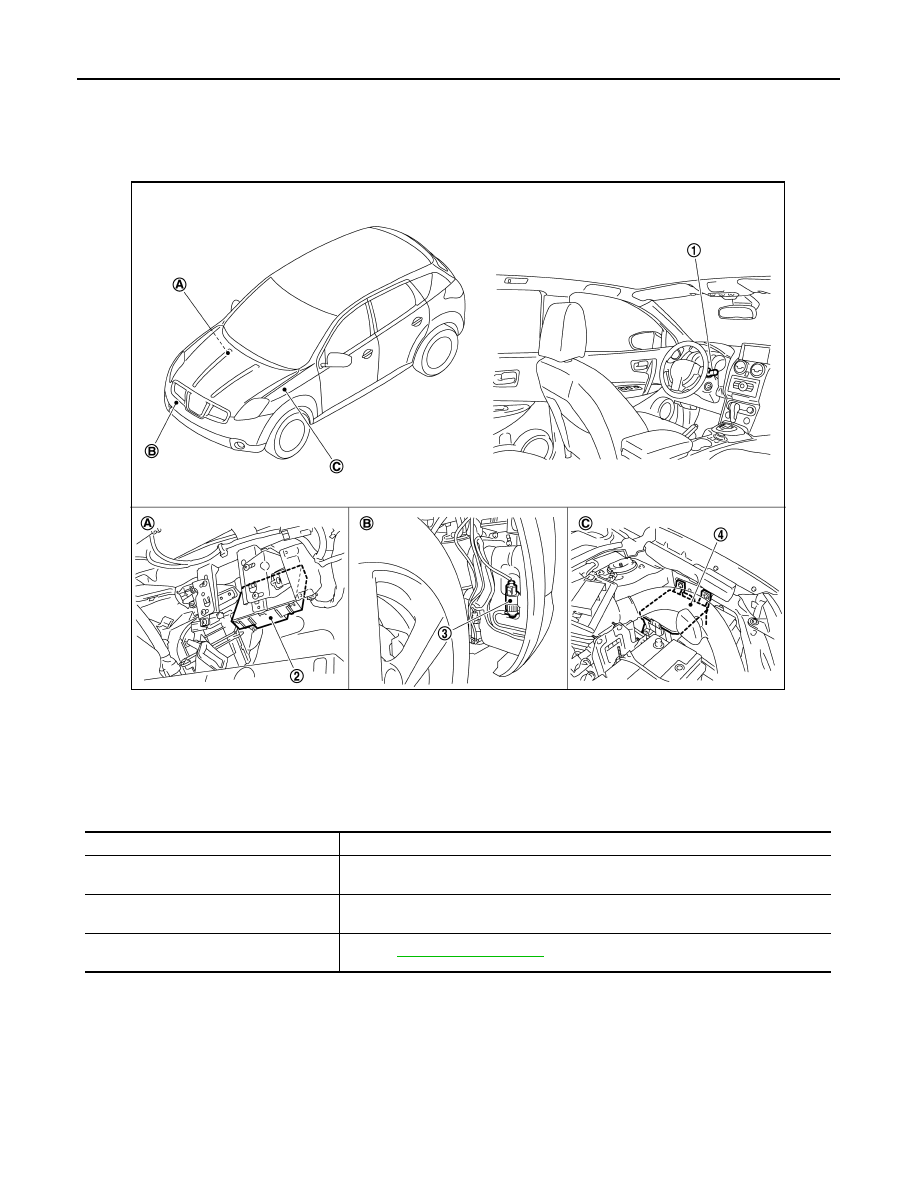

Component Parts Location

INFOID:0000000000896816

Component Description

INFOID:0000000000896820

1.

Combination switch

2.

BCM

3.

Headlamp washer pump

4.

IPDM E/R

A.

Over the glove box

B.

Radiator core support (RH)

C.

Engine room (left side)

JPLIA0187ZZ

Part

Description

BCM

• Judges each switch status by the combination switch reading function.
• Requests (with CAN communication) the headlamp washer relay ON to IPDM E/R.

IPDM E/R

Controls the integrated relay according to the request (with CAN communication) from
BCM.

Combination switch
(Wiper & washer switch)

Refer to

BCS-9, "System Diagram"

.

DIAGNOSIS SYSTEM (BCM)

WW-17

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM

COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM)

INFOID:0000000001054857

APPLICATION ITEM

CONSULT-III performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.
NOTE:
It can perform the diagnosis modes except the following for all sub system selection items.

WIPER

WIPER : CONSULT-III Function (BCM - WIPER)

INFOID:0000000000896761

WORK SUPPORT

Diagnosis mode

Function Description

WORK SUPPORT

Changes the setting for each system function.

SELF-DIAG RESULTS

Displays the diagnosis results judged by BCM. Refer to

BCS-61, "DTC Index"

.

CAN DIAG SUPPORT MNTR

Monitors the reception status of CAN communication viewed from BCM.

DATA MONITOR

The BCM input/output signals are displayed.

ACTIVE TEST

The signals used to activate each device are forcibly supplied from BCM.

ECU IDENTIFICATION

The BCM part number is displayed.

CONFIGURATION

• Enables to read and save the vehicle specification.
• Enables to write the vehicle specification when replacing BCM.

System

Sub system selection item

Diagnosis mode

WORK SUPPORT

DATA MONITOR

ACTIVE TEST

—

BCM

×

Door lock

DOOR LOCK

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Remote keyless entry system

MULTI REMOTE ENT

×

×

×

Exterior lamp

HEAD LAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps

FLASHER

×

×

Air conditioner

AIR CONDITONER

×

Intelligent Key system

INTELLIGENT KEY

×

Combination switch

COMB SW

×

Immobilizer

IMMU

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

Trunk open

TRUNK

×

Vehicle security system

THEFT ALM

×

×

×

Signal buffer system

SIGNAL BUFFER

×

×

PTC heater system

PTC HEATER

×

×

WW-18

< FUNCTION DIAGNOSIS >

DIAGNOSIS SYSTEM (BCM)

*:Factory setting

DATA MONITOR

ACTIVE TEST

Service item

Setting

item

Description

WIPER SPEED
SETTING

ON*

With vehicle speed
(Front wiper intermittent time linked with the vehicle speed and wiper intermittent dial position)

OFF

Without vehicle speed
(Front wiper intermittent time linked with the wiper intermittent dial position)

Monitor Item

[Unit]

Description

IGN ON SW

Ignition switch ON status judged from ignition power supply.

IGN SW CAN

Ignition switch ON status received from IPDM E/R with CAN communication.

FR WIPER HI
[OFF/ON]

Each switch status that BCM judges from the combination switch reading function.

FR WIPER LOW
[OFF/ON]

FR WIPER INT
[OFF/ON]

FR WASHER SW
[OFF/ON]

H/L WASH SW
[OFF/ON]

NOTE:
The item is indicated, but not monitored.

INT VOLUME
[1

−

 7]

Each switch status that BCM judges from the combination switch reading function.

FR WIPER STOP
[OFF/ON]

Front wiper motor (stop position) status received from IPDM E/R with CAN communica-
tion.

VEHICLE SPEED
[km/h]

The value of the vehicle speed signal received from combination meter with CAN com-
munication.

RR WIPER ON
[OFF/ON]

Each switch status that BCM judges from the combination switch reading function.

RR WIPER INT
[OFF/ON]

RR WASHER SW
[OFF/ON]

RR WIPER STOP
[OFF/ON]

Rear wiper motor (stop position) status input from the rear wiper motor.

Test item

Operation

Description

FR WIPER

HI

Transmits the front wiper request signal (HI) to IPDM E/R with CAN communication to op-
erate the front wiper HI operation.

LO

Transmits the front wiper request signal (LO) to IPDM E/R with CAN communication to
operate the front wiper LO operation.

INT

Transmits the front wiper request signal (INT) to IPDM E/R with CAN communication to
operate the front wiper INT operation.

OFF

Stops transmitting the front wiper request signal to stop the front wiper operation.

RR WIPER

ON

Outputs the voltage to operate the rear wiper motor.

OFF

Stops the voltage to stop.

HEADLAMP WASH-
ER

ON

Transmits the headlamp washer request signal to IPDM E/R with CAN communication to
operate the headlamp washer operation.
