GLOVE BOX LAMP

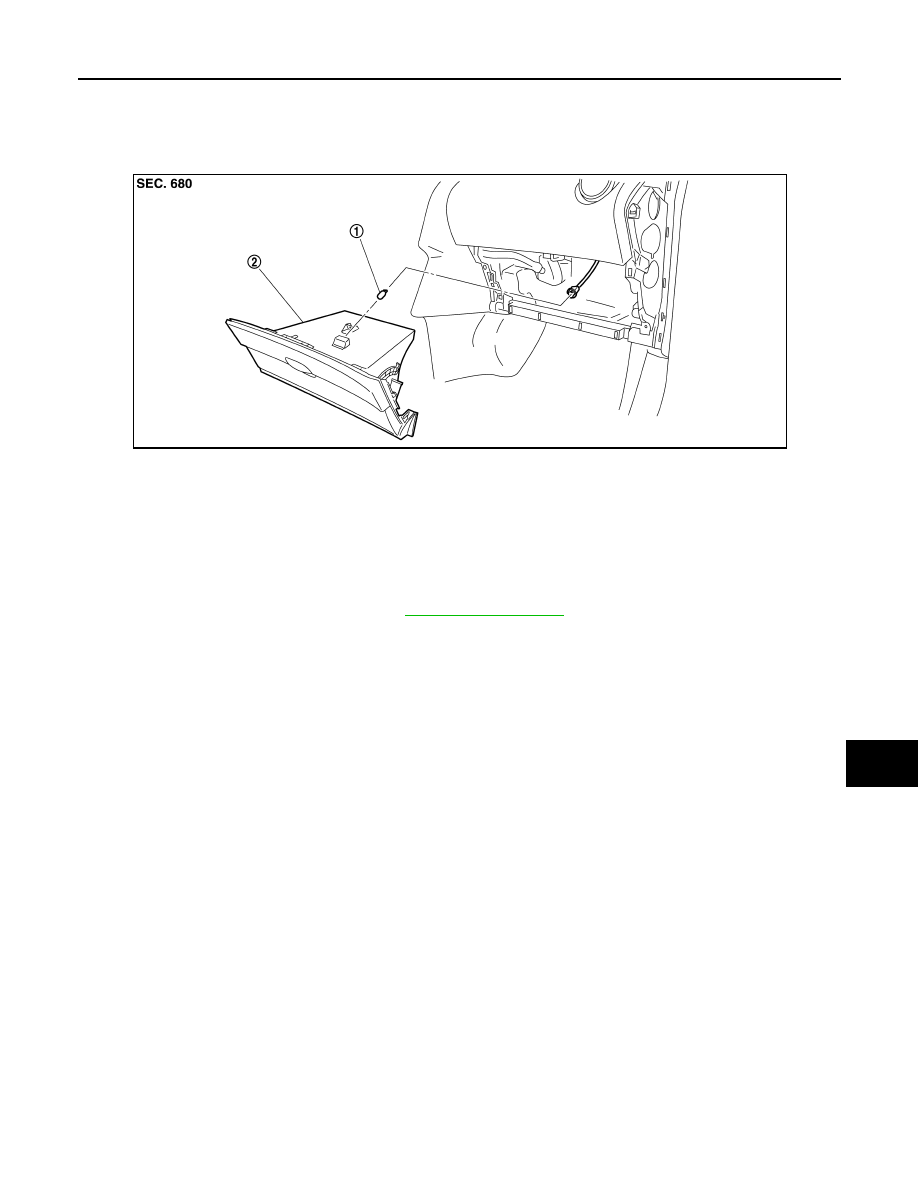

Exploded View

INFOID:0000000001033410

Replacement

INFOID:0000000001033411

CAUTION:

Disconnect the battery negative terminal or the fuse.

GLOVE BOX LAMP BULB

1.

Remove the glove box assembly. Refer to

IP-11, "Exploded View"

.

2.

Rotate the bulb socket counterclockwise and unlock it.

3.

Remove the bulb.

1.

Bulb

2.

Glove box

JPLIA0267ZZ

INL-68

< ON-VEHICLE REPAIR >

ROOM LAMP

ROOM LAMP

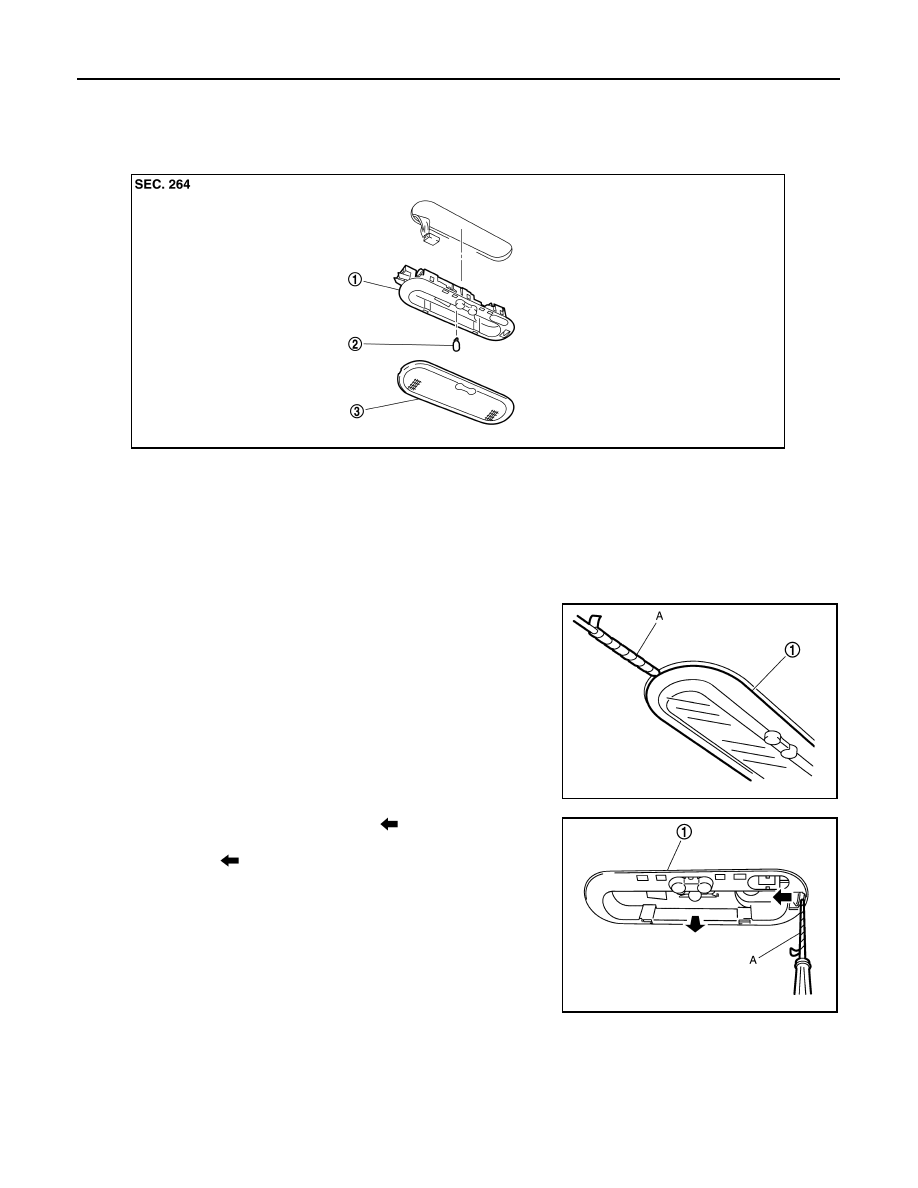

Exploded View

INFOID:0000000001080084

Removal and Installation

INFOID:0000000001080085

CAUTION:

Disconnect the battery negative terminal or the fuse.

REMOVAL

1.

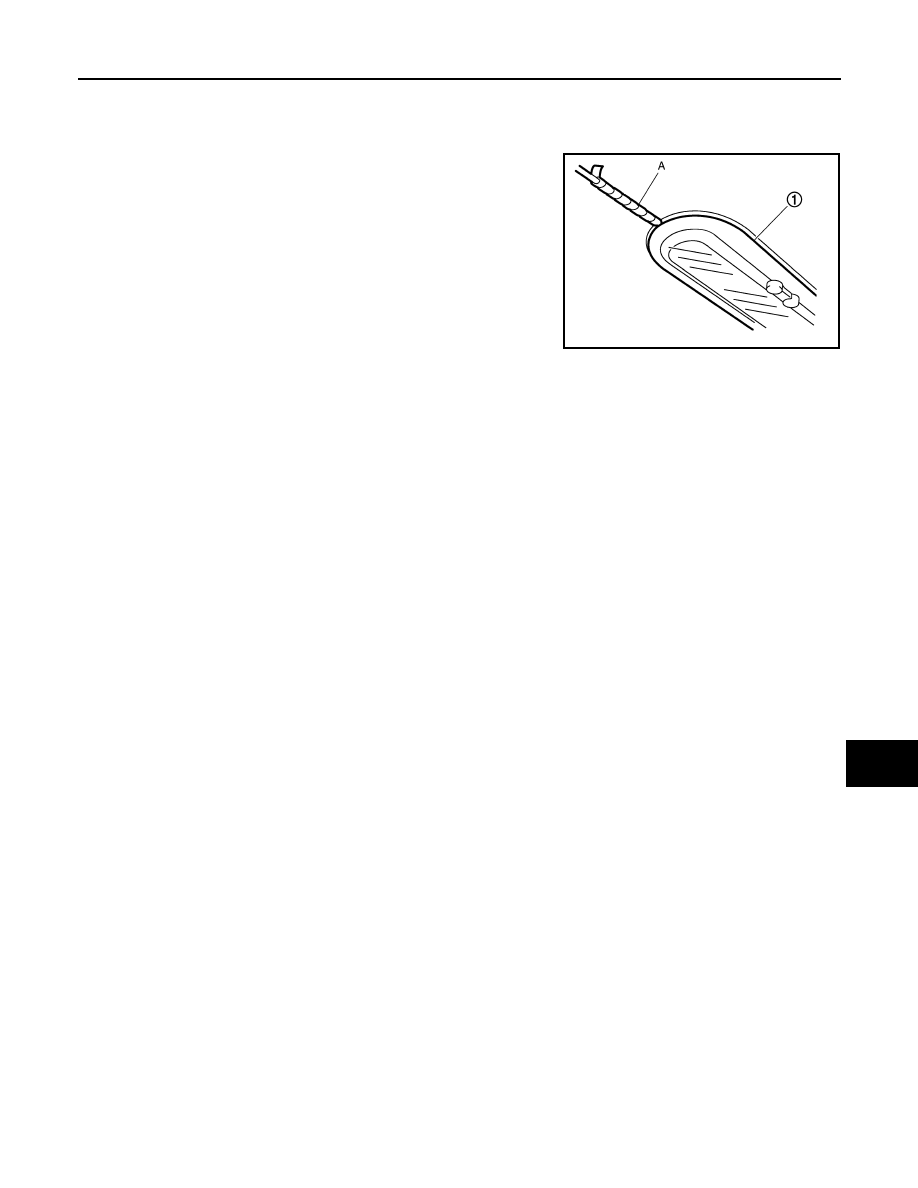

Insert any appropriate tool (A) into the gap between the lens (1)
and then remove the lens.

2.

Press the pawl to the arrow direction (

) with any appropriate

tool (A). And then pull the room lamp bulb housing (1) to the
arrow direction (

).

3.

Disconnect the connector, and remove the room lamp bulb
housing.

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000001080086

1.

Room lamp bulb housing

2.

Bulb

3.

Lens

JSLIA0088ZZ

JSLIA0089ZZ

JSLIA0090ZZ

ROOM LAMP

INL-69

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

CAUTION:

Disconnect the battery negative terminal or the fuse.

ROOM LAMP BULB

1.

Insert any appropriate tool (A) into the gap between the lens (1)
and then remove the lens.

2.

Remove the bulb.

JSLIA0089ZZ

INL-70

< ON-VEHICLE REPAIR >

PERSONAL LAMP

PERSONAL LAMP

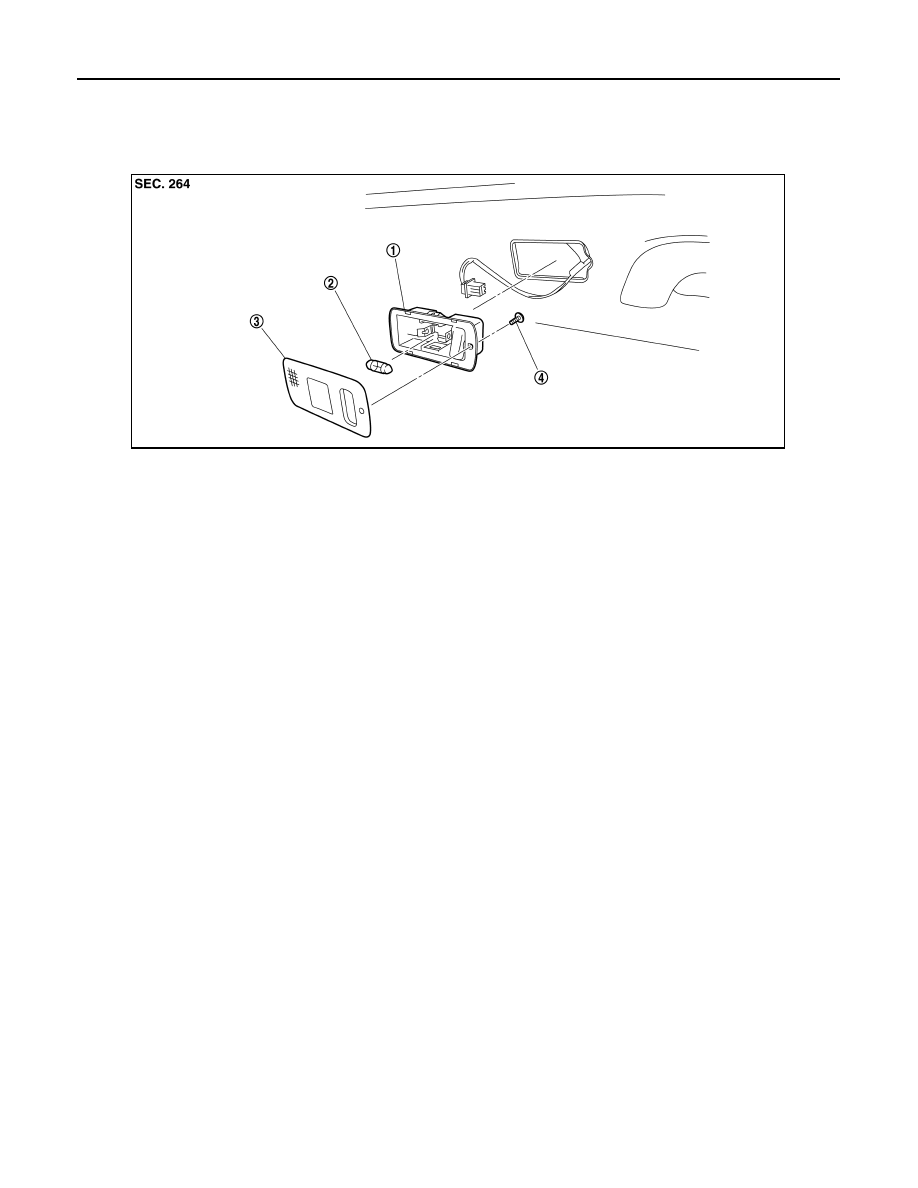

Exploded View

INFOID:0000000001033415

Removal and Installation

INFOID:0000000001033416

CAUTION:

Disconnect the battery negative terminal or the fuse.

REMOVAL

1.

Insert any appropriate tool into the gap between the personal lamp. Remove the personal lamp.

2.

Disconnect the connector.

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000001033417

CAUTION:

Disconnect the battery negative terminal or the fuse.

PERSONAL LAMP BULB

1.

Remove the personal lamp.

2.

Remove the screw, and remove the lens.

3.

Remove the bulb.

1.

Personal lamp housing

2.

Bulb

3.

Lens

4.

Screw

JPLIA0268ZZ
