BCM (BODY CONTROL MODULE)

INL-55

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

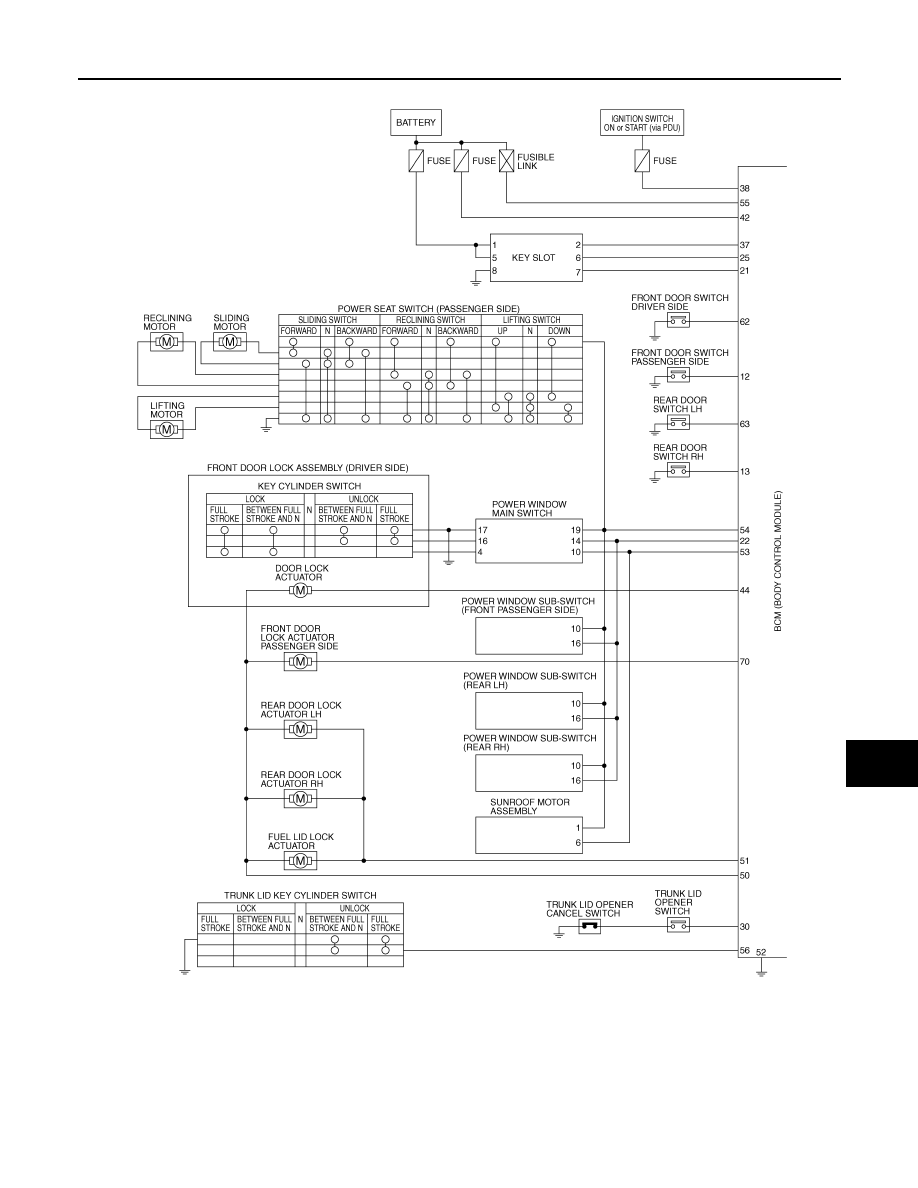

Wiring Diagram - BCM -

INFOID:0000000001116337

TKWT3486E

INL-56

< ECU DIAGNOSIS >

BCM (BODY CONTROL MODULE)

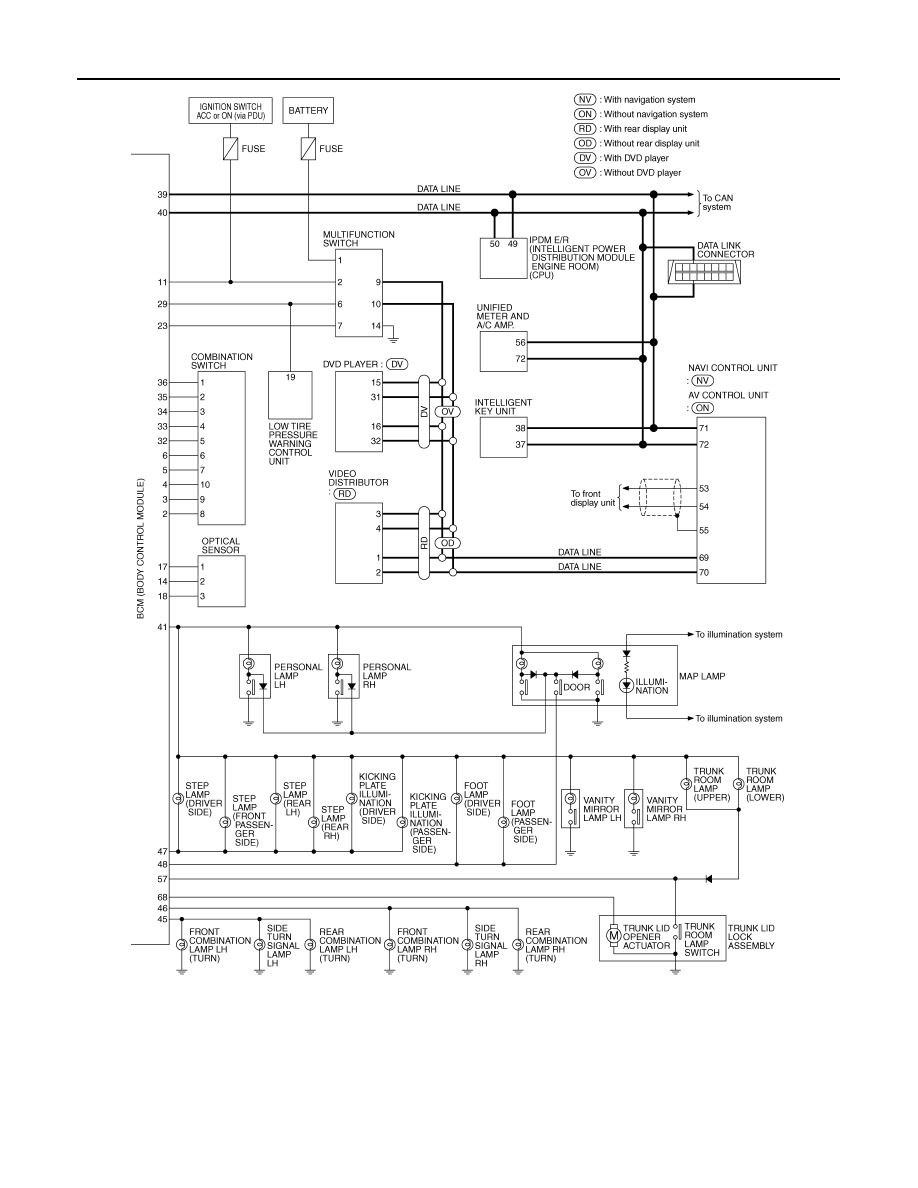

TKWT3487E

BCM (BODY CONTROL MODULE)

INL-57

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

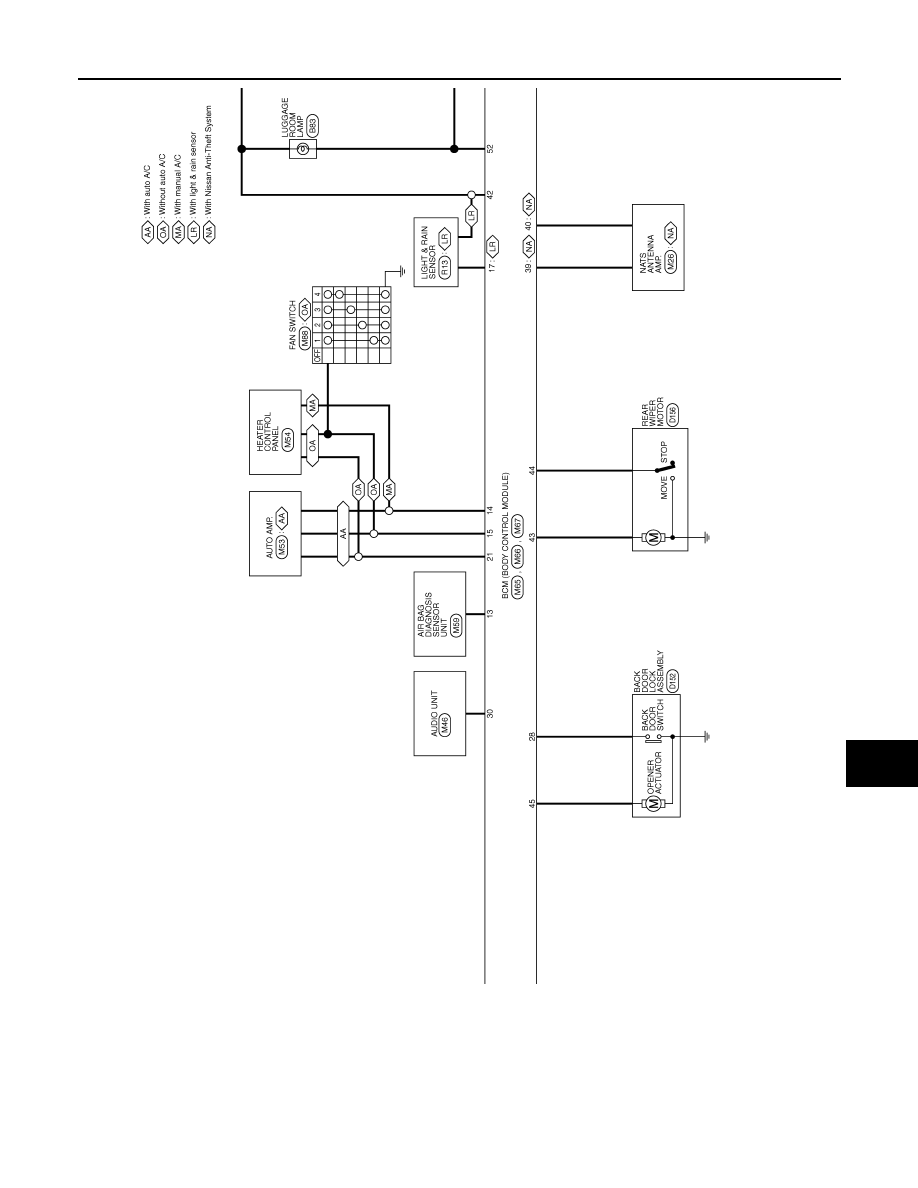

JCMWA0409GB

INL-58

< ECU DIAGNOSIS >

BCM (BODY CONTROL MODULE)

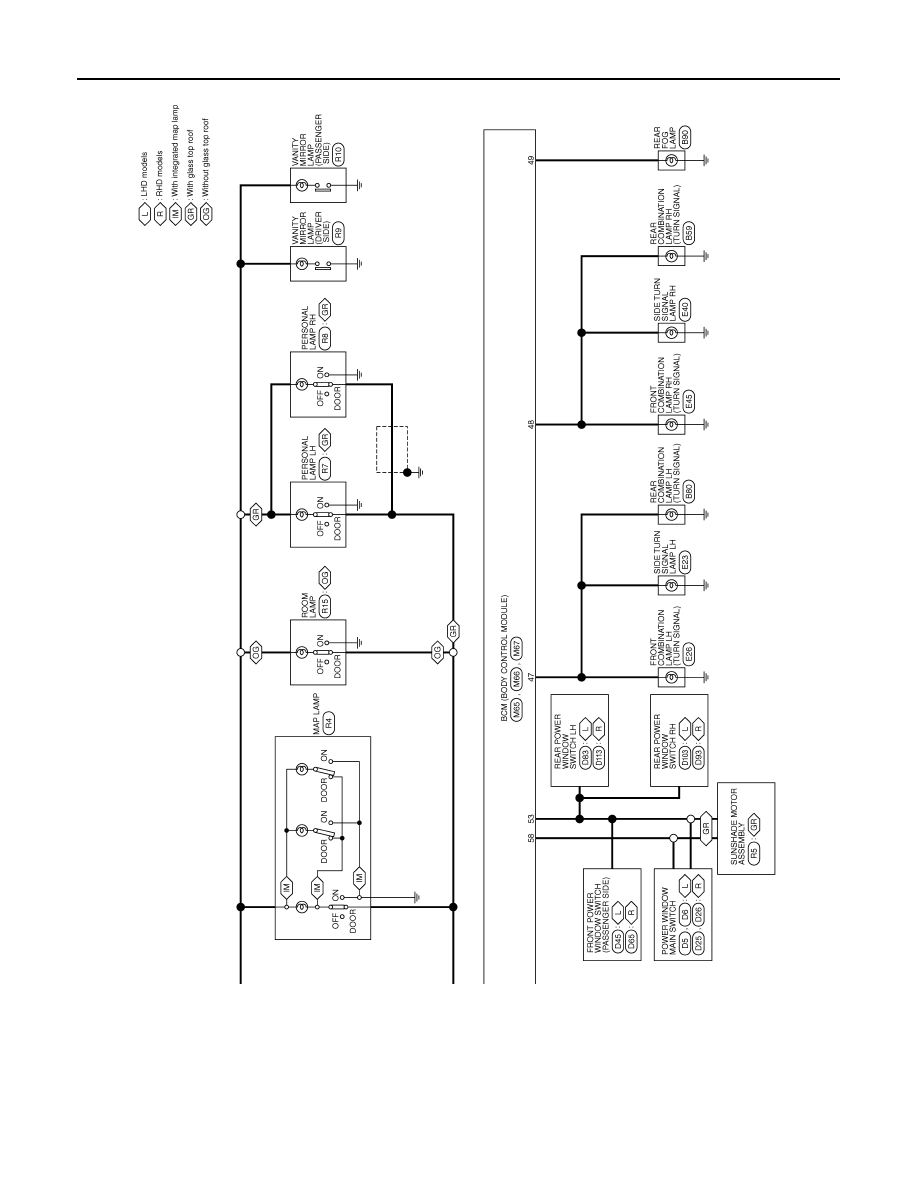

JCMWA0410GB
