TURN SIGNAL LAMP CIRCUIT

EXL-225

< COMPONENT DIAGNOSIS >

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

TURN SIGNAL LAMP CIRCUIT

Description

INFOID:0000000001099362

BCM performs the high flasher operation (fail-safe) if any bulb or harness of the turn signal lamp circuit is
open.
NOTE:
The turn signal lamp blinks at normal speed when using the hazard warning lamp.

Component Function Check

INFOID:0000000001099363

1.

CHECK TURN SIGNAL LAMP

CONSULT-III ACTIVE TEST

1.

Select "FLASHER" of BCM (FLASHER) active test item.

2.

With operating the test items, check that the turn signal lamp is turned ON.

Are the turn signal lamps turned ON?

YES

>> Turn signal lamp circuit is normal.

NO

>> Refer to

EXL-225, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000001089304

1.

CHECK TURN SIGNAL LAMP BULB

Check the applicable lamp bulb.

Is the bulb normal?

YES

>> GO TO 2.

NO

>> Replace the bulb.

2.

CHECK TURN SIGNAL LAMP OUTPUT VOLTAGE

1.

Turn the ignition switch OFF.

2.

Disconnect the front combination lamp connector, side turn signal lamp connector, or the rear combination
lamp connector.

3.

Turn the ignition switch ON.

4.

With operating the turn signal switch, check the voltage between the BCM harness connector and the
ground.

Is the measurement value normal?

YES

>> GO TO 3.

NO

>> Replace BCM. Refer to

BCS-64, "Exploded View"

.

LH

: Turn signal lamp (LH) ON

RH

: Turn signal lamp (RH) OFF

OFF

: The turn signal lamp OFF

Terminals

Condition

Voltage (Approx.)

(+)

(

−

)

BCM

Ground

Turn signal

switch

Connector

Terminal

RH

M66

48

LH or RH

LH

47

OFF

0 V

PKID0926E

EXL-226

< COMPONENT DIAGNOSIS >

[HALOGEN TYPE]

TURN SIGNAL LAMP CIRCUIT

3.

CHECK TURN SIGNAL LAMP OPEN CIRCUIT

1.

Turn the ignition switch OFF.

2.

Disconnect BCM connector.

3.

Check continuity between the BCM harness connector and the front combination lamp, side turn signal
lamp or the rear combination lamp harness connector.

Front turn signal lamp

Side turn signal lamp

Rear turn signal lamp

Does continuity exist?

YES

>> GO TO 4.

NO

>> Repair the harnesses or connectors.

4.

CHECK TURN SIGNAL LAMP SHORT CIRCUIT

Check continuity between the BCM harness connector and the ground.

Does continuity exist?

YES

>> Repair the harnesses or connectors.

NO

>> GO TO 5.

5.

CHECK TURN SIGNAL LAMP GROUND OPEN CIRCUIT

Check continuity between the BCM harness connector and the front combination lamp, side turn signal lamp
or the rear combination lamp and the ground.

Front turn signal lamp

Side turn signal lamp

BCM

Front combination lamp

Continuity

Connector

Terminal

Connector

Terminal

 RH

M66

48

E45

3

Existed

 LH

47

E26

BCM

Side turn signal lamp

Continuity

Connector

Terminal

Connector

Terminal

 RH

M66

48

E40

1

Existed

 LH

47

E23

BCM

Rear combination lamp

Continuity

Connector

Terminal

Connector

Terminal

RH

M66

48

B59

1

Existed

LH

47

B80

BCM

Ground

Continuity

Connector

Terminal

RH

M66

48

Not existed

LH

47

Front combination lamp

Ground

Continuity

Connector

Terminal

RH

E45

4

Existed

LH

E26

Side turn signal lamp

Ground

Continuity

Connector

Terminal

RH

E40

2

Existed

LH

E23

TURN SIGNAL LAMP CIRCUIT

EXL-227

< COMPONENT DIAGNOSIS >

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

Rear turn signal lamp

Does continuity exist?

YES

>> Replace the front combination lamp, the side turn signal lamp or the rear combination lamp.

NO

>> Repair the harnesses or connectors.

Rear combination lamp

Ground

Continuity

Connector

Terminal

RH

B59

4

Existed

LH

B80

EXL-228

< COMPONENT DIAGNOSIS >

[HALOGEN TYPE]

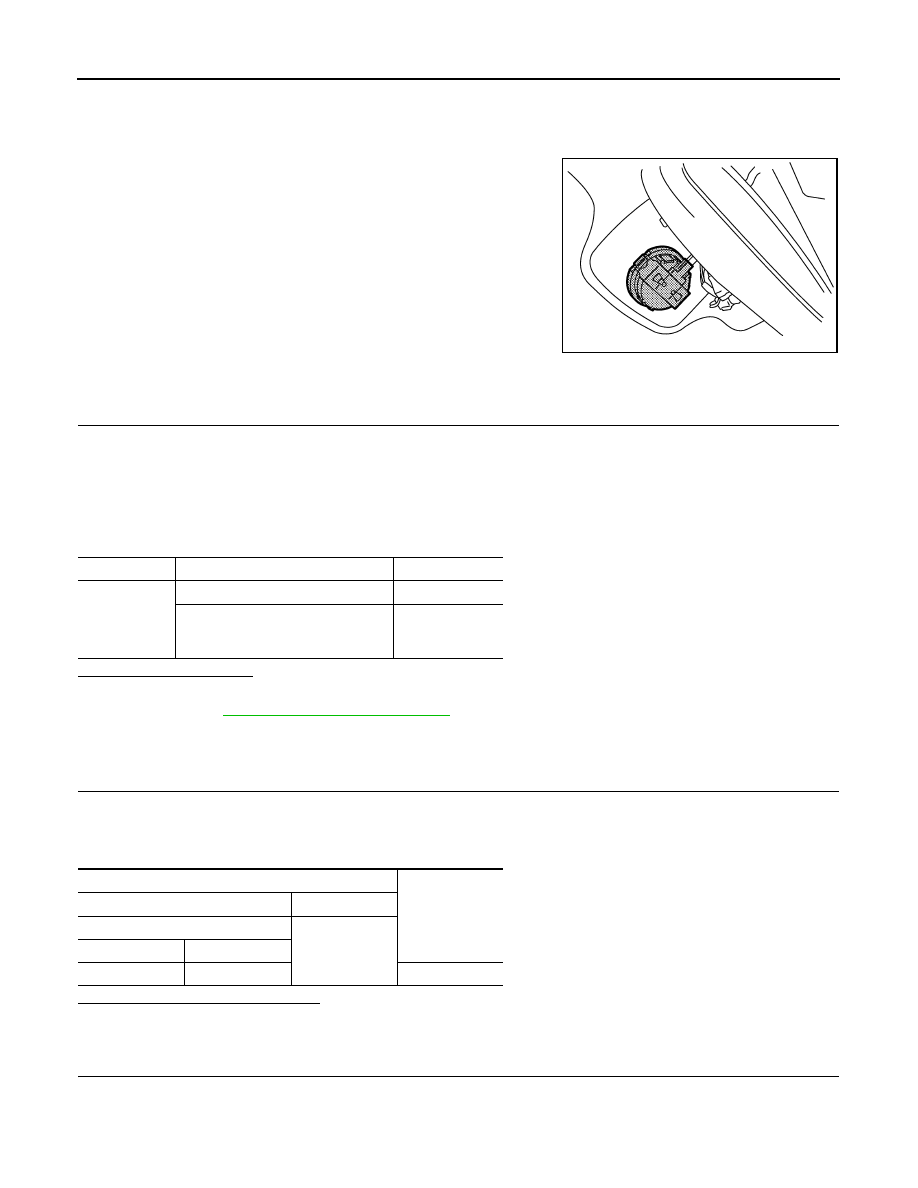

LIGHT & RAIN SENSOR

LIGHT & RAIN SENSOR

Description

INFOID:0000000001099364

• The light & rain sensor detects the outside brightness (lux), a rain-

drop and sensor conditions. And it transmits the signals to BCM by
the light & rain sensor serial link.

• BCM controls each function depending on the signals. And it

detects the light & rain sensor serial link error and the light & rain
sensor malfunction.

Component Function Check

INFOID:0000000001099365

1.

CHECK LIGHT & RAIN SENSOR BY CONSULT-III

CONSULT-III DATA MONITOR

1.

Turn the ignition switch ON.

2.

Select "LIT-SEN FAIL" of BCM (HEADLAMP) data monitor item.

3.

Turn the lighting switch AUTO.

4.

Start the engine.

5.

Check the monitor status.

Is it displayed with "OK"?

YES

>> Light & rain sensor is normal.

NO

>> Refer to

EXL-228, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000001099366

1.

CHECK LIGHT & RAIN SENSOR POWER SUPPLY OUTPUT

1.

Turn the ignition switch OFF.

2.

Disconnect the light & rain sensor connector.

3.

Check the voltage between the light & rain sensor harness connector and the ground.

Is the measurement value normal?

YES

>> GO TO 2.

NO

>> GO TO 3.

2.

CHECK LIGHT & RAIN SENSOR SIGNAL OUTPUT

Check the voltage between the light & rain sensor harness connector and the ground.

JSLIA0093ZZ

Monitor item

Condition

Status

LIT-SEN FAIL

Light & rain sensor is normal

OK

• Light & rain sensor inside abnor-

mality

• Light & rain sensor serial link error

NOTOK

Terminals

Voltage

(Approx.)

(+)

(

−

)

Light & rain sensor

Ground

Connector

Terminal

R13

1

12 V
