FRONT FOG LAMP AIMING ADJUSTMENT

Description

INFOID:0000000000978377

PREPARATION BEFORE ADJUSTING

NOTE:
• For details, refer to the regulations in your own country.
• Perform aiming if the vehicle front body has been repaired and/or the headlamp assembly has been

replaced.

Before performing aiming adjustment, check the following.

• Adjust the tire pressure to the specification.
• Fill with fuel, engine coolant and each oil.
• Maintain the unloaded vehicle condition. (Remove luggage from the passenger compartment and the lug-

gage room.)
NOTE:
Do not remove the temporary tire, jack and on-vehicle tool.

• Wipe out dirt on the headlamp.

CAUTION:

Never use organic solvent (thinner, gasoline etc.)

• Ride alone on the driver seat.

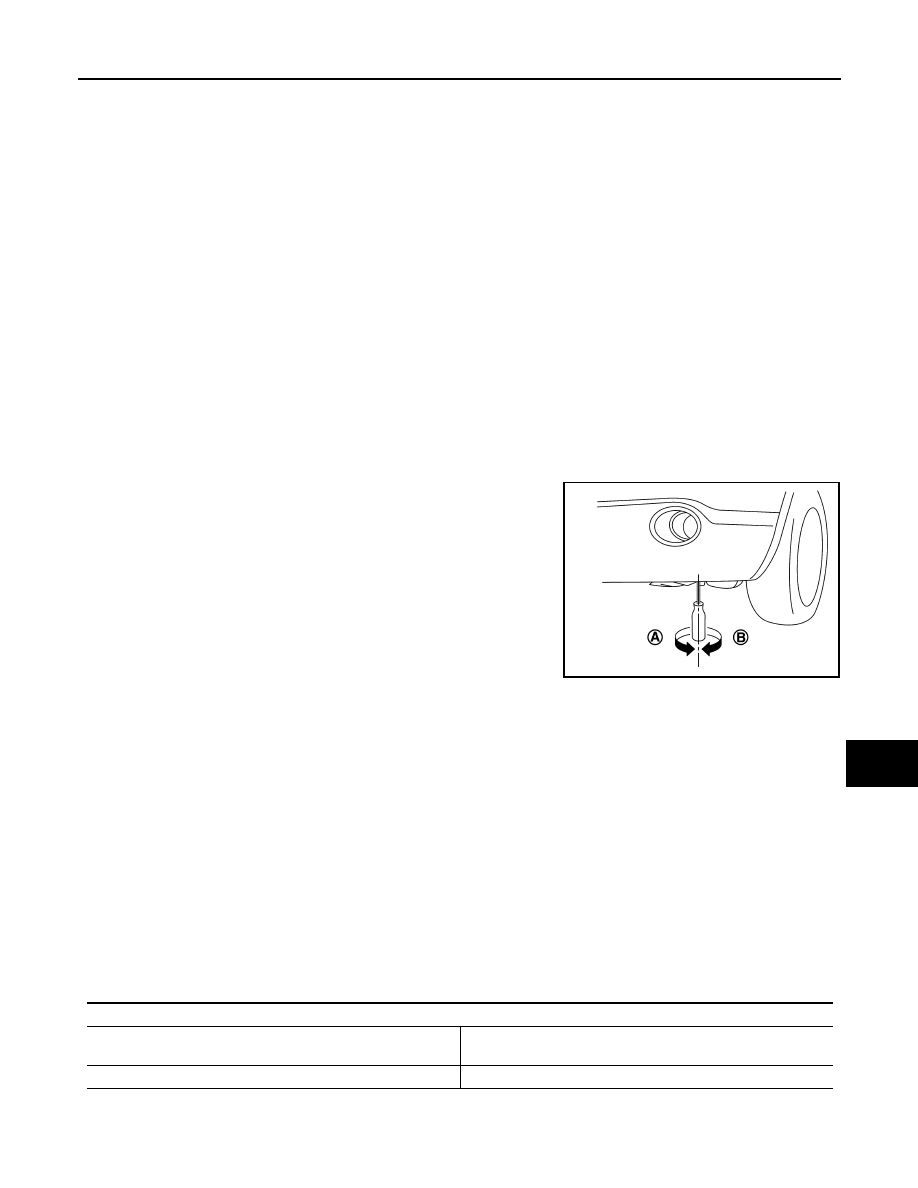

AIMING ADJUSTMENT SCREW

• Turn the aiming adjusting screw for adjustment.
• For the position and direction of the adjusting screw, refer to the

figure.
NOTE:
A screwdriver or hexagonal wrench (6 mm) can be used for adjust-
ment.

Aiming Adjustment Procedure

INFOID:0000000001102303

1.

Place the screen.
NOTE:
• Stop the vehicle at the perpendicular angle to the wall.
• Set the screen perpendicularly to the ground.

2.

Face the vehicle squarely toward the screen and make the distance between the front fog lamp center
and the screen 10 m (32.8 ft).

3.

Start the engine and illuminate the front fog lamp.
NOTE:
Block light from the front fog lamp that is not being adjusted with a thick fabric or another object, so that it
does not reach the adjustment screen.

CAUTION:

Never cover lens surface with tape, etc. because it is made from plastic.

4.

Use the aiming adjustment screw to adjust the elbow point projected by the front fog lights on the screen,
so that it is within the aiming adjustment area.

Unit: mm (in)

A: UP

B: DOWN

JPLIA0253ZZ

Aiming adjustment area

Vertical direction (Y

1

)

(Upper side from headlamp center height)

Vertical direction (Y

2

)

(Lower side from headlamp center height)

100 (3.94)

200 (7.87)

EXL-170

< ON-VEHICLE MAINTENANCE >

[XENON TYPE]

FRONT FOG LAMP AIMING ADJUSTMENT

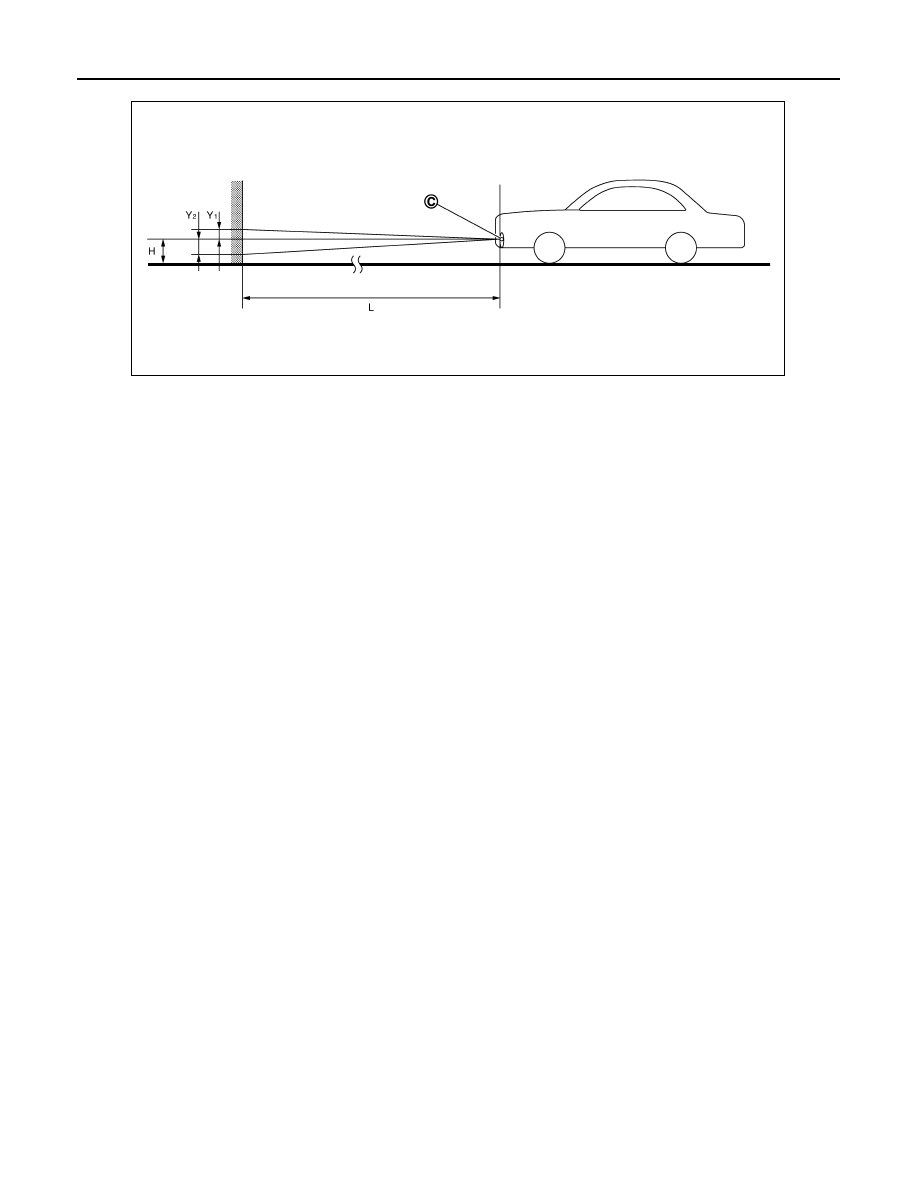

C.

Vertical center line of front fog
lamp

H.

Horizontal center line of front fog
lamp

L.

Distance from front fog lamp center to screen

Y

1

.

Aiming adjustment area
(Upper)

Y

2

.

Aiming adjustment area
(Lower)

Distance from headlamp center to screen (L)

: 10 m (32.8 ft)

JPLIA0303ZZ

FRONT COMBINATION LAMP

EXL-171

< ON-VEHICLE REPAIR >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

ON-VEHICLE REPAIR

FRONT COMBINATION LAMP

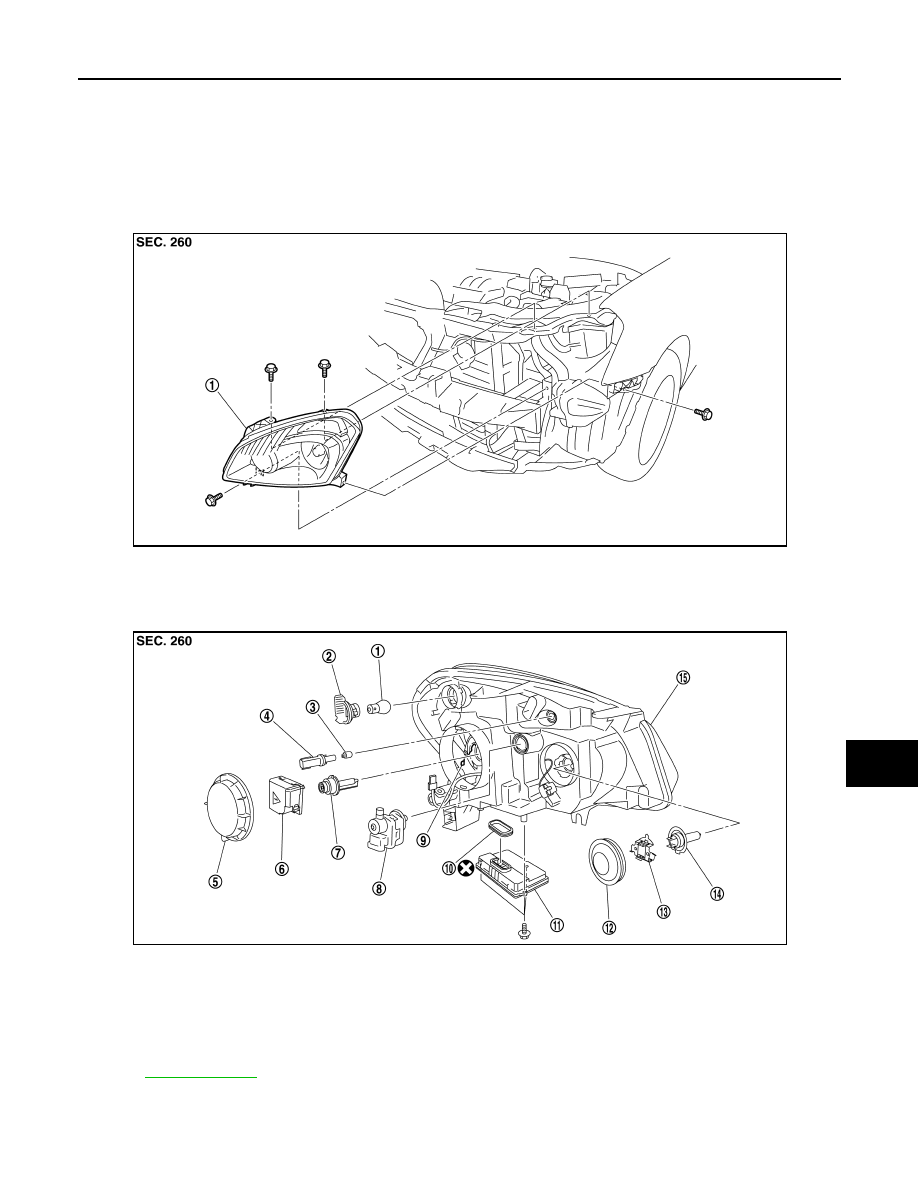

Exploded View

INFOID:0000000000955504

REMOVAL

DISASSEMBLY

Removal and Installation

INFOID:0000000000955505

1.

Front combination lamp

JPLIA0247ZZ

1.

Front turn signal lamp bulb

2.

Front turn signal lamp bulb socket

3.

Parking lamp bulb

4.

Parking lamp bulb socket

5.

Resin cap

6.

Xenon bulb socket

7.

Xenon bulb (LO)

8.

Headlamp aiming motor

9.

Retaining spring

10.

Seal packing

11. HID control unit

12. Back cover

13.

Retaining plate

14. Halogen bulb (HI)

15. Headlamp housing assembly

Refer to

GI-4, "Components"

 for symbols not described above.

JPLIA0248ZZ

EXL-172

< ON-VEHICLE REPAIR >

[XENON TYPE]

FRONT COMBINATION LAMP

REMOVAL

CAUTION:

Disconnect the battery negative terminal or the fuse.

1.

Remove front bumper fascia. Refer to

EXT-11, "Exploded View"

.

2.

Remove the headlamp mounting bolts.

3.

Pull out the headlamp assembly forward the vehicle.

4.

Disconnect the connector before removing the headlamp assembly.

INSTALLATION

Install in the reverse order of removal.
NOTE:
After installation, perform aiming adjustment. Refer to

EXL-165, "Description"

.

Replacement

INFOID:0000000000955506

CAUTION:

• Disconnect the battery negative terminal or the fuse.
• After installing the bulb, install the resin cap and the bulb socket securely for watertightness.

HEADLAMP BULB (LO)

1.

Remove the air duct (when replace a left). Keep a service area.

2.

Rotate the resin cap counterclockwise and unlock it.

3.

Rotate the bulb socket counterclockwise and unlock it.

4.

Remove the retaining spring lock. Remove the bulb from the
headlamp.

CAUTION:

Never break the xenon bulb ceramic tube when replacing
the bulb.

HEADLAMP BULB (HI)

1.

Remove the air duct (when replace a left). Keep a service area.

2.

Rotate the back cover counterclockwise and unlock it.

3.

Rotate the retaining plate counterclockwise and unlock it.

4.

Remove the bulb from the headlamp.

PARKING LAMP BULB

1.

Rotate the bulb socket clockwise and unlock it.

2.

Remove the bulb from the bulb socket.

FRONT TURN SIGNAL LAMP BULB

1.

Rotate the bulb socket counterclockwise and unlock it.

2.

Remove the bulb from the bulb socket.

Disassembly and Assembly

INFOID:0000000000955507

DISASSEMBLY

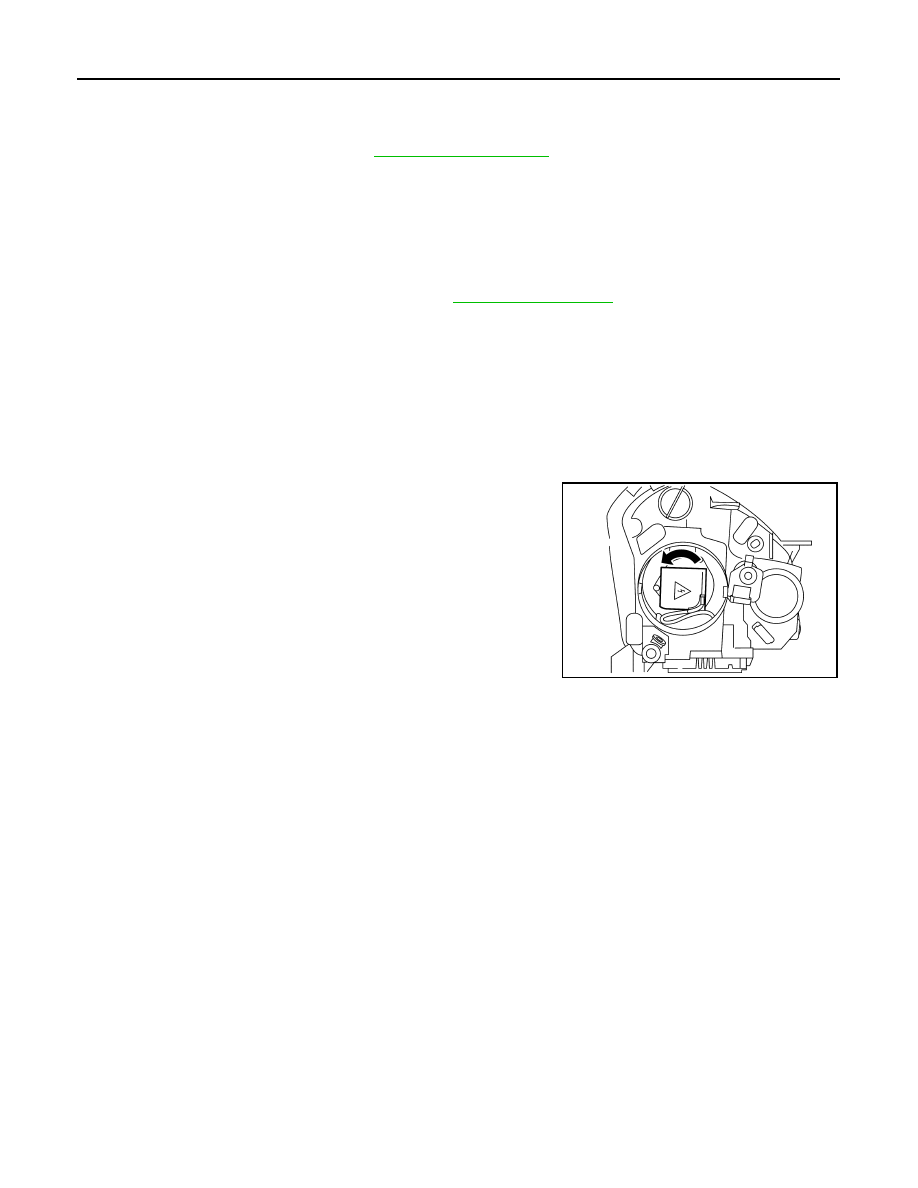

1.

Rotate the resin cap counterclockwise and unlock it.

2.

Rotate the terminal which connect to a socket.

3.

Rotate the xenon bulb socket counterclockwise and unlock it.

4.

Remove the retaining spring lock. Remove the xenon bulb.

5.

Remove the HID control unit installation screw.

6.

Remove the screw. Disconnect the connector from HID control unit.

JPLIA0249ZZ
