IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

EXL-137

< ECU DIAGNOSIS >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE
ROOM)

Reference Value

INFOID:0000000001098957

VALUES ON THE DIAGNOSIS TOOL

Monitor Item

Condition

Value/Status

MOTOR FAN REQ

Engine idle speed

Changes depending on engine
coolant temperature, air condition-
er operation status, vehicle speed,
etc.

1 - 3

AC COMP REQ

Engine running

A/C switch OFF

Off

A/C switch ON
(Compressor is operating)

On

TAIL&CLR REQ

Lighting switch OFF

Off

Lighting switch 1ST, 2ND or AUTO (Light is illuminated)

On

HL LO REQ

Lighting switch OFF

Off

Lighting switch 2ND or AUTO (Light is illuminated)

On

HL HI REQ

Lighting switch OFF

Off

Lighting switch HI (Light is illuminated)

On

FR FOG REQ

Lighting switch 2ND or
AUTO (Light is illuminated)

Front fog lamp switch OFF

Off

Front fog lamp switch ON

On

HL WASHER REQ

Ignition switch ON, and low
beam headlamp is ON

Front washer switch OFF

Off

Front washer switch ON
(When headlamp washer is operat-
ing)

On

FR WIP REQ

Ignition switch ON

Front wiper switch OFF

STOP

Front wiper switch INT

1LOW

Front wiper switch LO

Low

Front wiper switch HI

Hi

WIP AUTO STOP

Ignition switch ON

Front wiper stop position

STOP P

Any position other than front wiper
stop position

ACT P

WIP PROT

Ignition switch ON

Front wiper operates normally

Off

Front wiper stops at fail-safe oper-
ation

BLOCK

ST RLY REQ
NOTE:
Vehicle without Intelligent Key system indi-
cates only “ON”, and it does not change.

When Intelligent Key is outside the vehicle, and the push switch
is pushed

Off

When Intelligent Key is inside the vehicle, and the push switch is
pushed

On

IGN RLY

Ignition switch OFF or ACC

Off

Ignition switch ON

On

RR DEF REQ

Ignition switch ON

Rear window defogger switch OFF

Off

Rear window defogger switch ON
(Rear window defogger is operat-
ing)

On

OIL P SW

Ignition switch OFF, ACC or engine running

Open

Ignition switch ON

Close

EXL-138

< ECU DIAGNOSIS >

[XENON TYPE]

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

REV SW

Except selector lever R position

Off

Selector lever R position

On

HOOD SW
NOTE:
This item is monitored only on the vehicle
with the Vehicle Security (Theft Warning)
system.

Close the hood

Off

Open the hood

On

THFT HRN REQ
NOTE:
This item is monitored only on the vehicle
with the Vehicle Security (Theft Warning)
system.

Not operation

Off

Horn is activated with Vehicle Security (Theft Warning) system.

On

HORN CHIRP

NOTE:
This item is indicated, but not monitored.

Off

IGN ON SW

Ignition switch OFF or ACC

Off

Ignition switch ON

On

Monitor Item

Condition

Value/Status

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

EXL-139

< ECU DIAGNOSIS >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

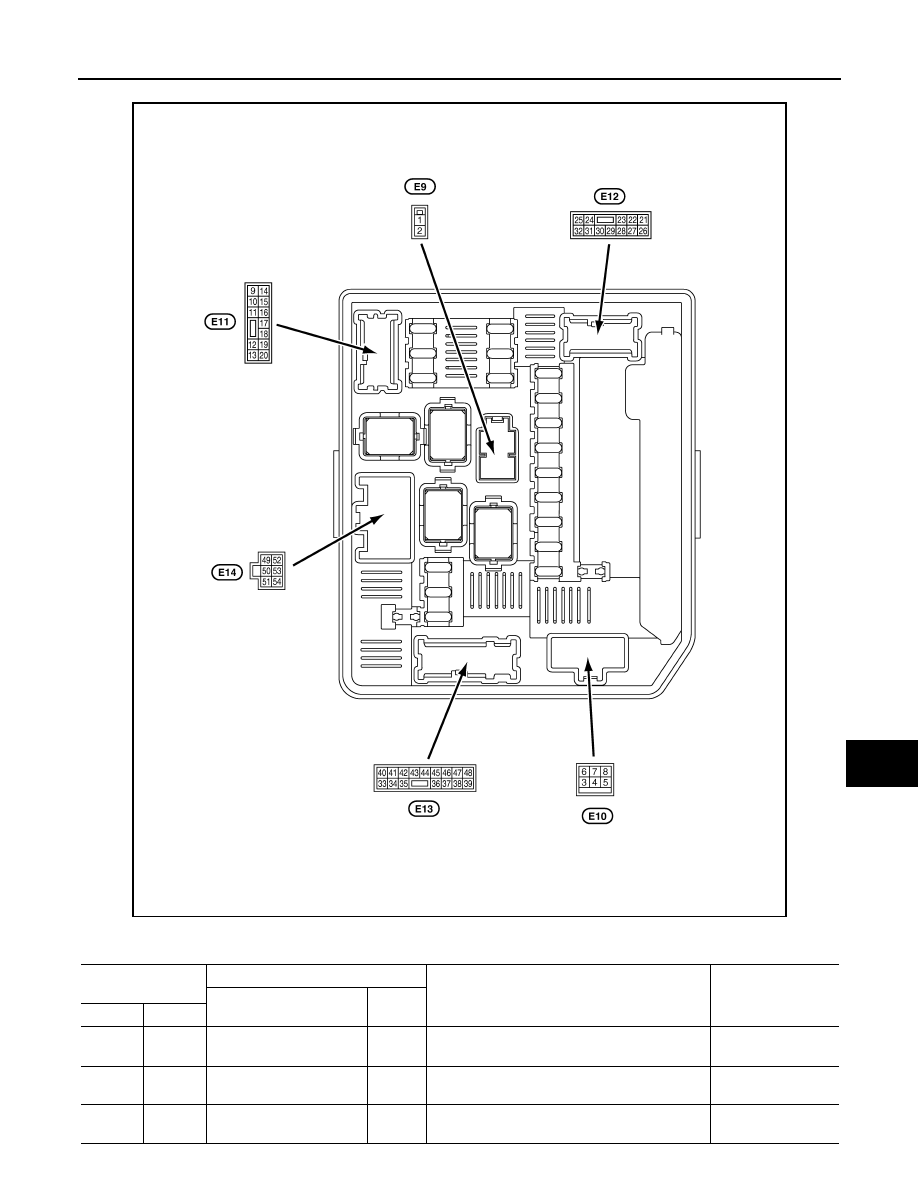

TERMINAL LAYOUT

PHYSICAL VALUES

JPMIA0236GB

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

+

−

1

(G)

Ground

Battery power supply

Input

Ignition switch OFF

Battery voltage

2

(R)

Ground

Battery power supply

Input

Ignition switch OFF

Battery voltage

5

(B)

Ground

Ground

—

Ignition switch ON

0 V

EXL-140

< ECU DIAGNOSIS >

[XENON TYPE]

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

6

(B)

Ground

Ground

—

Ignition switch ON

0 V

7

(Y)

Ground

Front wiper LO

Output

Ignition switch ON

Front wiper switch OFF

0 V

Front wiper switch LO

Battery voltage

8

(Y/R)

Ground

Front wiper HI

Output

Ignition switch ON

Front wiper switch OFF

0 V

Front wiper switch HI

Battery voltage

9

(G)

Ground

ECM relay power supply

Output

Ignition switch ON

Battery voltage

10*

1

(L/R)

Ground

ECM relay power supply

Output

Ignition switch ON

Battery voltage

11*

2

(O)

Ground

PTC heater 1 relay control

Output

PTC heater OFF

Battery voltage

PTC heater ON

0 V

12*

2

(G/Y)

Ground

PTC heater 2 relay control

Output

PTC heater OFF

Battery voltage

PTC heater ON

0 V

14

(R/B)

Ground

Ignition power supply

Output

Ignition switch OFF or ACC

0 V

Ignition switch ON

Battery voltage

15

(Y/L)*

1

(B/R)*

2

Ground

ECM relay control

Input

• Engine running
• Ignition switch OFF

(For a few seconds after turning ignition switch
OFF)

0 - 1.0 V*

1

0.6 V*

2

Ignition switch OFF or ACC
(More than a few seconds after turning ignition
switch OFF)

Battery voltage

16*

3

(Y/R)

Ground

Ignition relay power supply

Output

Ignition switch ON

Battery voltage

Ignition switch OFF or ACC

0 V

19*

1

(R/O)

Ground

Ignition relay power supply

Output

Ignition switch ON

Battery voltage

Ignition switch OFF or ACC

0 V

21*

4

(GR)

Ground

Hood switch

Input

Close the hood

Battery voltage

Open the hood

0 V

22

(Y/G)

Ground

Reverse switch

Input

Ignition switch OFF or ACC

0 V

Ignition switch ON

• Selector lever “R”

(Except M/T models)

• M/T control lever “R”

(M/T models)

Battery voltage

• Selector lever in any po-

sition other than “R” (Ex-
cept M/T models)

• M/T control lever in any

position other than “R”
(M/T models)

0 V

23

(Y/B)

Ground

A/C relay power supply

Output

Engine stopped

0 V

Engine running

A/C switch OFF

0 V

A/C switch ON
(A/C compressor is oper-
ating)

Battery voltage

24

(R/Y)

Ground

Headlamp LO (RH)

Output

Lighting switch OFF

0 V

Lighting switch 2ND

Battery voltage

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

+

−
