STOP LAMP

EXL-105

< COMPONENT DIAGNOSIS >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

STOP LAMP

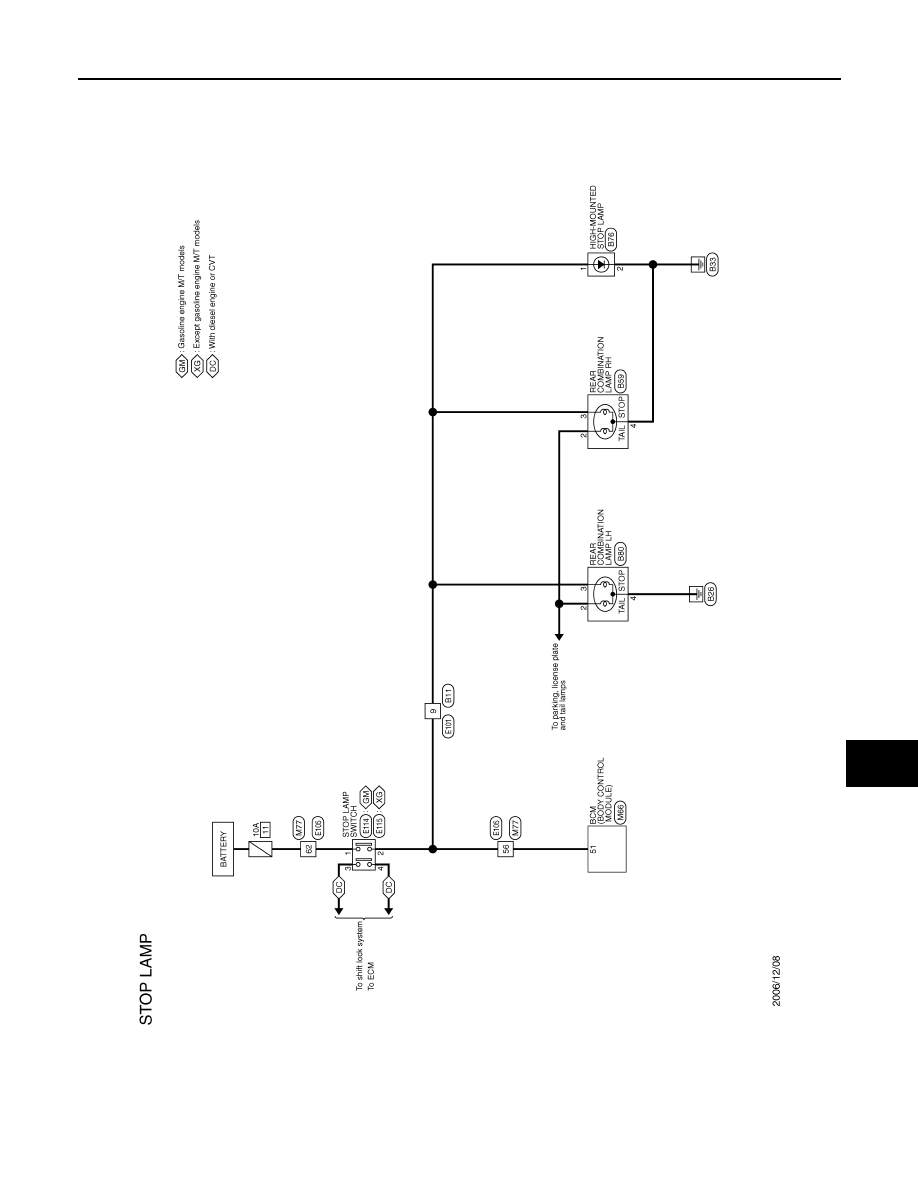

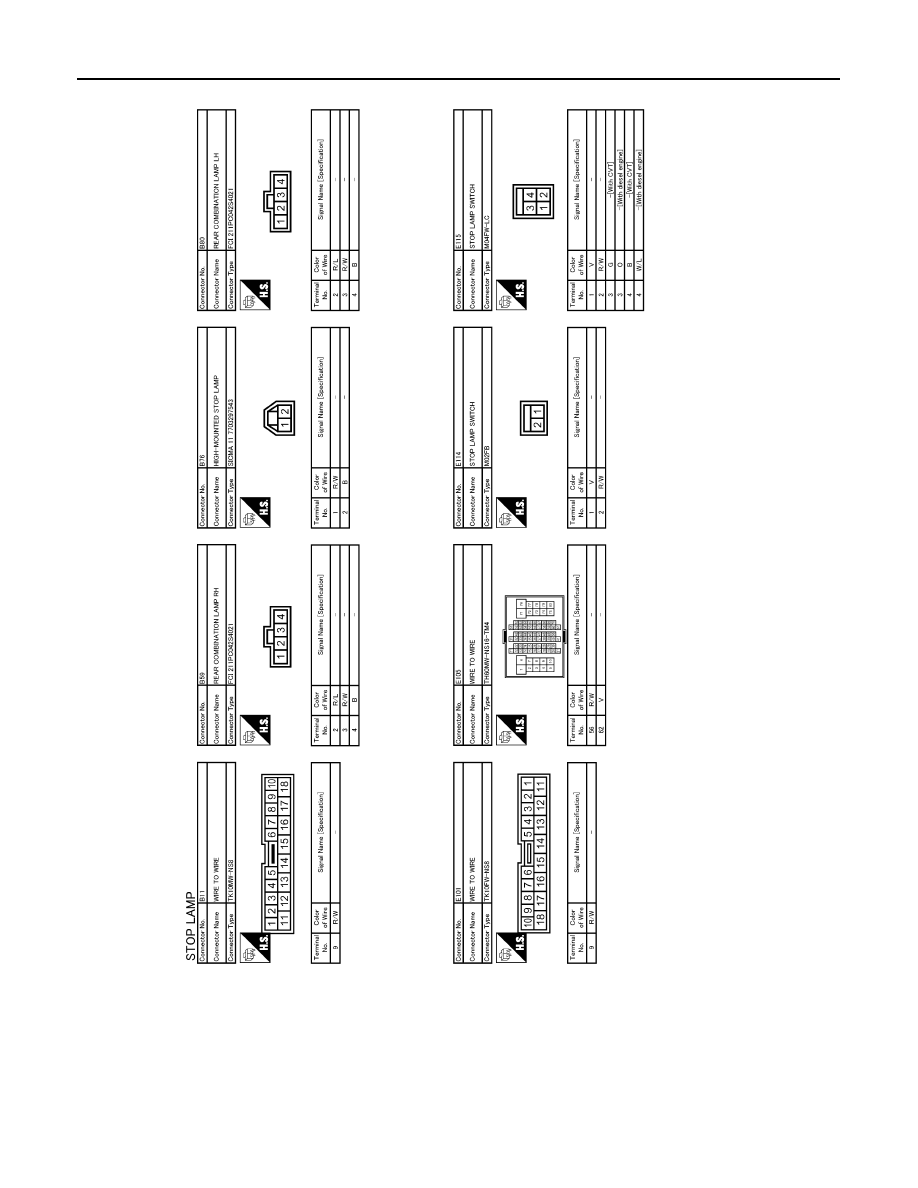

Wiring Diagram - STOP LAMP -

INFOID:0000000000977448

JCLWA0366GB

EXL-106

< COMPONENT DIAGNOSIS >

[XENON TYPE]

STOP LAMP

JCLWA0367GB

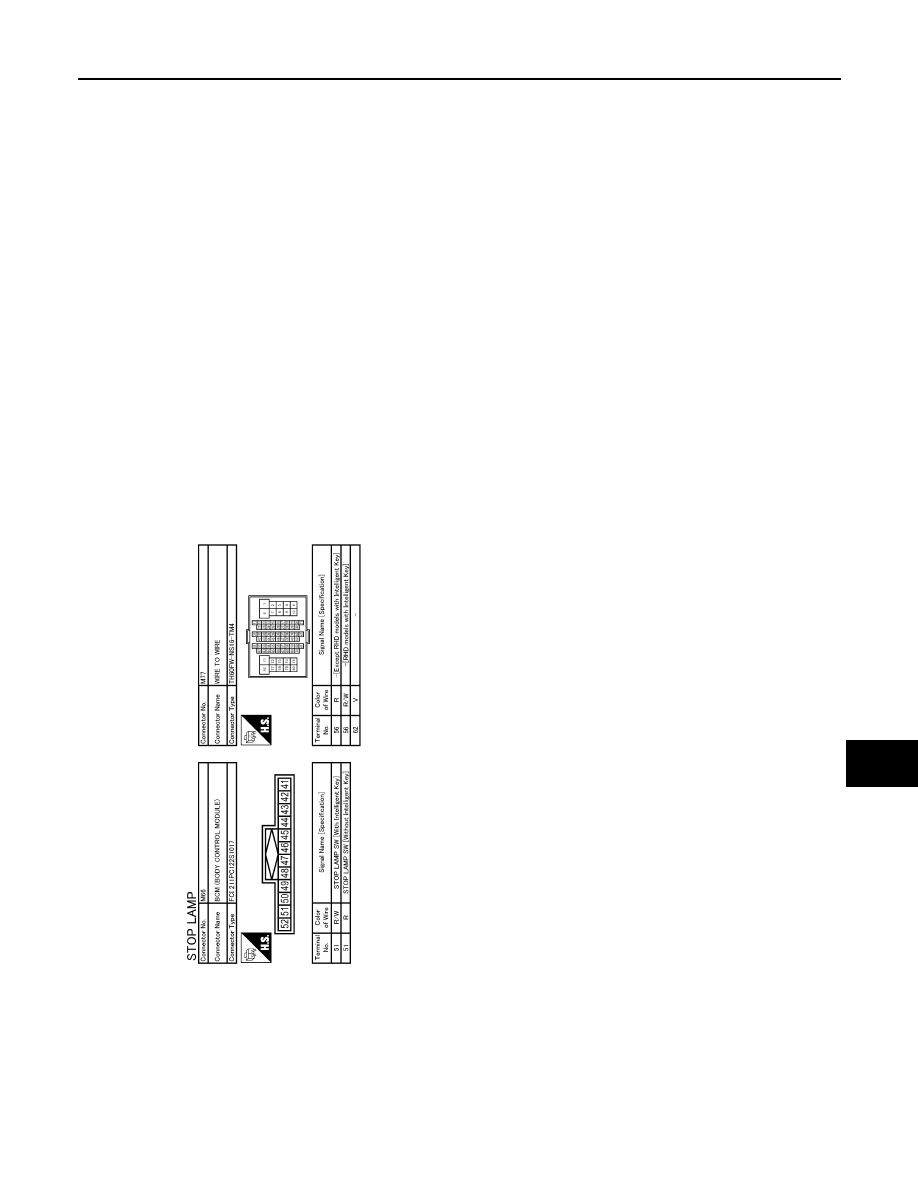

STOP LAMP

EXL-107

< COMPONENT DIAGNOSIS >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

JCLWA0368GB

EXL-108

< COMPONENT DIAGNOSIS >

[XENON TYPE]

BACK-UP LAMP

BACK-UP LAMP

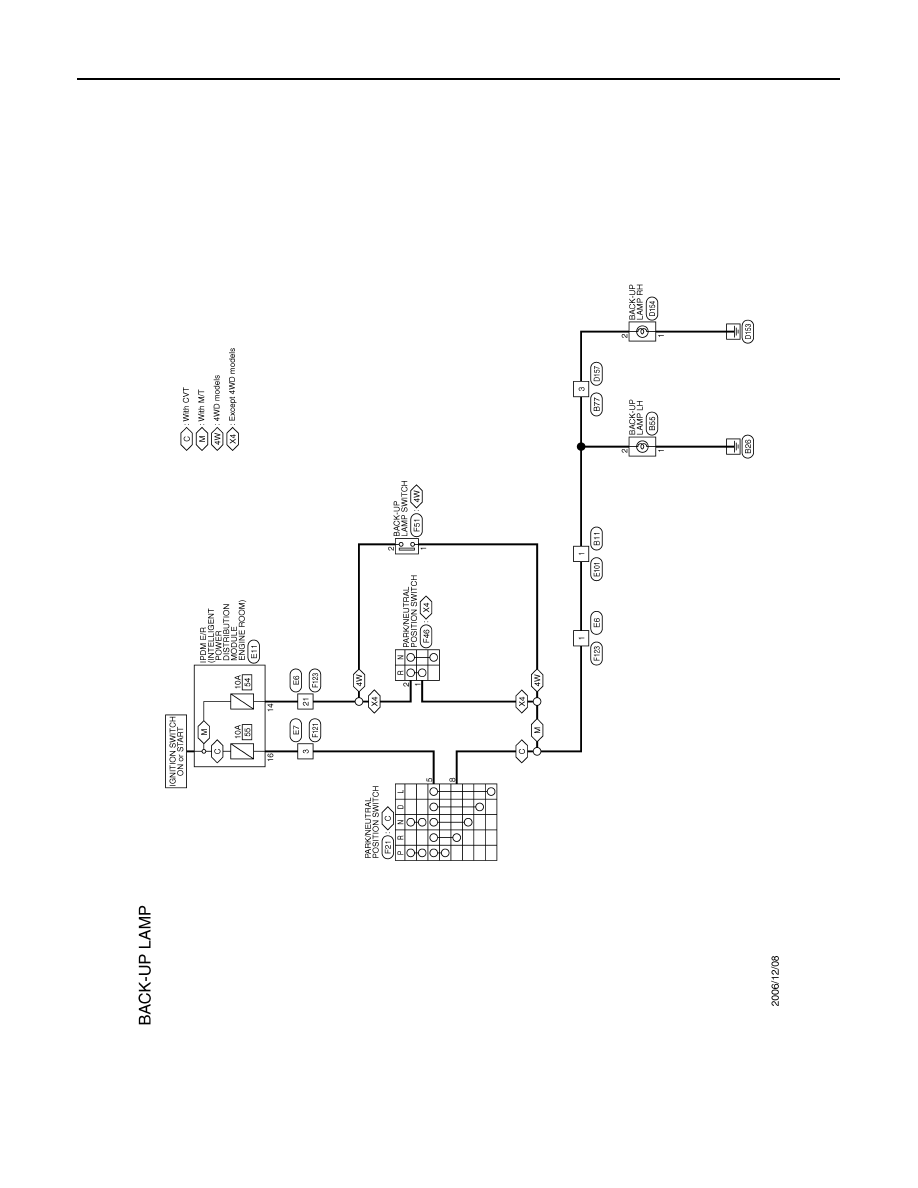

Wiring Diagram - BACK-UP LAMP -

INFOID:0000000000977449

JCLWA0369GB
