FRONT FOG LAMP SYSTEM

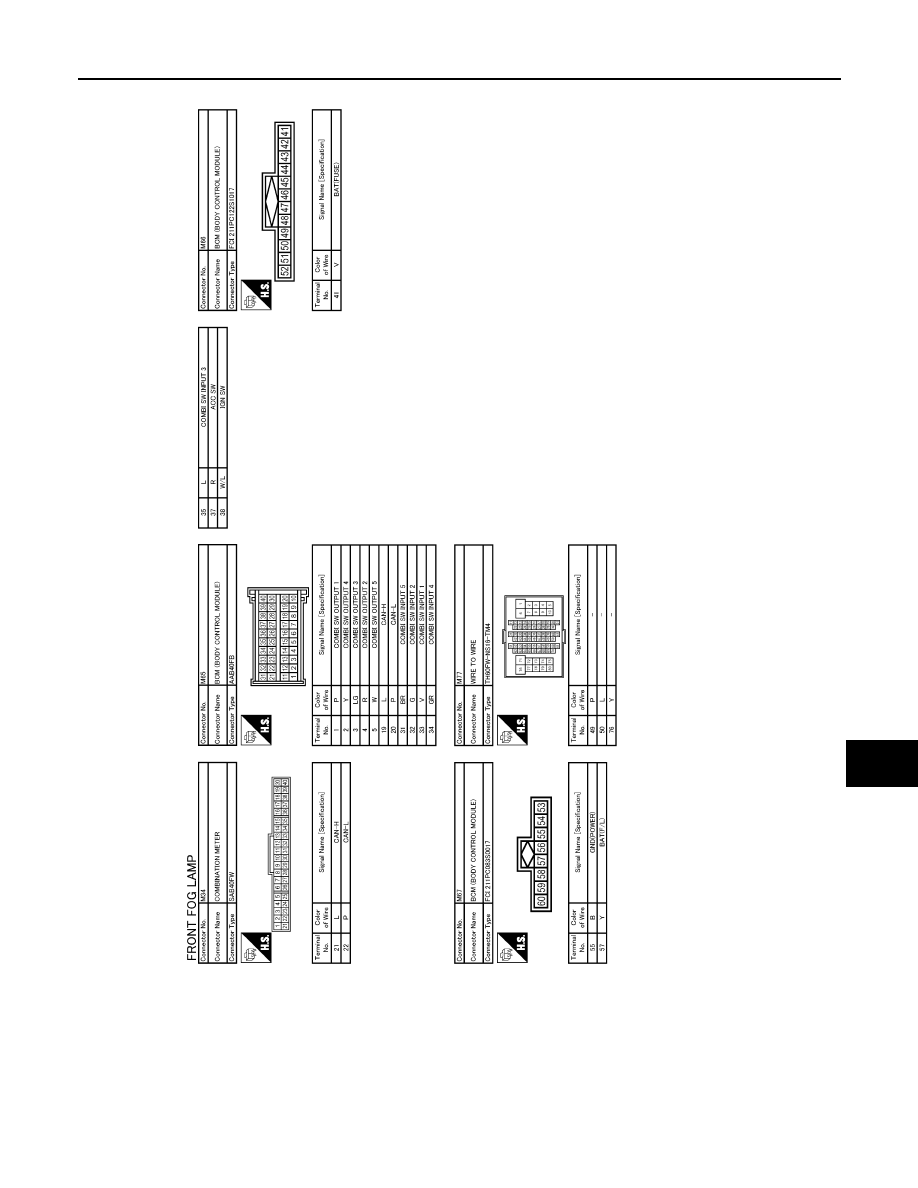

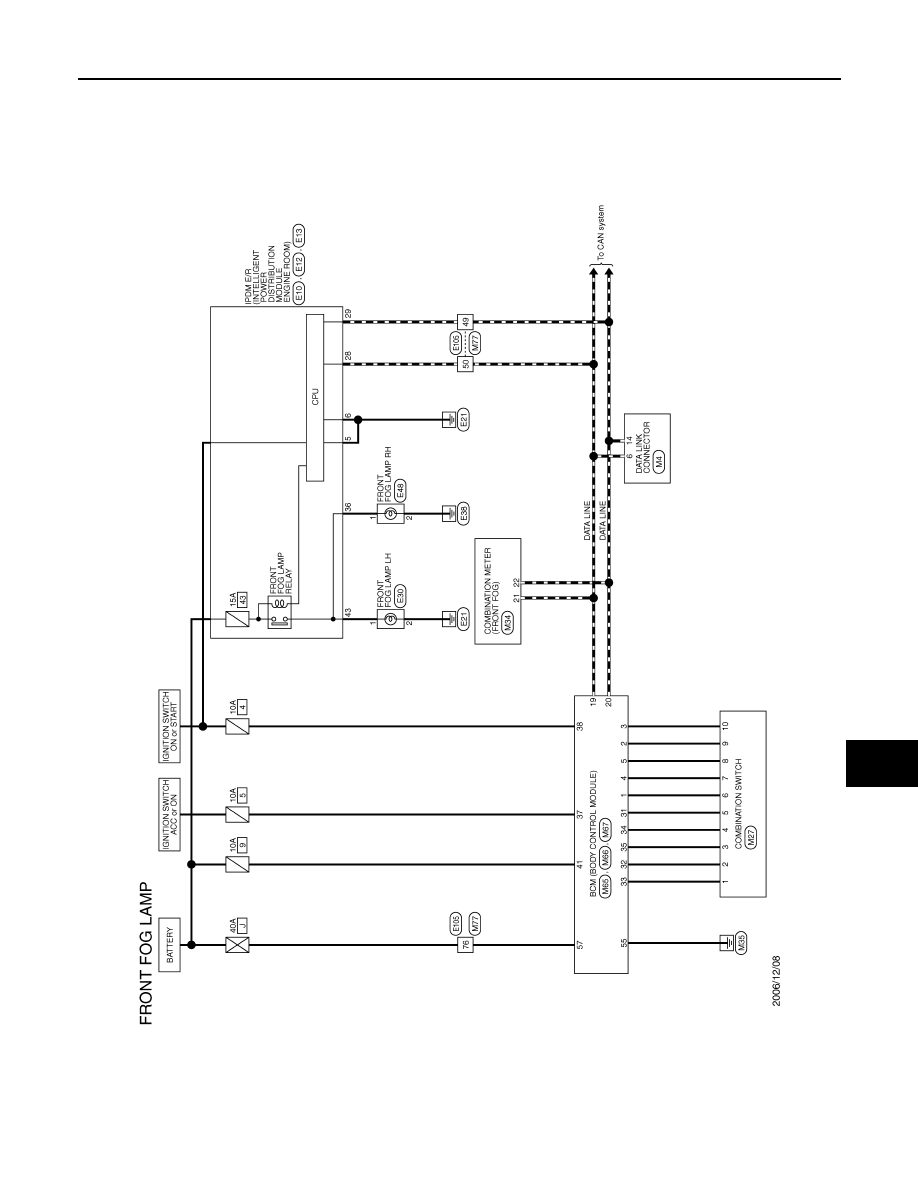

Wiring Diagram - FRONT FOG LAMP -

INFOID:0000000000977445

JCLWA0356GB

EXL-94

< COMPONENT DIAGNOSIS >

[XENON TYPE]

FRONT FOG LAMP SYSTEM

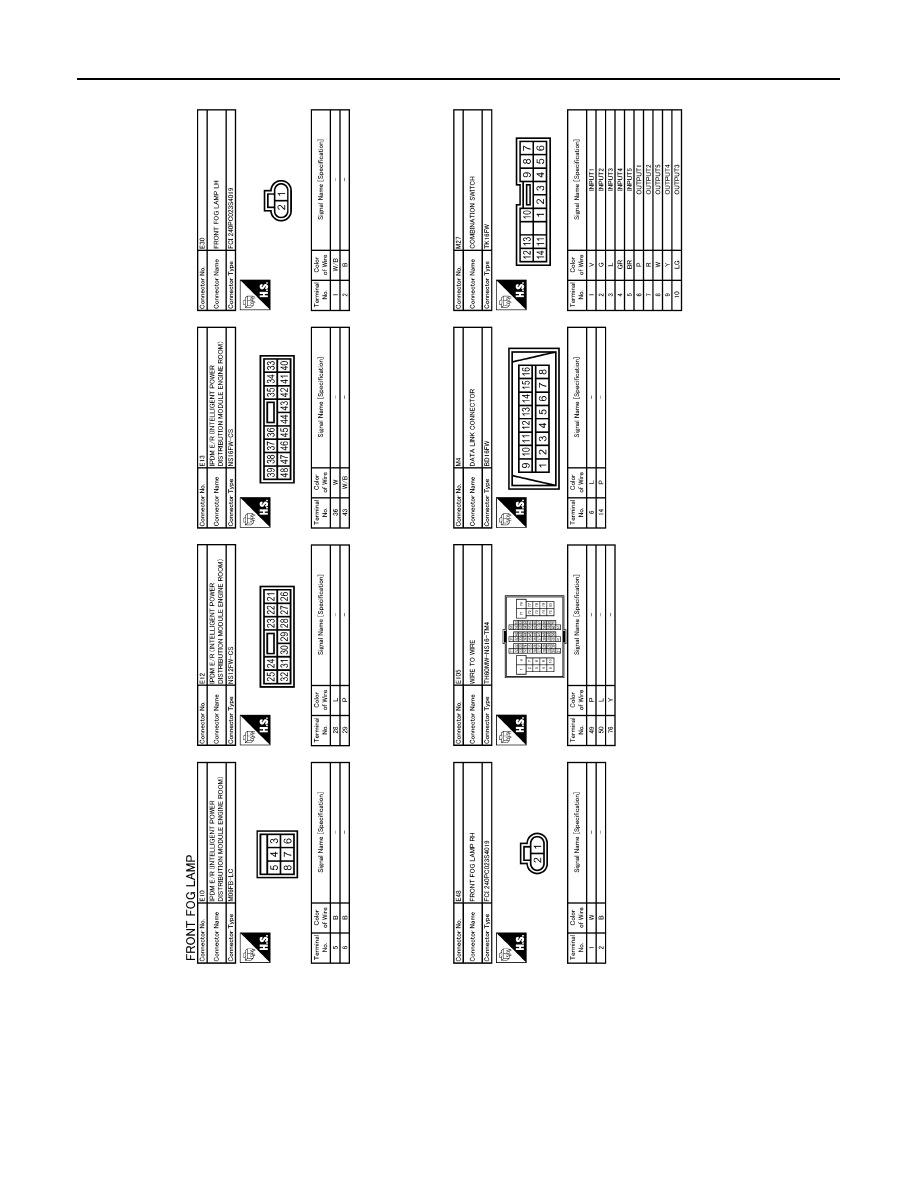

JCLWA0357GB

FRONT FOG LAMP SYSTEM

EXL-95

< COMPONENT DIAGNOSIS >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

JCLWA0358GB

EXL-96

< COMPONENT DIAGNOSIS >

[XENON TYPE]

TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM

TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM

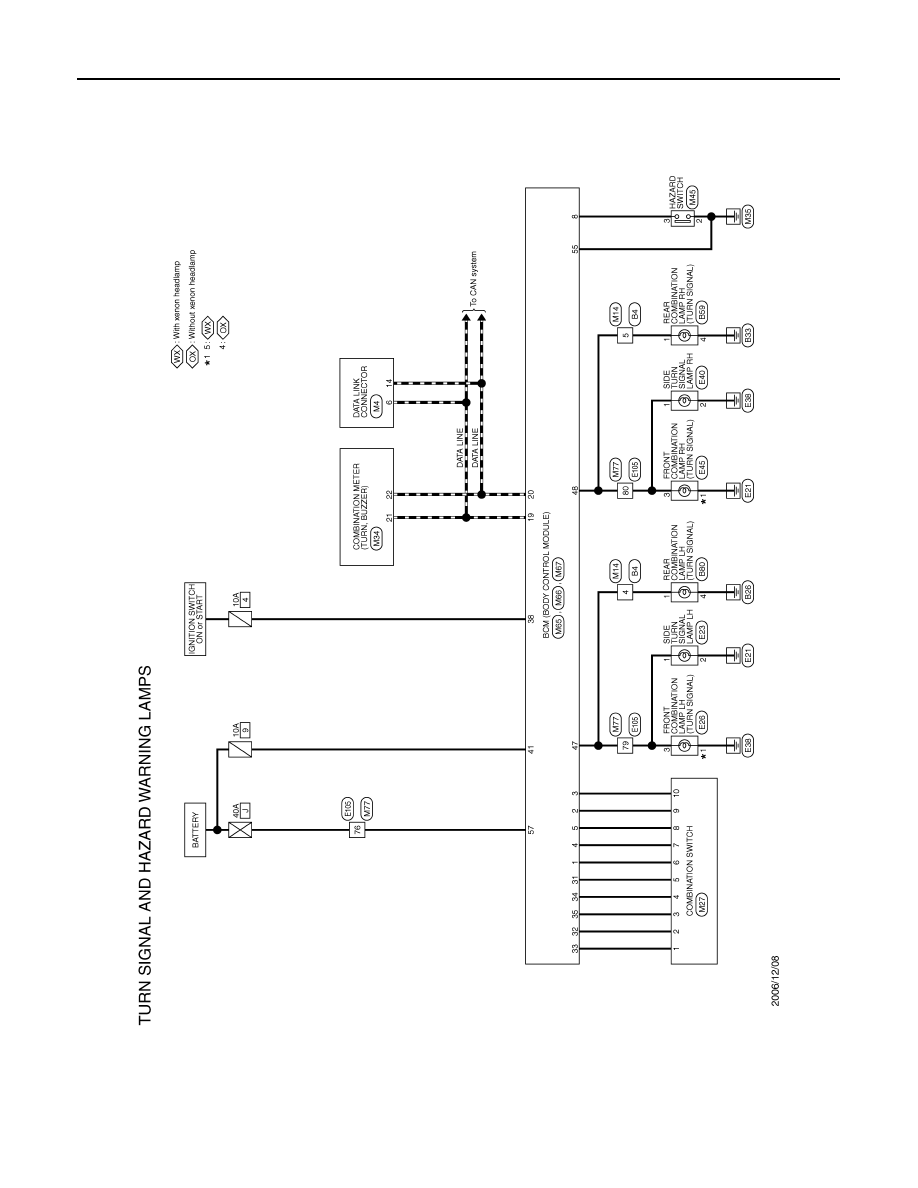

Wiring Diagram - TURN AND HAZARD WARNING LAMPS -

INFOID:0000000000977446

JCLWA0362GB
