ELECTRIC IGNITION SYSTEM

EC-51

< FUNCTION DIAGNOSIS >

[HR16DE (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

PBIB2942E

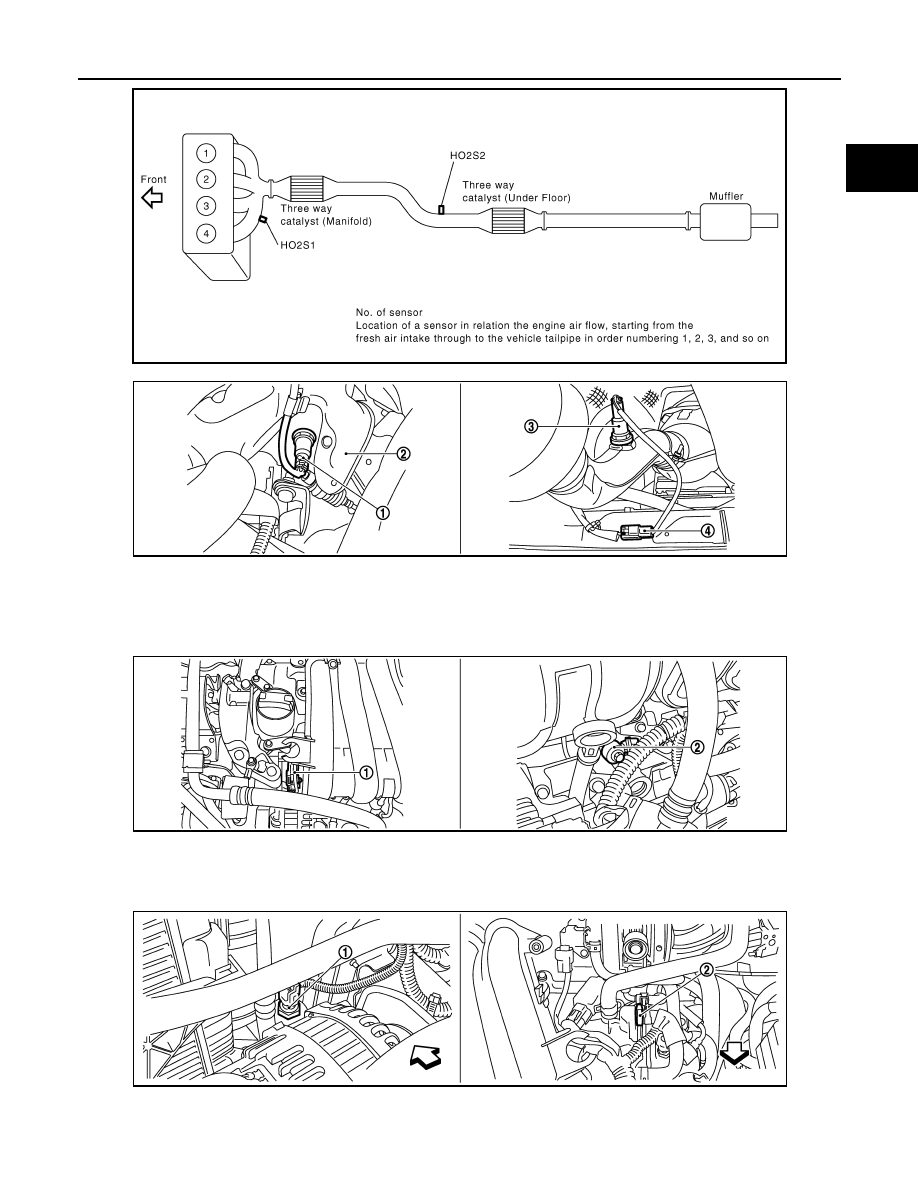

1.

Heated oxygen sensor 1

2.

Exhaust manifold cover

3.

Heated oxygen sensor 2

4.

Heated oxygen sensor 2 harness
connector

1.

Intake valve timing control solenoid
valve

2.

Knock sensor

1.

Refrigerant pressure sensor

2.

PCV valve

Vehicle front

JMBIA0406ZZ

JMBIA0404ZZ

JMBIA0405ZZ

EC-52

< FUNCTION DIAGNOSIS >

[HR16DE (WITH EURO-OBD)]

ELECTRIC IGNITION SYSTEM

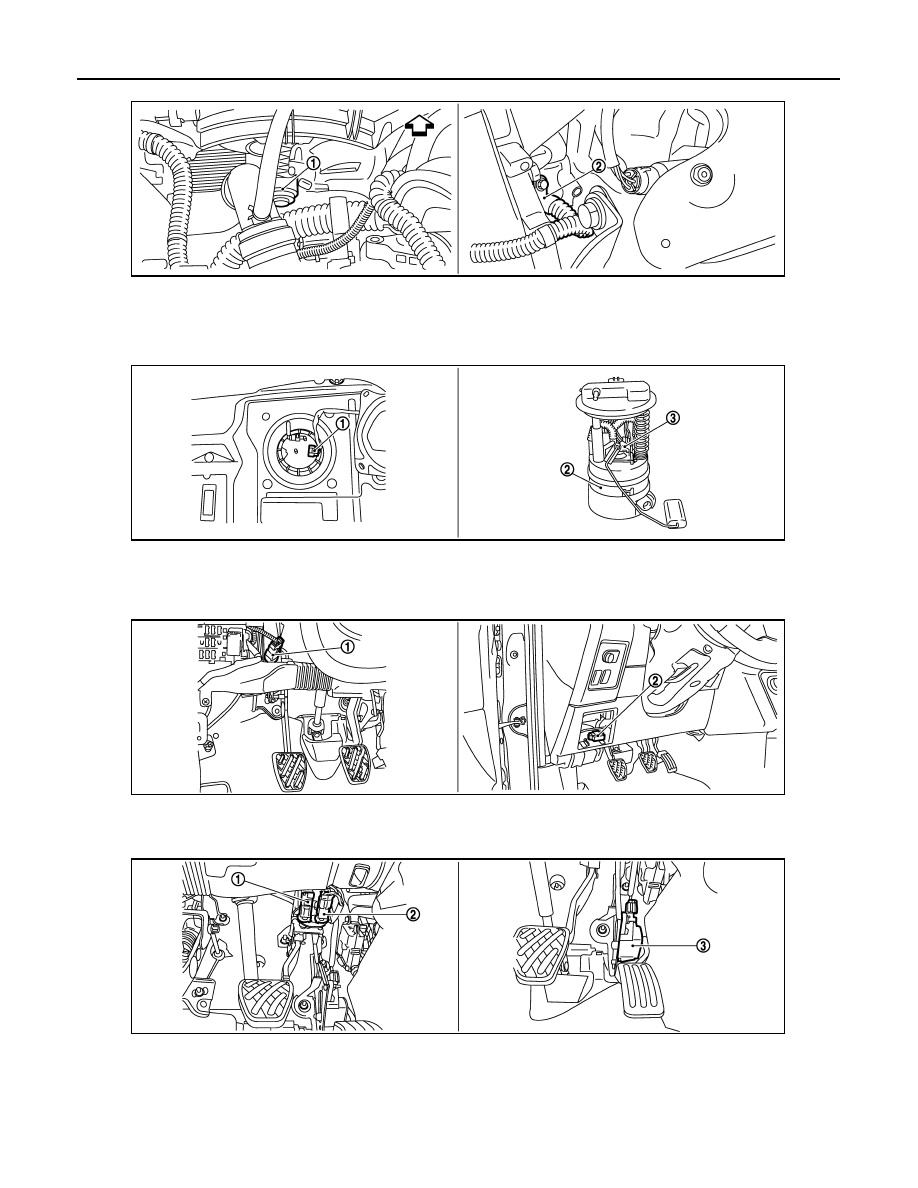

1.

Cooling fan motor

2.

Crankshaft position sensor (POS)

Vehicle front

1.

Fuel level sensor unit and fuel pump
harness connector

2.

Fuel level sensor unit and fuel pump  3.

Fuel pressure regulator

1.

ASCD clutch switch

2.

Data link connector

1.

Stop lamp switch

2.

ASCD brake pedal

3.

Accelerator pedal position sensor

JMBIA0407ZZ

JMBIA0346ZZ

JMBIA0347ZZ

JMBIA0348ZZ

ELECTRIC IGNITION SYSTEM

EC-53

< FUNCTION DIAGNOSIS >

[HR16DE (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

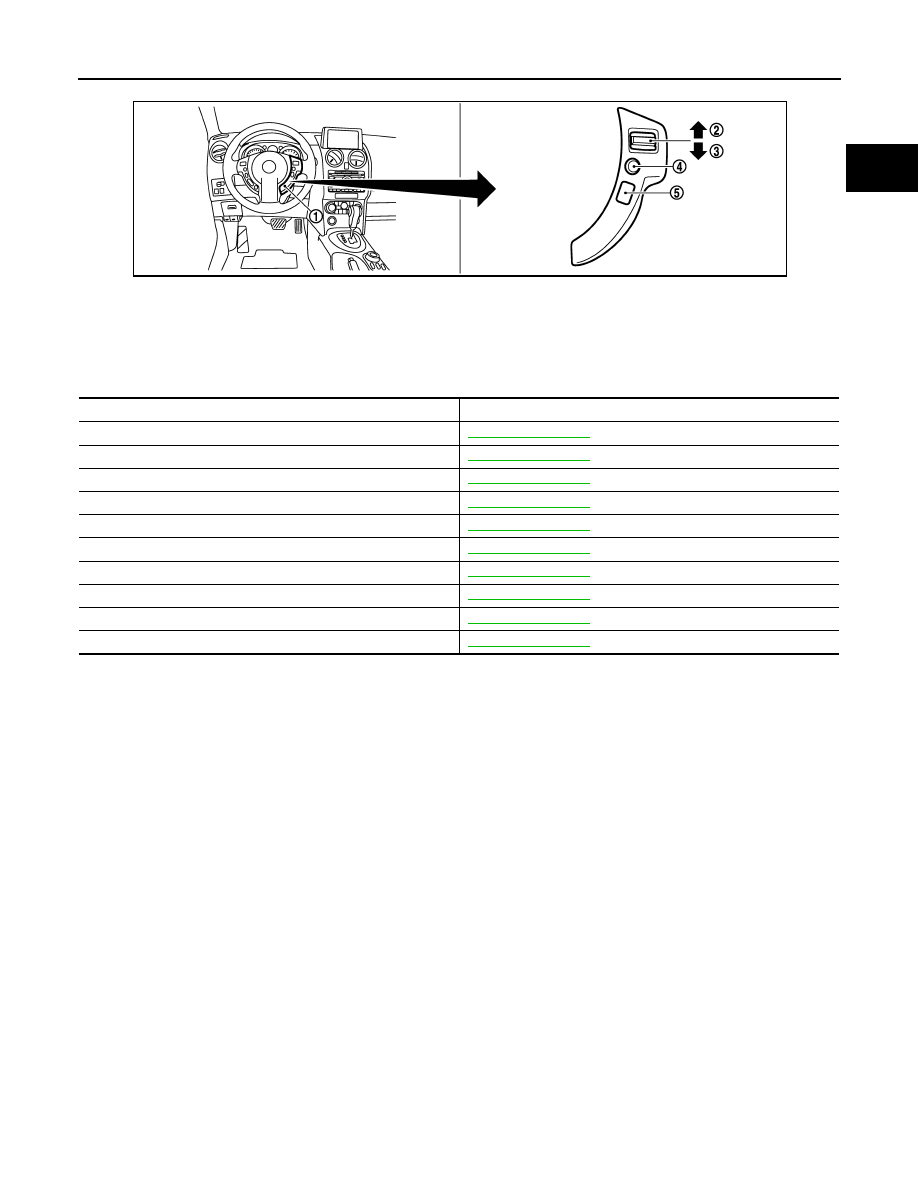

Component Description

INFOID:0000000001056140

1.

ASCD steering switch

2.

CANSEL switch

3.

RESUME/ACCELERATE switch

4.

SET/COAST switch

5.

MAIN switch

JMBIA0349ZZ

Component

Reference

Accelerator pedal position sensor

EC-280, "Description"

Camshaft position sensor (PHASE)

EC-197, "Description"

Crankshaft position sensor (POS)

EC-193, "Description"

Engine coolant temperature sensor

EC-135, "Description"

Ignition signal

EC-309, "Description"

Knock sensor

EC-191, "Description"

Mass air flow sensor

EC-127, "Description"

Park/neutral position (PNP) switch

EC-274, "Description"

Throttle position sensor

EC-138, "Description"

Vehicle speed sensor

EC-209, "Description"

EC-54

< FUNCTION DIAGNOSIS >

[HR16DE (WITH EURO-OBD)]

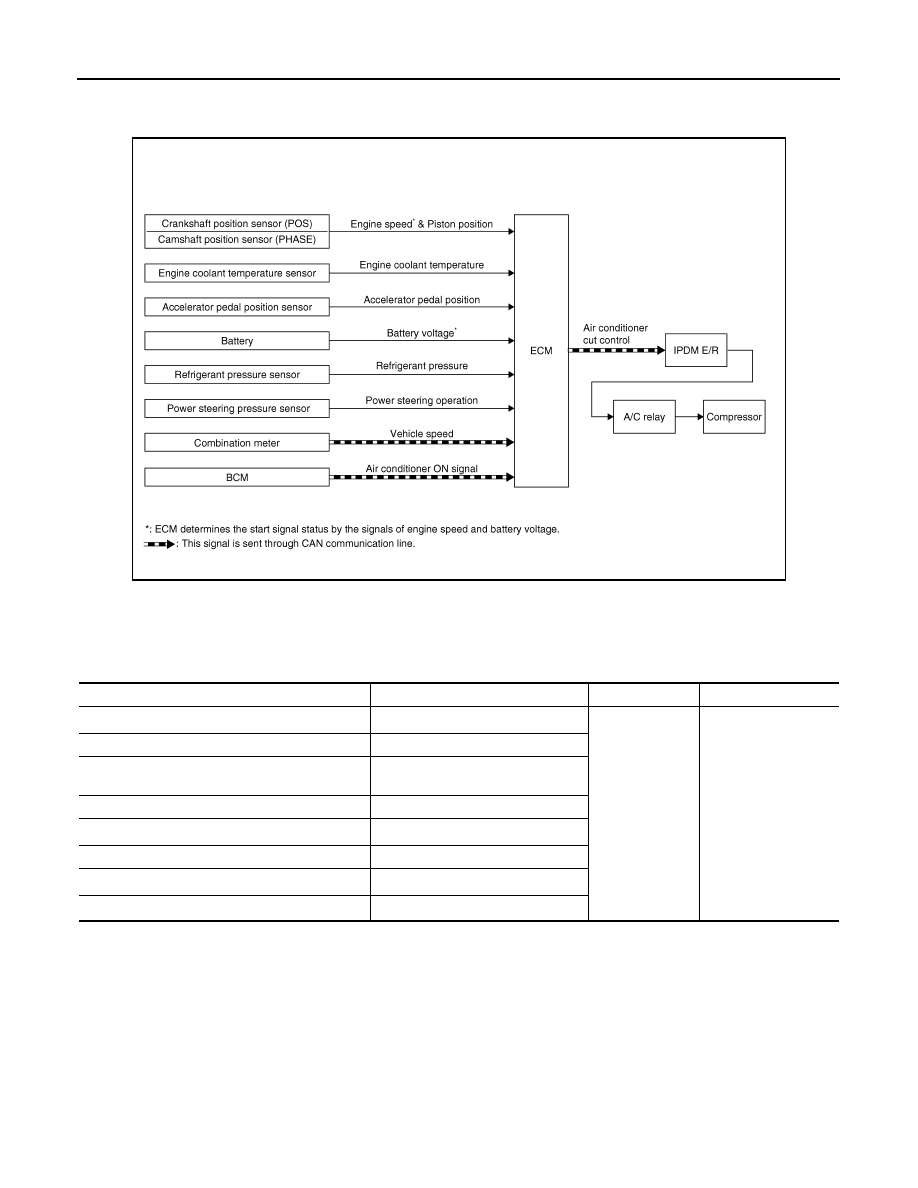

AIR CONDITIONING CUT CONTROL

AIR CONDITIONING CUT CONTROL

System Diagram

INFOID:0000000001056141

System Description

INFOID:0000000001056142

INPUT/OUTPUT SIGNAL CHART

*1: This signal is sent to the ECM through CAN communication line.

*2: ECM determines the start signal status by the signals of engine speed and battery voltage.

SYSTEM DESCRIPTION

This system improves engine operation when the air conditioner is used.
Under the following conditions, the air conditioner is turned off.
• When the accelerator pedal is fully depressed.
• When cranking the engine.
• At high engine speeds.
• When the engine coolant temperature becomes excessively high.
• When operating power steering during low engine speed or low vehicle speed.
• When engine speed is excessively low.
• When refrigerant pressure is excessively low or high.

JMBIA0175GB

Sensor

Input Signal to ECM

ECM function

Actuator

BCM*

1

Air conditioner ON signal

Air conditioner
cut control

IPDM E/R

↓

Air conditioner relay

↓

Compressor

Accelerator pedal position sensor

Accelerator pedal position

Crankshaft position sensor (POS)
Camshaft position sensor (PHASE)

Engine speed*

2

Engine coolant temperature sensor

Engine coolant temperature

Battery

Battery voltage*

2

Refrigerant pressure sensor

Refrigerant pressure

EPS control unit*

1

Power steering operation

Combination meter*

1

Vehicle speed
