AUTO ANTI-DAZZLING INSIDE MIRROR SYSTEM

AUTO ANTI-DAZZLING INSIDE MIRROR SYSTEM

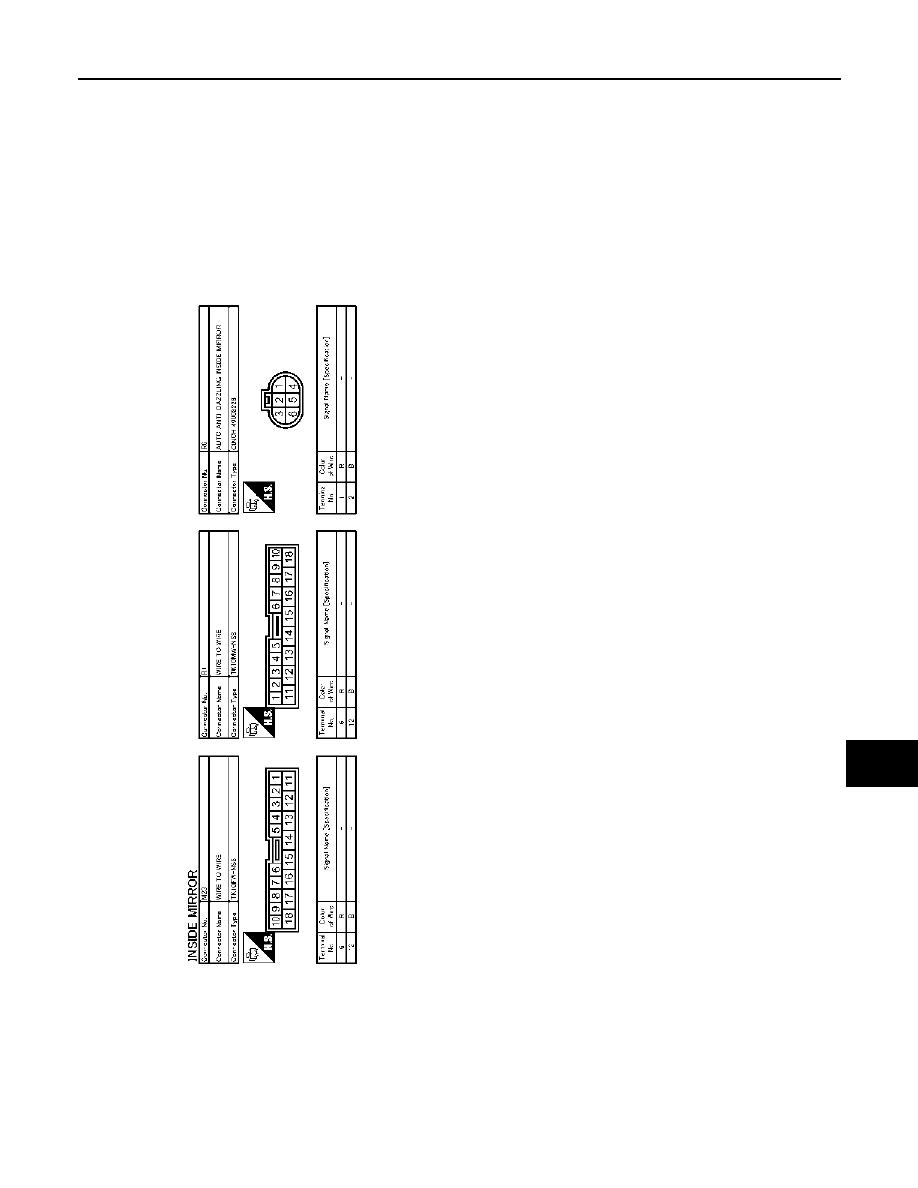

Wiring Diagram - INSIDE MIRROR SYSTEM -

INFOID:0000000000951536

JCLWA0331GB

AUTO ANTI-DAZZLING INSIDE MIRROR SYSTEM

MIR-23

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

JCLWA0332GB

MIR-24

< SYMPTOM DIAGNOSIS >

NONE OF THE DOOR MIRROR CAN BE OPERATED USING ANY SWITCH

SYMPTOM DIAGNOSIS

NONE OF THE DOOR MIRROR CAN BE OPERATED USING ANY SWITCH

Diagnosis Procedure

INFOID:0000000000951537

1.

CHECK DOOR MIRROR REMOTE CONTROL SWITCH (MIRROR SWITCH

･

CHANGEOVER SWITCH)

Check door mirror remote control switch (mirror switch

･

changeover switch).

Refer to

MIR-6, "MIRROR SWITCH/CHANGEOVER SWITCH : Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

CHECK DOOR MIRROR REMOTE CONTROL SWITCH (OPEN/CLOSE SWITCH)

Check door mirror remote control switch (open/close switch).
Refer to

MIR-10, "OPEN/CLOSE SWITCH : Component Function Check"

.

Is the inspection result normal?

YES

>> Refer to

GI-39, "Intermittent Incident"

.

NO

>> Repair or replace the malfunctioning parts.

DOOR MIRROR DOES NOT OPERATE

MIR-25

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

DOOR MIRROR DOES NOT OPERATE

Diagnosis Procedure

INFOID:0000000000951538

1.

CHECK DOOR MIRROR REMOTE CONTROL SWITCH (MIRROR SWITCH

･

CHANGEOVER SWITCH)

Check door mirror remote control switch (mirror switch

･

changeover switch).

Refer to

MIR-6, "MIRROR SWITCH/CHANGEOVER SWITCH : Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

CHECK DOOR MIRROR MOTOR

Check the door mirror motor operation.
Refer to

MIR-12, "Component Function Check"

.

Is the inspection result normal?

YES

>> Refer to

GI-39, "Intermittent Incident"

.

NO

>> Repair or replace the malfunctioning parts.
