Nissan Qashqai (2007-2010). Manual - part 1253

SEC-212

< ECU DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

BCM (BODY CONTROL MODULE)

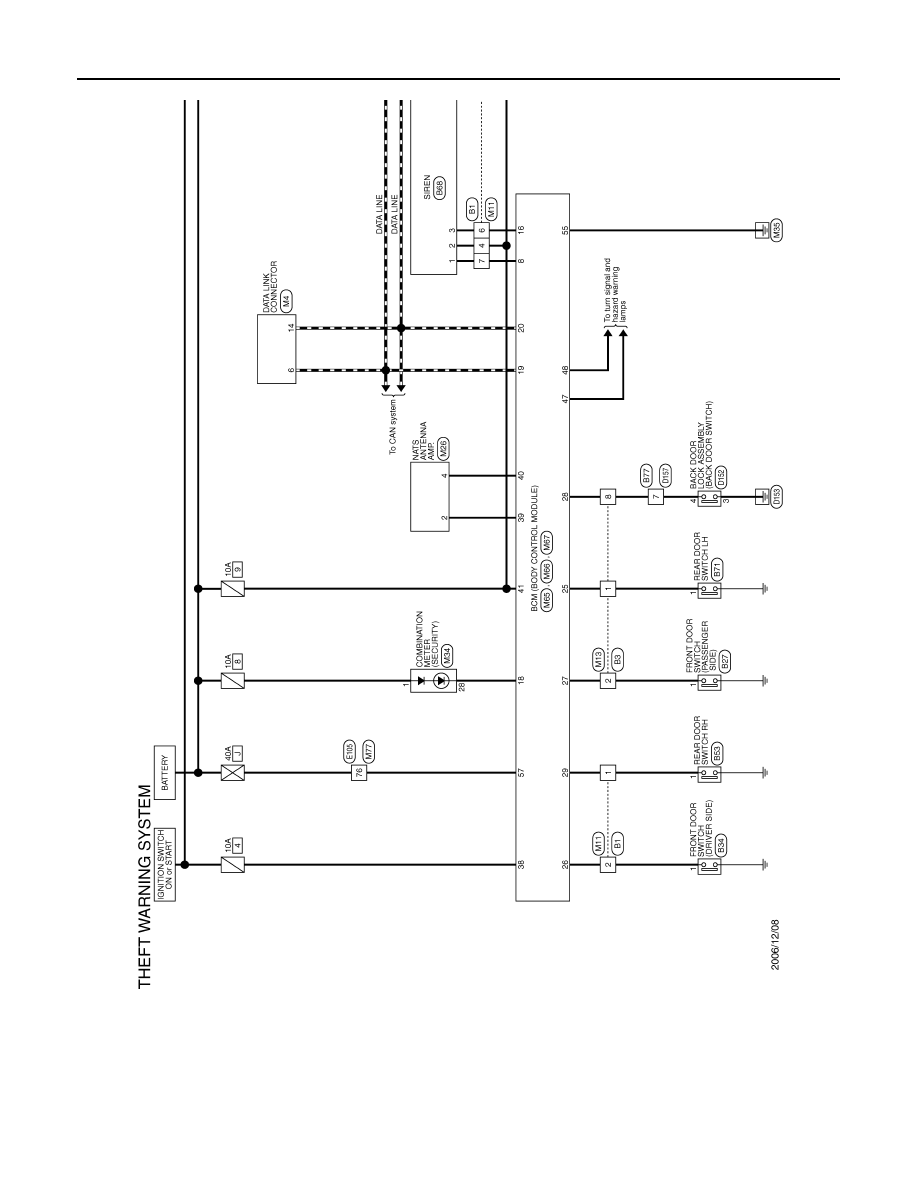

Wiring Diagram - THEFT WARNING SYSTEM -

INFOID:0000000001102215

JCKWA0304GB

BCM (BODY CONTROL MODULE)

SEC-213

< ECU DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

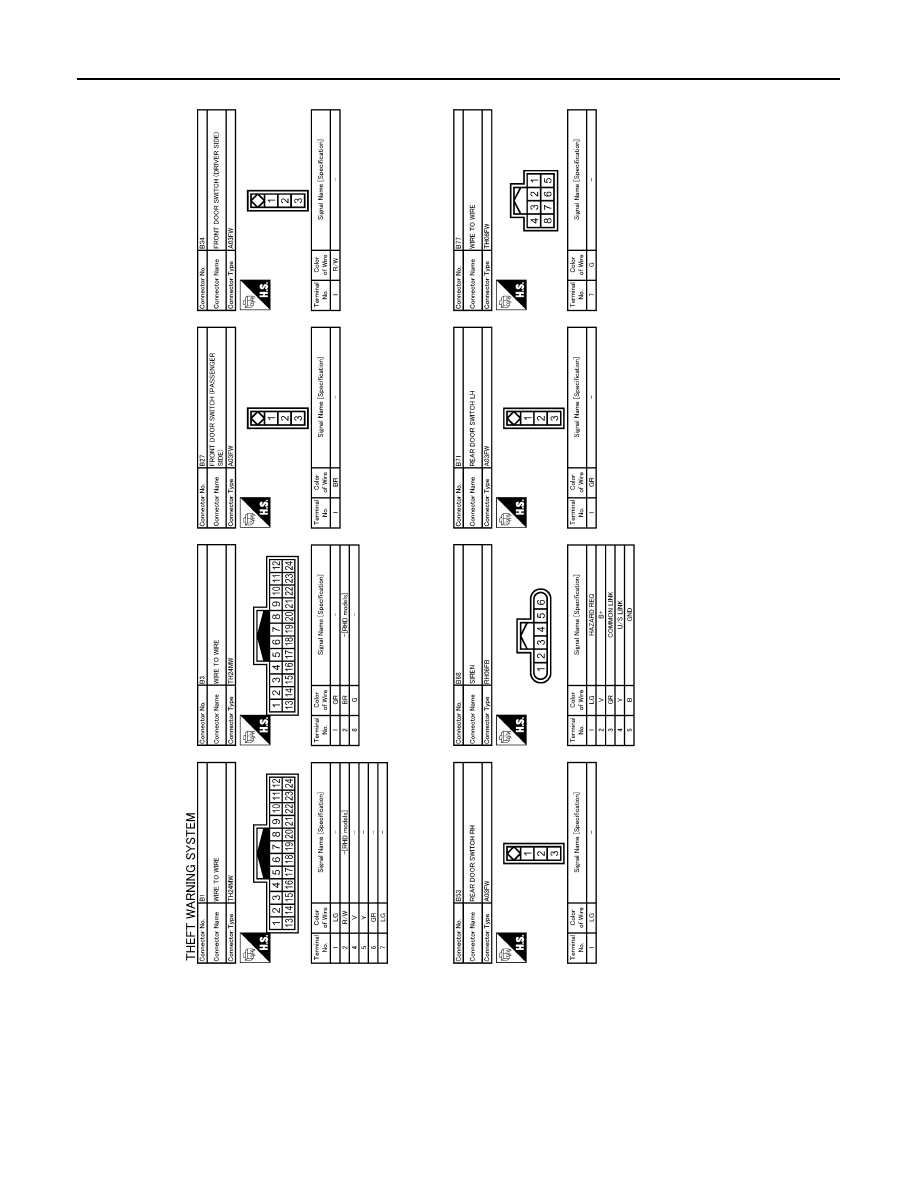

JCKWA0305GB

SEC-214

< ECU DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

BCM (BODY CONTROL MODULE)

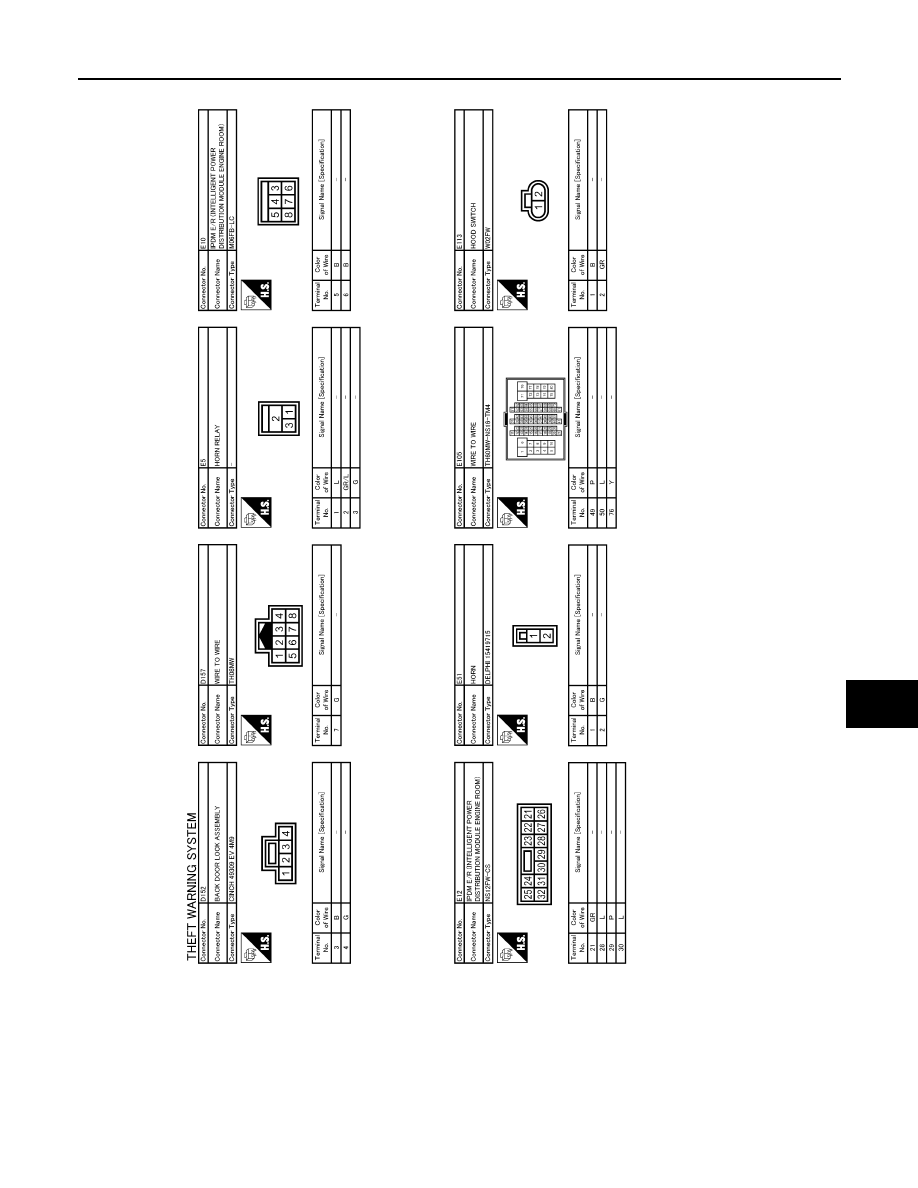

JCKWA0306GB
